3) Save Job file
Save the job file (*.mdb). A confirmation window appears as follows:

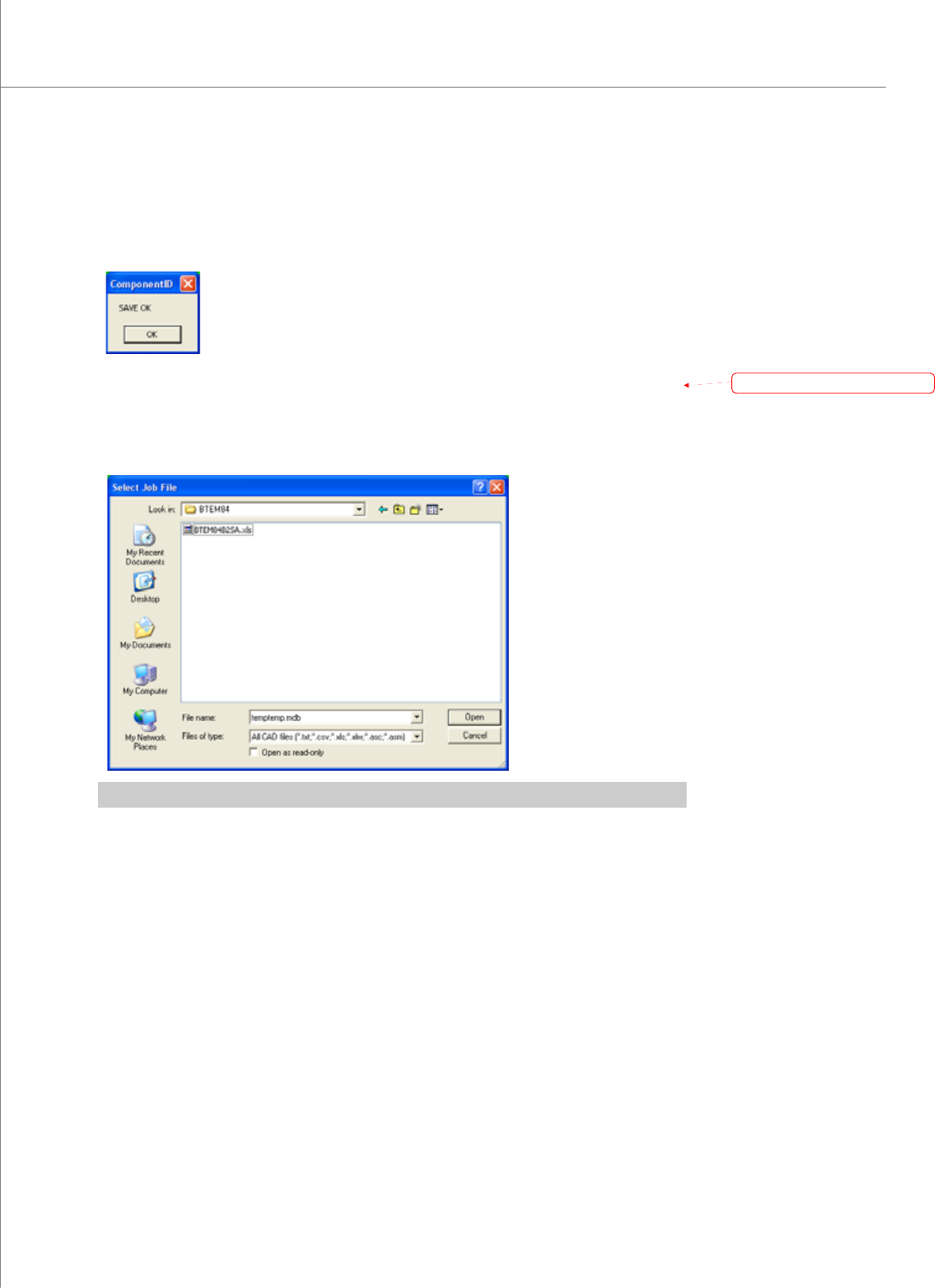

The Save Confirmation Window
4) Load CAD File
Load a CAD file.
The “Select Job File” Dialog Box
※ Note: CAD files such as *.txt, *.csv, *.xls, *.xlw, *.asc or *.asm can be loaded.
带格式的:
项
目符
号
和
编号
Programmers Manual
| 87
5) Load Pin CAD File
Load a Pin CAD file.

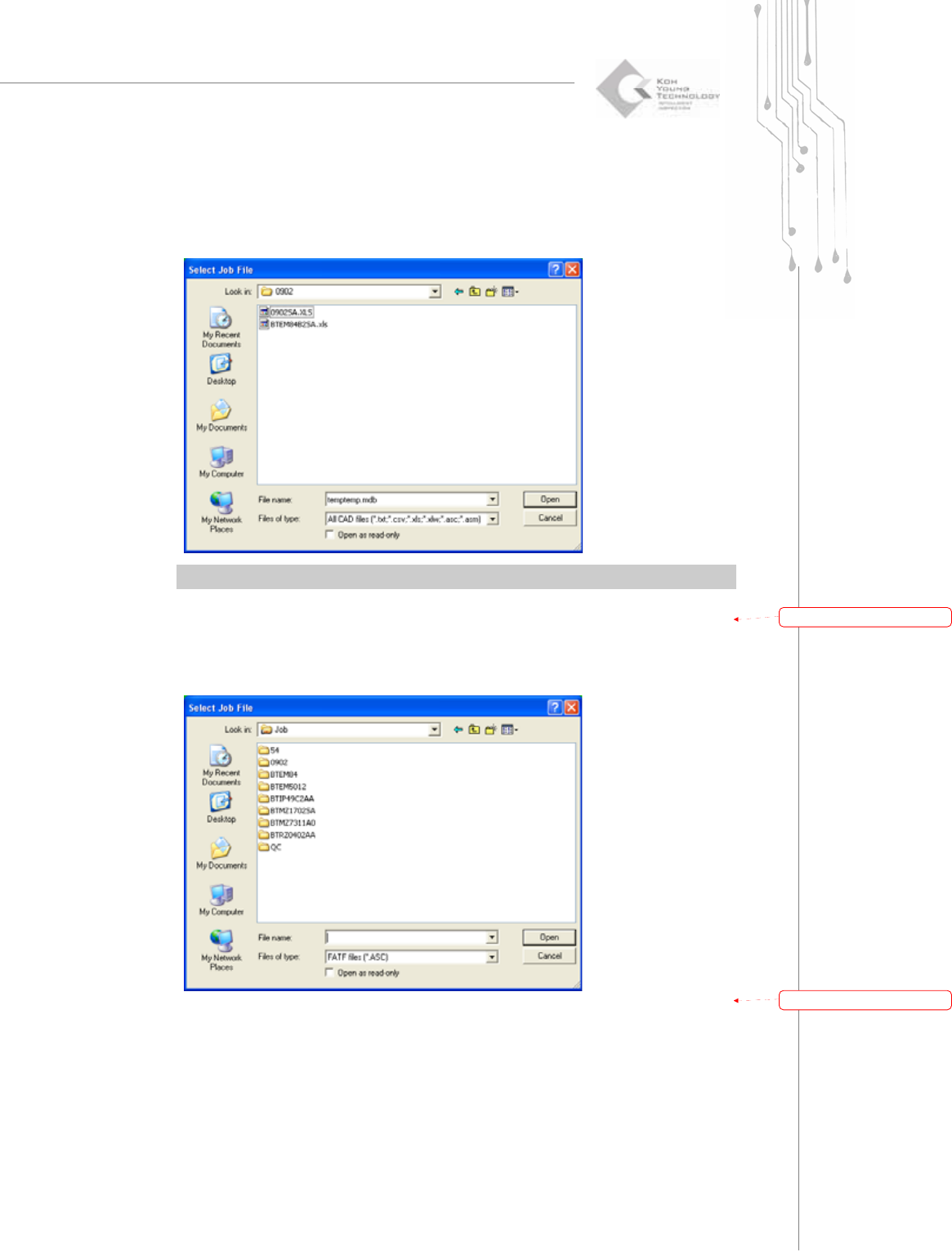

The “Select Job File” Dialog Box
※ Note: CAD files such as *.txt, *.csv, *.xls, *.xlw or *.asc can be loaded.
6) Import CAD File
Convert and import various CAD file formats (e.g. FATF).
The “Select Job File” Dialog Box
带格式的:
项
目符
号
和
编号
带格式的:
项
目符
号
和
编号
88 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
7) Export Report
Save the contents of a job file in csv format (*.csv).
The “Select Job File” Dialog Box
8) Recent files
Open the most recent job file. Up to 10 of the most recent job files are saved for later
use.
9) Quit
Quit the CEditor program.
The “Select Job File” Dialog Box
Click the Yes button to quit the program.
