7-17 7-1. Si gnals and Interf ace Signal Item Specifica tions Remark PIN No.1: (+)Input Signal Less than 24 V/10mA Busy Input(In) PIN No.2: (-) Ground PIN No.3: Contact output Board Available Output(Out)…
Samsung Component Placer SM310 Introduction
7-16

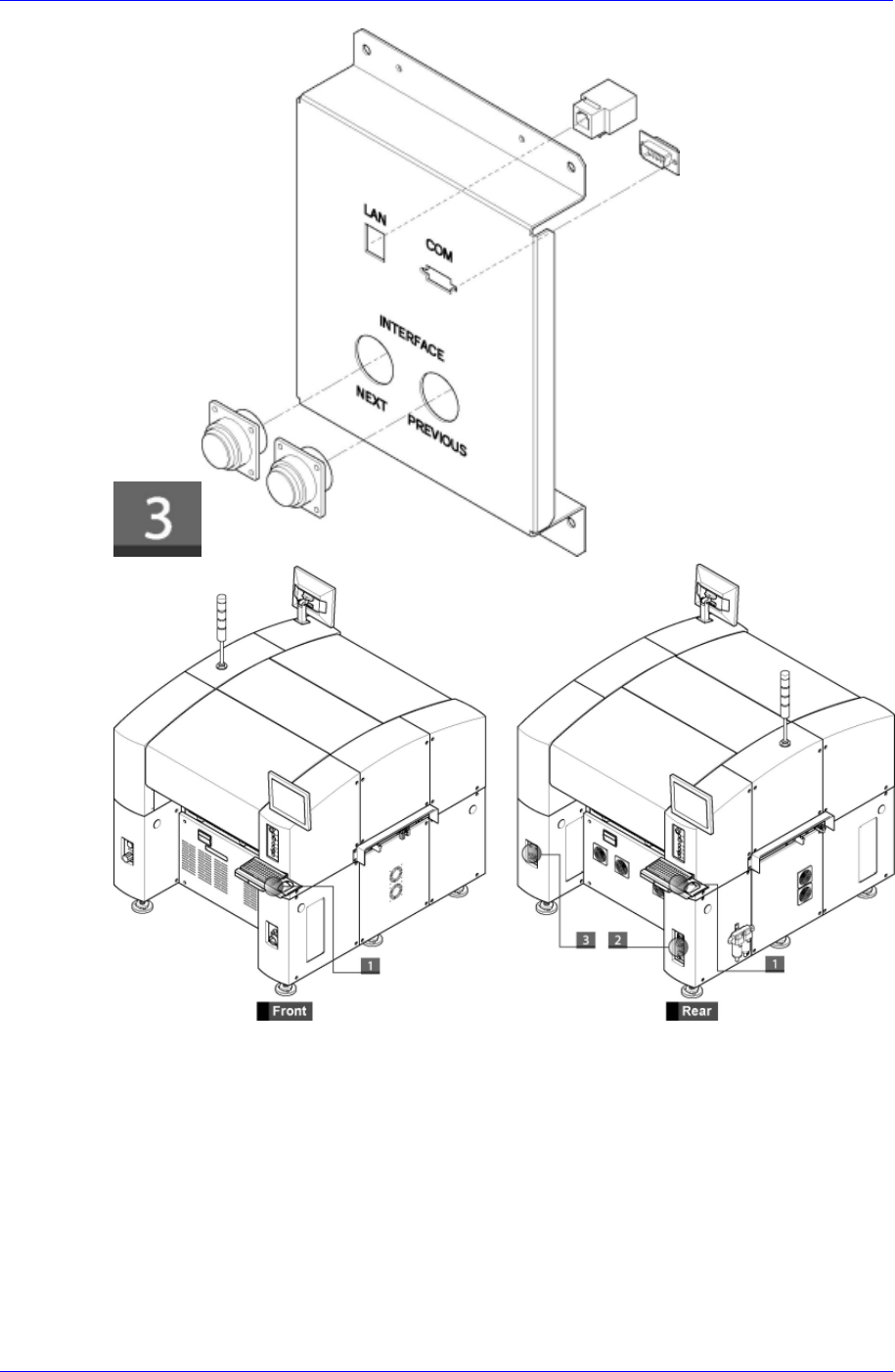

1. Keyboard MouseBarcode, USB , Teaching Box
2. UPS , Power
3. LAN , SMEMA
7-17

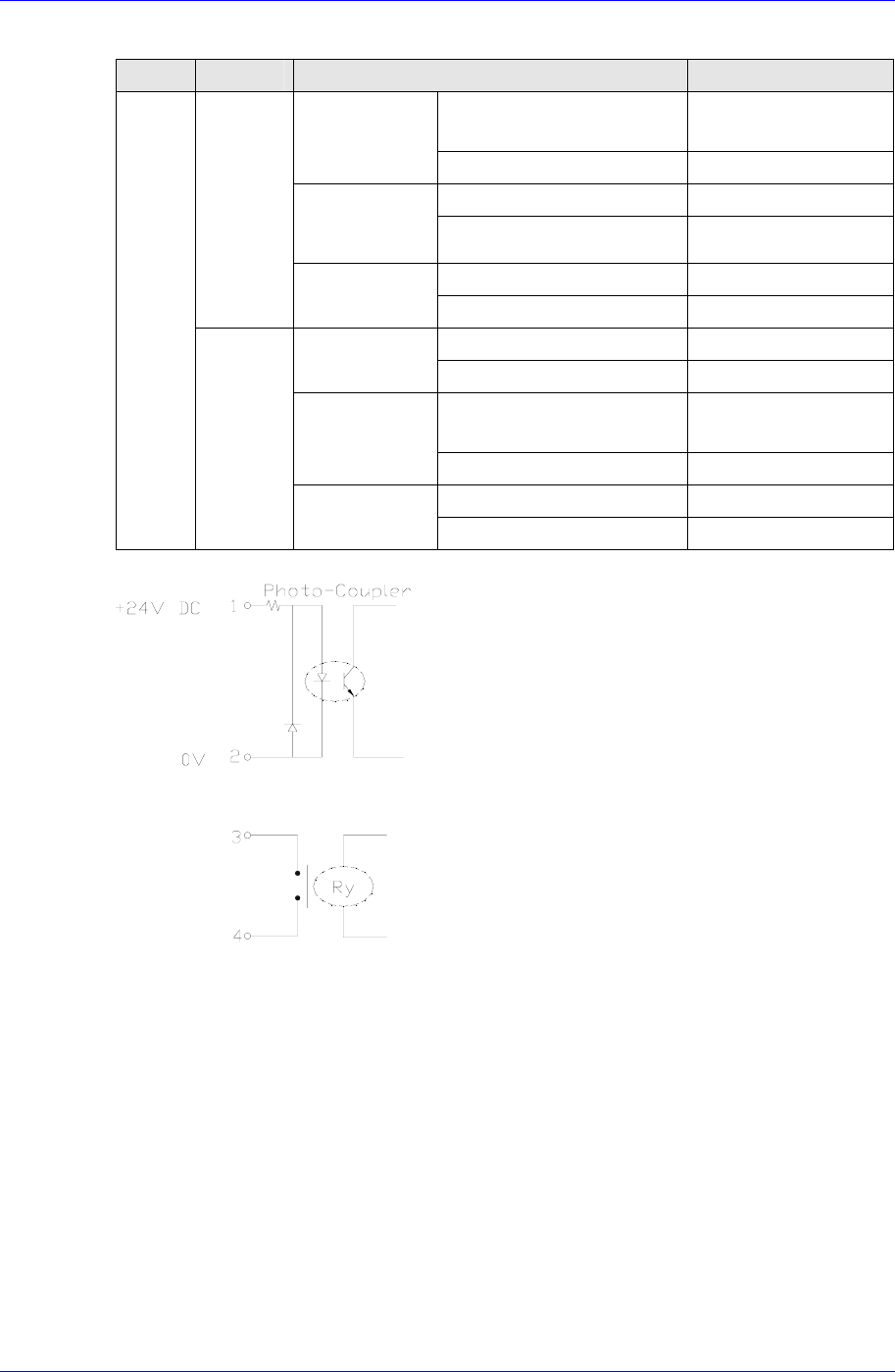

7-1. Signals and Interface
Signal Item Specifications Remark
PIN No.1: (+)Input Signal Less than
24 V/10mA
Busy Input(In)
PIN No.2: (-) Ground
PIN No.3: Contact output Board
Available
Output(Out)
PIN No.4: Contact output
AMP 206043-1 Machine Side
From
Next
M/C
Connector
AMP 206044-1 External Connection
PIN No.1: Contact output
Busy
Output(Out)
PIN No.2: Contact output
PIN No.3: (+) Input Signal Less than
24 V/10mA
Board
Available
Input(In)
PIN No.4: (-) Ground
AMP 206043-1 Machine Side
In-Line
Signal
From
Previous
M/C
Connector
AMP 206044-1 External Connection
7-11. Interface
Socket for RS232C: 25 Pin D-Sub(DSC-S25)
Teaching Box Connector: HR10A-7R-6S
Connector for ANC: 6 Pin Circular Type
Samsung Component Placer SM310 Introduction
7-18
7.3.
,,
PCB
7.4.
PCB

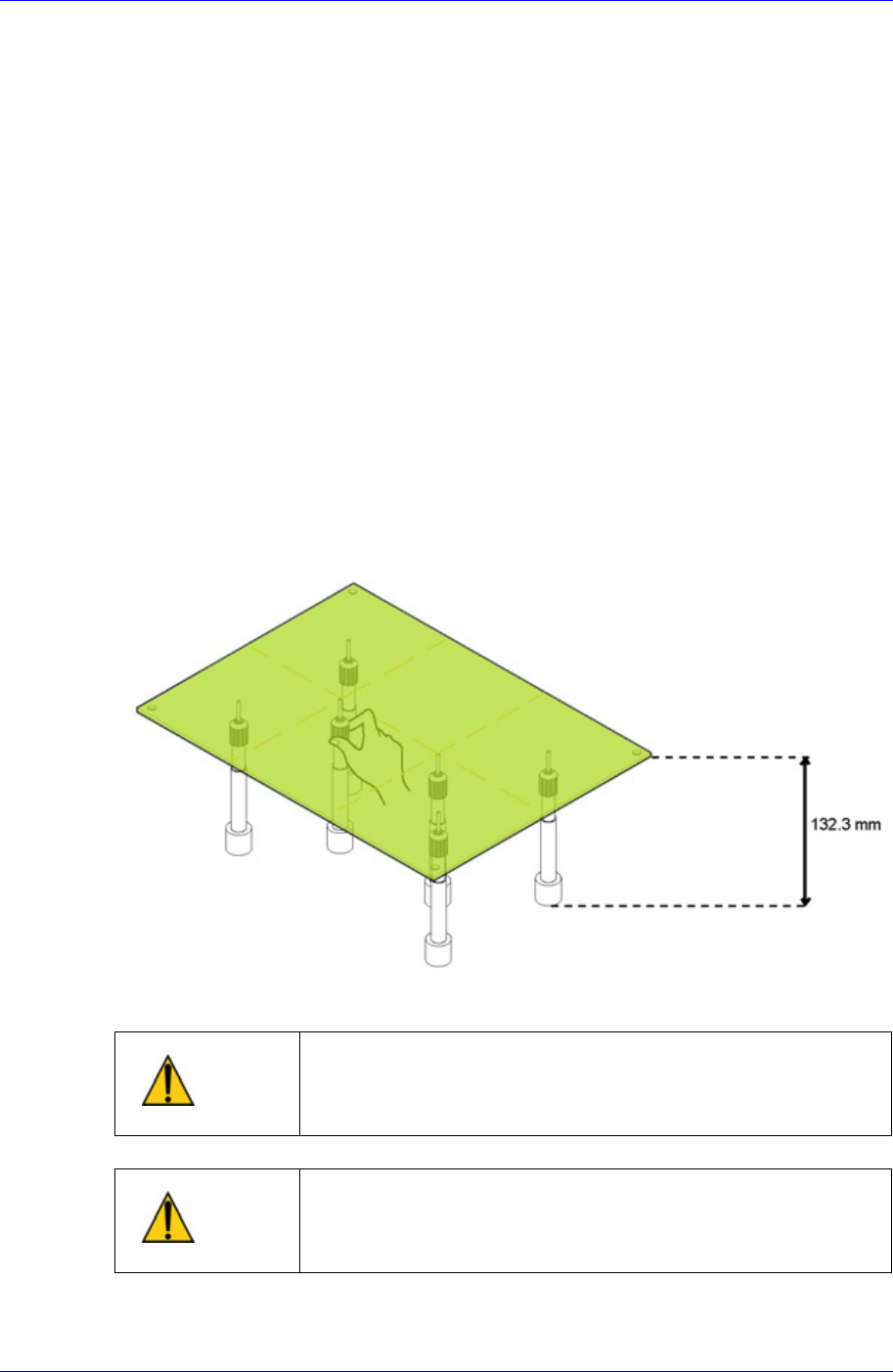

7.5. Backup Pin
Backup Pin 132.3mm , . PCB PCB JIG
Backup Pin
Operation Handbook “Part VI. ”“
Backup Pin”
7-12. Backup Pin
Back Up Table Back up pin
Back up pin PCB
Back Up Table Back up pin
PCB back up pin
Back Up Pin
