5-1 5.4. 5.4.1. The Sensor Lay-Out 5-4. Layout
Samsung Component Placer SM310 Introduction
5-4
5-3.
Idle
5-1
5.4.

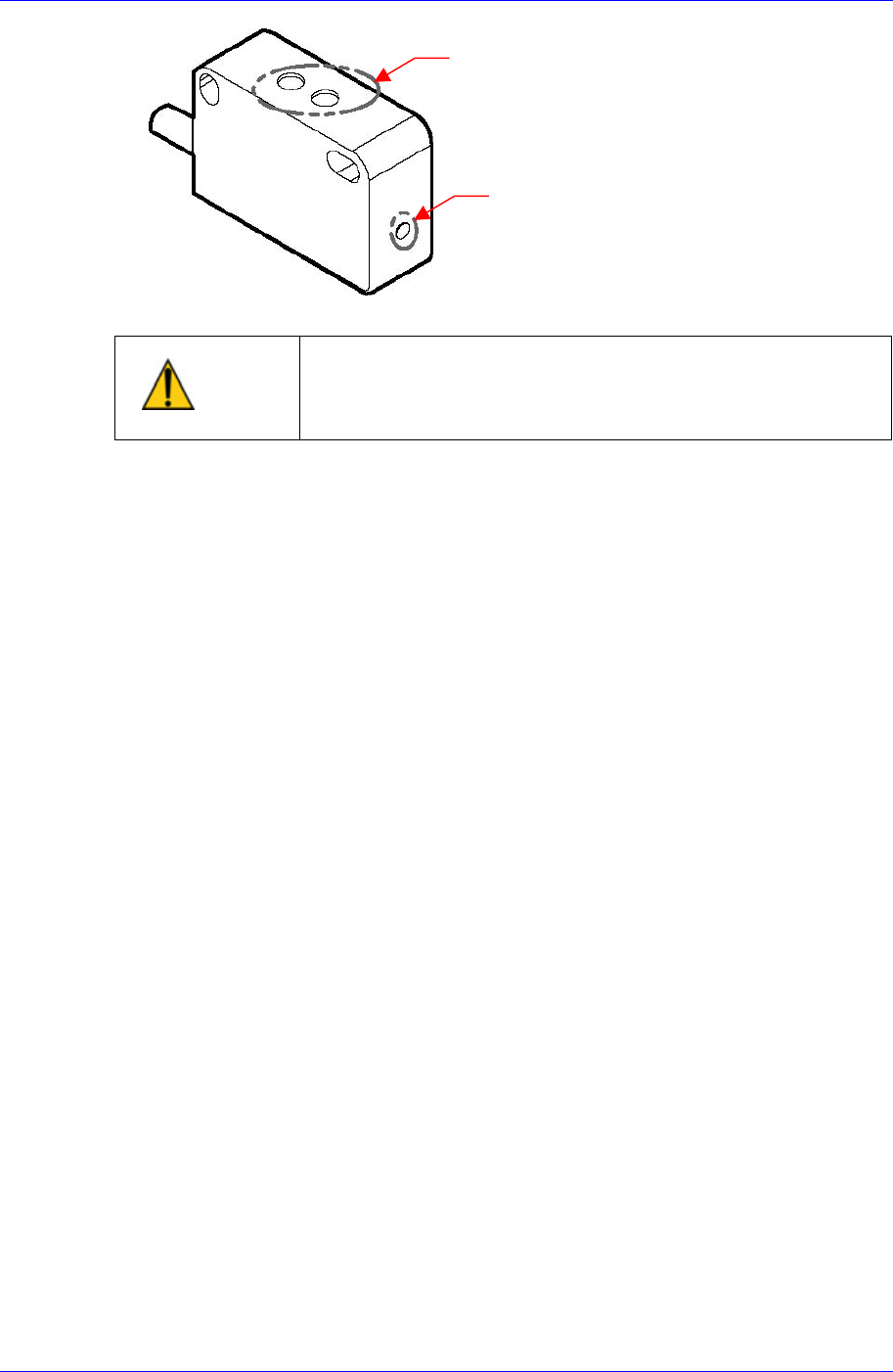

5.4.1. The Sensor Lay-Out
5-4.
Layout
Samsung Component Placer SM310 Introduction
5-2
5.4.2. The Sensor Part List
5-1. The table of sensor part lis
No PART NO PART NAME TYPE
1 J34091002A SAFETY DOOR SWTICH D4NS-2BF
2 J1300094 PHOTO SENSOR EE-SX672A
3 J1300093 PHOTO SENSOR EE-SX671A
4 J1301268 PHOTO SENSOR EE-SX674A (OMRON)
5 J90830143D FEEDER UNLOCK SNS CABLE #11 SM310-MIB-02-31
J90830144D FEEDER UNLOCK SNS CABLE #21 SM310-MIB-02-41
6 J90800942B ANC SENSOR CABLE ASS'Y J90800942B
7 J32111003A PHOTOELECTRIC SENSOR BYD30-DDT-S
