Samsung Component Placer SM310 Intr oduction 6-2 6.2. X-Y 6.2.1. 6-2. X-Y 6.3. PCB 6.3.1. PCB SM310 W ork Conveyor Lane …
Module Function
6-1
6. Module Function
6.1.
6.1.1.

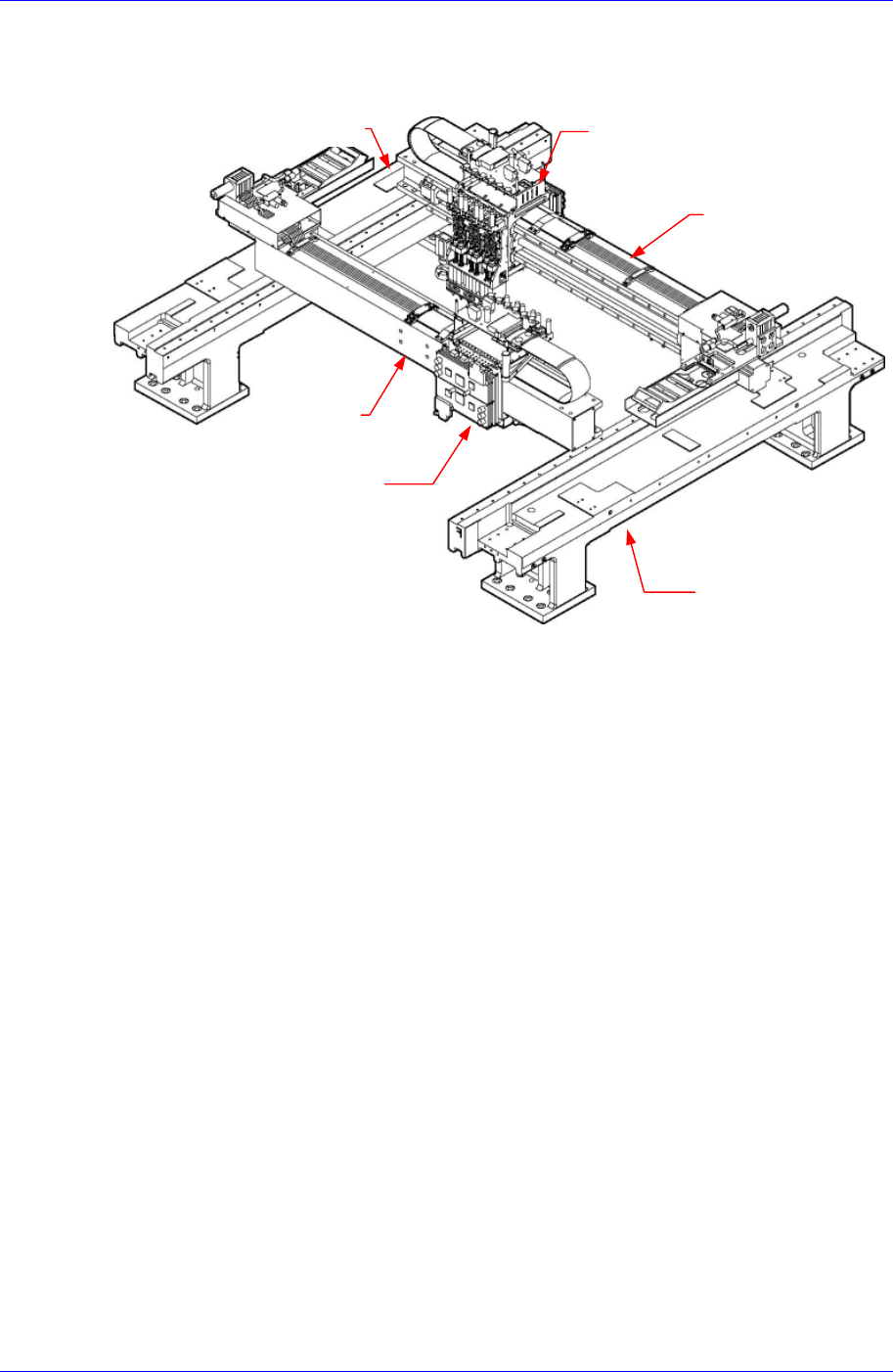

6-1. Head Assembly
6 1 2 X-Y
X-Y
20mm 1 LSC Y
6
Z 13G Z
Valve Ass’y
Head 6 Spindle
Ass’y
Fiducial Camera
Z Moto
r
Theta Motor
Samsung Component Placer SM310 Introduction
6-2
6.2. X-Y
6.2.1.
6-2. X-Y
6.3. PCB
6.3.1.
PCB
SM310 Work Conveyor Lane
PCB Work Conveyor Lane Entry Shuttle
Conveyor(St00) PCB Work Conveyor Lane
PCB Exit Shuttle Conveyor(St02) PCB
PCB PCB
PCB
X2
X1
Head 1
Head 2
Module Function
6-3
Entry Shuttle Conveyor
Frame (St00)
Entry Belt Ass'y
En/Shtl Width ADJ Ass'y
En/Shtl Shuttle Ass'y
Entry PCB Detect Sensor Ass'y
En/Shtl PCB Stopper
Front Work Belt Ass'y
Front Work Width ADJ Ass'y
Front Edge Fixer
Front Work PCB Stopper
Front Work PCB Clamp
Front Work Backup Table
Front Work Hole Fixer
Rear Work Belt Ass'y
Rear Work Width ADJ Ass'y
Rear Edge Fixer
Rear Work PCB Stopper
Rear Work PCB Clamp
Rear Work Backup Table
Rear Work Hole Fixer
Exit Shuttle Conveyor
Frame (St02)
Exit Belt Ass'y
Ex/Shtl Width ADJ Ass'y
Ex/Shtl Shuttle Ass'y
Exit PCB Detect Sensor Ass'y
Ex/Shtl PCB Stopper
Conveyor
Module
Work
Conveyor
Frame
Front PCB Detect Sensor Ass'y
Rear PCB Detect Sensor Ass'y
Rear Work
Unit
Front Work
Unit
6-3. PCB
Conveyor System
