HARD DISK DRIVE SDF-101 10-01 HARD DISK DRIVE SHEET 1/1 HARD DISK DRIVE [Layout] The above illustration shows jum per setting of hard disk mounted on this unit as st andard. If it has been replaced with othe r manufactur…

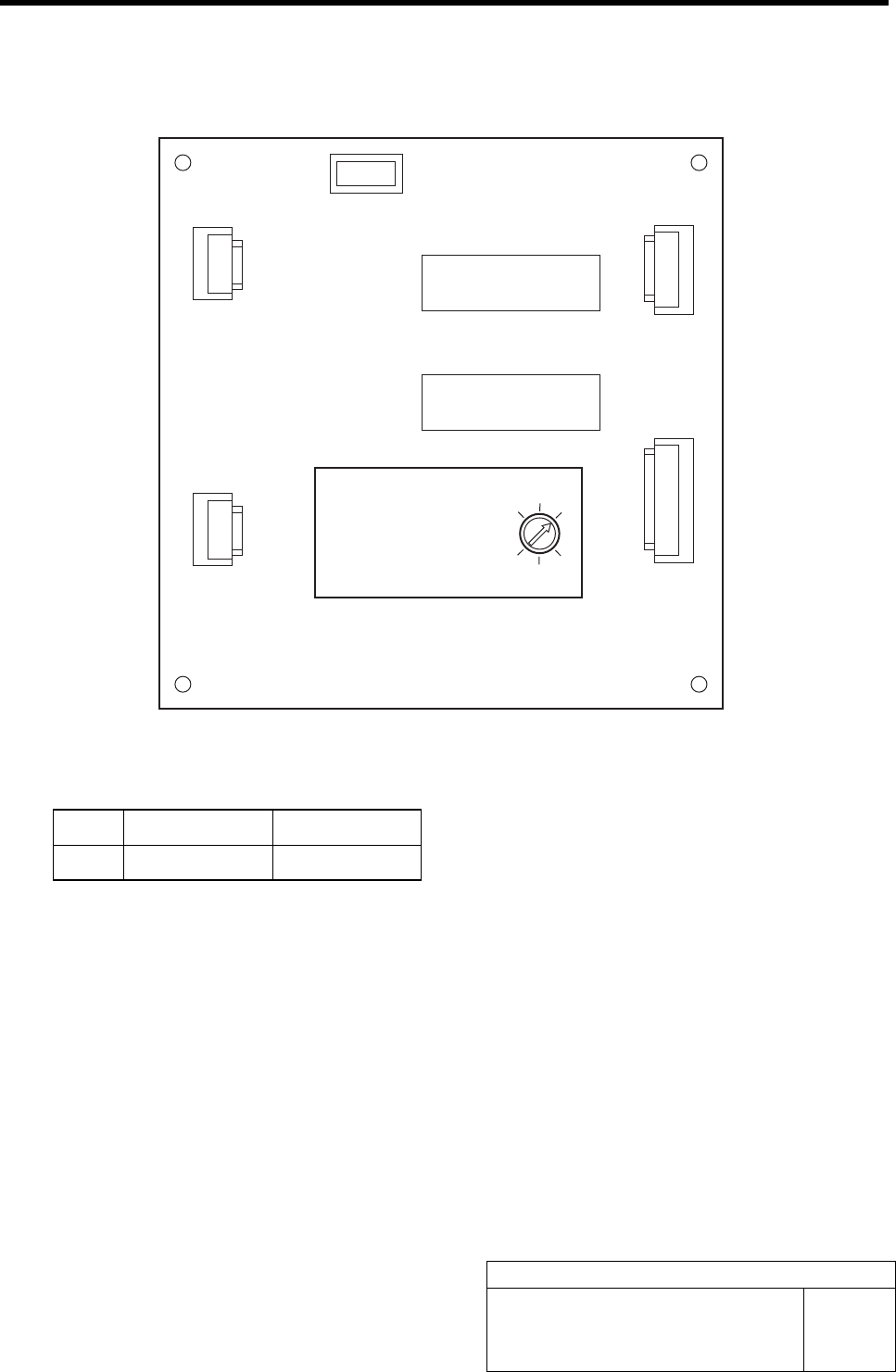

MEMORY LINK BOARD (MASTER)
SDF-10109-01
MEMORY LINK BOARD (MASTER)
SHEET
1/1
MEMORY LINK BOARD (MASTER)
[Layout]
RSW1
LED RED
[Configuration]
Name Configuration Function
RSW1
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
Board ID setting
LED Light-off
Slave station state monitor LED
(If slave station is one sheet, all of three do not light up)
HARD DISK DRIVE
SDF-10110-01
HARD DISK DRIVE
SHEET
1/1
HARD DISK DRIVE
[Layout]

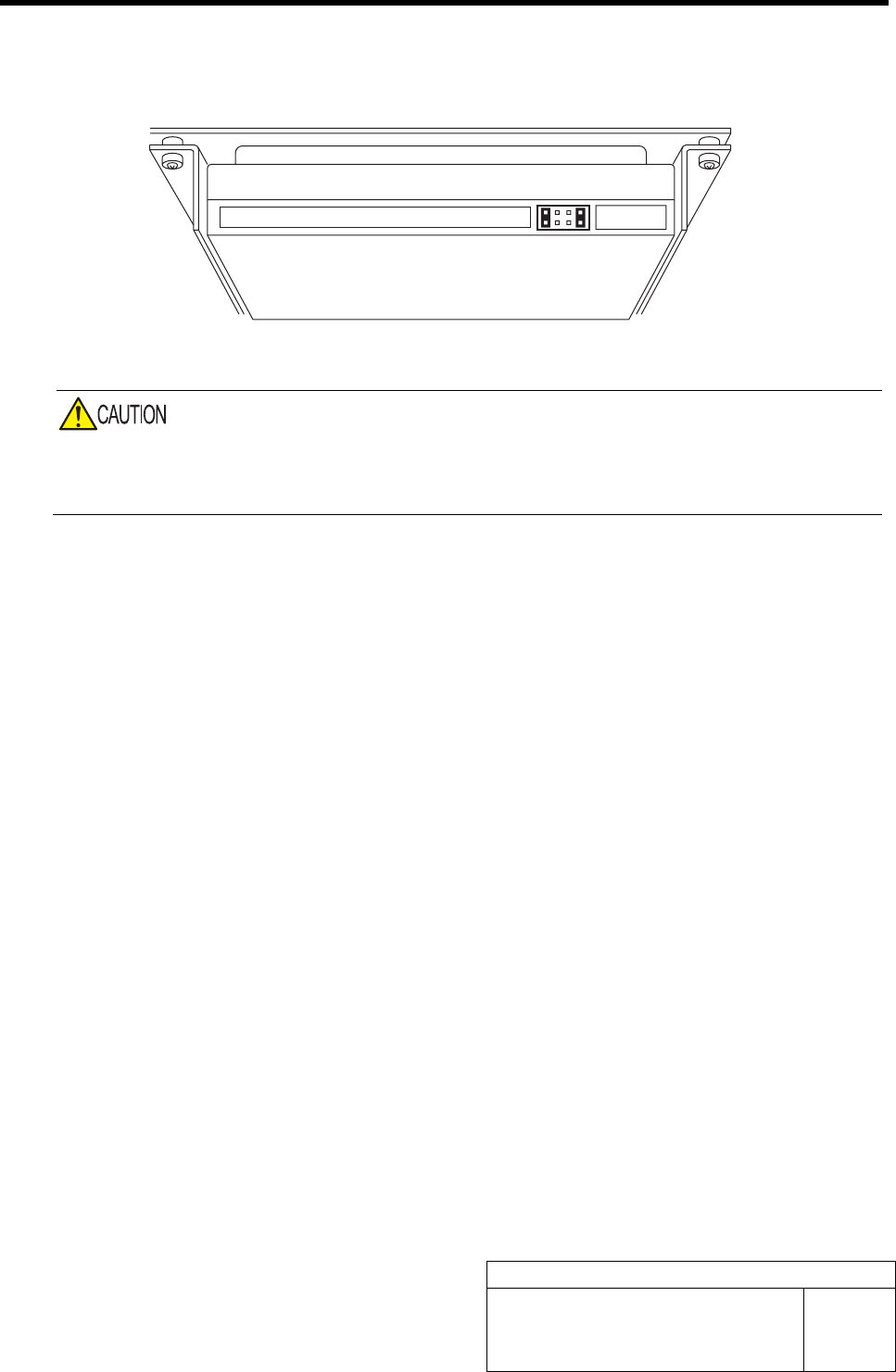

The above illustration shows jumper setting of hard disk mounted on this unit as standard.
If it has been replaced with other manufacturer’s hard disk, follow the jumper setting of that manu-
facturer.
POWER ON/OFF CONTROL BOARD II
SDF-10201-01
POWER ON/OFF CONTROL BOARD II
SHEET
1/1
POWER ON/OFF CONTROL BOARD II
[Layout]
L
S
CN2 CN3
CN4 CN1
POWER ON/OFF CONTROL BOARD Τ
TMR1
CN5
[Configuration]
Name Configuration Function
TMR1 5 min.
