Samsung Component Placer SM321 Service Manual
5-2
NO. PART NO. PART NAME Q’TY
TYPE REMARK
18 J6601109A BALL BEARING 1 608ZZ
19 J6601126A BALL BEARING 1 F608ZZ
20 J7053662A TENSION BEARING PIN 1 J7053662A
21 J6601008A BALL BEARING 2 6000ZZ
22 J7053194A BEARING NUT 1 0131-641016
23 J6602074A TIMING BELT 1 025-XL-396-AJ
24 J7053762A STOPPER REAR 1 J7053762A

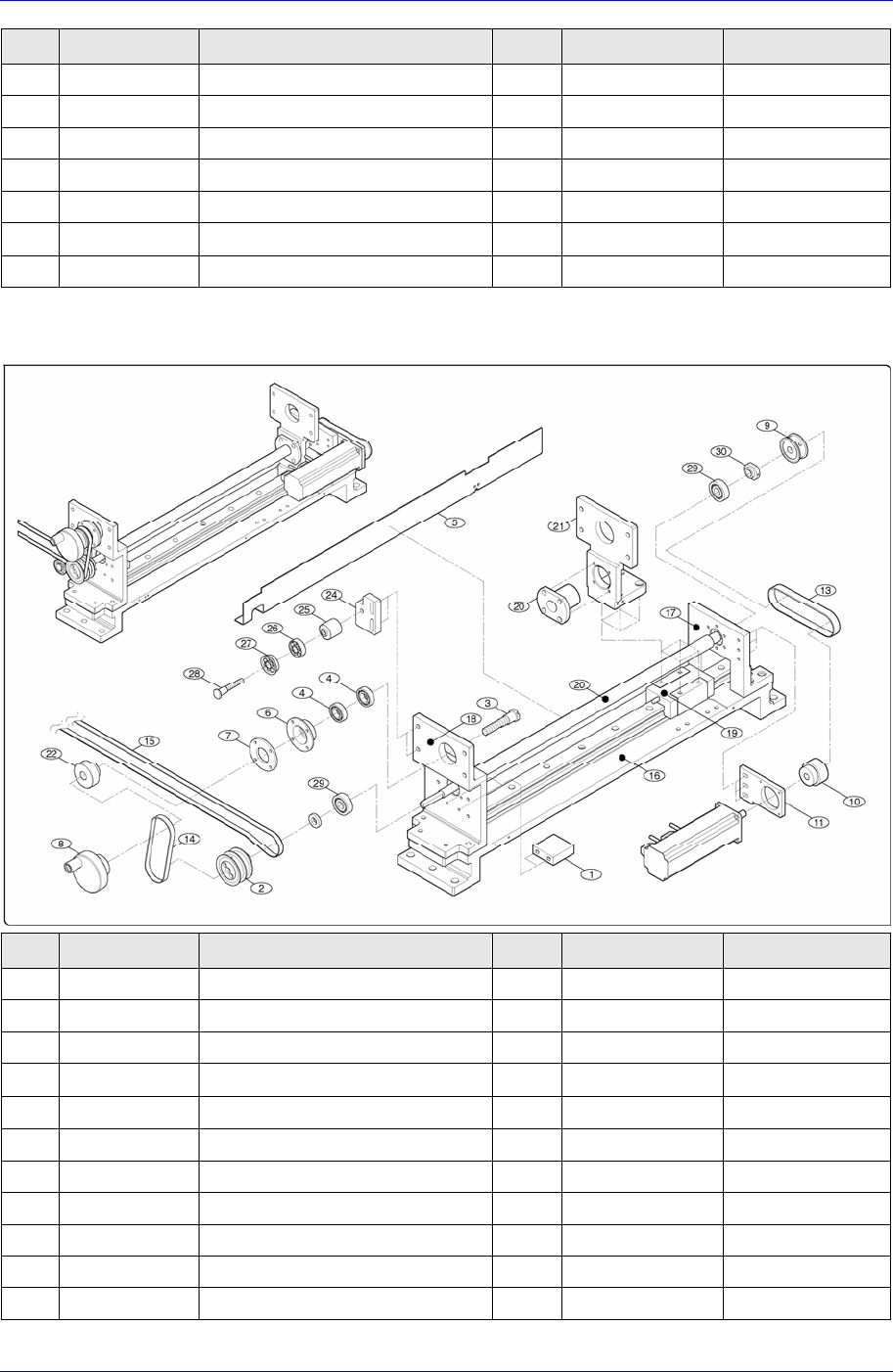

5.1.2. Exit Conveyor Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J7053748A STOPPER-FRONT 1 J7053748A
2 J7153325A WIDTH PULLEY 1 J7153325A
3 J7053768A MANUAL SHAFT 1 J7053768A
4 J6601122A BEARING 6 6901ZZ
5 J7053781A CONVEYOR CHIP COVER-R 1 J7053781A
6 J7053666A BEARING HOUSING SF 3 J7053666A
7 J7053034A BEARING NUT-SF 3 0135-641077
8 J6402010A HANDLE 1 HOK-50
9 J7153330A PULLEY SHAFT 1 J7153330A
10 J6609015B PULLEY-MOTOR 1 P32-3M-9
11 J7053780A BRACKET-SERVO MOTOR 1 J7053780A
Conveyor & BUT
5-3
NO. PART NO. PART NAME Q’TY
TYPE REMARK
12 J3108062A SERVO MOTOR 1 MSMA012P1A01
13 J6602030A TIMING BELT 1 258-3M-9
14 J6602075A TIMING BELT 1 92XL-025
15 J6602074A TIMING BELT 1 025-XL-396-AJ
16 J7053788A SUPPORT-WIDE ADJUST 1 J7053788A
17 J7053201A SCREW STAND 1 0145-641014
18 J7153404A FIX STAND 1 J7153404A
19 J6607025A LM GUIDE (WIDTH) 1 SBG20-SL-1-460-N
20 J6614006A LEAD SCREW 1 DCM16 + 538.5L
21 J7053677A MOVE STAND 1 J7053677A
22 J7153416A MANUAL PULLEY 1 J7153416A
23 J7153326A WIDTH PULLEY COLLAR 1 J7153326A
24 J7053660A TENSION BKT 1 J7053660A
25 J7053661B WIDTH TENSION SPACER 1 J7053661B
26 J6601109A BALL BEARING 1 608ZZ
27 J6601126A BALL BEARING 1 F608ZZ
28 J7053662A TENSION BEARING PIN 1 J7053662A
29 J6601008A BALL BEARING 2 6000ZZ
30 J7053194A BEARING NUT 1 0131-641016

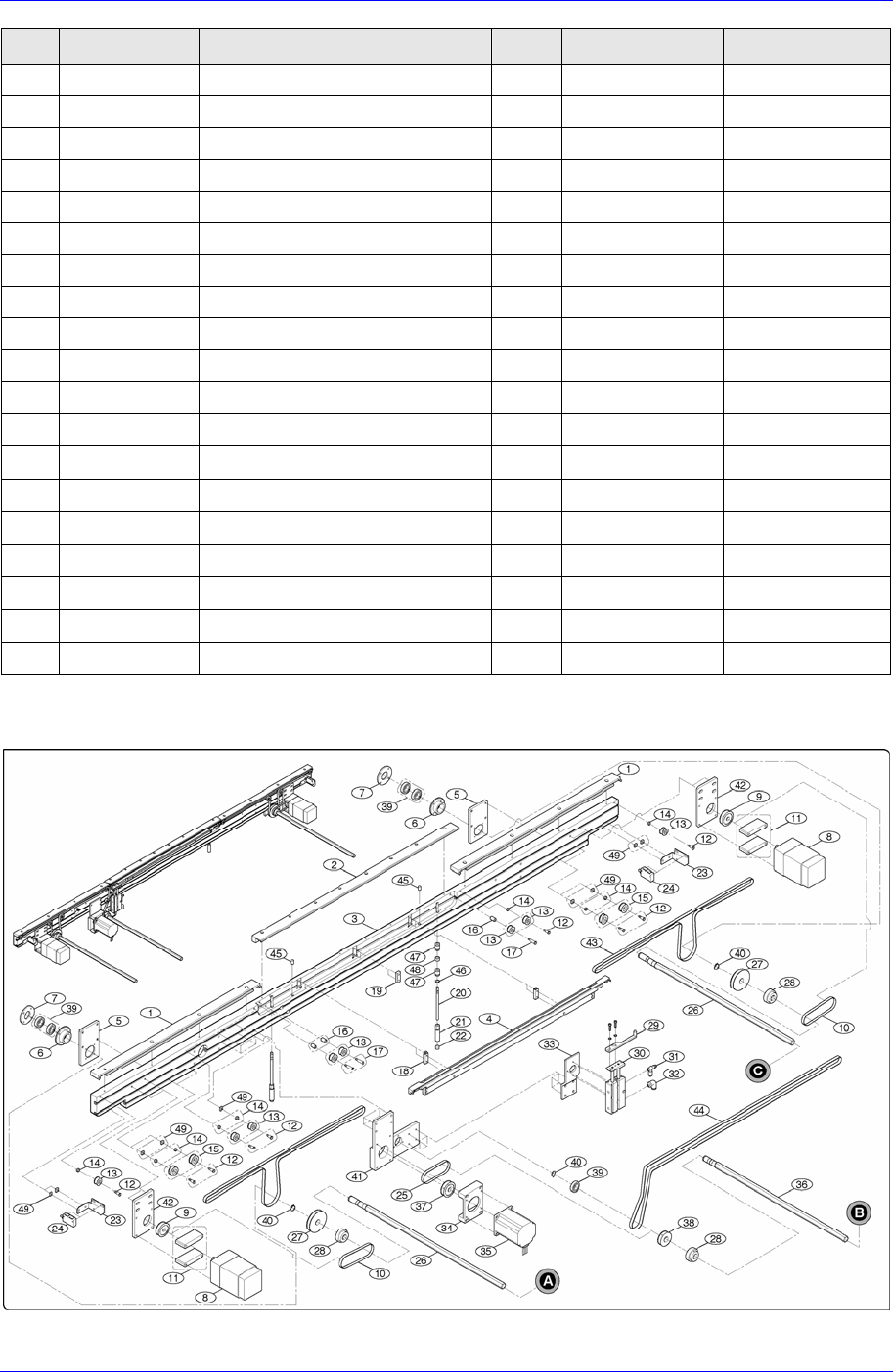

5.1.3. Conveyor Fixed Frame Ass’y
Samsung Component Placer SM321 Service Manual
5-4
NO. PART NO. PART NAME Q’TY TYPE REMARK
1
J7053679A
PCB GUIDE END
2 J7053679A
2
J7053785A
PCB GUIDE F.C
1 J7053785A
3
J7153401A
CONVEYOR FRONT FRAME
1 J7153401A
4
J7153399A
CLAMP FRONT FRAME
1 J7153399A
5
J7053665A
WAIT PULLEY BKT SF
2 J7053665A
6
J7053666A
BEARING HOUSING SF
3 J7053666A
7
J7053034A
BEARING NUT-SF
3 J7053034A
8
J3109002A
SPEED CONTROL MOTOR
2 S6106GA-S (SUNG-SIN)
9
J7153414A
AC MOTOR PULLEY
2 J7153414A
10
J6602081A
TIMING BELT -AC MOTOR
2 237-S3M-6
11
J7053776A
SPACER -AC MOTOR
4 J7053776A
12
J7053009A
IDLER SHAFT-S2
9 J7053009A
13
J7253007A
IDLER 2
8 J7253007A
14
J7053047A
IDLER SPACER-S
9 J7053047A
15
J7253006A
IDLER 1
4 J7253006A
16
J7053048A
IDLER SPACER-M
3 J7053048A
17
J7053050A
IDLER SHAFT-M
3 J7053050A
18
J6607016A
LM SLIDE
2 BSP 1025
19
J7153036A
SLIDE GUIDE
1 J7153036A
20
J7153034A
CLAMP SHAFT
2 J7153034A
21
J7153010B
ADJUST SHAFT
2 J7153010B
22
J7253008A
STOPPER
2 J7253008A
23
J7053708A
SENSOR BKT S1
2 J7053708A
24
J3211033A
PHOTO SENSOR
2 E3S-LS3N
25
J6602080A
TIMING BELT -STEP MOTOR
1 201-S3M-6
26
J7053782A
SPLINE S
2 J7053782A
27
J7153110A
FLAT PULLEY -AC MOTOR
2 J7153110A
28 J7153413A PULLEY-SPLINE
3 J7153413A
29 J7053684A STOPPER TOP PLATE
1 J7053684A
30 J6701018B STOPPER CYLINDER 1
1 WTS10*30-RS2
31 J6703007A THROTTLE VALVE(ELBOW)
1
AS1201F-M5-04-X214/JNC4-
M5
32 J6711001A ELBOW FITTING
1
KQ2L04-M5/PL4-
M5M/SQL04-M5
33 J7053685A STOPPER BRACKET-M
1 J7053685A
34 J7053769A BRACKET-MOTOR
1 J7053769A
35 J3104013A C/V STEP MOTOR
1 4S56Q-03076S
36 J7053767A SPLINE-M
1 J7053767A
37 J7153417A PULLEY-STEP MOTOR
1 J7153417A
38 J7153405 A FLAT PULLEY-STEP
1 J7153405A
