Samsung Component Placer SM321 Service Manual 5-42 5.8. Back Up T able 5.8.1. 所需材料 NO. P ART NO. P ART NAME Q’TY TYPE REMARK 1 J7053801A BACK UP PLA TE 1 J7053801A 2 J7053799A UPPER PLA TE 1 J7053799A 3 J7053803A UP SENS…
Conveyor & BUT
5-41
5.7. Conveyor Rail
5.7.1. Rail Left Ass’y
J6601008A(J1300509)
BALL BEARING [6000ZZ]
3-J6001401038
SHCS[M4*10]
3-J6043400038
SPRING WHASHER[M4]
3-J6042400038
FLAT WHASHER[M4]
J6614006A
LEAD SCREW
J6601006A
LEAD SCREW NUT
4-J6001401538
SHCS[M4*15]
J7053677A
MOVE STAND
4-J6001502038
SHCS[M5*20]
J7053194A
BEARING NUT
2-J6010300538
SET SCREW[M3*5]J7153404A
FIX STAND
4-J6001502038
SHCS[M5*20]
J7153330A
PULLEY SHAFT
2-J6001400638
SET SCREW[M4*6]
J6601008A(J1300509)
BALL BEARING [6000ZZ]
3-J6001401038
SHCS[M4*10]
3-J6043400038
SPRING WHASHER[M4]
3-J6042400038
FLAT WHASHER[M4]
J7053201A
SCREW STAND
4-J6001502038
SHCS[M5*20]
J7153326A
WIDTH PULLEY COLLAR
J7153325A
WIDTH PULLEY
2-J6010300538
SET SCREW[M3*5]
5.7.2. Rail Right Ass’y
J6601008A(J1300509)
BALL BEARING [6000ZZ]
3-J6001401038
SHCS[M4*10]
3-J6043400038
SPRING WHASHER[M4]
3-J6042400038
FLAT WHASHER[M4]
J6614005A
LEAD SCREW
J6601008A
LEAD SCREW NUT
4-J6001401538
SHCS[M4*15]
J7053677A
MOVE STAND
4-J6001502038
SHCS[M5*20]
J7053194A
BEARING NUT
2-J6010300538
SET SCREW[M3*5]
J7153404A
FIX STAND
4-J6001502038
SHCS[M5*20]
J6609012A
WIDTH PULLEY
2-J6010300538
SET SCREW[M3*5]
J6601008A(J1300509)
BALL BEARING [6000ZZ]
3-J6001401038
SHCS[M4*10]
3-J6043400038
SPRING WHASHER[M4]
3-J6042400038
FLAT WHASHER[M4]
J7053201A
SCREW STAND
4-J6001502038
SHCS[M5*20]
J7153326A
WIDTH PULLEY COLLAR
Samsung Component Placer SM321 Service Manual
5-42
5.8. Back Up Table
5.8.1. 所需材料
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J7053801A BACK UP PLATE 1 J7053801A
2 J7053799A UPPER PLATE 1 J7053799A
3 J7053803A UP SENSOR DOG 1 J7053803A
4 J7053800A LOWER PLATE 1 J7053800A
5 J6107047A SPRING 1 SWU26-70
6 J6308003A URETHAN CUSHION 2 AXNSK15-40
7 J6015064000 SHOULDER SCREW 2 MSB6-40
8 J3212002A SENSOR 1 EE-SX670A
9 J7053802A UP SENSOR BRACKET 1 J7053802A
10 J90531003A DRIVING_LINK_ASSY 2 J90531003A
10-A J7053793A LOWER LINK PIN 8 J7053793A
10-B J7053796A LOWER LINK SHAFT 4 J7053796A
10-C J7153418A UPPER FREE LINK 2 J7153418A
10-D J7053792A UPPER LINK PIN 16 J7053792A
10-E J90531008A LINK_END_ASSY 8 J90531008A
11 J90531007A UPPER_BEARING_ASSY 8 J90531007A
11-A J7053791A UPPER BEARING HOLDER 8 J7053791A
11-B J6601005A BEARING 24 688ZZ
12 J90531006A LOWER_BEARING_ASSY 8 J90531006A
Conveyor & BUT
5-43
NO. PART NO. PART NAME Q’TY
TYPE REMARK
12-A J7053790A LOWER BEARING HOLDER 8 J7053790A
13 J90531004A FREE_LINK_ASSY 2 J90531004A
13-A J7153419A UPPER DRIVING LINK 2 J7153419A
14 J90531005A BUT_CYLINDER_ASSY 1 J90531005A
14-A J7053795A RING FIXER 3 J7053795A
14-B J7053794A CYLINDER JOINT PIN 2 J7053794A
14-C J6619062A CYLINDER JOINT 1 Y-032B
14-D J6701088A CYLINDER 1 CM2C32-50
14-E J6711028A ELBOW FITTING 2 KQ2L04-01
5.8.2. Back Up Table
气缸及传感器工作不良
5.8.3. 必要工具
T Wrench (其他提供工具) or Hex Wrench
Wrench (其他提供工具)
5.8.4. Air Cylinder 及传感器替换次序
Air Cylinder 替换次序

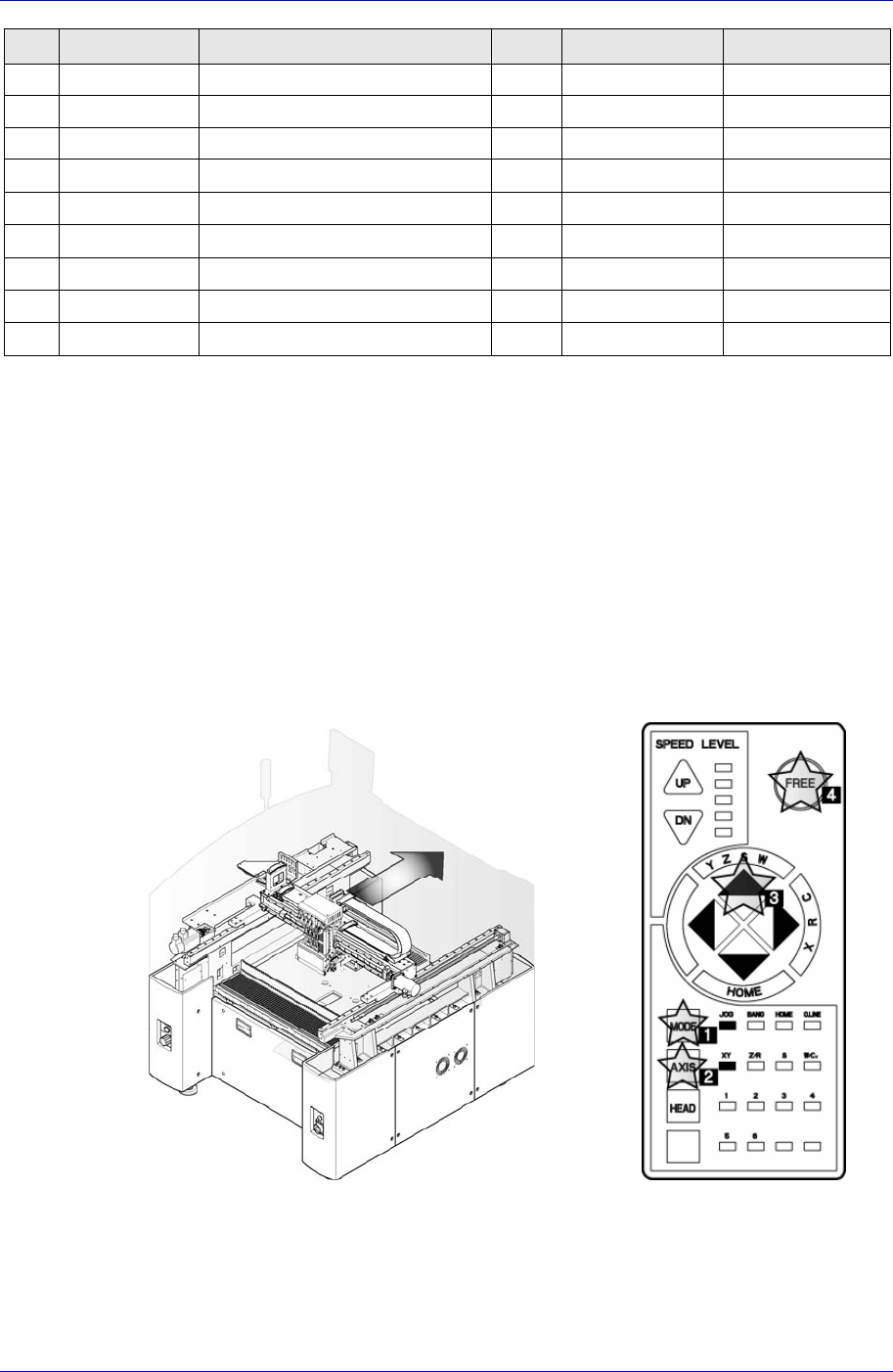

1. 操作示教框把X Frame移动到后面。
