Samsung Component Placer SM321 Service Manual 11-10 11.3.2. Rear Function Panel Ass’y NO. P ART NO. P ART NAME Q’TY TYPE REMARK 1 J6708016A AIR FIL TER 1 AF40-04BC 1 1-A J6708018A FIL TER ELEMENT 1 AF40P-060S 1-A 2 J1301…
Electric Device
11-9
11.3. Function Panel Ass’y 所需材料

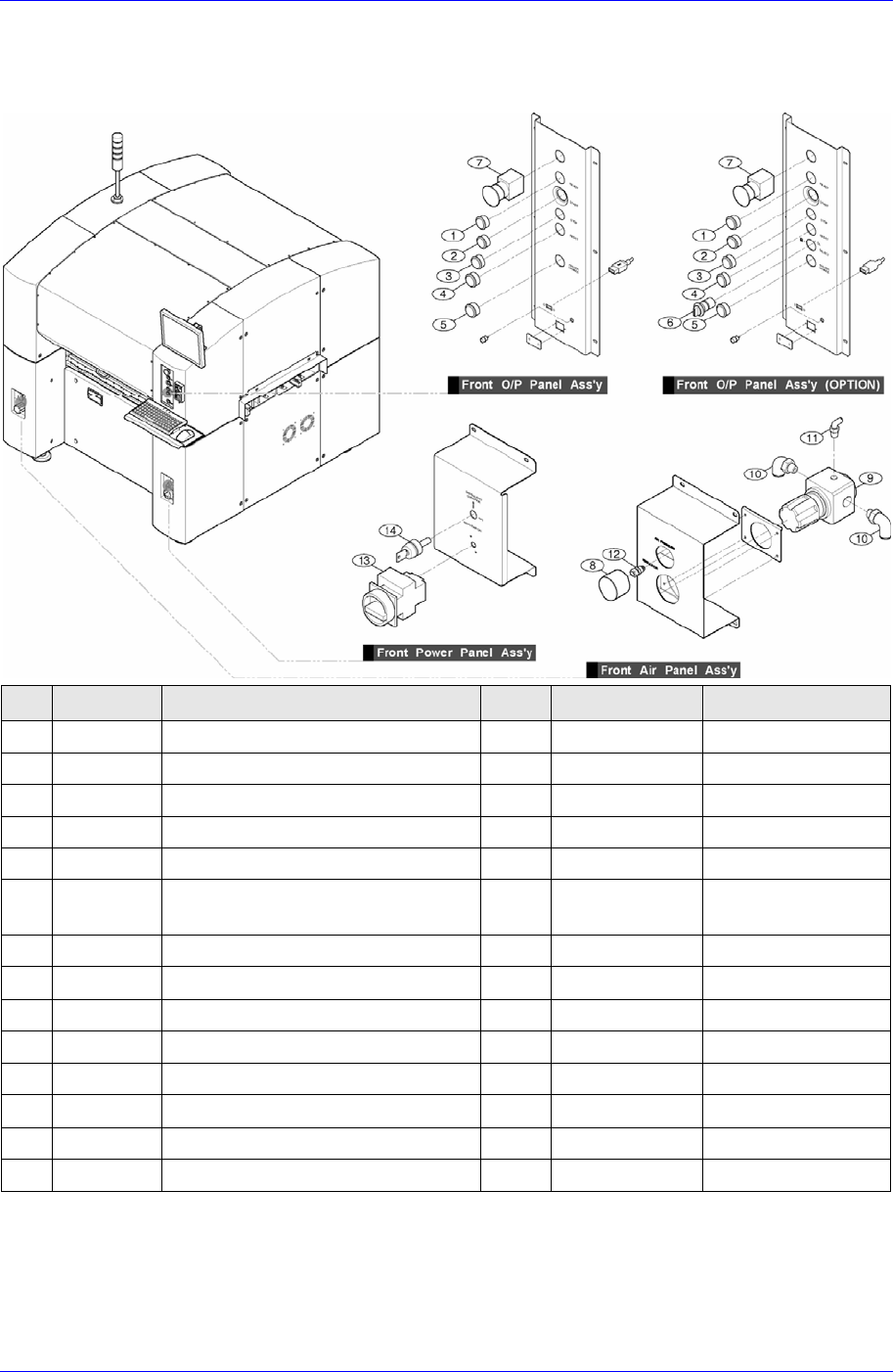

11.3.1. Front Function Panel Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J3403085A READY SWITCH ASS’Y 1 61-1100.0(CLEAR) Front, Rear(Option)
2 J3403078A START SWITCH ASS’Y 1 61-1100.0(GREEN) Front, Rear(Option)
3 J3403079A STOP SWITCH ASS’Y 1 61-1100.0(RED) Front, Rear(Option)
4 J3403080A RESET SWITCH ASS’Y 1 61-1100.0(YEL) Front, Rear(Option)
5 J3403086A FEEDER CHANGE SWITCH ASS’Y 1 61-1100.0(CLEAR) Front, Rear Common
6
J3403081A SELECT SWITCH ASS’Y
1
61-
8520.12(SELECT)
Front, Rear Common
(OPTION)
7 J3403082A EMERGENCY SWITCH ASS’Y 1 704.075.2(EM) Front, Rear Common
8 J9080794A AIR INDICATOR CABLE ASS’Y
SM-CV026
9 J6709012A REGULATOR 1 TAR4000-04
10 J1301187 ELBOW FITTING 2 PL12-04
11 J6711028A ELBOW FITTING 1 KQ2L04-01
12 J6711116A BULKHEAD UNION FITTING 1 KQ2E04-01S
13 J3406005A LOAD SWITCH 1 PI-25
14 J9080745B SAFEGUARD OVERRIDE KEY SW CABLE
SM-SC008
Samsung Component Placer SM321 Service Manual
11-10

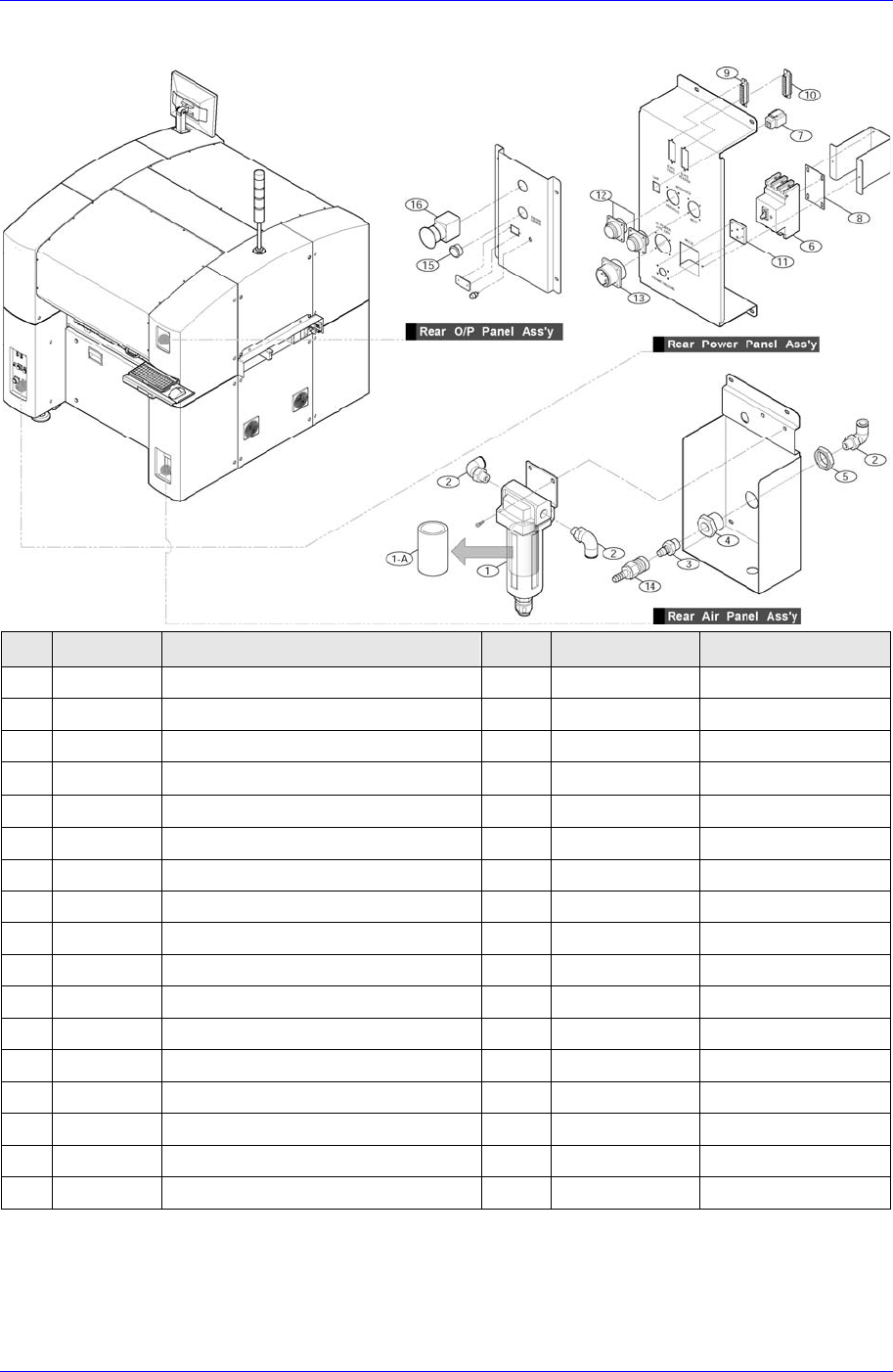

11.3.2. Rear Function Panel Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J6708016A AIR FILTER 1 AF40-04BC 1
1-A J6708018A FILTER ELEMENT 1 AF40P-060S 1-A
2 J1301187 ELBOW FITTING 3 PL12-04 2
3 J1300862 COUPLER (CORK) 1 CM24 3
4 J2101163 NIPPLE-QC 1 0131-611035 4
5 J2101164 NIPPLE-QC NUT 1 0131-611036 5
6 J3603020A MAIN CIRCUIT BREAKER 1 GV2-ME20 6
7 J3713061A CONNECTOR 1 555376-1 7
8 J3716070A PANEL 1 GV2-AF02 8
9 J9083151A #1 TRAY FEEDER CABLE ASSY
SM-VM001 9
10 J9083152A #2 TRAY FEEDER CABLE ASSY
SM-VM002 10
11 J7152027A GROUND TERMINAL 1 J7152027A 11
12 J9080774A INLINE IN/OUT CABLE ASSY
SM-CV006 12
13 J9080659A MAIN POWER INPUT CABLE ASSY
SM-PW002 13
14 J7500010A COUPLER 1 J7500010A 14
15 J3403086A FEEDER CHANGE SWITCH ASS’Y 1 61-1100.0(CLEAR)
Front, Rear Common
16 J3403082A EMERGENCY SWITCH ASS’Y 1 704.075.2(EM) Front, Rear Common
Electric Device
11-11

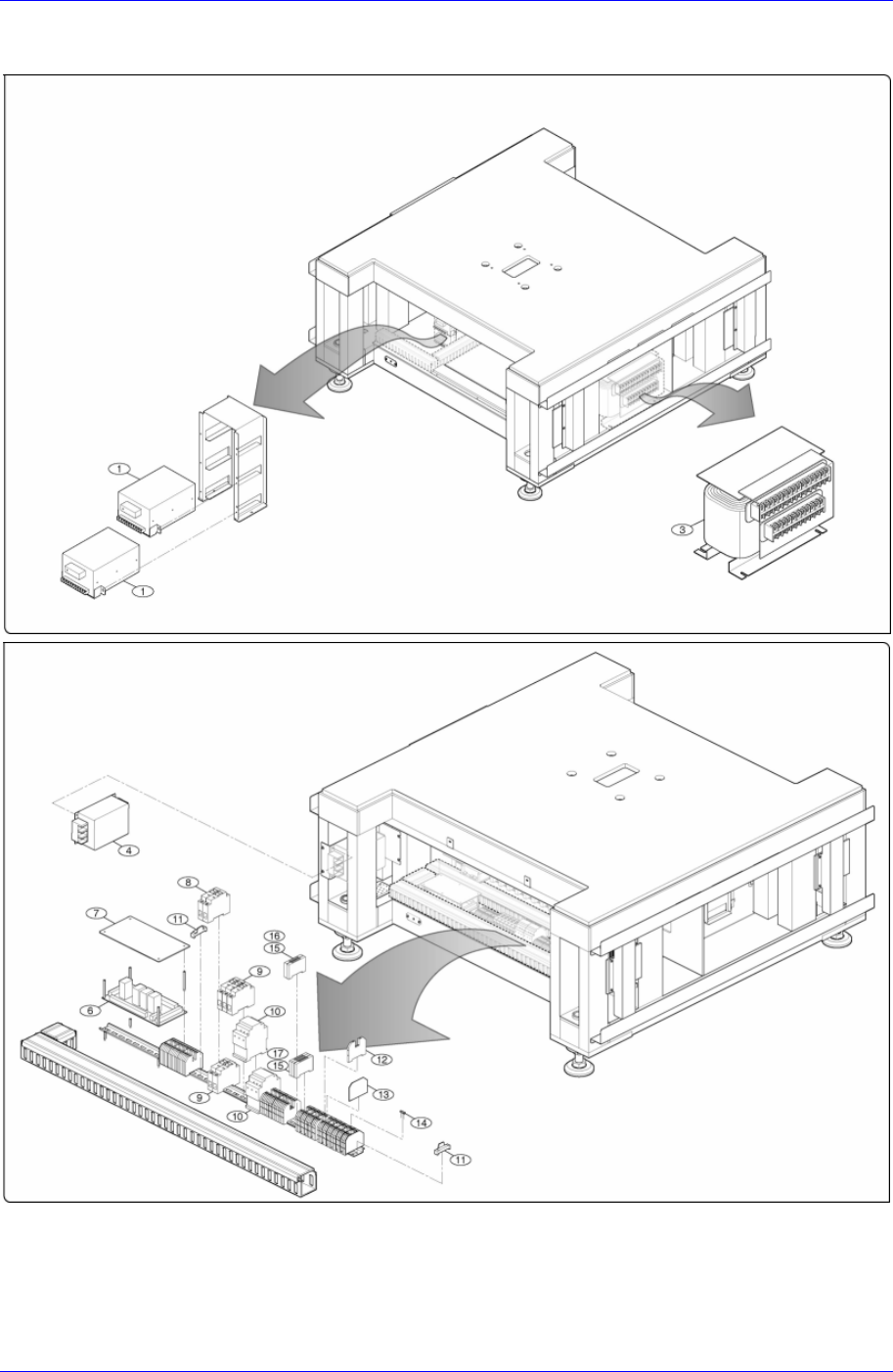

11.4. Electric Device 所需材料
