Page ohu~oh 11 3 HM520 / HM520h Air (2/6) - HM520h NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 HP06-900153 FITTING 3 2 HP06-900170 FITTING 1 3 HP06-000457 Y -FITTING 1 4 HP06-000301 ELBOW-F…
Page
ohu~oh
112
HM520 /
HM520h
Air (2/6) - HM520h
A
FLAT CABLE
BLACK x2
FLAT CABLE
BLACK x2
HP11-000059
VACUUM PUMP
HP06-000301
FITTING
U2-4-12*8, B
HP06-000250
FITTING
HP06-000234 FITTING
HP06-900046 FITTING
2-HP14-002173
CHECK VALVE
U2-4-4*2.5, B
(REAR) HEAD (FRONT) HEAD
U2-4-12*8, B
U2-4-12*8, B
U2-4-8*6, B
HP06-900153
FITTING
HP06-900153
FITTING
HP06-900170
FITTING
HP06-900170
FITTING
HP06-000457
FITTING
HP06-900170
FITTING
A-D
1
1
2
3
2
4
5
6
7
8
9
HP06-000457
FITTING
HP06-900170
FITTING
3
2
2
Page
ohu~oh
113
HM520 /
HM520h
Air (2/6) - HM520h
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP06-900153 FITTING 3
2 HP06-900170 FITTING 1
3 HP06-000457 Y-FITTING 1
4 HP06-000301 ELBOW-FITTING 1
5 HP11-000059 VACUUM PUMP 1
6 HP06-000250 ELBOW-FITTING 1
7 HP06-000234 STRAIGHT-FITTING 1
8 HP06-900046 JOINT 1
9 HP14-002173 CHECK VALVE 2
Page
ohu~oh
114
HM520 /
HM520h

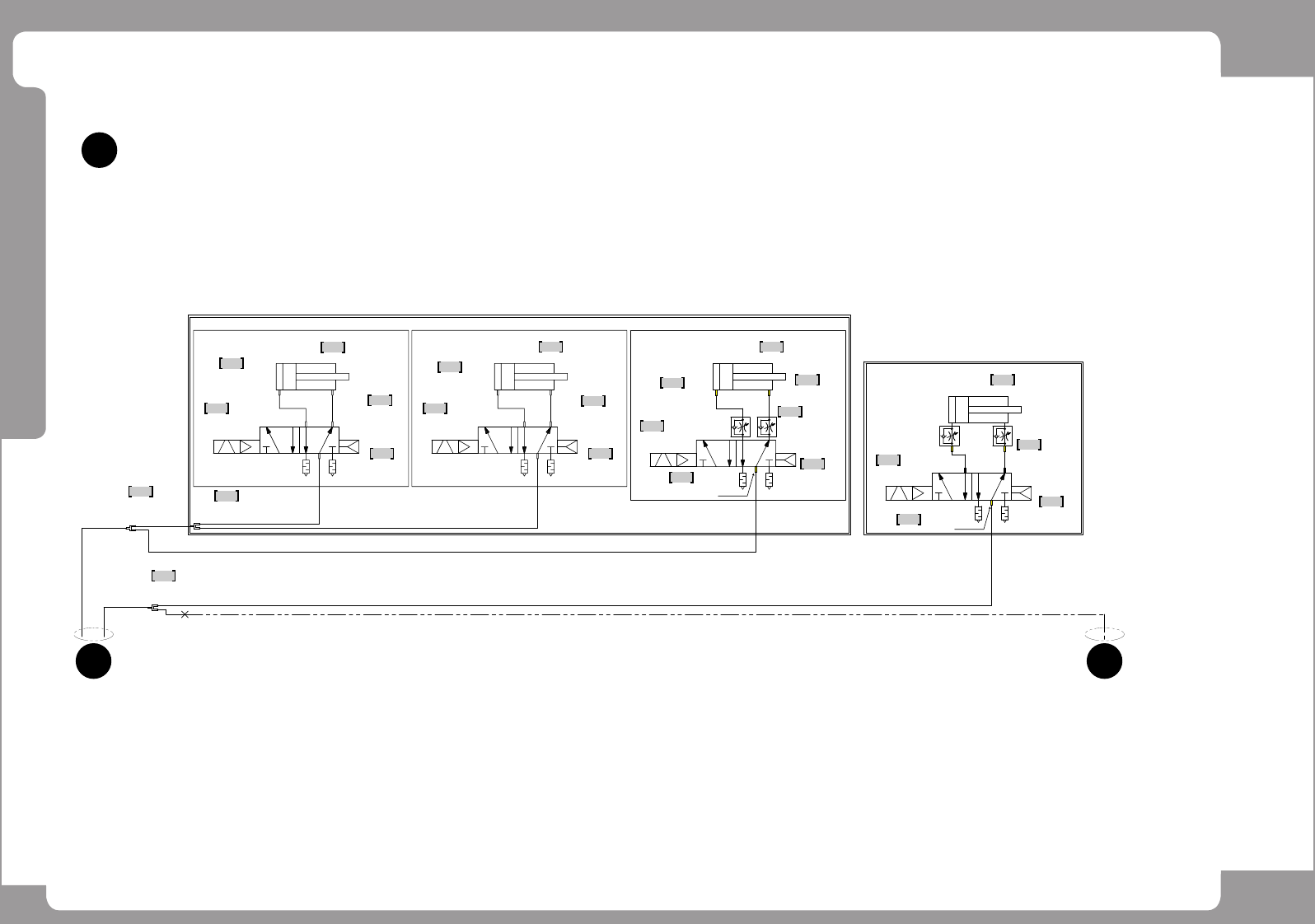

Air (3/6) - HM520h
5(EA) 3(EB)1(P)
4(A) 2(B)
5(EA) 3(EB)1(P)
4(A) 2(B)
5(EA) 3(EB)1(P)
4(A) 2(B)
5(EA) 3(EB)1(P)
4(A) 2(B)
HP14-900033
SOLENOID VALVE
3-HP06-900047
FITTING
2-HP09-900159
SILENCER
HP03-001133
CYLINDER
2-HP06-900047
FITTING
HP14-900033
SOLENOID VALVE
3-HP06-900047
FITTING
2-HP09-900159
SILENCER
HP03-001127
CYLINDER
2-HP06-900047
FITTING
WORK #1 STOPPER
BUFFER STOPPER BACK UP TABLE
U2-4-4*2.5, B
U2-4-4*2.5, B
HP06-900054
FITTING
(REAR) CONVEYOR-BUT
(REAR) ANC
HP06-900199
FITTING
BLOW DUMP용
HP06-900199
FITTING
U2-4-4*2.5, B
U2-4-4*2.5, B
U2-4-6*4, B
2-HP14-900088
SPEED CON.
2-HP09-900159
SILENCER
2-HP14-900111
SPEED CON.
HP03-900013
CYLINDER
2-HP06-900056
FITTING
HP14-900033
SOLENOID VALVE
HP06-900047
FITTING
HP14-900033
SOLENOID VALVE
2-HP06-900255
FITTING
2-HP09-900159
SILENCER
HP03-001110
CYLINDER
HP06-900255
FITTING
B-C B-C
B
1
1
2
3
3
3
5
6
4
3
7 8
9
10
11
12
13
13
4
5
3
5
5
4
4
