Page ohu~oh 123 HM520 / HM520h Conveyor (1/5) NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 FC09-009412A BR ACKET -CN CABLE Z GUIDE 2 2 FC29-009712A GUIDE-ENTR Y GUIDE 1 3 MC19-003051A SHAFT …
Page
ohu~oh
122

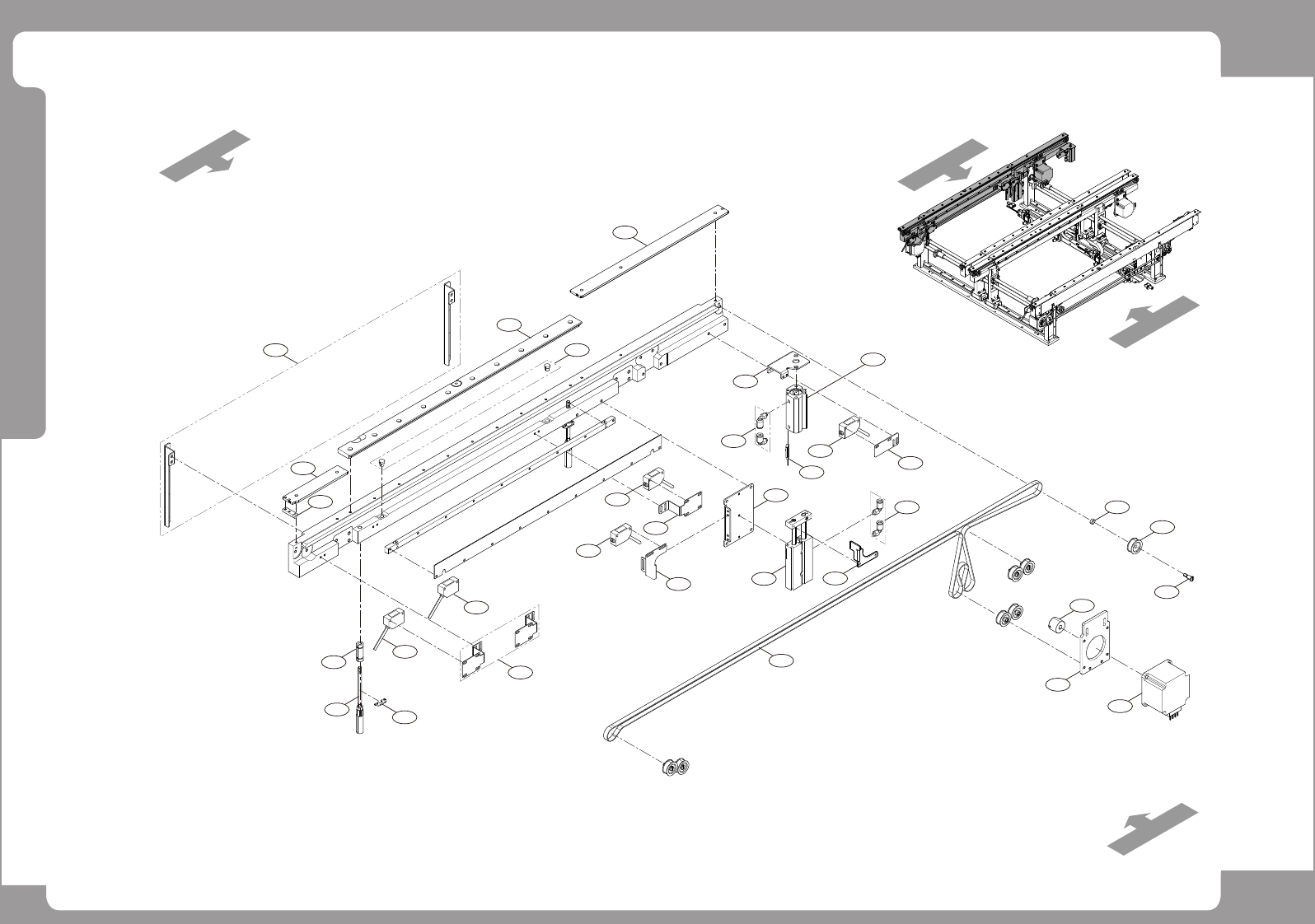

HM520 /
HM520h
Conveyor (1/5)
Front side
Front side
Rear side
Rear side
1
31
4
2
15
20
18
24
25
27
5
3
7
10
11
9
13
21
30
23
12
18
19
14
9
6
8
26
28
29
16
22
17
Page
ohu~oh
123
HM520 /
HM520h
Conveyor (1/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-009412A BRACKET-CN CABLE Z GUIDE 2
2 FC29-009712A GUIDE-ENTRY GUIDE 1
3 MC19-003051A SHAFT-INLET END S 1
4 FC29-009714B GUIDE-EXIT GUIDE 1
5 FC29-004427A STOPPER-CONV_DOWN_STOPPER 2
6 MC06-001038 BUSHING 2
7 FC09-009198A BRACKET-BUSH HOLDER 2
8 AM03-027058A ASSY,CONVEYOR-CLAMP SHAFT SUB 2
9 FC09-008744B BRACKET-INOUT SNS BKT 6
10 AM03-025818A CABLE ASSY-R CONV ENTRY SNS CABLE 1
11 AM03-027549A CABLE ASSY-R WORK2 SNS CABLE 1
12 AM03-027550A CABLE ASSY-R REACQUIRE SNS CABLE 1
13 FC09-009619B BRACKET-W1 SNS BKT 2
14 AM03-025822A CABLE ASSY-R WORK1 SNS CABLE 1
15 FC09-009618A BRACKET-W1 CYL BKT 2
16 HP03-001133 CYLINDER 2
17 FC09-010050A BRACKET-W1 CYL STP R 1
18 HP06-900047 ELBOW FITTING 20
19 FC09-009408A BRACKET-WORK CYL BKT R 1
20 HP03-001127 CYLINDER 2
21 AM03-025865B CABLE ASSY-R BUF STP UP SNS CABLE 1
22 AM03-025821A CABLE ASSY- R BUFFER SNS CABLE 1
23 FC09-008742A BRACKET-WORK SNS BKT 2
24 FC18-001478A SPACER-IDLER-S_CONV 7
25 J7253006A IDLER 1 7
26 MC19-001112A SHAFT-S_IDLER_CONV 7
27 MC19-002687A SHAFT-MOTOR IDLER 1
28 FC09-008741A BRACKET-B MOTOR BKT 1
29 AM03-025803A CABLE ASSY-RF BELT MOTOR CABLE 1
EP08-900073 STEP_MOTOR 2S56Q-P01842SR2 1
30 MC05-001172 BELT 4
Page
ohu~oh
124
HM520 /
HM520h
Conveyor (1/5)
31 FC29-009713B GUIDE-WORK GUIDE 1
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
