Page ohu~oh 130 HM520 / HM520h Conveyor (4/5) F ront side Rear side Rear side F ront side 26 19 1 2 30 3 17 6 15 4 5 6 7 8 27 10 14 20 21 18 13 12 28 29 11 16 22 23 24 25 9
Page
ohu~oh
129
HM520 /
HM520h
Conveyor (3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC19-003051A SHAFT-INLET END S 1
2 FC29-009712A GUIDE-ENTRY GUIDE 1
3 AM03-027060A ASSY,CONVEYOR-WORK GUIDE MV 1
4 FC29-009714B GUIDE-EXIT GUIDE 1
5 FC29-004427A STOPPER-CONV_DOWN_STOPPER 2
6 MC06-001038 BUSHING 2
7 AM03-027058A ASSY,CONVEYOR-CLAMP SHAFT SUB 2
8 FC09-009198A BRACKET-BUSH HOLDER 2
9 AM03-027059A ASSY,CONVEYOR-CLAMP PLATE SUB 1
10 MC19-002687A SHAFT-MOTOR IDLER 1
11 FC09-008741A BRACKET-B MOTOR BKT 1
12 AM03-025801A CABLE ASSY-FM BELT MOTOR CABLE 1
EP08-900073 STEP_MOTOR 2S56Q-P01842SR2 1
13 FC18-001478A SPACER-IDLER-S 7
14 J7253006A IDLER 1 7
15 MC19-001112A SHAFT-S_IDLER 7
16 MC05-001172 BELT 4
Page
ohu~oh
130
HM520 /
HM520h

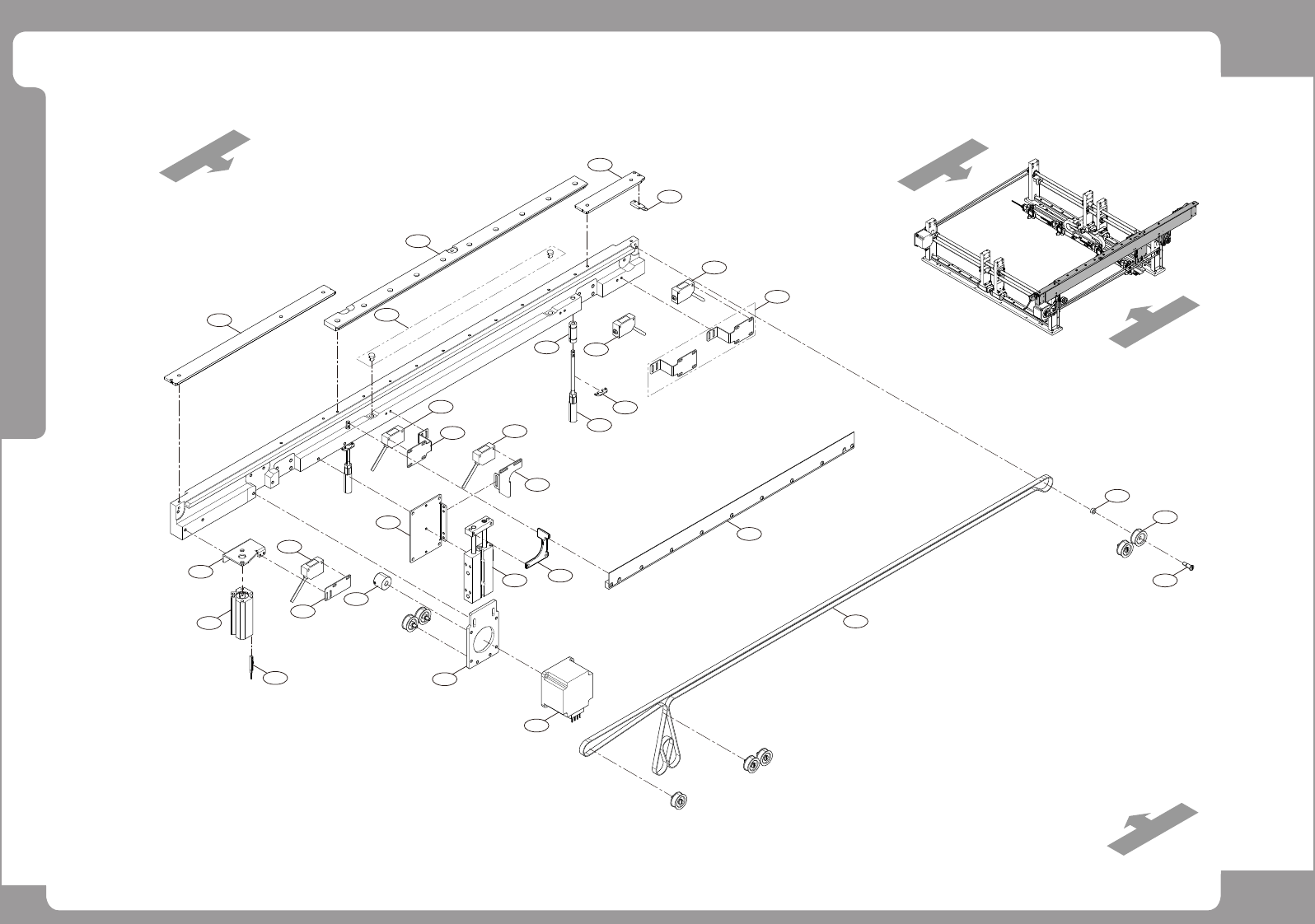

Conveyor (4/5)
Front side
Rear side
Rear side
Front side
26
19
1
2
30
3
17
6
15
4
5
6
7
8
27
10
14
20
21
18
13
12
28
29
11
16
22
23
24
25
9
Page
ohu~oh
131
HM520 /
HM520h
Conveyor (4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-009714B GUIDE-EXIT GUIDE 1
2 FC29-009713B GUIDE-WORK GUIDE 1
3 FC29-009712A GUIDE-ENTRY GUIDE 1
4 MC19-003051A SHAFT-INLET END S 1
5 AM03-025814B CABLE ASSY-F CONV ENTRY SNS CABLE 1
6 FC09-008744B BRACKET-INOUT SNS BKT 6
7 FC18-001478A SPACER-IDLER-S_CONV 7
8 J7253006A IDLER 1 7
9 MC19-001112A SHAFT-S_IDLER_CONV;STS303-CP 7
10 MC05-001172 BELT 4
11 MC06-001038 BUSHING 2
12 AM03-027058A ASSY,CONVEYOR-CLAMP SHAFT SUB 2
13 FC09-009198A BRACKET-BUSH HOLDER 2
14 AM03-027059A ASSY,CONVEYOR-CLAMP PLATE SUB 1
15 AM03-025815B CABLE ASSY- F WORK1 SNS CABLE 1
16 AM03-027548B CABLE ASSY-F WORK2 SNS CABLE 1
17 AM03-027547B CABLE ASSY-F REACQUIRE SNS CABLE 1
18 FC09-009619B BRACKET-W1 SNS BKT 2
19 FC09-009618A BRACKET-W1 CYL BKT 2
20 FC09-010049A BRACKET-W1 CYL STP F 1
21 HP03-001133 CYLINDER 2
22 AM03-025800A CABLE ASSY-FX BELT MOTOR CABLE 1
EP08-900073 STEP_MOTOR 2S56Q-P01842SR2 1
23 FC09-008741A BRACKET-B MOTOR BKT 1
24 MC19-002687A SHAFT-MOTOR IDLER 1
25 FC09-008742A BRACKET-WORK SNS BKT 2
26 AM03-025817A CABLE ASSY-F BUFFER SNS CABLE 1
27 AM03-025828B CABLE ASSY-F WORK1 STP UP SNS CABLE 1
28 HP03-001133 CYLINDER 2
29 FC09-008899A BRACKET-WORK CYL BKT 1
30 FC29-004427A STOPPER-CONV_DOWN_STOPPER 2
