Page ohu~oh 133 HM520 / HM520h Conveyor (5/5) NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 J70531028A TENSION_BEARING_PIN 2 2 MC0 3-900121 BALL BEARING 2 3 MC0 3-900080 BALL BEARING 10 4 FC0…
Page
ohu~oh
132
HM520 /
HM520h

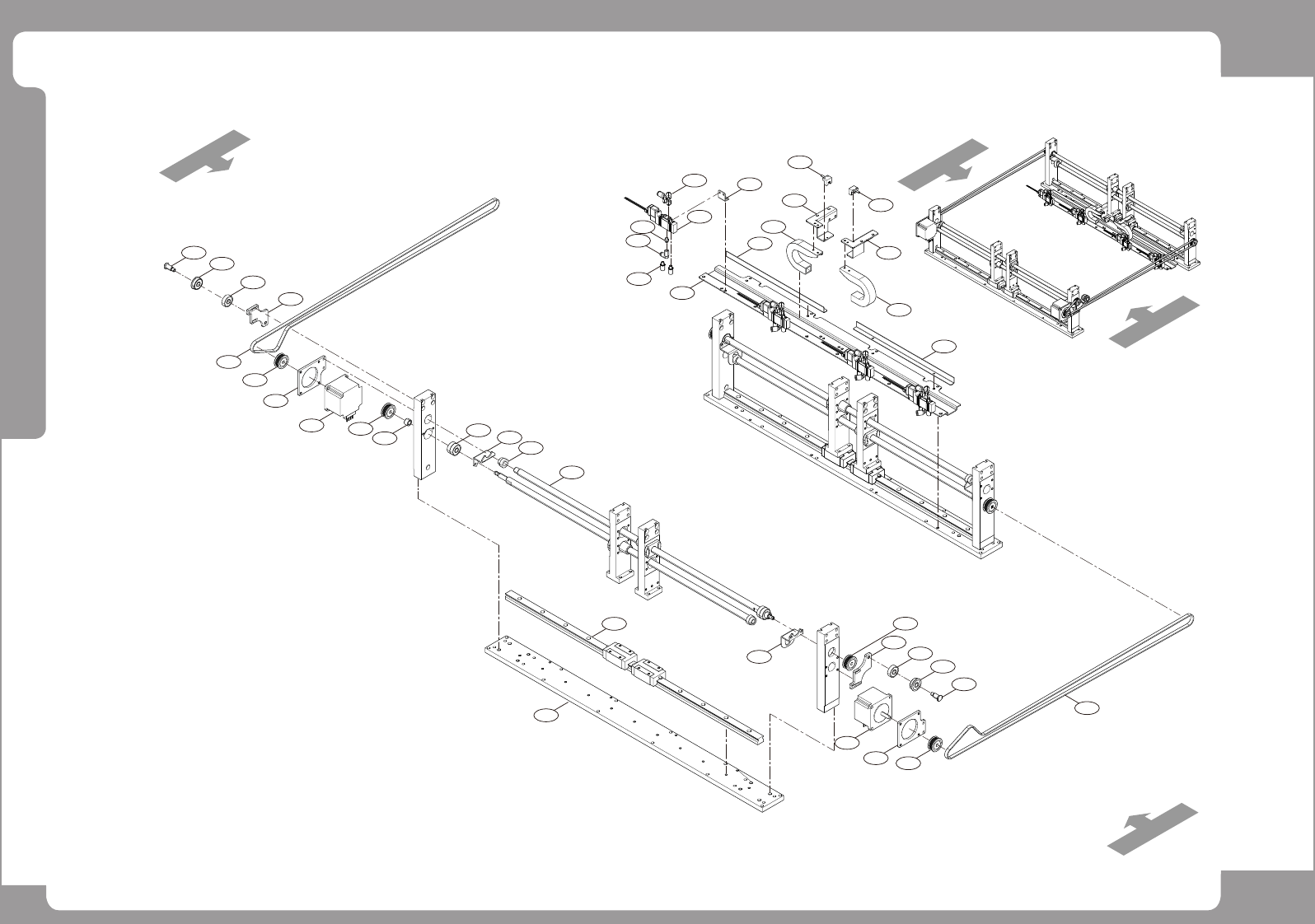

Conveyor (5/5)
Front side
Front side
Rear side
Rear side
31
30
22
23
25
19
20
26
28
26
9
4
3
2
1
11
12
13
14
15
1
2
3
4
21
24
25
5
18
29
27
17
7
6
16
5
6
7
8
9
10
Page
ohu~oh
133
HM520 /
HM520h
Conveyor (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70531028A TENSION_BEARING_PIN 2
2 MC03-900121 BALL BEARING 2
3 MC03-900080 BALL BEARING 10
4 FC09-008737A BRACKET-W TENSION BKT 2
5 MC05-001164 BELT,TIMING 2
6 MC19-001079 PULLEY 6
7 FC09-008736A BRACKET-W MOTOR BKT;4T 2
8 AM03-025797A CABLE ASSY-R CONV WID MOTOR CABLE 1
EP08-900073 STEP_MOTOR 2S56Q-P01842SR2 1
9 MC19-001079 PULLEY 6
10 FC18-004495A SPACER 4
11 MC03-900080 BALL BEARING 10
12 FC09-009423A BRACKET-TAIL BKT R 2
13 J72531002A BUSH_TAIL 4
14 MC13-001194 SCREW,BALL 4
15 MC13-001206 LM GUIDE 2
16 FC09-008738A BRACKET-TAIL BKT 2
17 AM03-025798B CABLE ASSY-F CONV WID MOTOR CABLE 1
EP08-900073 STEP_MOTOR 2S56Q-P01842SR2 1
18 HP09-900159 SILENCER 8
19 HP06-900047 ELBOW FITTING 16
20 HP14-900033 SOL VALVE 4
21 AM03-025823A CABLE ASSY-F CONV WID HOME SNS CABLE 1
22 AM03-025825A CABLE ASSY-R CONV WID HOME SNS CABLE 1
23 FC09-009424A BRACKET-W VEYOR BKT R 1
24 FC09-009422A BRACKET-W VEYOR BKT F 1
25 EP03-001054 CABLEVEYOR 2
26 FC09-008739A BRACKET-RAIL BKT 2
27 FC09-009790B BRACKET-MODULAR BASE 1
28 FC09-008767A BRACKET-CONV SOL BKT 4
29 FC30-006557B PLATE-LM BASE S 2
Page
ohu~oh
134
HM520 /
HM520h
Conveyor (5/5)
30 HP06-001283 FITTING-KQ2LF04-M5N 4
31 HP06-001621 FITTING-M-5N_SMC 4
HP13-900081 AIR TUBE 2.8M
HP13-900088 AIR TUBE(YELLOW) 2.8M
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
