Page ohu~oh 137 HM520 / HM520h Conveyor Entry 230mm Extension NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 FC29-01 1299A GUIDE-ENTRY GUIDE F E230 2 2 MC19-003051A SHAFT -INLET END S 1 3 FC0 …
Page
ohu~oh
136
HM520 /
HM520h

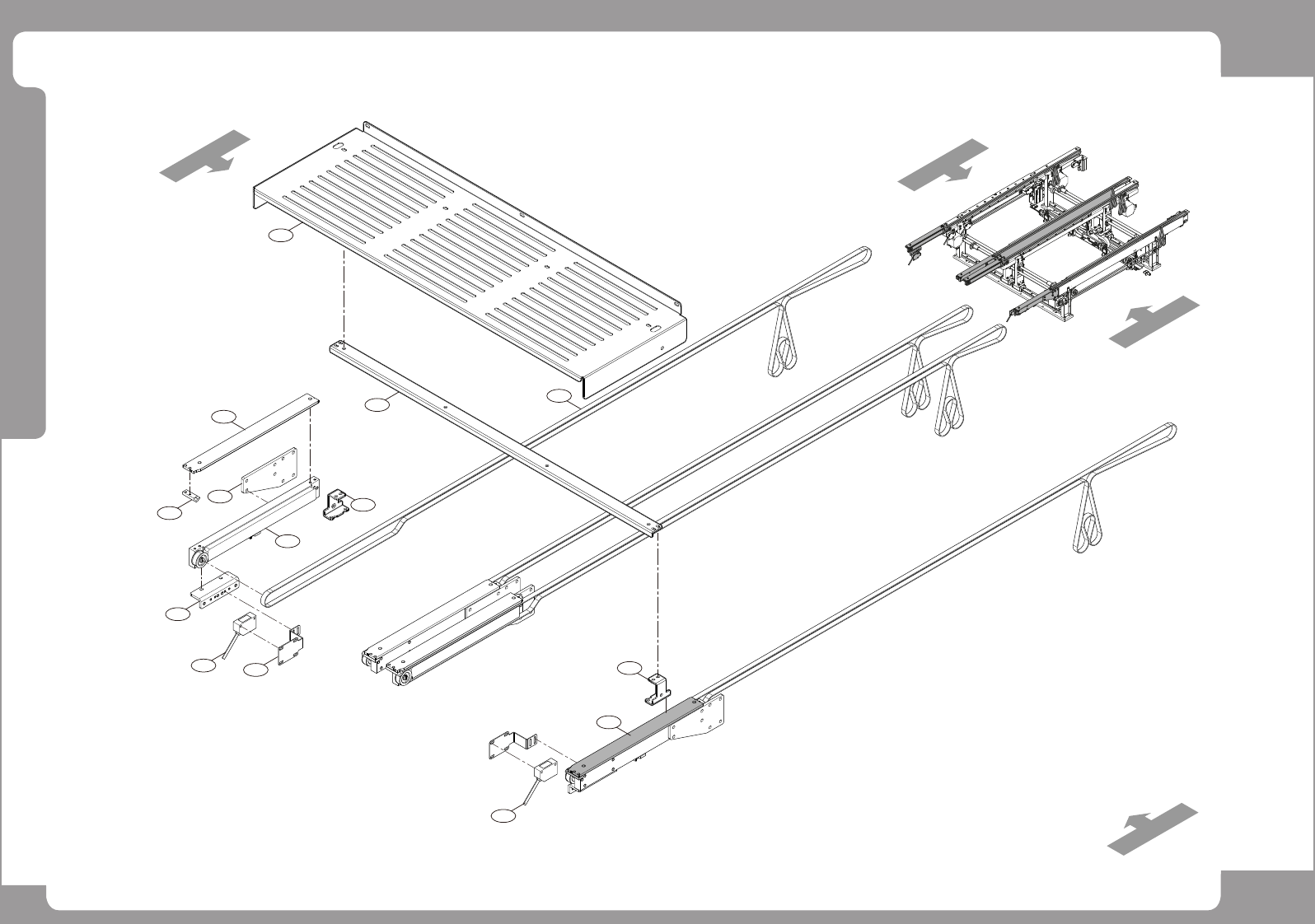

Conveyor Entry 230mm Extension
Front side
Front side
Rear side
Rear side
8
1
10
13
7
3
2
4
5
6
11
12
9
13
Page
ohu~oh
137
HM520 /
HM520h
Conveyor Entry 230mm Extension
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-011299A GUIDE-ENTRY GUIDE F E230 2
2 MC19-003051A SHAFT-INLET END S 1
3 FC09-009409B BRACKET-EXT JOINT 4
4 FC09-009411A BRACKET-EXT INLET SNS BKT 2
5 AM03-025818A CABLE ASSY-R CONV ENTRY SNS CABLE 1
6 FC09-008744B BRACKET-INOUT SNS BKT 6
7 AM03-025814B CABLE ASSY-F CONV ENTRY SNS CABLE 1
8 MC05-001171 BELT 4
9 FC07-004979A BLOCK-EXT FRAME 230 4
10 FC29-011383A GUIDE-ENTRY GUIDE R E230 2
11 FC15-006765A COVER-SAFETY INLET 230;STD 1
12 FC09-009924A BRACKET-Y SUPPORT SAFETY 1
13 FC09-009923A BRACKET-Z SUPPORT SAFETY 2
Page
ohu~oh
138
HM520 /
HM520h

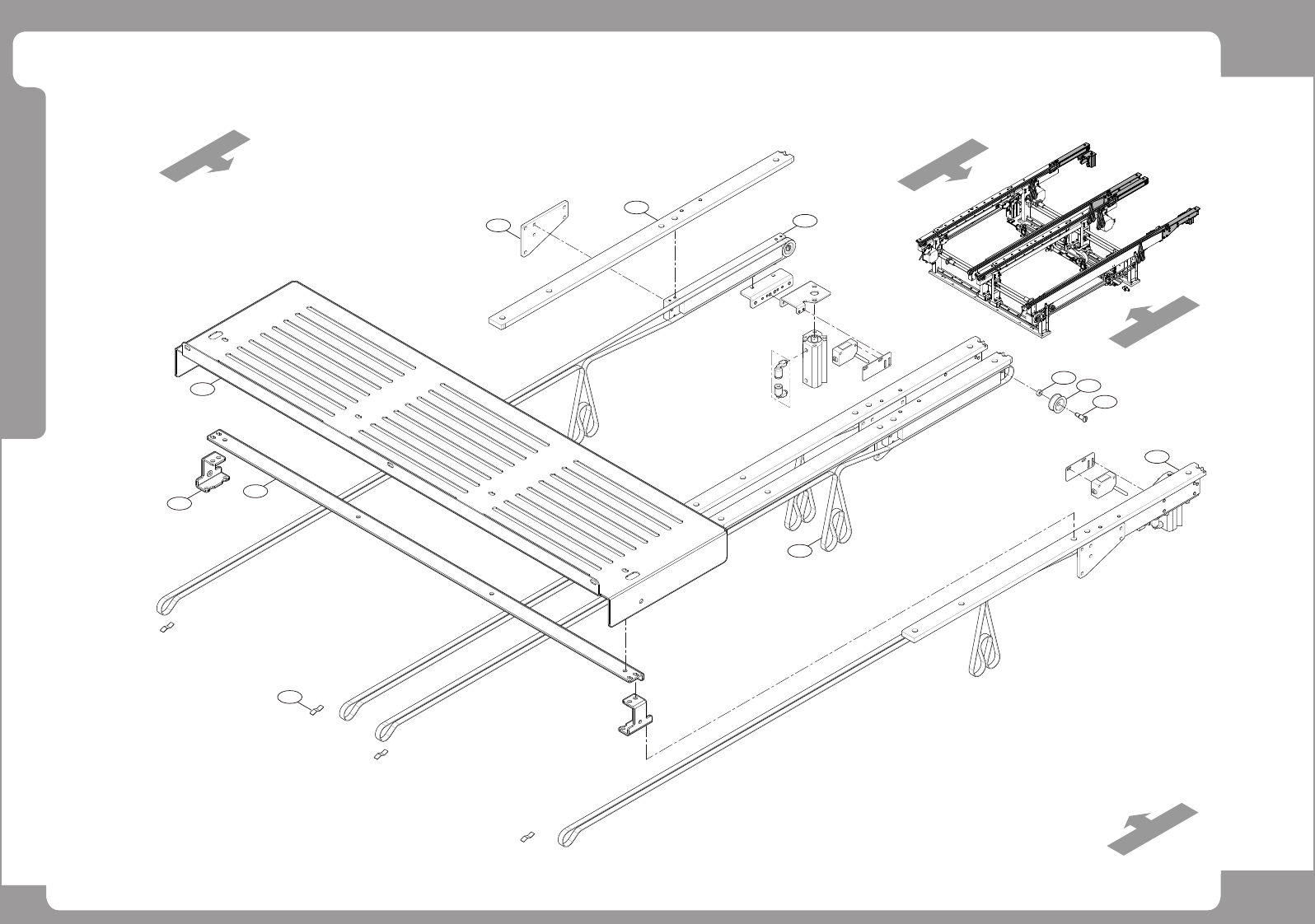

Conveyor Exit 70 / 100 / 200mm Extension
Front side
Front side
Rear side
Rear side
1
9
5
2
3
12
11
10
6
7
8
4
