Page ohu~oh 144 HM520 / HM520h Auto Ring Changer (3/6) - HM520h Left side Right Side F ront side Rear side A B 7 5 8 1 4 2 10 6 9 3 12 13 4 1 8 10 11 5 9 3 2 14 6 7
Page
ohu~oh
143
HM520 /
HM520h
Auto Ring Changer (2/6) - HM520h
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP07-003127 SOLENOID 1
2 FC29-013439A SUPPORT-SUPPORT_BOARD_ARC 8
3 AM03-025252B ASSY,BOARD-HM520 HS BASE BOARD ASSY V1.3 2
4 FC30-006942A PLATE-NSULATION_SHEET_ARC 2
5 FC09-011312A BRACKET-BKT_COM_CABLE_ARC 2
6 RM01-004816A ROD-SUPPORT_RING 4
7 RM01-004817A ROD-INTERLOCK 1
8 HP06-001281A DUCT-DUCT_COVER1_DG-64 1
9 HP06-001276A DUCT-DUCT1_YS_DG-64 1
10 HP06-001280A DUCT-DUCT_COVER3_DG-44 1
11 HP06-001278A DUCT-DUCT3_YS_DG-44 1
12 HP06-001279A DUCT-MTNXDP-AR325-DUCT_COVER2_DG-44 1
13 HP06-001277A DUCT-DUCT2_YS_DG-44 1
14 FC09-012104A BRACKET-BKT_FAN_ARC 1
15 AM03-030249A CABLE ASSY-HEAD AMP #1/#2 FAN 2
16 FC09-012107A BRACKET-HM520_H_CABLE_FIX 2
ARING STAGE
BGRIP ARM
C ELEVATOR
D ELEVATOR SENSOR
EEJECTOR
F RACK CARRIER
G RACK UNIT
Page
ohu~oh
144
HM520 /
HM520h

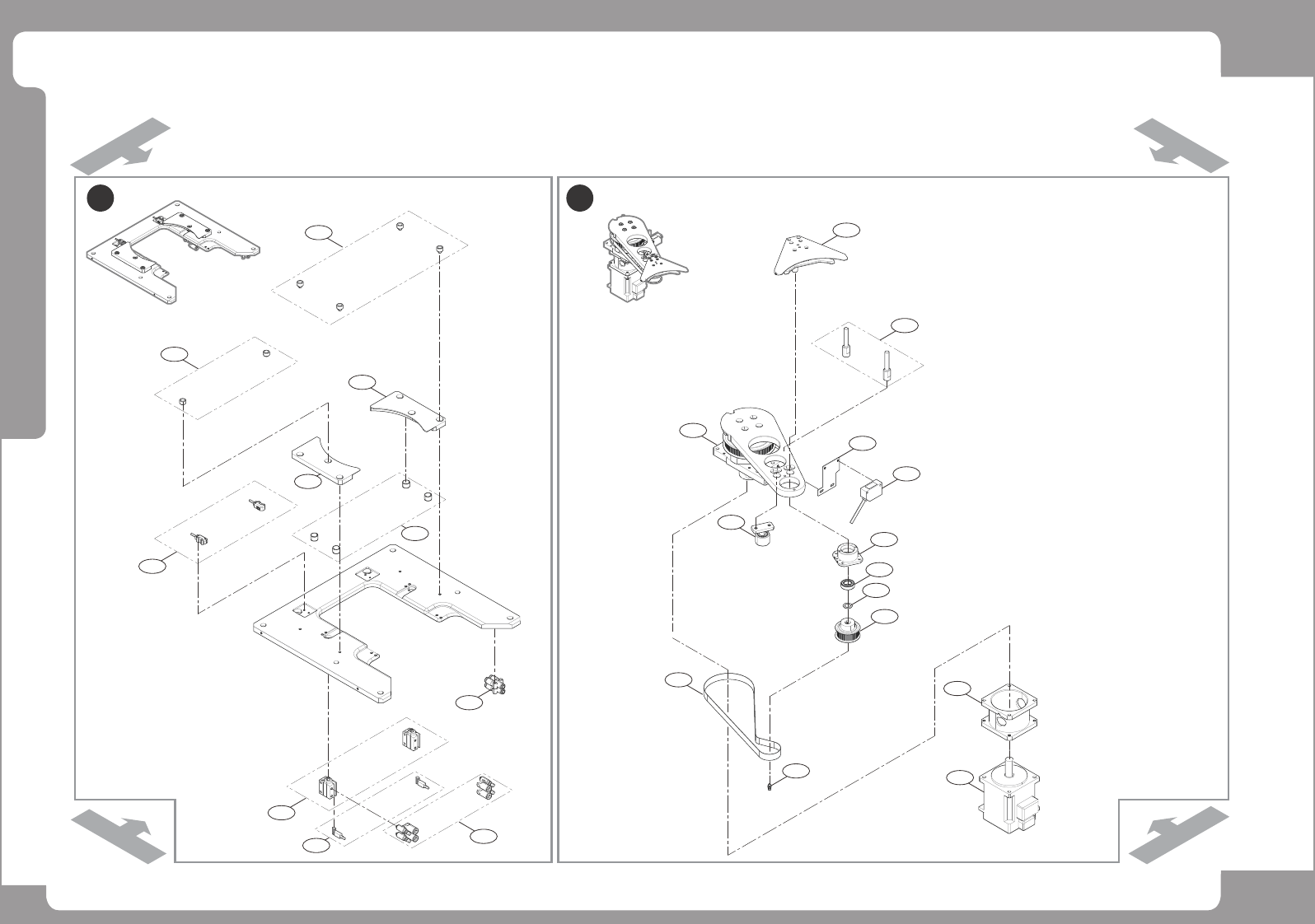

Auto Ring Changer (3/6) - HM520h
Left side
Right Side
Front side
Rear side
A B
7
5
8
1
4
2
10
6
9
3
12
13
4
1
8
10
11
5
9
3
2
14
6
7
Page
ohu~oh
145
HM520 /
HM520h
Auto Ring Changer (3/6) - HM520h
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A RING STAGE MODULE
1 FC18-005274A CLAMP-SHAFT_CYL 2
2 FC18-005273A CLAMP-SHAFT_ARC 4
3 FC18-005275A CLAMP-L_RING 1
4 FC18-005272A CLAMP-R_RING 1
5 AM03-030257A STAGE CLAMP SNS2 1
6 FC38-001185 SPRING 4
7 HP03-001180 CYLINDER 2
8 HP06-000487 FITTING 2
9 AM03-030256A STAGE CLAMP SNS1 1
10 HP09-000167 SPEED CONTROLLER 4
B GRIP ARM MODULE
1 AM03-038229A GRIPER HOLDER 1
2 AM03-038228A GRIPPER MAIN SUB 1
3 AM03-038226A GRIPPER PULLY SUB 1
4 MC05-001216 TIMING BELT 1
5 HP06-001481 FITTING 1
6 FC30-006928A PLATE-MTNXDP-AR178A-BKT2_SENSOR_GRIP 1
7 AM03-030258A GRIPPER RING SNS 1
8 FC07-006955A BLOCK-BRG_ARM2_HOUSING 1
9 MC03-001121 BEARING,BALL-6800ZZ 1
10 FC07-006958A BLOCK-SPACE3_PULLEY_SWING 1
11 MC19-001105 PULLEY 1
12 FC29-012017A HOLDER-MOTOR_ELEV 1
13 AM03-038048A S MOTOR 1
14 RM01-004820A ROD-LIMIT-R_ARC 2
