Page ohu~oh 152 HM520 / HM520h Auto Ring Changer (6/6) - HM520h Left side Right Side F ront side Rear side F G 6 1 7 7 10 11 13 13 12 1 2 2 5 4 3 9 8 9 3 11 4 6 5 7 8 9 10 12
Page
ohu~oh
151
HM520 /
HM520h
Page
ohu~oh
152
HM520 /
HM520h

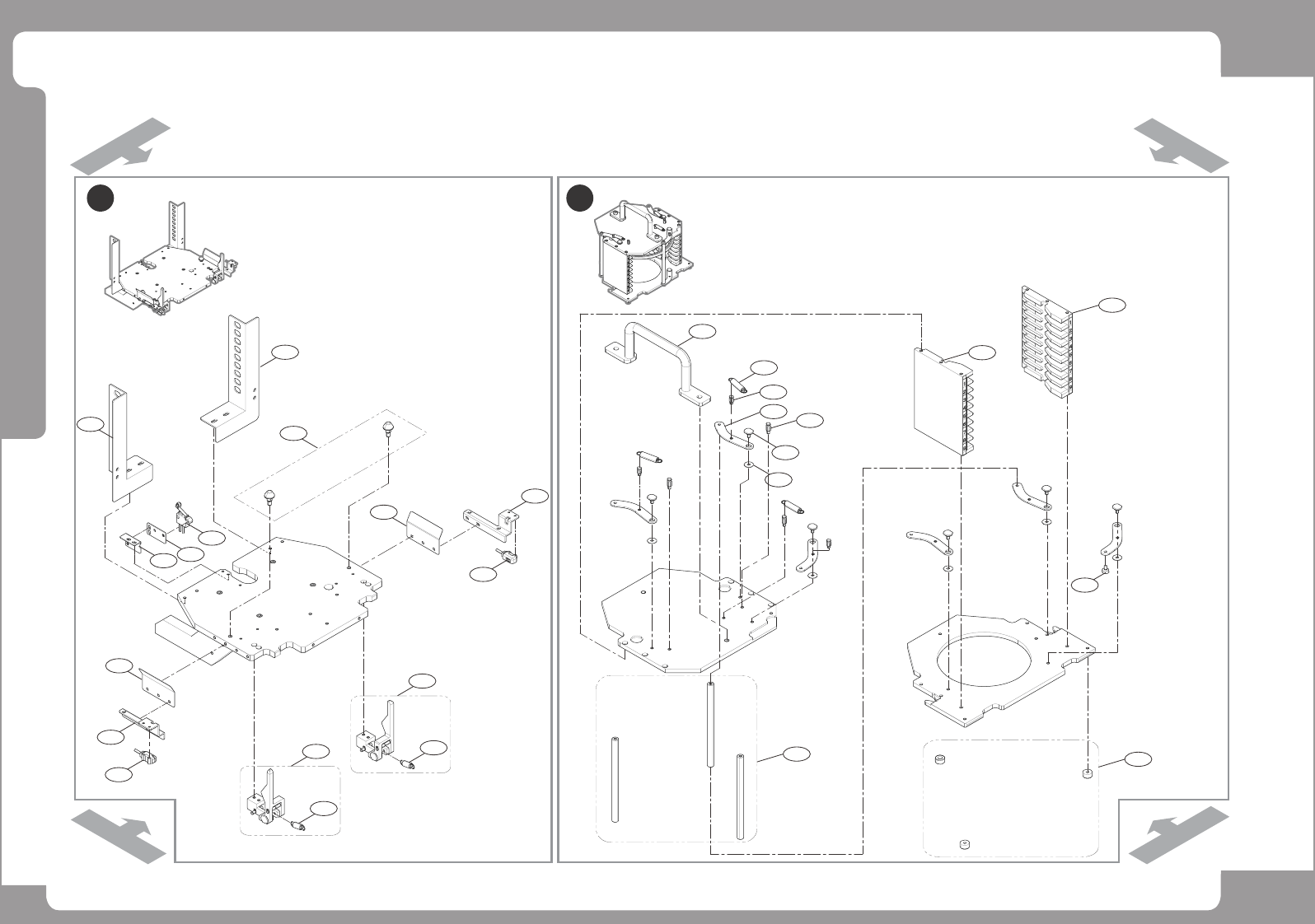

Auto Ring Changer (6/6) - HM520h
Left side
Right Side
Front side
Rear side
F G
6
1
7
7
10
11
13
13
12
1
2
2
5
4
3
9
8
9
3
11
4
6
5
7
8
9
10
12
Page
ohu~oh
153
HM520 /
HM520h
Auto Ring Changer (6/6) - HM520h
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
F RACK CARRIER MODULE
1 FC30-006878A PLATE-PLATE2_P_L_SENSOR 1
2 FC30-006877A PLATE-PLATE2_P_R_SENSOR 1
3 FC09-010629A BRACKET-RACK_SNS_2 1
4 FC09-010628A BRACKET-RACK_SNS_1 1
5 AM03-030255A RACK LOADING SNS 1
6 FC18-005264A PIN,ETC-CLAMP_RACK 2
7 FC30-006629A PLATE-GUIDE_RACK 2
8 FC09-010624A BRACKET-SENSOR_L_FR 1
9 AM03-030259A RING OUT CHECK SNS 1
10 FC09-010625A BRACKET-SENSOR_R_FR 1
11 AM03-038172A COVER RACK LOCKER RIGHT 1
12 AM03-038173A COVER RACK LOCKER LEFT 1
13 FC38-001187 SPRING 1
G RACK UNIT MODULE
1 FC29-001752 HANDLE 1
2 FC38-001171 SPRING 3
3 FC18-005269A HOOK-SPRING_4_ARC 3
4 FC09-010636A BRACKET-LEVER_RIGHT_RACK 6
5 FC29-012009A HINGES-SCREW_RACK 6
6 FC18-005268A WASHER,ETC-3 6
7 RM01-004818A ROD-LOCATOR 3
8 MC14-001174A SHELF,RACK-SHELF_RIGHT_ARC 1
9 MC14-001151A SHELF,RACK-LEFT_ARC 1
10 FC10-001083 RUBBER-ECRK10 3
11 FC18-005270A HOOK-SPRING_6_ARC 3
12 FC07-006934A BLOCK-ROD_STOPPER_ARC 1
