Page ohu~oh 23 HM520 / HM520h Docking C art (3/3) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Refere nce 1 FC 09-008995A BRACKET -ROL_ SUPPORT_BKT 1 2 MC19-002774A SHAFT -SHAFT_D 2 3 MC19-002775A SHAFT -…
Page
ohu~oh
22
HM520 /
HM520h

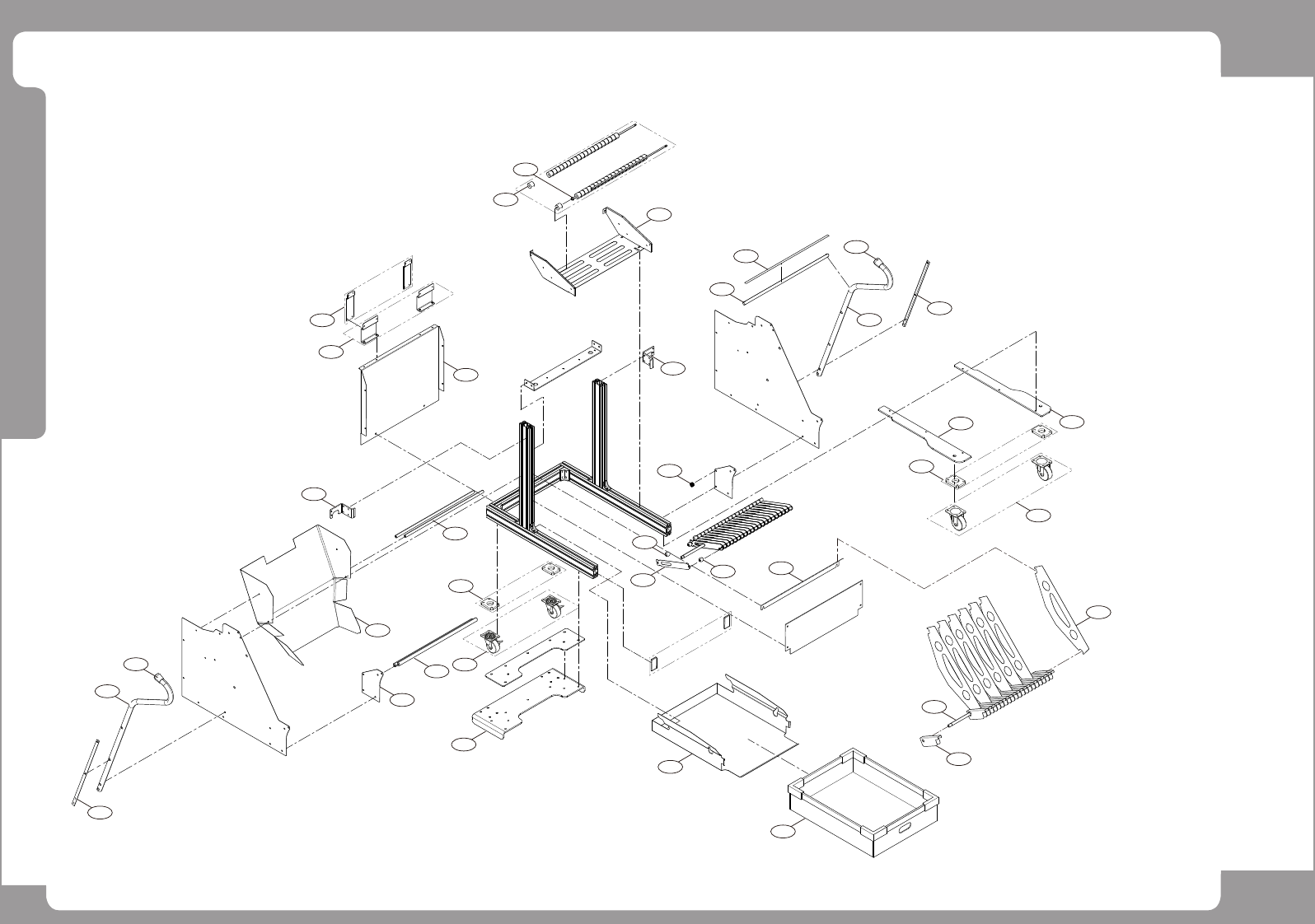

Docking Cart (3/3)
25
27
27
20
19
16
21
21
15
28
1
24
22
28
2
17
17
16
3
14
4
7
26
18
10
5
12
13
23
29
6
8
9
31
32
30
11
Page
ohu~oh
23
HM520 /
HM520h
Docking Cart (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-008995A BRACKET-ROL_SUPPORT_BKT 1
2 MC19-002774A SHAFT-SHAFT_D 2
3 MC19-002775A SHAFT-SHAFT_A 2
4 FC30-005699A PLATE-CHUTE 1
5 FC29-009939A GUIDE-DUMP_BOX_GUIDE 1
6 FC08-001054A BOX-DUMP_BOX 1
7 FC15-006058A COVER-FRONT_COVER 1
8 MC19-002776A SHAFT-REEL_BAR_N 1
9 PT03-002868A STICKER-NUMBER_STICKER_460_12 3
10 FC30-006018A PLATE-CUTTER_SUPPORT_PLATE 2
11 J70653891A SUB_LILLE_HOLDER J70653891A 21
12 FC30-006285A PLATE-PARTITION_C 7
13 J70653897A LILLE_PLATE J70653897A 42
14 FC29-003623A POST-V1P08-UPPER_REEL_POST 42
15 J70653874A COLLAR J70653874A 21
16 RM01-003091A BAR-HANDLE-DC_HANDLE_CD 2
17 FC09-001999A BRACKET-V1P08-BAR 2
18 FC35-000134A ROLLER-V1P08-ROLLER_21 42
19 FC35-000137A ROLLER-V1P08-ROLLER_FIXER 2
20 FC38-900064 SPRING WT16-20 1
21 FC10-900011 GRIP C-31-3-EP-UL 2
22 MC14-001185 CASTER,WHEEL 2
23 MC14-001184 CASTER,WHEEL 2
24 FC09-009878A BRACKET-LIFTER-BKT 1
25 FC09-009879A BRACKET-LIFTER-BKT_L 1
26 FC09-009926A BRACKET-CART_FIX_BKT 2
27 FC30-006301A PLATE-CASTER-SPACER_STD 4
28 FC30-006300A PLATE-CASTER_PLT 2
29 FC30-006299A PLATE-CASTER-PLATE-F 1
30 FC30-001016A PLATE-V1P08-325-SIDE_COVER_SUPPORT 2
31 MC19-002770A SHAFT-SHAFT_B 1
Page
ohu~oh
24
HM520 /
HM520h
Docking Cart (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC30-005698A PLATE-PARTITION_HOLDER 1
FC29-010832A COLLAR-CASTER 8 BASE 950 OPTION
FC18-004932A SPACER-CASTER 2 BASE 950 OPTION
FC18-000245A SPACER-SPACER 2 BASE 950 OPTION
