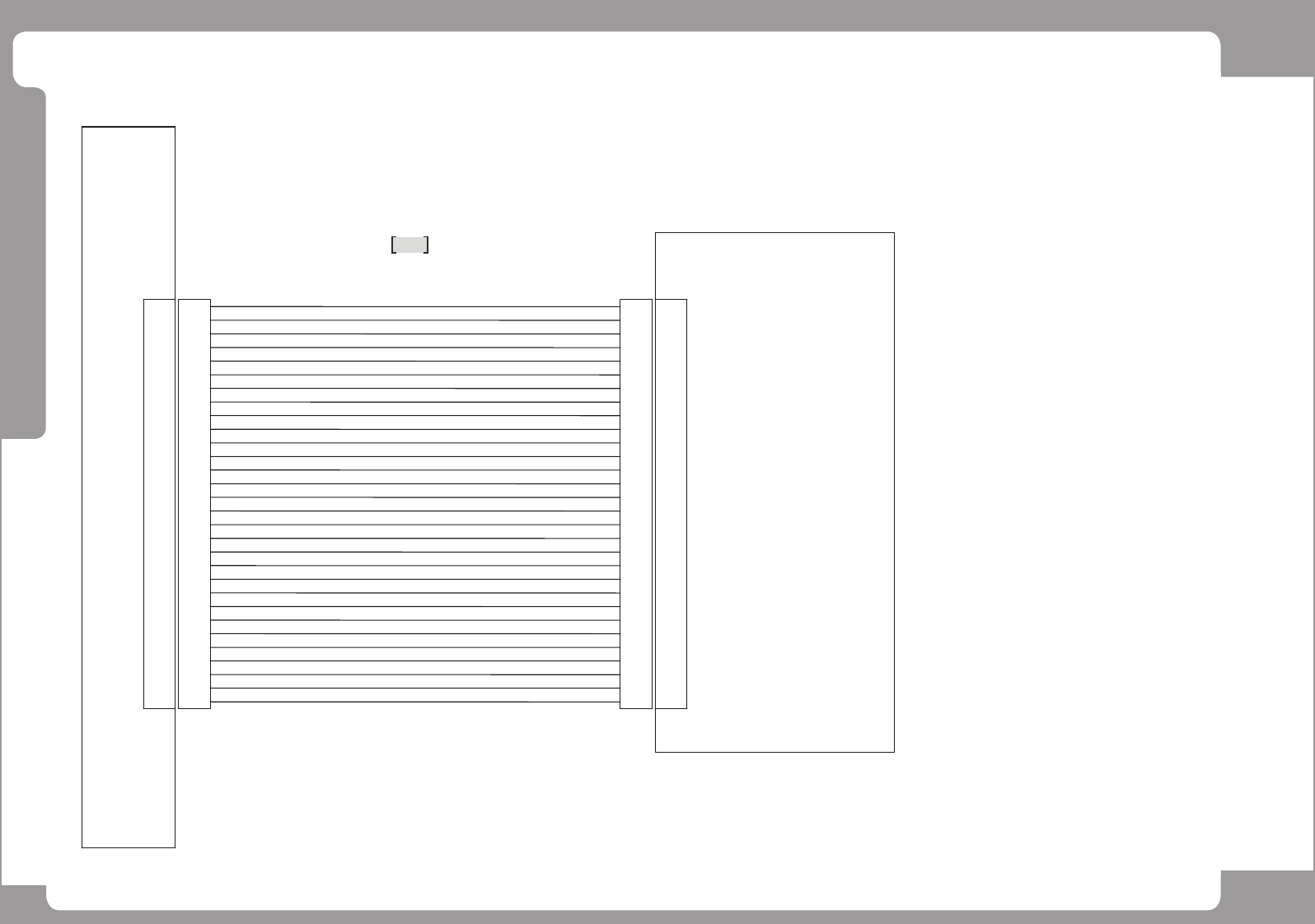

Page ohu~oh 303 HM520 / HM520h VCCB Board (2/3) - HM520h NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 AM03-029820A CABLE ASS Y -F_MAIN CUNET EXT CABLE 1
Page
ohu~oh
302
HM520 /
HM520h
VCCB Board (2/3) - HM520h
1
VCCB MAIN
BOARD
A2
A1
CN_F
A2
A1
A3A3
A4A4
A5A5
A6A6
A7A7
A8
A9
A10
A11
A12
A13
A14
A15
A8
A9
A10
A11
A12
A13
A14
A15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
NXD_FIXFD_005
(AM03-029820A)
A2
A1
CN MAIN
A2
A1
A3A3
A4A4
A5A5
A6A6
A7A7
A8
A9
A10
A11
A12
A13
A14
A15
A8
A9
A10
A11
A12
A13
A14
A15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
FRONT VCCB SUB
BOARD
GND
24V1+_SUB
CSWF(0)
FDCF(0)
FDDF(1)
CSWF(2)
FDCF(2)
FDDF(3)
CSWF(4)
FDCF(4)
FDDF(5)
CSWF(6)
FDCF(6)
FDDF(7)
GND
G_OUT(0)
24V1+_SUB
FDDF(0)
CSWF(1)
FDCF(1)
FDDF(2)
CSWF(3)
FDCF(3)
FDDF(4)
CSWF(5)
FDCF(5)
FDDF(6)
CSWF(7)
FDCF(7)
GND
GND
24V1+_SUB
CSWF(0)
FDCF(0)
FDDF(1)
CSWF(2)
FDCF(2)
FDDF(3)
CSWF(4)
FDCF(4)
FDDF(5)
CSWF(6)
FDCF(6)
FDDF(7)
GND
G_OUT(0)
24V1+_SUB
FDDF(0)
CSWF(1)
FDCF(1)
FDDF(2)
CSWF(3)
FDCF(3)
FDDF(4)
CSWF(5)
FDCF(5)
FDDF(6)
CSWF(7)
FDCF(7)
GND
Page
ohu~oh
303
HM520 /
HM520h
VCCB Board (2/3) - HM520h
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-029820A CABLE ASSY-F_MAIN CUNET EXT CABLE 1
Page
ohu~oh
304
HM520 /
HM520h
VCCB Board (3/3) - HM520h
1
VCCB MAIN
BOARD
A2
A1
CN_R
A2
A1
A3A3
A4A4
A5A5
A6A6
A7A7
A8
A9
A10
A11
A12
A13
A14
A15
A8
A9
A10
A11
A12
A13
A14
A15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
NXD_FIXFD_007-1
(AM03-029468A)
A2
A1
CN MAIN
A2
A1
A3A3
A4A4
A5A5
A6A6
A7A7
A8
A9
A10
A11
A12
A13
A14
A15
A8
A9
A10
A11
A12
A13
A14
A15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B2
B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
REAR VCCB SUB
BOARD
GND
24V1+_SUB
CSWF(0)
FDCF(0)
FDDF(1)
CSWF(2)
FDCF(2)
FDDF(3)
CSWF(4)
FDCF(4)
FDDF(5)
CSWF(6)
FDCF(6)
FDDF(7)
GND
G_OUT(0)
24V1+_SUB
FDDF(0)
CSWF(1)
FDCF(1)
FDDF(2)
CSWF(3)
FDCF(3)
FDDF(4)
CSWF(5)
FDCF(5)
FDDF(6)
CSWF(7)
FDCF(7)
GND
GND
24V1+_SUB
CSWF(0)
FDCF(0)
FDDF(1)
CSWF(2)
FDCF(2)
FDDF(3)
CSWF(4)
FDCF(4)
FDDF(5)
CSWF(6)
FDCF(6)
FDDF(7)
GND
G_OUT(0)
24V1+_SUB
FDDF(0)
CSWF(1)
FDCF(1)
FDDF(2)
CSWF(3)
FDCF(3)
FDDF(4)
CSWF(5)
FDCF(5)
FDDF(6)
CSWF(7)
FDCF(7)
GND
