Page ohu~oh 309 HM520 / HM520h Nozzle NO. P A RT NO. Part NAME Q'TY Old N o. Supply Supply L T Reference 1 AM03-030406A ASSY ,NOZZLE-HN007 1 2 AM03-026485C ASSY ,NOZZLE-HN010 1 3 AM03-026471C ASSY ,NOZZLE-HN015 1 4 …
Page
ohu~oh
308
HM520 /
HM520h

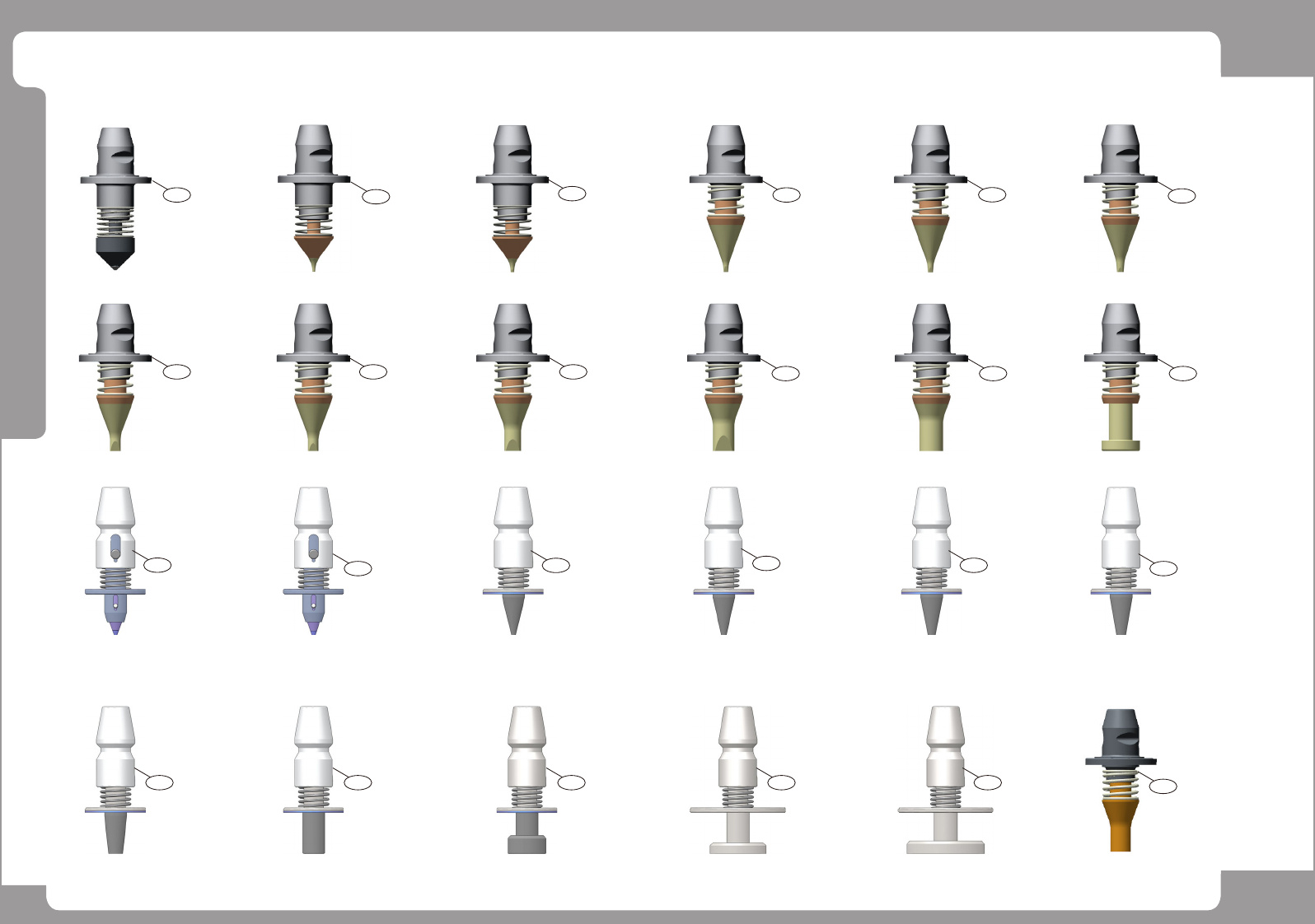

Nozzle
2
1
3
4
5
6
7 8 9
10
13
14
11 12
19 20 21 22 23
15
16
17
18
24
Page
ohu~oh
309
HM520 /
HM520h
Nozzle
NO. PART NO. Part NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-030406A ASSY,NOZZLE-HN007 1
2 AM03-026485C ASSY,NOZZLE-HN010 1
3 AM03-026471C ASSY,NOZZLE-HN015 1
4 AM03-034565B ASSY,NOZZLE-HN020_DIA 1
5 AM03-033613B ASSY,NOZZLE-HN030_DIA 1
6 AM03-026555C ASSY,NOZZLE-HN035 1
7 AM03-026031C ASSY,NOZZLE-HN040 1
8 AM03-026554C ASSY,NOZZLE-HN045 1
9 AM03-026557C ASSY,NOZZLE-HN065 1
10 AM03-026556C ASSY,NOZZLE-HN080 1
11 AM03-026559C ASSY,NOZZLE-HN140 1
12 AM03-026558C ASSY,NOZZLE-HN220 1
13 AM03-027004A ASSY,NOZZLE-CN015_CODE 1
14 AM03-027001A ASSY,NOZZLE-CN020_CODE 1
15 AM03-027005A ASSY,NOZZLE-CN030_CODE 1
16 AM03-027006A ASSY,NOZZLE-CN040_CODE 1
17 AM03-027007A ASSY,NOZZLE-CN065_CODE 1
18 AM03-027010A ASSY,NOZZLE-CN080_CODE 1
19 AM03-027008A ASSY,NOZZLE-CN140_CODE 1
20 AM03-027009A ASSY,NOZZLE-CN220_CODE 1
21 AM03-027011B ASSY,NOZZLE-CN400S_CODE 1
22 AM03-027796B ASSY,NOZZLE-CN750L_CODE 1
23 AM03-027012B ASSY,NOZZLE-CN110_CODE 1
24 AM03-031649A ASSY,NOZZLE-EJ_PIN_Z_CALI 1
Page
ohu~oh
310
HM520 /
HM520h
ETC
NO. PART NO. Part NAME Q'TY Old No. Supply Supply LT Reference
AM03-028288A ASSY,MANUAL-HM520_SET_KOR 1
PT01-005272A MANUALS-HM520_OP_HANDBOOK_KOR 1
PT01-005273A MANUALS-HM520_MT_HANDBOOK_KOR 1
PT01-005274A MANUALS-HM520_ADMIN_KOR 1
PT01-005283A MANUALS-HM520_TROUBLE_KOR 1
PT01-005258A MANUALS-HM520_TECH_KEC 1
PT01-005361A MANUALS-USERS_GUIDE_FOR_HM_FEEDER_KOR 1
PT01-002155A MANUALS-USERS_GUIDE_EX_FEEDER_KOR_V3 1
CD03-001047A RECORDABLE CD-HM520_CD_K;MANUAL_CD,2GB 1
AM03-028289A ASSY,MANUAL-HM520_SET_ENG 1
PT01-005276A MANUALS-HM520_OP_HANDBOOK_ENG 1
PT01-005275A MANUALS-HM520_MT_HANDBOOK_ENG 1
PT01-005277A MANUALS-HM520_ADMIN_ENG 1
PT01-005278A MANUALS-HM520_TROUBLE_ENG 1
PT01-005362A MANUALS-USERS_GUIDE_FOR_HM_FEEDER_ENG 1
PT01-002156A MANUALS-USERS_GUIDE_EX_FEEDER_ENG_V3 1
CD03-001048A RECORDABLE CD-HM520_CD_E;MANUAL_CD,2GB 1
AM03-028290A ASSY,MANUAL-HM520_SET_CHI 1
PT01-005279A MANUALS-HM520_OP_HANDBOOK_CHI 1
PT01-005280A MANUALS-HM520_MT_HANDBOOK_CHI 1
PT01-005281A MANUALS-HM520_ADMIN_CHI 1
PT01-005282A MANUALS-HM520_TROUBLE_CHI 1
PT01-005360A MANUALS-USERS_GUIDE_FOR_HM_FEEDER_CHI 1
PT01-002157A MANUALS-USERS_GUIDE_EX_FEEDER_CHI_V3 1
CD03-001049A RECORDABLE CD-HM520_CD_C;MANUAL_CD,2GB 1
