Page ohu~oh 30 HM520 / HM520h Fixed Feeder Base (HM520h) Left side Right Side F ront side Rear side 8 17 16 13 6 7 3 1 11 10 19 5 4 12 14 27 26 21 25 24 23 22 18 20 9 28 2 15
Page
ohu~oh
29
HM520 /
HM520h
Fixed Feeder Base (HM520)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
60 RM04-001068A TAPE-TEFLON_TAPE 2
61 AM03-027542B ASSY,BOARD-VCCB08 1
62 FC29-011338A BOX-FIXED_DUMP_BOX 2
PT03-002868A STICKER-NUMBER_STICKER 6
HP06-900289 STRAIGHT UNION 2
HP13-001061 TUBE,PNEUMATIC 1 0.7M
HP13-001062 TUBE,PNEUMATIC 1 0.7M
Page
ohu~oh
30
HM520 /
HM520h

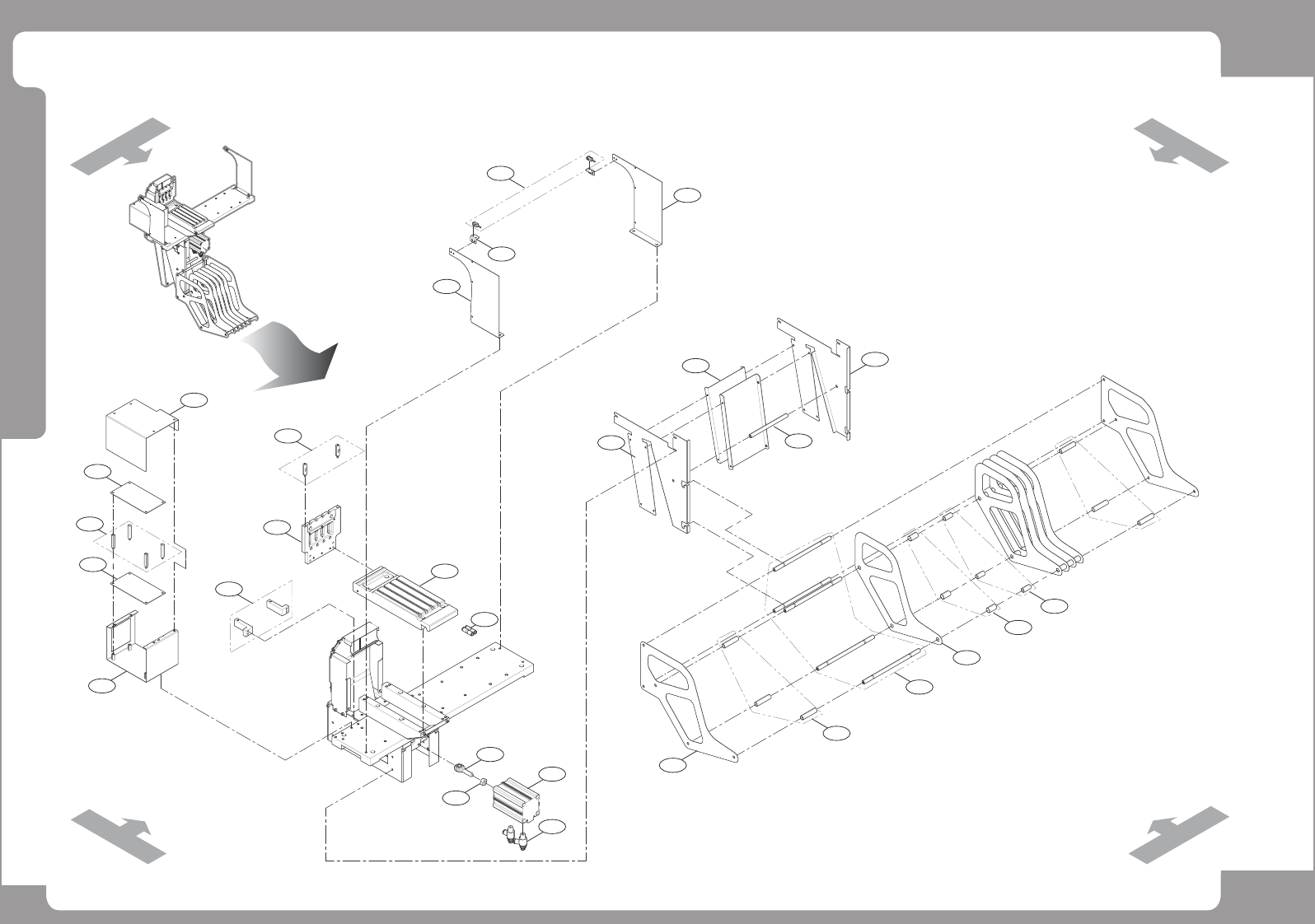

Fixed Feeder Base (HM520h)
Left side
Right Side
Front side
Rear side
8
17
16
13
6
7
3
1
11
10
19
5
4
12
14
27
26
21
25
24
23
22
18
20
9
28
2
15
Page
ohu~oh
31
HM520 /
HM520h
Fixed Feeder Base (HM520h)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-027643B CABLE ASSY-NXD FDR UNLOCK SNS CABLE 2
2 FC09-009188A BRACKET-FEEDER_SENS_BKT_2 2
3 FC09-011202A BRACKET-FEEDER_SENS_L 1
4 FC09-011203A BRACKET-FEEDER_SENS_R 1
5 FC09-011194A BRACKET-BOARD_CASE2_F 1 Front
FC09-011200A BRACKET-BOARD_CASE2_R Rear
6 AM03-029368A ASSY,BOARD-VL_SUB 2
7 FC29-000177 SUPPORT(M4X40) 4
8 AM03-029367A ASSY,BOARD-VL_MAIN 1
9 FC09-011195A BRACKET-BOARD_CASE1_F 1 Front
FC09-011198A BRACKET-BOARD_CASE1_R 1 Rear
10 FC28-003075A FEEDER,BAR-FM_HEX_BAR+MARK_PIN 2
11 FC09-009747A BRACKET-LOCATEPLATE_4SLOT 1
12 FC09-009750A BRACKET-FB_4SLOT 1
13 FC07-006117A BLOCK-FIX_FB_SUPPORT_B 2
14 HP03-000119 CYLINDER 1
15 HP06-900232 SPICON AS2201F-02-06S 2
16 FC09-011377A BRACKET-FB-RB-SUPPORT-A1 1
17 FC09-011379A BRACKET-FB-RB-SUPPORT-CV1 2
18 MC19-003096A SHAFT-RB_B 1
19 FC09-011378A BRACKET-FB-RB-SUPPORT-B1 1
20 FC09-010490B BRACKET-FIX_FB_RB_GUIDE 2
21 MC19-003073A COLLAR,SHAFT-SPACER 6
22 MC19-003054B SHAFT-RB_A 5
23 FC09-010491B BRACKET-REEL_GUIDE 5
24 MC19-002469A COLLAR,SHAFT-OUTER_COLLAR 12
25 MC19-002470A COLLAR,SHAFT-INNER_COLLAR 12
26 HP06-900289 STRAIGHT UNION 2
27 FC14-000123 STUB END 1
28 FC18-901040 HEX NUT M10 1
