Page ohu~oh 31 HM520 / HM520h Fixed Feeder Base (HM520h) NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 AM03-027643B CABLE ASSY -NXD FDR UNLOCK SNS CABLE 2 2 FC0 9-009188A BRACKET -FEE DER_SEN…
Page
ohu~oh
30
HM520 /
HM520h
Fixed Feeder Base (HM520h)
Left side
Right Side
Front side
Rear side
8
17
16
13
6
7
3
1
11
10
19
5
4
12
14
27
26
21
25
24
23
22
18
20
9
28
2
15
Page
ohu~oh
31
HM520 /
HM520h
Fixed Feeder Base (HM520h)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-027643B CABLE ASSY-NXD FDR UNLOCK SNS CABLE 2
2 FC09-009188A BRACKET-FEEDER_SENS_BKT_2 2
3 FC09-011202A BRACKET-FEEDER_SENS_L 1
4 FC09-011203A BRACKET-FEEDER_SENS_R 1
5 FC09-011194A BRACKET-BOARD_CASE2_F 1 Front
FC09-011200A BRACKET-BOARD_CASE2_R Rear
6 AM03-029368A ASSY,BOARD-VL_SUB 2
7 FC29-000177 SUPPORT(M4X40) 4
8 AM03-029367A ASSY,BOARD-VL_MAIN 1
9 FC09-011195A BRACKET-BOARD_CASE1_F 1 Front
FC09-011198A BRACKET-BOARD_CASE1_R 1 Rear
10 FC28-003075A FEEDER,BAR-FM_HEX_BAR+MARK_PIN 2
11 FC09-009747A BRACKET-LOCATEPLATE_4SLOT 1
12 FC09-009750A BRACKET-FB_4SLOT 1
13 FC07-006117A BLOCK-FIX_FB_SUPPORT_B 2
14 HP03-000119 CYLINDER 1
15 HP06-900232 SPICON AS2201F-02-06S 2
16 FC09-011377A BRACKET-FB-RB-SUPPORT-A1 1
17 FC09-011379A BRACKET-FB-RB-SUPPORT-CV1 2
18 MC19-003096A SHAFT-RB_B 1
19 FC09-011378A BRACKET-FB-RB-SUPPORT-B1 1
20 FC09-010490B BRACKET-FIX_FB_RB_GUIDE 2
21 MC19-003073A COLLAR,SHAFT-SPACER 6
22 MC19-003054B SHAFT-RB_A 5
23 FC09-010491B BRACKET-REEL_GUIDE 5
24 MC19-002469A COLLAR,SHAFT-OUTER_COLLAR 12
25 MC19-002470A COLLAR,SHAFT-INNER_COLLAR 12
26 HP06-900289 STRAIGHT UNION 2
27 FC14-000123 STUB END 1
28 FC18-901040 HEX NUT M10 1
Page
ohu~oh
32
HM520 /
HM520h

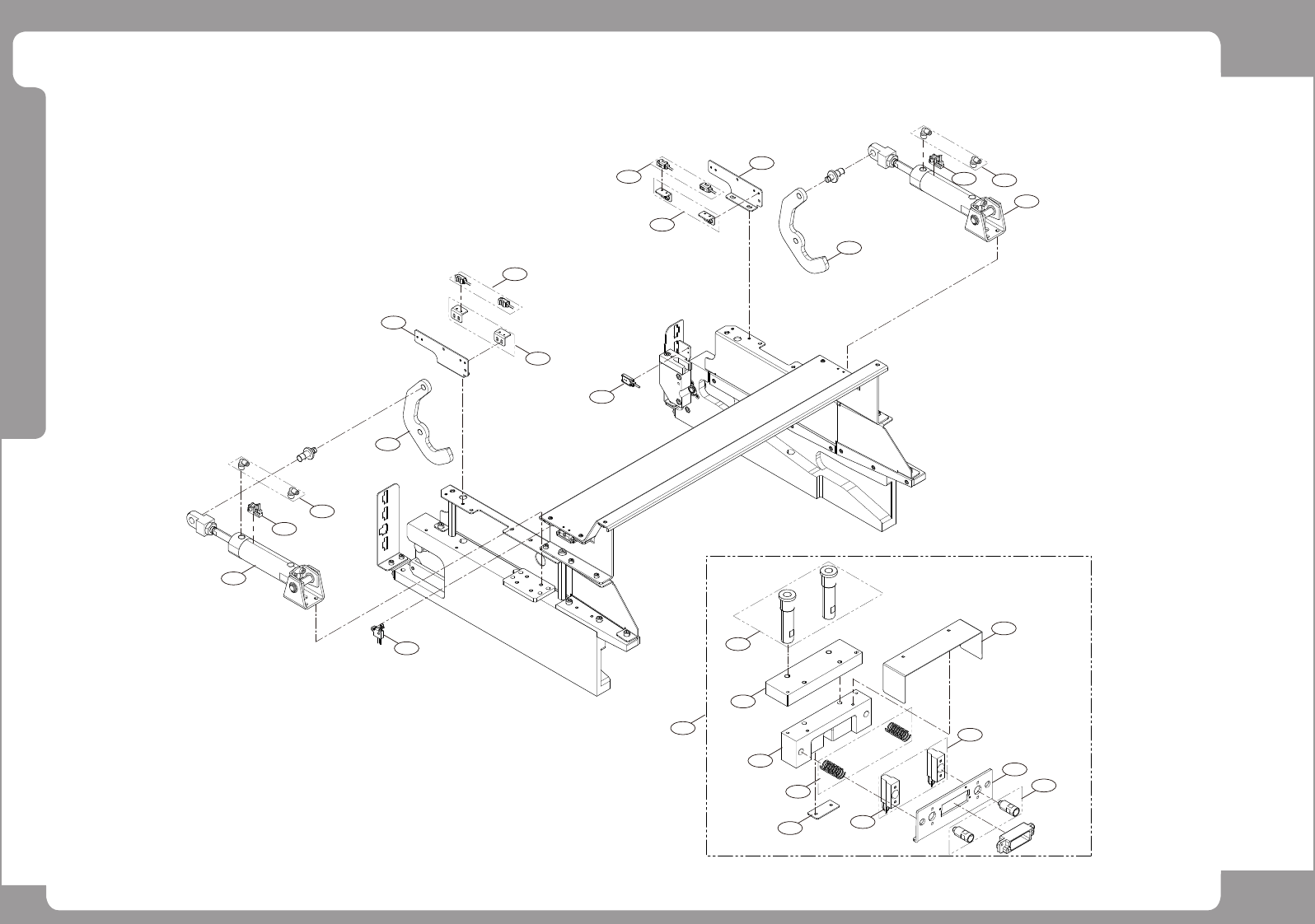

Cart Clamp
2
17
14
13
19
3
5
1
10
8
6
9
4
8
18
20
7
11
12
15
16
21
5
1
4
10
6
