Page ohu~oh 34 HM520 / HM520h Brush Dump (HM520h) Left side Right Side F ront side Rear side A 2 3 1 4
Page
ohu~oh
33
HM520 /
HM520h
Cart Clamp
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-010091A HINGES-HINGE 2
2 FC09-009049A BRACKET-FEEDER_SENS_BKT 1
3 FC09-009048A BRACKET-FEEDER_SENS_BKT_R 1
4 FC09-009188A BRACKET-FEEDER_SENS_BKT_2 2
5 HP03-001135 CYLINDER 2
6 HP06-000397 FITTING 4
7 AM03-026013A CABLE ASSY-CART CLAMP SEN CABLE 1
8 AM03-025849A CABLE ASSY-CART UNLOCK SEN CABLE 1
9 AM03-027535A CABLE ASSY-CARTCLAMP COVER SEN CABLE 1
10 AM03-027643B CABLE ASSY-NXD FDR UNLOCK SNS CABLE 1
11 MC19-002769A SHAFT-CON_SPACER 4
12 AM03-027520A ASSY,FEEDER BASE-DOCK_CONN_ASSY 2
13 FC30-006021A PLATE-CONNECTOR_PLT 1
14 FC30-005800A PLATE-CONNECTOR_COVER 1
15 FC07-004839A BLOCK-CON_BLOCK 1
16 FC30-006020A PLATE-PLATE_CONNECTOR 1
17 FC30-006022A PLATE-COUPLER_BLK 2
18 FC38-000004A SPRING-V1_CUT_SPRING 2
19 FC14-002351 COUPLER 2
20 HP06-001303 FITTING 2
21 FC30-006275A PLATE-DOCK_CABLE_PLATE 1
Page
ohu~oh
34
HM520 /
HM520h

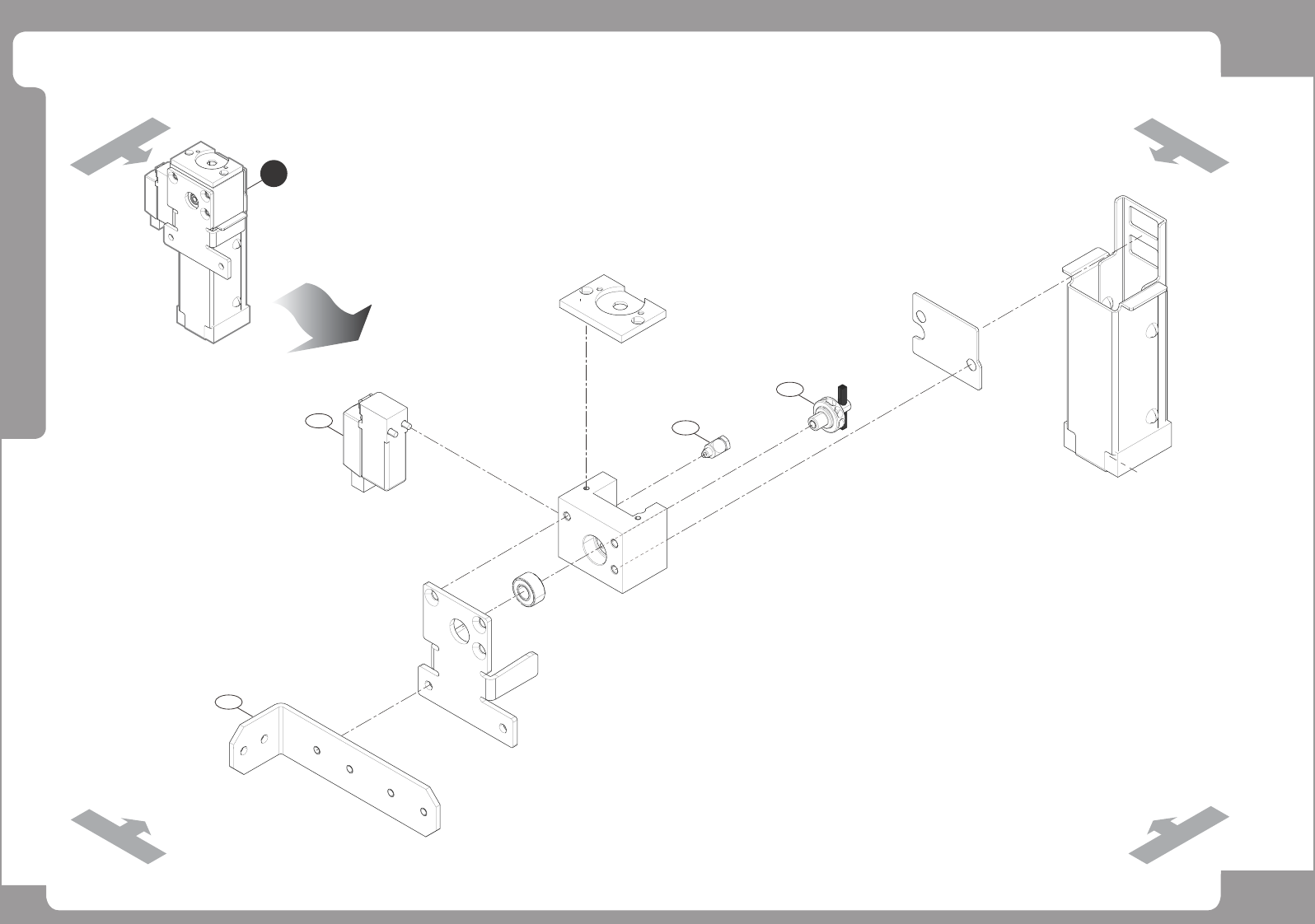

Brush Dump (HM520h)
Left side
Right Side
Front side
Rear side
A
2
3
1
4
Page
ohu~oh
35
HM520 /
HM520h
Brush Dump (HM520h)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-028228A BRUSH DUMP ASSY 2
1 HP14-900036 SOLENOID VALVE 1
2 HP06-000429 FITTING 1
3 MC19-002941A BD BRUSH SHAFT 1
4 FC09-009787A BRACKET-BLOW DUMP 1
