Page ohu~oh 35 HM520 / HM520h Brush Dump (HM520h) NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference A AM03-028228A BRUSH DUMP ASSY 2 1 HP14-900036 SOLENOID V AL VE 1 2 HP06-000429 FITTING 1 3 MC19-…
Page
ohu~oh
34
HM520 /
HM520h
Brush Dump (HM520h)
Left side
Right Side
Front side
Rear side
A
2
3
1
4
Page
ohu~oh
35
HM520 /
HM520h
Brush Dump (HM520h)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-028228A BRUSH DUMP ASSY 2
1 HP14-900036 SOLENOID VALVE 1
2 HP06-000429 FITTING 1
3 MC19-002941A BD BRUSH SHAFT 1
4 FC09-009787A BRACKET-BLOW DUMP 1
Page
ohu~oh
36
HM520 /
HM520h

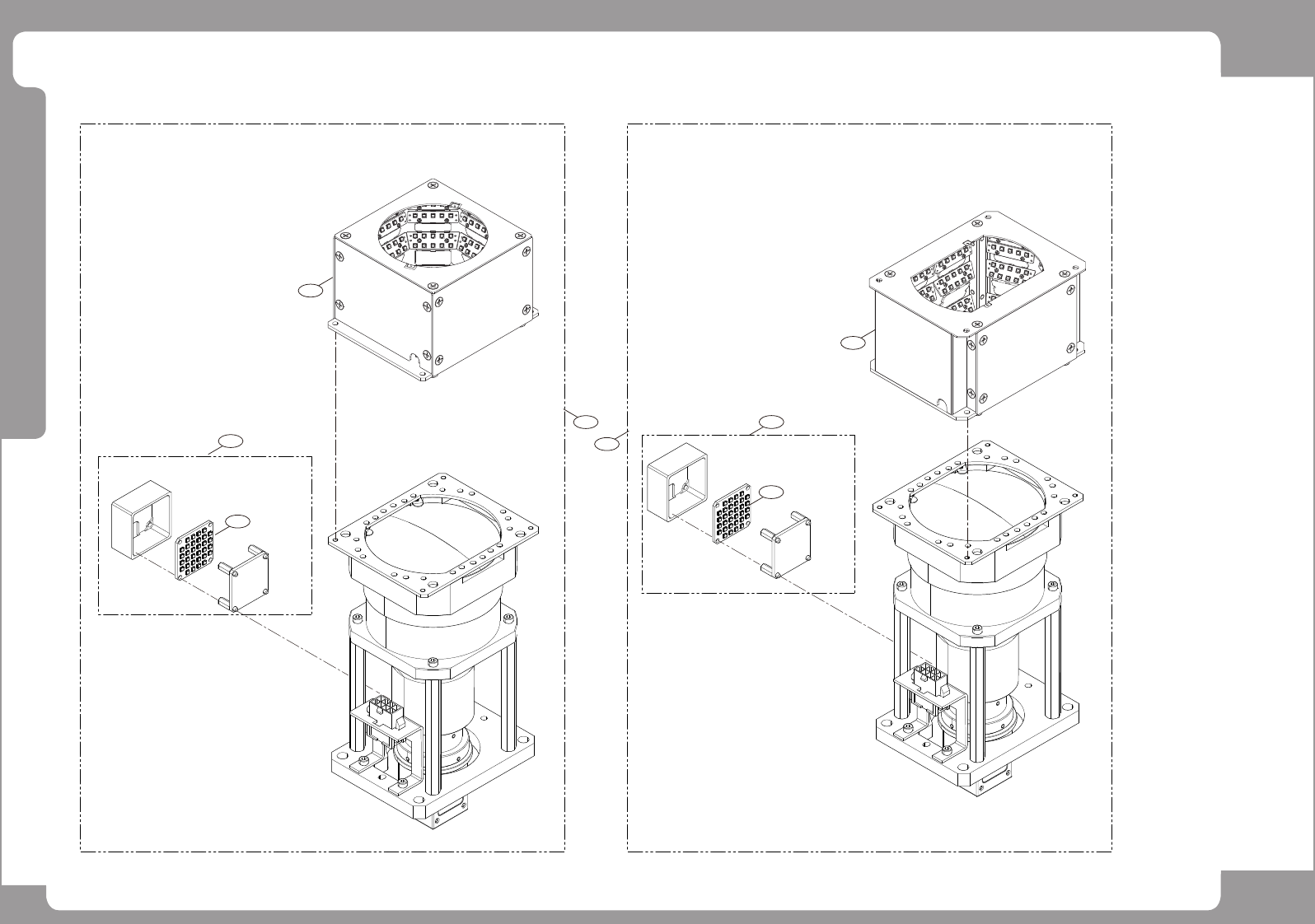

Stage Camera
4
3
4
3
1
5
6
2
