HM-Series_TRM(Ver2.2_CS20.11) - 第48页
Page ohu~oh 46 HM520 / HM520h X-Y Cable Duct 14 10 6 5 5 6 7 13 15 16 14 11 9 13 6 5 15 16 11 9 1 3 4 4 12 10 12 8 17 2
Page
ohu~oh
45
HM520 /
HM520h
Page
ohu~oh
46
HM520 /
HM520h
X-Y Cable Duct
14
10
6
5
5
6
7
13
15
16
14
11
9
13
6
5
15
16
11
9
1
3
4
4
12
10
12
8
17
2
Page
ohu~oh
47
HM520 /
HM520h
X-Y Cable Duct

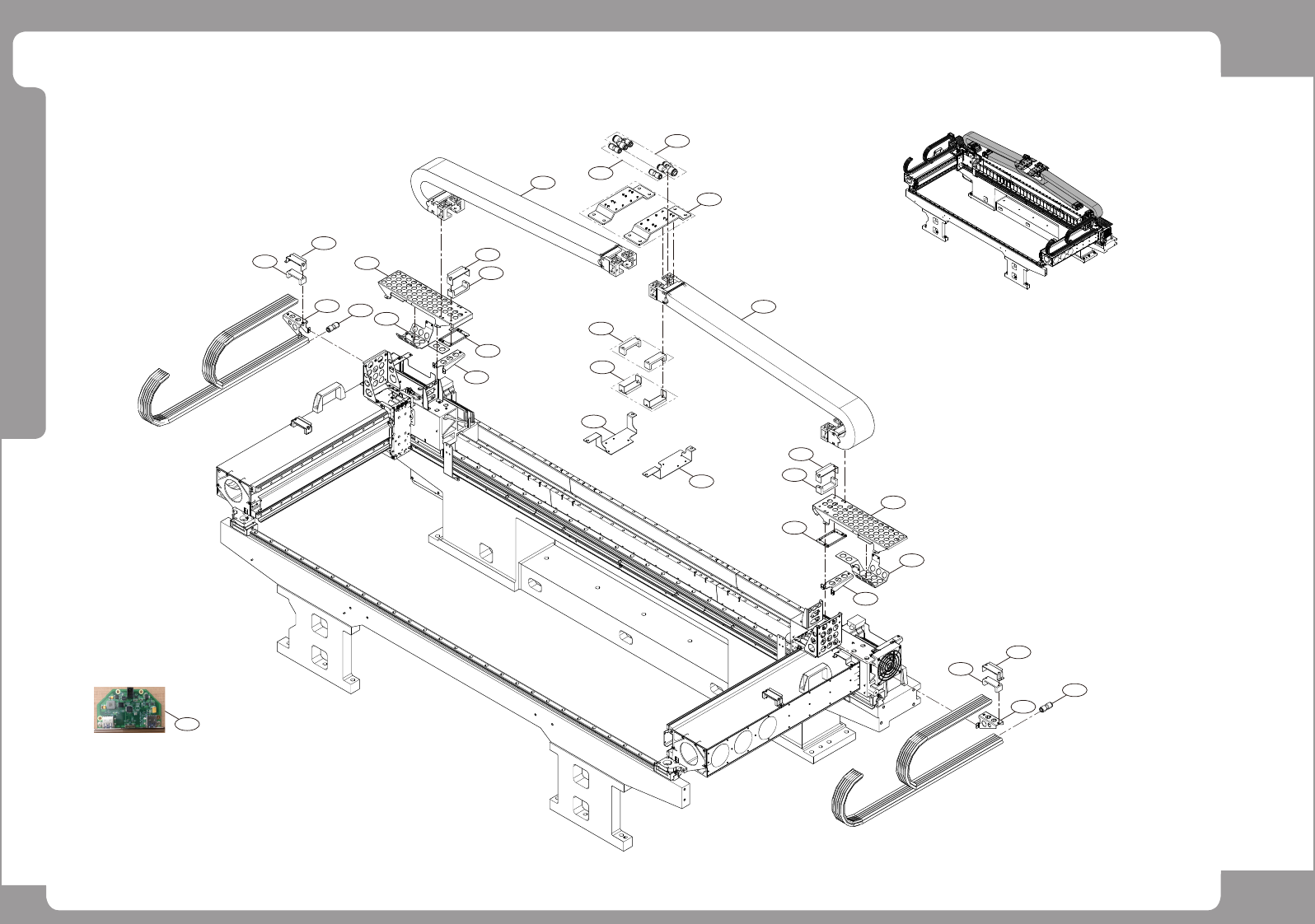

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP06-000457 FITTING 1
2 HP06-900170 FITTING 2
3 FC09-009478A BRACKET-VEYOR TOP BKT 1
4 MC08-001031 CHAIN 1 HS, MF Option
MC08-001033 CHAIN 1 LED Option
5 PM02-004052A CUSHION-CABLE 2
6 FC09-008678A BRACKET-CABLE_CUSHION 2
7 FC09-009798A BRACKET-USB HUB BKT RE 1
8 FC09-009783A BRACKET-USB HUB BKT 1 MFH(SVS) Option
9 FC09-009130A BRACKET-Y VEYOR BKT 1
10 FC09-009134A BRACKET-Y VEYOR NUT 1
11 FC09-009133B BRACKET-CABLE C GUIDE 1
12 FC09-009129A BRACKET-Y VEYOR SUPPORT 1
13 FC09-009816B BRACKET-CABLE CUSHION X 1 HS, MF Option
FC09-010322A BRACKET-CABLE CUSHION X_LED 1 LED Option
14 PM02-004507A CUSHION-CABLE X 1 HS, MF Option
PM02-004992A CUSHION-CABLE X_LED 1 LED Option
15 HP06-900170 FITTING 2
16 FC09-009302A BRACKET-X CABLE ARM 1 HS, MF Option
FC09-010324A BRACKET-X CABLE ARM_LED 1 LED Option
17 AM03-025701A ASSY,BOARD-USB3.0_HUB_REV1.0 1 MFH(SVS) Option
