Page ohu~oh 53 HM520 / HM520h X Frame - Rear (HS, MF, HM520h Type) NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 FC09-009296A BRACKET -Y2 SUPPORT 3T 1 2 FC29-001438 HANDLE 1 3 PM02-004507A CU…
Page
ohu~oh
52
HM520 /
HM520h

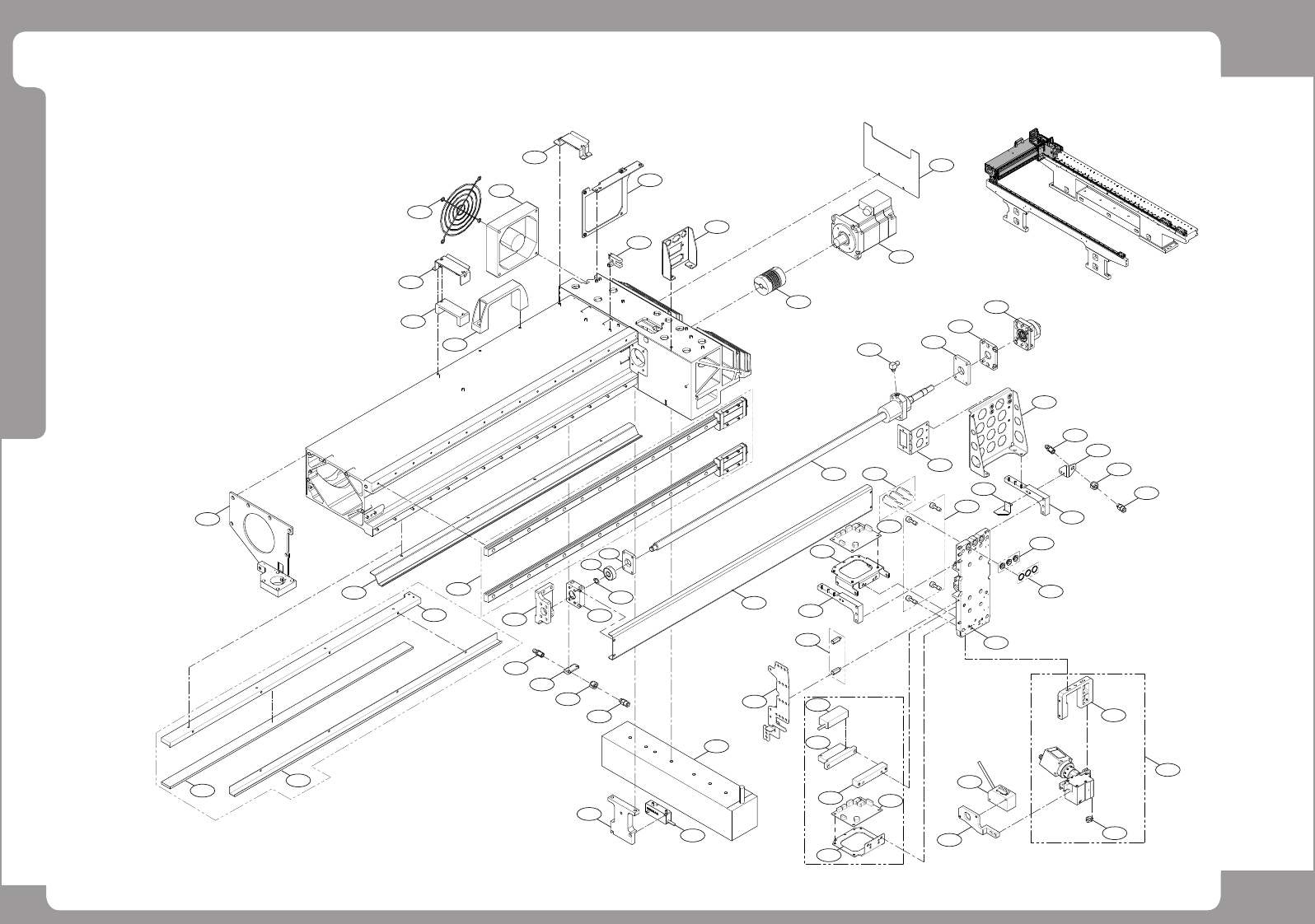

X Frame - Rear (HS, MF, HM520h Type)
6
33
35
57
50
51
29
41
40
17
16
15
14
20
19
8
9
10
13
28
43
56
24
42
39
38
26
27
12
11
30
31
55
49
37
36
45
44
46
22
53
54
47
21
18
3
2
4
5
7
32
58
52
35
48
24
25
26
27
34
23
1
47
HM520h
Option
HM520h Option
56
Page
ohu~oh
53
HM520 /
HM520h
X Frame - Rear (HS, MF, HM520h Type)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-009296A BRACKET-Y2 SUPPORT 3T 1
2 FC29-001438 HANDLE 1
3 PM02-004507A CUSHION-CABLE X 1
4 FC09-009816B BRACKET-CABLE CUSHION X 1
5 HP05-001022 FILTER ACCESSORY 2
6 AM03-026846A CABLE ASSY-COOLING FAN 2
7 FC09-008681A BRACKET-CABLE_HOLDER 2
8 FC09-009565A BRACKET-FAN BKT REAR 1
9 EP19-900109 PHOTO SENSOR 1
10 FC09-009479A BRACKET-Y MOTOR CNT BKT 1
11 FC14-002452 COUPLING 2
12 EP08-001123 MOTOR,SERVO 2
13 FC09-009567A BRACKET-COOLING GUIDE 2
14 MC04-001027 SUPPORT,BEARING 1
15 FC29-009640A STOPPER-SUPPORT_FIXED 1
16 PM02-004051A CUSHION-SUPPORT_FIXED 1 #1~108
PM02-004971A CUSHION-SUPPORT_FIXED_2.5T 1
#109~
17 HP06-900088 FITTING 1
18 MC13-001177 BALL SCREW 1 #1~108
MC13-001484 BALL SCREW 1
#109~
19 PM02-004050A CUSHION-SUPPORT_END 1 #1~108
PM02-004965A CUSION-SUPPORT_END_3T 1
#109~
20 MC03-001166 BALL BEARING 1
21 FC18-901673 C-RING DIA 8 (SHAFT, BL/ZN) 1
22 MC04-001052B HOUSING,BEARING-END 1
23 MC04-001053A SUPPORT,BEARING-END 1
24 FC28-900369 GREASE NIPPLE 1
25 FC09-008675A BRACKET-Y_GREASE 1
26 J70541105A GREASE_NIPPLE_NUT J70541105A 1
27 HP06-900080 STRAIGHT_FITTING 1
28 EP08-001118 MOTOR,ELECTRIC 2
Page
ohu~oh
54
HM520 /
HM520h
X Frame - Rear (HS, MF, HM520h Type)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 FC09-008669A BRACKET-ENCODER_Y1 2
30 FC28-000188 LINEAR SCALE UNIT 2
31 FC30-005524B PLATE-GREASE_X_BS 1
32 FC09-009986A BRACKET-X SIDE CABLE REAR 1 X-Axis LM Guide Block 1EA Type
FC09-010651A BRACKET-X_SIDE_CABLE_RE 1 X-Axis LM Guide Block 2EA Type
33 FC29-900604 HEX SUPPORT [M3*15 (BOLT-NUT)] 2 #1~108
FC29-001508 HEX SUPPORT [M3*12 (BOLT-NUT)] 2
#109~
34 FC30-005514A PLATE-X_CARRIER_SIDE 1 #1~108
FC30-006612A PLATE-X_CARRIER_SIDE_L 1
#109~
35 FC09-008882A BRACKET-ILL BD BKT 1 HS, MF Option
FC09-010705A BRACKET-HILL_BD_LS 1 HM520h Option
36 FC30-005516A PLATE-X_CARRIER_REAR 1 #1~108
FC30-006615B PLATE-X_CARRIER_REAR_2BLK 1
#109~
37 FC18-006589 O-RING 3 FC18-001093 Replace the following parts together (Per machine (Rear))
- O-RING: FC18-006589, 3EA
- O-RING HODLER: FC29-011782A, 3EA
- SHIM: FC29-001563, 3EA (#1~108)
38 FC29-011782A HOLDER-O-RING-3 3 FC29-009656A
FC29-001563 SHIM 3
39 FC18-005861 COVER BOLT 4
40 HP06-900153 FITTING 3
41 FC30-005523A PLATE-X_SENS_DOG_REAR 1
42 FC09-009131A BRACKET-X BS GRE BKT R 1
43 FC09-010768A BRACKET-X CABLE SUPPORT_R 1
44 AM03-025929A ASSY,OPTICS-HSH_FID_SVS_CAMERA 1 HSH Type
AM03-025548A ASSY,OPTICS-MFH FID CAMERA 1 MFH Type
45 FC09-009638A BRACKET-HS_OPTICS 1
46 AM03-025780D ASSY,BOARD-HS_FID_OUTER_PCB(D) 1 HSH Type
AM03-015152B ASSY,HEAD-FID OUTER ILL L2 1 MFH Type
47 FC30-005525A PLATE-GREASE_X_BOTTOM 1 HS, MF Option
FC30-006682A PLATE-GREASE_X_BOTTOM_LS 1 HM520h Option
48 MC13-001284 LM GUIDE - 1 Block 2 #1~108
MC13-001281 LM GUIDE - 2 Block 2
#109~
