Page ohu~oh 55 HM520 / HM520h X Frame - Rear (HS, MF, HM520h Type) 49 FC09-01071 5A BRACKET -ENCODER_CON_X_LS_F 1 HM520h Option 50 FC28-001739 LINEAR SCALE SCANNING HEAD 1 HM520h Option 51 FC09-01070 3A BRACKET -ENCODER_…
Page
ohu~oh
54
HM520 /
HM520h
X Frame - Rear (HS, MF, HM520h Type)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 FC09-008669A BRACKET-ENCODER_Y1 2
30 FC28-000188 LINEAR SCALE UNIT 2
31 FC30-005524B PLATE-GREASE_X_BS 1
32 FC09-009986A BRACKET-X SIDE CABLE REAR 1 X-Axis LM Guide Block 1EA Type
FC09-010651A BRACKET-X_SIDE_CABLE_RE 1 X-Axis LM Guide Block 2EA Type
33 FC29-900604 HEX SUPPORT [M3*15 (BOLT-NUT)] 2 #1~108
FC29-001508 HEX SUPPORT [M3*12 (BOLT-NUT)] 2
#109~
34 FC30-005514A PLATE-X_CARRIER_SIDE 1 #1~108
FC30-006612A PLATE-X_CARRIER_SIDE_L 1
#109~
35 FC09-008882A BRACKET-ILL BD BKT 1 HS, MF Option
FC09-010705A BRACKET-HILL_BD_LS 1 HM520h Option
36 FC30-005516A PLATE-X_CARRIER_REAR 1 #1~108
FC30-006615B PLATE-X_CARRIER_REAR_2BLK 1
#109~
37 FC18-006589 O-RING 3 FC18-001093 Replace the following parts together (Per machine (Rear))
- O-RING: FC18-006589, 3EA
- O-RING HODLER: FC29-011782A, 3EA
- SHIM: FC29-001563, 3EA (#1~108)
38 FC29-011782A HOLDER-O-RING-3 3 FC29-009656A
FC29-001563 SHIM 3
39 FC18-005861 COVER BOLT 4
40 HP06-900153 FITTING 3
41 FC30-005523A PLATE-X_SENS_DOG_REAR 1
42 FC09-009131A BRACKET-X BS GRE BKT R 1
43 FC09-010768A BRACKET-X CABLE SUPPORT_R 1
44 AM03-025929A ASSY,OPTICS-HSH_FID_SVS_CAMERA 1 HSH Type
AM03-025548A ASSY,OPTICS-MFH FID CAMERA 1 MFH Type
45 FC09-009638A BRACKET-HS_OPTICS 1
46 AM03-025780D ASSY,BOARD-HS_FID_OUTER_PCB(D) 1 HSH Type
AM03-015152B ASSY,HEAD-FID OUTER ILL L2 1 MFH Type
47 FC30-005525A PLATE-GREASE_X_BOTTOM 1 HS, MF Option
FC30-006682A PLATE-GREASE_X_BOTTOM_LS 1 HM520h Option
48 MC13-001284 LM GUIDE - 1 Block 2 #1~108
MC13-001281 LM GUIDE - 2 Block 2
#109~
Page
ohu~oh
55
HM520 /
HM520h
X Frame - Rear (HS, MF, HM520h Type)
49 FC09-010715A BRACKET-ENCODER_CON_X_LS_F 1 HM520h Option
50 FC28-001739 LINEAR SCALE SCANNING HEAD 1 HM520h Option
51 FC09-010703A BRACKET-ENCODER_X_LS 1 HM520h Option
52 FC09-010704A BRACKET-ADAPTOR_ENCODER_X_LS 1 HM520h Option
53 FC30-006681A PLATE-CARRIER_LS_R 1 HM520h Option
54 FC28-001763 LINEAR SCALE 1 HM520h Option
55 FC30-005514A PLATE-X_CARRIER_SIDE 1 #1~108
FC30-006610A PLATE-X_CARRIER_SIDE_R 1
#109~
56 AM03-025297A ASSY,BOARD-NXD HILL 1
57 AM03-029337A ASSY,PACKAGE-HEIGHT SNS HG-C1030 1
58 FC09-009639B BRACKET-HS_HSNS 1
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
ohu~oh
56
HM520 /
HM520h

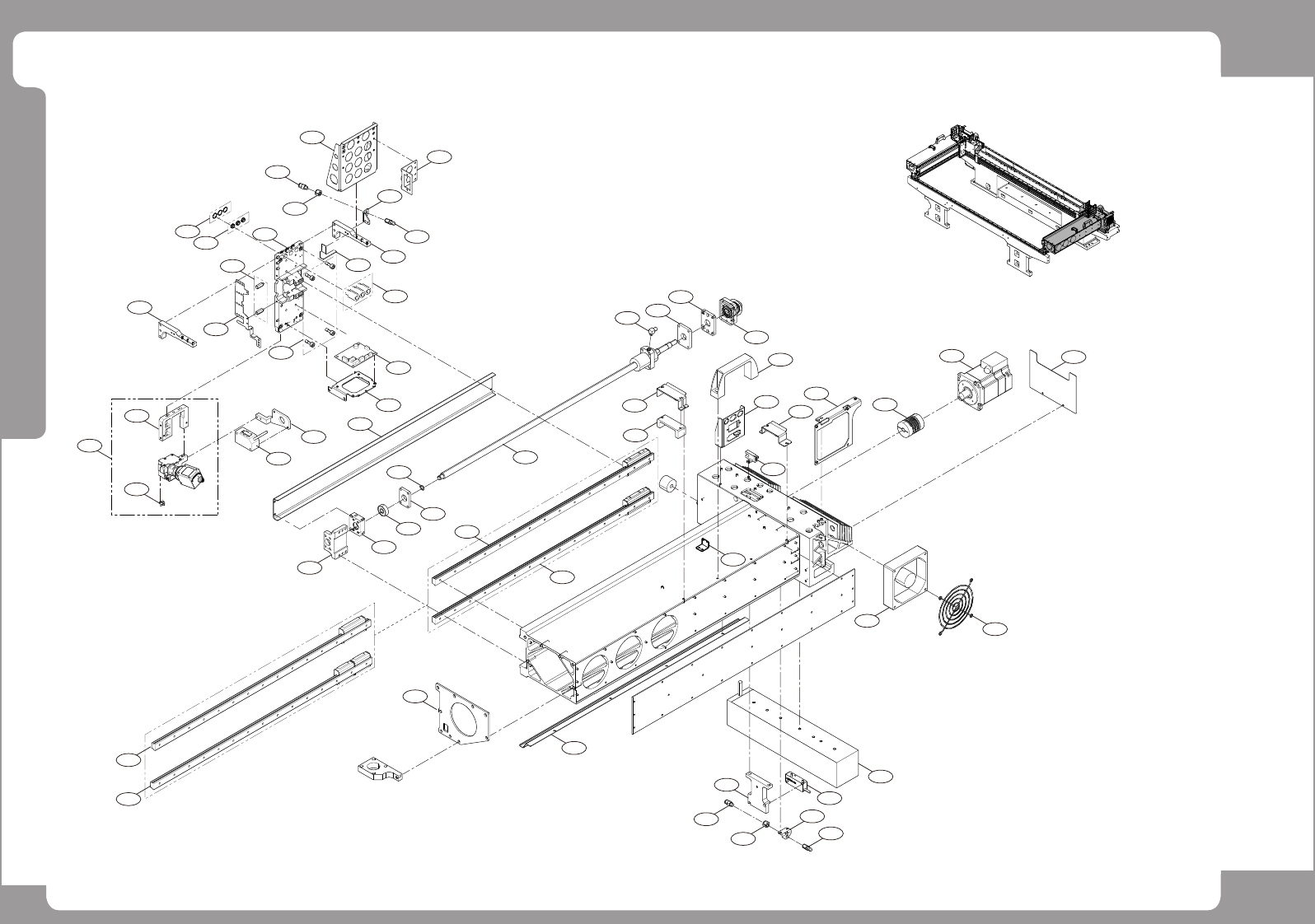

X Frame - Front (LED)
2
9
6
1
14
29
19
8
21
22
23
30
42
41
40
32
4
53
43
33
39
25
26
5
7
6
5
12
54
53
16
17
18
47
20
24
31
35
34
36
38
50
3
51
52
11
10
15
27
28
2
3
37
46
45
44
13
#130~
#1~129
29
47
55
