Page ohu~oh 63 HM520 / HM520h
Page
ohu~oh
62
HM520 /
HM520h
X Frame - Rear (LED)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 FC09-008669A BRACKET-ENCODER_Y1 2
30 FC28-000188 LINEAR SCALE UNIT 2
31 FC30-005524B PLATE-GREASE_X_BS 1
32 FC07-005526A BRACKET-X_CARR_SIDE_B 1
33 FC29-900604 HEX SUPPORT [M3*15 (BOLT-NUT)] 2 #1~129
FC29-001508 HEX SUPPORT [M3*12 (BOLT-NUT)] 2 #130~
34 FC07-005526A BLOCK-X_CARR_SIDE_B 2
35 FC09-008882A BRACKET-ILL BD BKT 1
36 FC30-005516A PLATE-X_CARRIER_REAR 1 #1~129
FC30-006850A PLATE-X_CARRIER_REAR_1_2_BLK 1 #130~
37 FC18-006589 O-RING 3 FC18-001093 Replace the following parts together (Per machine (Rear))
- O-RING: FC18-006589, 3EA
- O-RING HODLER: FC29-011782A, 3EA
38 FC29-011782A HOLDER-O-RING-3 3 FC29-009656A
39 FC18-005861 BOLT-COVER_GUTB5-6-15;GUTB5-6-15,15,3.9, 4
40 HP06-900153 FITTING 3
41 FC30-005523A PLATE-X_SENS_DOG_REAR 1
42 FC09-009131A BRACKET-X BS GRE BKT R 1
43 FC09-010770A BRACKET-X CABLE SUPPORT_LED_R 1
44 AM03-025929A ASSY,OPTICS-HSH_FID_SVS CAMERA 1
45 FC09-009638A BRACKET-HS_OPTICS 1
46 EP12-001103A MIRROR,OPTICS-HS_SVS_MIRROR+BKT 1
47 FC30-005525A PLATE-GREASE_X_BOTTOM 1
48 MC13-001284 LM GUIDE - 1 Block 1 #1~129
MC13-001354 LM GUIDE - 1 Block 1 #130~
49 MC13-001284 LM GUIDE - 1 Block 1 #1~129
MC13-001353 LM GUIDE - 2 Block 1 #130~
50 AM03-025297A ASSY,BOARD-NXD HILL 1
51 AM03-029337A ASSY,PACKAGE-HEIGHT SNS HG-C1030 1
52 FC09-009639B BRACKET-HS_HSNS 1
Page
ohu~oh
63
HM520 /
HM520h
Page
ohu~oh
64
HM520 /
HM520h

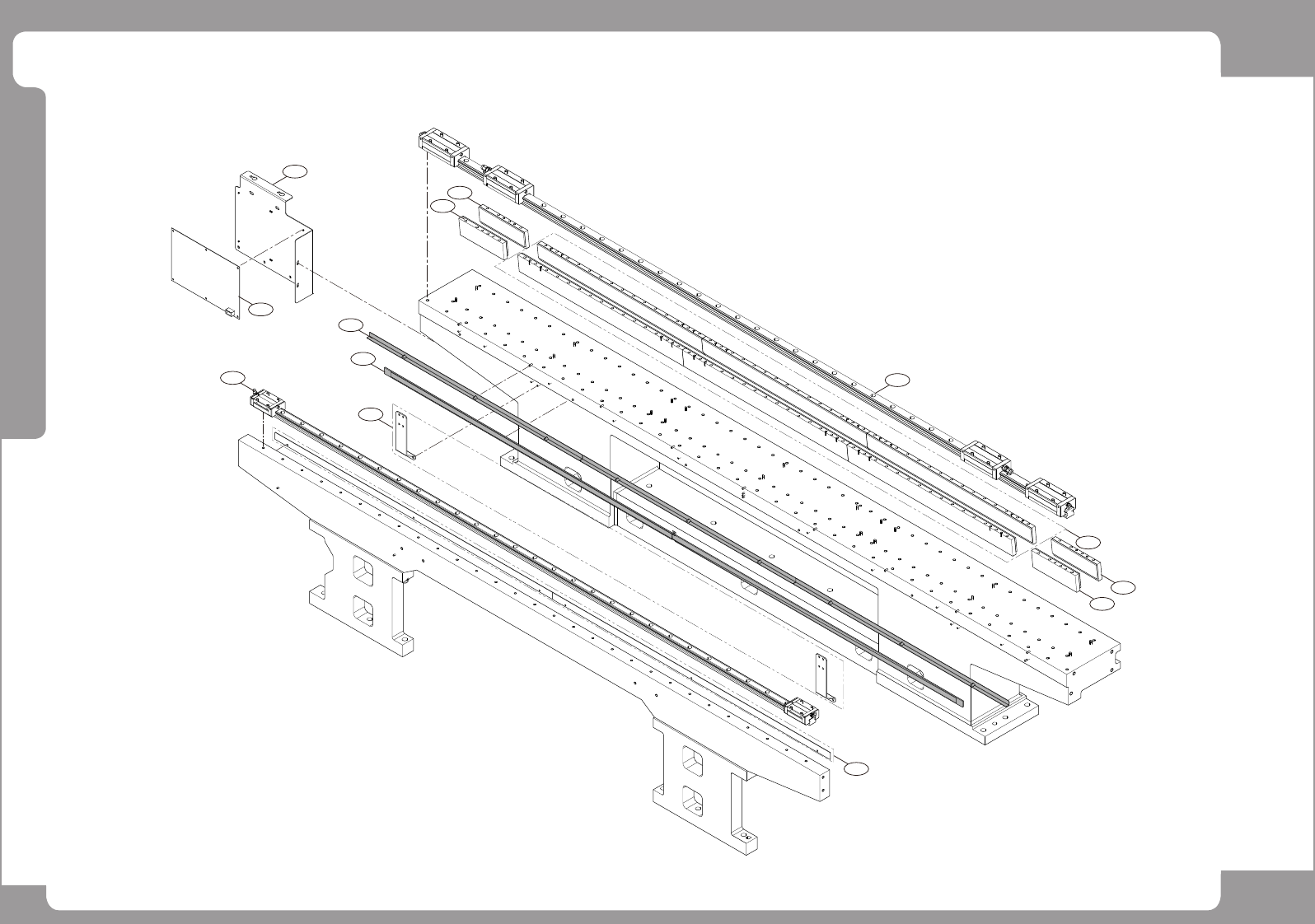

Y Frame
3
4
5
10
10
6
8
1
7
9
2
10
10
