Page ohu~oh 67 HM520 / HM520h Cover NO. P A RT NO. P ART NA ME Q'TY Old No. Supply Supply L T Reference 1 FC15-006973A COVER-UNDER-BOX-F 1 2 FC15-006974A COVER-UNDER-BOX-R 1 3 FC09-009470A BR ACKET -DOOR_SW-NXD 1 4 …

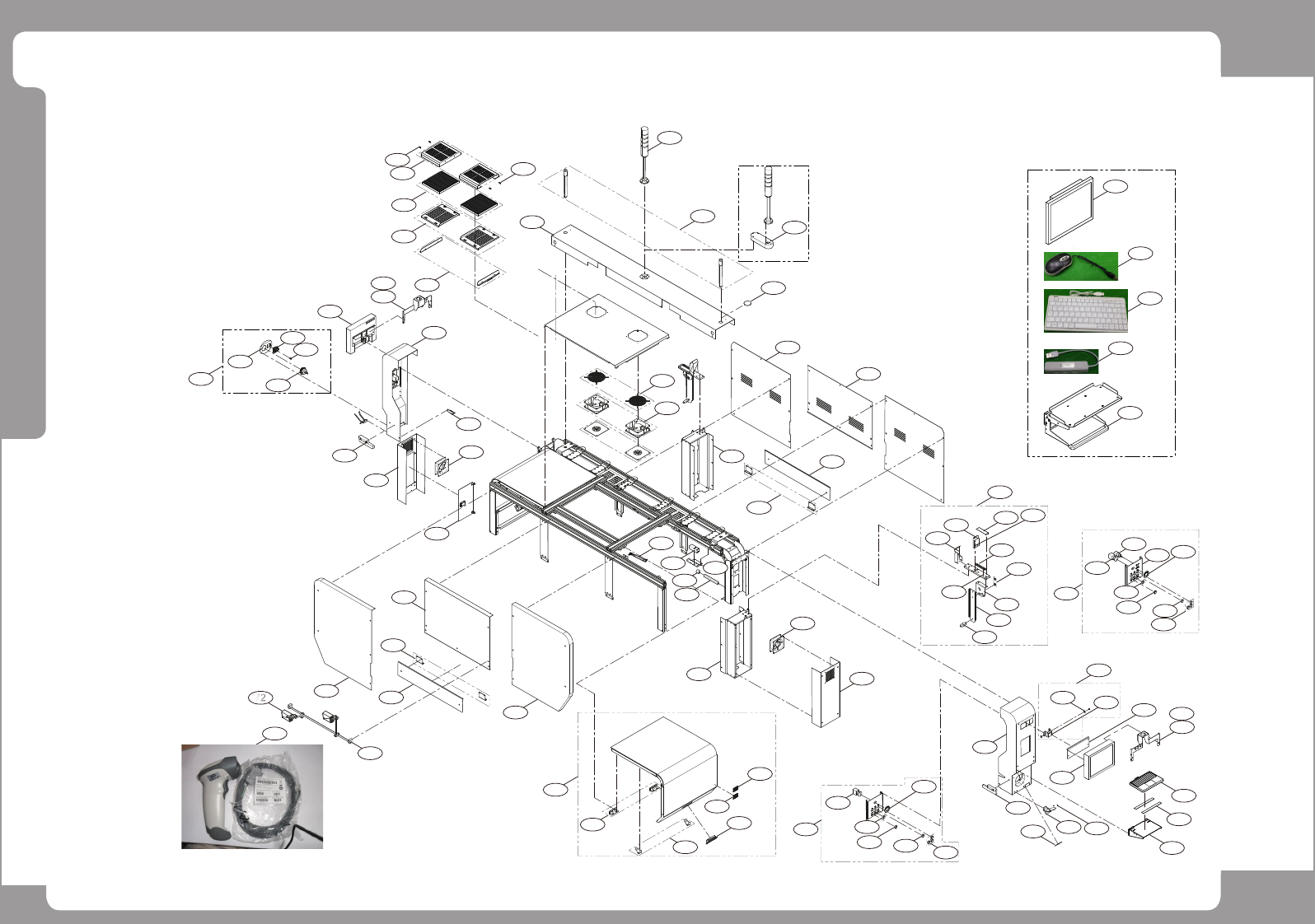

Page
ohu~oh
66
HM520 /
HM520h
Cover
33
36
61
26
13
72
17
10
16
15
12
4
48
50
30
22
86
20
65
23
37
32
40
34
24
88
87
25
83
6
4
56
28
54
42
63
90
91
89
76
62
38
39
43
53
35
57
64
77
59
60
2
14
71
13
66
84
85
1
9
8
28
49
70
73
74
67
68
69
76
51
18
23
19
58
11
41
47
55
52
45
44
46
31
78
80
82
81
79
LED Option - MonitorHM520h Option
58
88
87
27
42
41
92
45
44
46
43
HM520h Option
3
Page
ohu~oh
67
HM520 /
HM520h
Cover
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-006973A COVER-UNDER-BOX-F 1
2 FC15-006974A COVER-UNDER-BOX-R 1
3 FC09-009470A BRACKET-DOOR_SW-NXD 1
4 J90833316A FAN_CABLE_ASSY SM-FAN00 2
6 FC15-006439B COVER-FRONT_LOWER-NXD 1
8 FC15-006440A COVER-REAR_LOWER-NXD 1
9 FC15-006442A COVER-LOWER_DOOR-NXD 1
10 FC15-006431B COVER-TOP_SIDE-NXD;- 1
11 FC15-006448C COVER-R_COVER_FRONT-NXD 1
12 FC15-006447C COVER-R_COVER_REAR-NXD 1
13 FC15-006444A COVER-MIDDLE_COVER_BKT 4
14 FC15-006443B COVER-SUPPORT_BKT-R;- 1
15 FC28-000107 FINGER,GUARD 2
16 AM03-030217A CABLE ASSY-DS1_TOP_COVER_FAN 2
17 FC15-006450B COVER-L-SIDE_MIDDLE;- 1
18 FC15-006449B COVER-L-SIDE_FRONT;- 1
19 FC15-006451B COVER-L-SIDE_REAR;- 1
20 FC15-006454A COVER-R-SIDE_MIDDLE;- 1
21 FC15-006453A COVER-R-SIDE_FRONT;- 1
22 FC15-006455A COVER-R-SIDE_REAR;- 1
23 FC15-006456B COVER-R-SIDE_MIDDLE_LOW;- 2
24 AM03-027235A ASSY,COVER-MONITOR_HINGE_ASSY 2
25 FC09-009467B BRACKET-MONITOR_HINGE 1
26 FC28-002711A PAD-MONITOR_PAD 2
27 FC29-010397C GUIDE-NXD-CART_FRONT 1
28 FC29-010396B GUIDE-NXD-CART_REAR 1
29 FC38-900085 GAS_SPRING 4
30 AM03-007987A ASSY,FEEDER BASE-FEEDER_SETTING_UNIT 2
31 FC40-000001C TABLE UNIT-SETTING 1
Page
ohu~oh
68
HM520 /
HM520h
Cover
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC39-000108C FRAME-WC_F-SLOT 2
33 FC31-000001D PLATE,MACHINE TOOLS,OTHERS-WC_LOCATE_PLT 1
34 FC14-000023A FLANGE-FLANGE 2
35 FC18-000095A HOOK-REEL_SHAFT 1
36 FC09-002137A BRACKET-V1P-CABLE_COVER 1
37 FC15-000084A COVER-SUPPORT_COVER 1
38 FC09-000115A BRACKET-REEL_BKT 1
39 FC24-000057A REEL LEVER 1
40 AM03-027585A CABLE ASSY-FDR SETTING UNIT CABLE 1
41 EP20-001055 SWITCH,PUSH-EMERGENCY S/W 1
42 PT03-900161A STICKER-EMERGENCY J68081008A 1
43 EP20-001016 SWITCH,PUSH 3
44 EP20-001012 SWITCH,PUSH_START 1
45 EP20-001057 SWITCH,PUSH_STOP 1
46 EP20-001017 SWITCH,PUSH 1
47 AM03-027233B ASSY,ELECTRIC-OP_PANEL-NXD 2 AM03-027233A(~ #83) HS, MF Option(#84 ~)
AM03-029896A ASSY,ELECTRIC-OP_PANEL-NXD_LED 2 LED Option
48 AM03-021754A CABLE ASSY-AIR INDICATOR 1
49 TE07-900096 METER 1
50 HP06-000278 FITTING 1
51 AM03-027236A ASSY,COVER-NXD-DOOR_FRONT 2
AM03-027775A ASSY,COVER-HM-ACRYL_DOOR_ESD 2 ESD Option
AM03-030058A ASSY,COVER-MTNXSA-ACRYL_DOOR_ASSY-ESD-BL 2 HM520h Option
52 FC29-010625A HINGES-DOOR_HINGE_DECAN 2
53 FC09-009680A BRACKET-GAS_SPRING_MOVE_BKT 2
54 FC29-000007 CAP-PULL 1
55 PT03-900164A STICKER-DOOR_OPEN 1
56 PT03-000203B STICKER-STICKER-HAND_PUT_IN_B 1
57 FC09-009742C BRACKET 1
