2
2. Cover Section

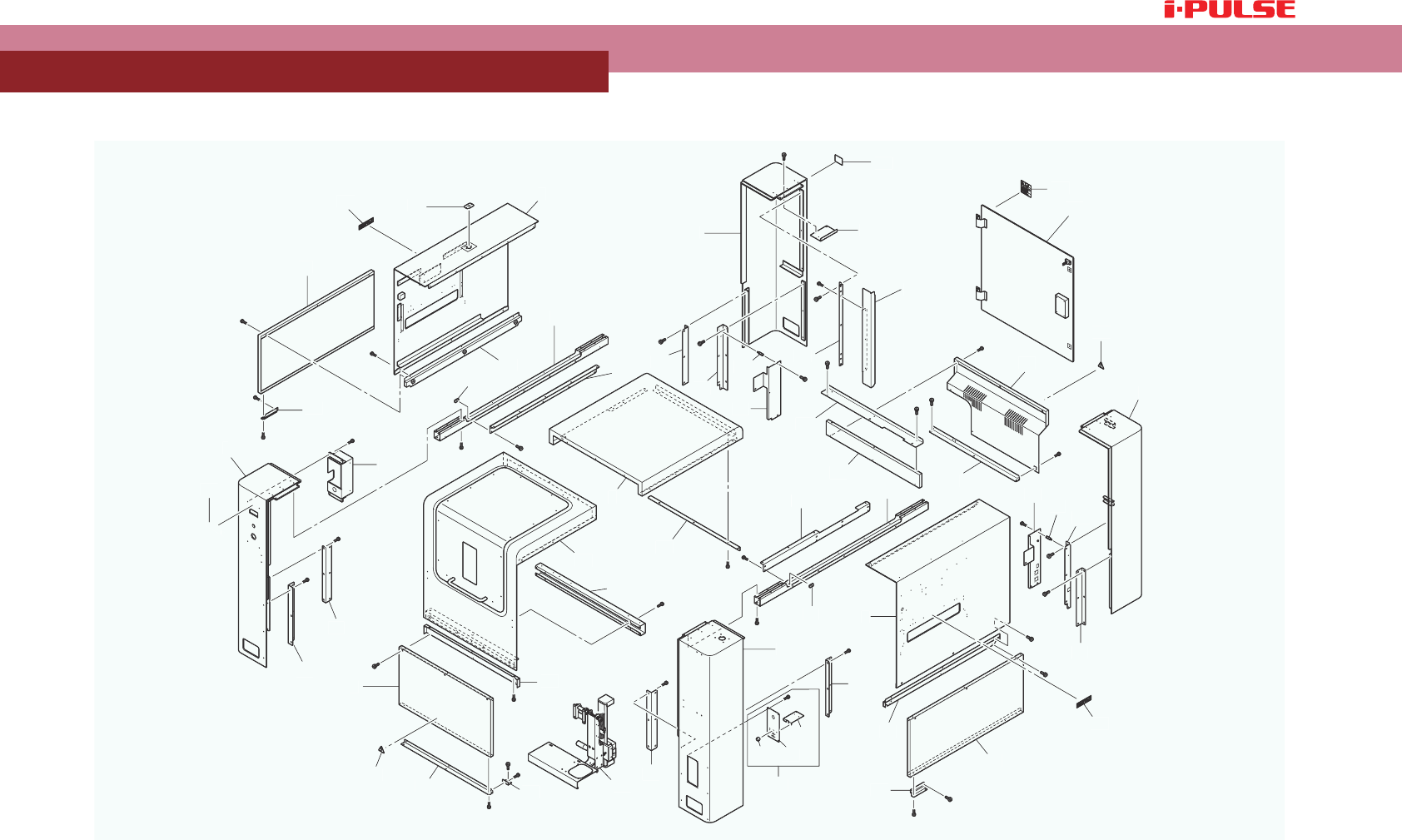

2-1. Top Cover
KX2
H
17
8
44
41
16
39
6
32
30
2
21
7
41
16
11
25
37
34
35
36
40
5
15
24
10
12
31
3
45
33
46
47
22
29
28
4
21
19
31
13
20
21
44
27
25
26
43
1
9
14
45
18
21
42
23
38
18
5
11
48
KX2
H
8
44
41
16
39
6
32
30
2
21
7
41
16
11
25
37
34
35
36
40
5
15
24
10
12
31
3
45
33
46
47
22
29
28
4
21
19
31
13
20
21
44
27
25
26
43
1
9
14
45
18
21
42
23
38
18
5
11
48
3
2. Cover Section
2-1. Top Cover
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M1301-01 FRAME,F-L 1
2 LE2-M1302-02 FRAME,F-R 1
3 LE2-M1303-01 FRAME,R-R 1
4 LE2-M1304-01 FRAME,R-L 1
5 LE2-M1305-00 SQ PIPE 2
6 LE2-M1307-00 TOP COVER 1
7 LE2-M1308-00 SIDE COVER R 1
8 LE2-M1309-00 SIDE COVER L 1
9 LE2-M130A-00 COVER L-F 1
10 LE2-M130B-01 COVER L-R 1
11 LE2-M130C-00 COVER L-S 2
12 LE2-M130D-01 SIDE PANEL R 1
13 LE2-M130E-00 SIDE PANEL L 1
14 LE2-M130F-00 SLOT COVER F 1
15 LE2-M130G-00 SLOT COVER R 1
16 LE2-M130H-00 SLOT COVER S 2
17 LE2-M130J-00 BRKT,P-LIGHT 1
18 LE2-M1311-00 BRKT,FRAME F 2
19 LE2-M1312-01 BRKT,FRAME R 1
20 LE2-M1313-00 BRKT,FRAME R 1
21 LE2-M1314-00 BRKT,FRAME S 4
22 LE2-M1316-00 BRKT,SW R 1
23 LE2-M1317-10 STAY,COVER F 3
24 LE2-M1318-01 STAY,COVER R 1
25 LE2-M1319-00 STAY,COVER S 4
26 LE2-M131A-01 BOX,SW 1
27 LE2-M131B-01 STAY,COVER M 1
28 LE2-M131C-00 STAY,HINGE 1
29 LE2-M131D-00 COVER,HINGE 1
30 LE2-M131E-00 STOPPER,DOOR 1
31 90990-05J018 SPACER BOLT 4
32 LE2-M1320-01 FRONT DOOR ASSY 1
33 LE2-M1330-00 REAR DOOR ASSY 1
34 LE2-M1340-00 SW PANEL ASSY 1
35 LE2-M1341-10 PANEL,SW. 1
36 LE2-M1342-00 BRKT,BLOCK 1
37 LC3-M131S-00 COLLAR 1
38
LE2-M1350-00 OPERATION,SUB
ASSY.
1
39 LE2-M131F-00 STAY,FRAME 1
40 LE2-M131G-00 STAY,FRAME 1
41 LE2-M131J-00 PLATE,NUT 9
42 LE2-M131K-00 STAY,COVER FF 1
43 LE2-M13DH-000 PLATE,NAME 1
44 90K41-000750 SEAL 2
45 LC3-M65D1-00 SEAL,CHARGE 2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
46 90K41-000740 SEAL 1
47 LC1-M13D2-00 LABEL,ALERT 1
48 LE2-M130L-00 PIPE 1
4
2. Cover Section

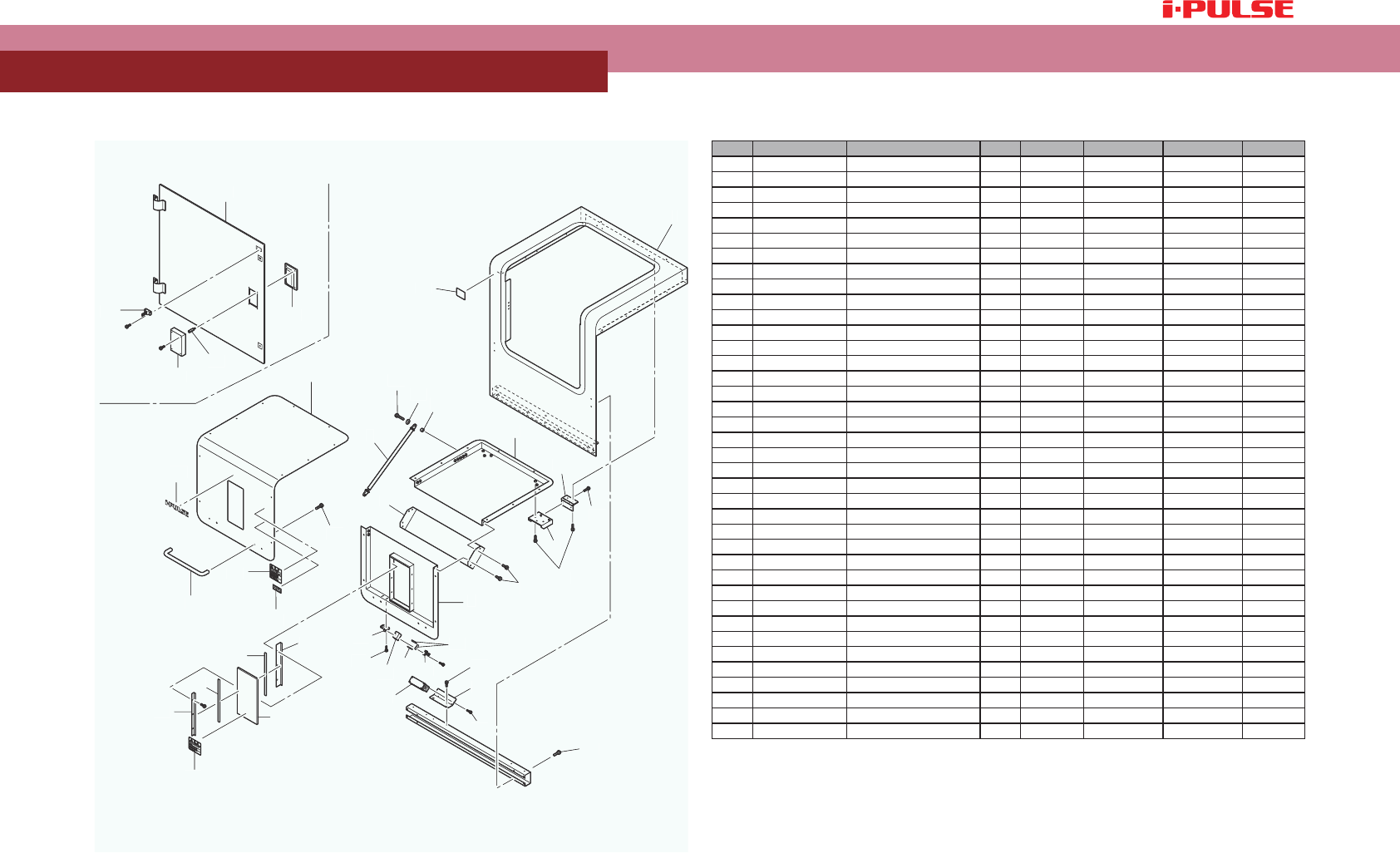

2-2. Door
3
36
11
35
1
38
34
34
23
25
24
22
21
34
34
8
17
4
19
19
14
14
15
16
20
2
12
18
31
13
9
6
5
10
33
32
26
27
28
30
29
7
3
36
11
35
1
38
34
34
23
25
24
22
21
34
34
8
17
4
19
19
14
14
14
15
16
20
2
12
18
31
13
9
6
5
10
33
32
26
27
28
30
29
7
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE2-M1306-01 FRONT COVER 1
2 LE2-M1315-02 BRKT,SW F 1
3 LE2-M1321-011 DOOR,FRONT 1
4 LE2-M132B-00 BASE,DOOR 1 1
5 LE2-M132C-00 BASE,DOOR 2 1
6 LE2-M132D-00 BASE,DOOR 3 1
7 LE2-M1322-01 GLASS PLATE 1
8 LE2-M1325-01 BRKT,HINGE 2
9 LE2-M13A1-00 GAS DAMPER 2
10 LC8-M134L-00 COLLAR 4
11 90990-47J012 HANDLE 1
12 LE2-M132A-01 BRKT,ACTUATOR 1
13 LE2-M13H1-00 ACTUATOR 1
14 LE2-M1326-02 SHEET,RUBBER 4
15 LE2-M1328-01 GUIDE,GLASS 2
16 LE2-M1329-01 HOLDER,GLASS 2
17 90990-51J005 HINGE 2
18 LE2-M132H-00 GUARD,KEY 1
19 LE2-M13A6-00 TRIM 1
20 LE3-M13H1-00 SAFETY SW 1
21 LE2-M1331-00 DOOR,REAR 1
22 90990-47J013 HANDLE 1
23 LE2-M13H2-00 ACTUATOR 1
24 LE2-M1332-01 COVER,HANDLE 1
25 90990-05J019 SPACER BOLT 4
26 LC3-M13DA-500 SEAL 2 1
27 90K41-000740 SEAL 1
28 LE2-M13D1-30 SEAL 1
29 LC1-M13D2-00 LABEL,ALERT 1
30 90K41-000760 SEAL 1
31 91317-04006 BOLT HEX.SOCKET HEAD 10 M4X6
32 91317-04040 BOLT HEX.SOCKET HEAD 4 M4X40
33 91317-05008 BOLT HEX.SOCKET HEAD 2 M5X8
34 91317-06010 BOLT HEX.SOCKET HEAD 26 M6X10
35 91317-06025 BOLT HEX.SOCKET HEAD 4 M6X25
36 91317-08012 BOLT HEX.SOCKET HEAD 2 M8X12
37 95307-06600 NUT,HEXAGON 16
38 95907-06200 WASHER PLAIN 4
