HT122 - 第25页
PART No. ｲﾗｽﾄ No. REF No. PA RT NAME REM ARKS Q'TY 1 ﾒｲﾝｺﾝﾄﾛｰﾗ MAIN CONTRO LLER 部 品 名 品 番 個数 備 考 R 1 R 2 1 N6 10031666AA CONTROLLER(M AIN) ｺﾝﾄﾛｰﾗ (ﾒｲﾝ) FA8000-772-4 S 1 A401 N1F87724 CASE ｷｮｳﾀｲ FA8000-011 S 1 A402 N…

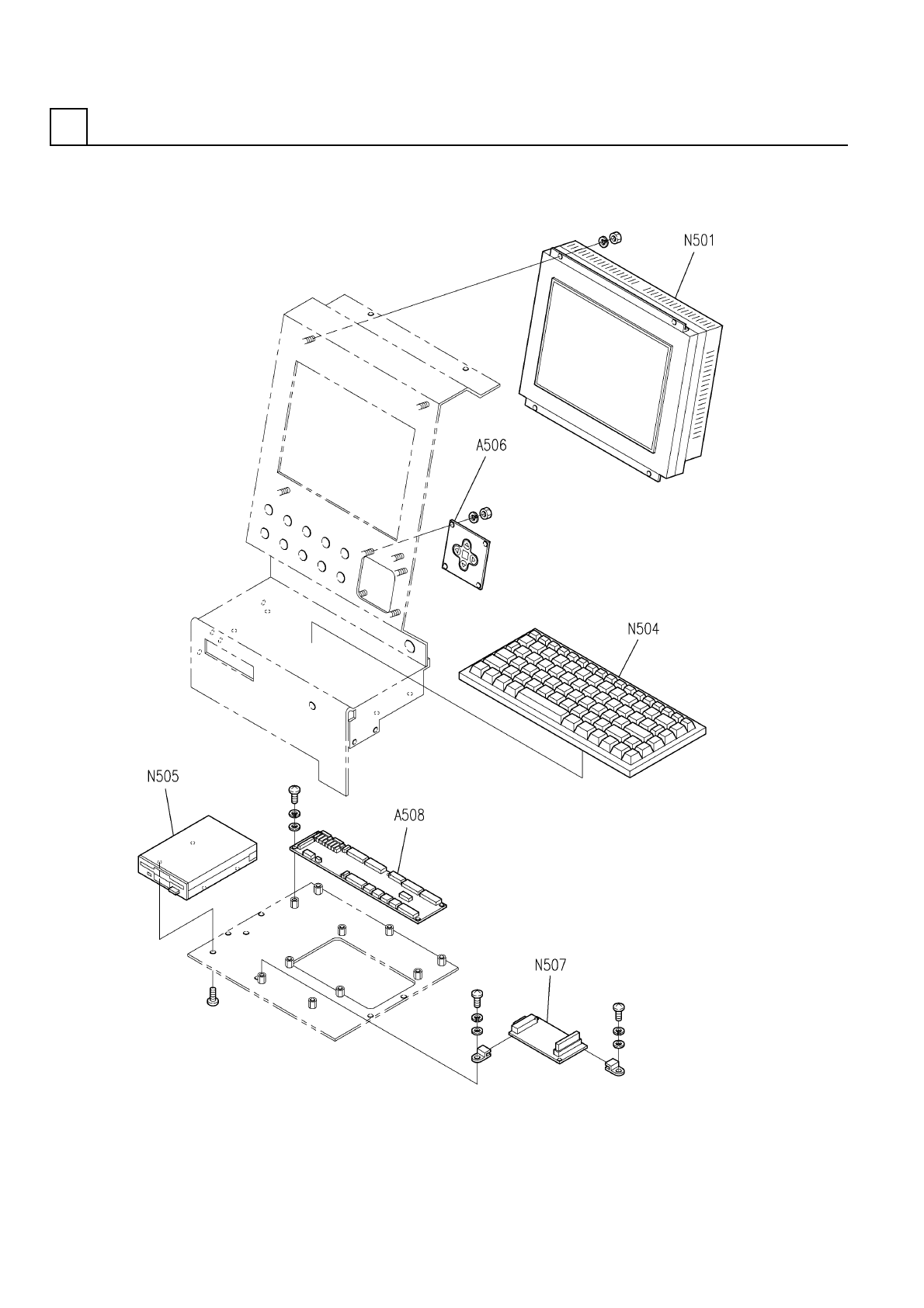

ﾒｲﾝｺﾝﾄﾛｰﾗ
MAIN CONTROLLER
1
FN610031666AA_01
E1
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
ﾒｲﾝｺﾝﾄﾛｰﾗ
MAIN CONTROLLER
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610031666AA
CONTROLLER(MAIN) ｺﾝﾄﾛｰﾗ
(ﾒｲﾝ)
FA8000-772-4 S
1
A401
N1F87724
CASE ｷｮｳﾀｲ
FA8000-011 S
1
A402
N1F8011
BOARD(MMC) ｷﾊﾞﾝ(MMC)
FS8000-SC4-1C S
1
A403
N1F8SC41C
BOARD(SC) ｷﾊﾞﾝ(SC)
FA8000-202-6B S
1
A405
N1F82026B
BOARD(NC) ｷﾊ
ﾞﾝ(NC)
FA8000-711-B S
1
A407
N1F8711B
BOARD(VGA/FDD) ｷﾊﾞﾝ(VGA/FDD)
FS8000-MI1-C S
1
A408
N610032665AA
BOARD(I/O) ｷﾊﾞﾝ(I/O)
FS8000-RC9-E
1
N404
N610074371AA
BOARD(RC) ｷﾊ
ﾞﾝ(RC)
NBC-IC4B(M) S
1
N406
N209NBC1C4BM
BOARD(CPU) ｷﾊ
ﾞﾝ(CPU)
1
N409
N610046460AA
SDD SDD
PS2538L
1V 1 N244PS2538L
BATTERY ﾊﾞｯﾃﾘｰ
314010
2V 2 N230314010
FUSE ﾋｭｰｽ
ﾞ
109P0812H7D04
7
V 3 N238109P-103
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
M39800-43-373
1
V 4 3980043373
UNDER FAN FILTER ｱﾝﾀﾞｰﾌｧﾝﾌｨﾙﾀ
CDV-AB48TB
1V 5 N902CDVA-185
CD-ROM CD-ROM
FA8000-762-A
1V 6 N1F8762A
BOARD ｷﾊ
ﾞﾝ
LDA10F-12-Y
1
V 7 N244LDA1-067
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
LDA10F-5-Y
1
V 8 N244LDA10F5Y
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
PCSA-250-H101
1V 9 N244PCSA-043
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
NSP2-180-H2X
1V10 N244NSP2-053
POWER SUPPLY ﾃﾞﾝｹ
ﾞﾝ
CBAT-001
1
V11 N997CBAT001
BATTERY ﾃﾞﾝﾁ
T18I
1
V12 N348T181T
BAND ﾊﾞﾝﾄﾞ
