Page SAMSUNG TECHWIN 35 SM481 X-Y Frame Ass’y(1/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC09-0015 77A FLA T_CABLE_CLAMP 1 2 FC09-0016 48A CABLE FIXER 2 3 PM02-000794 A C USHION C…
Page
SAMSUNG TECHWIN
34
SM481

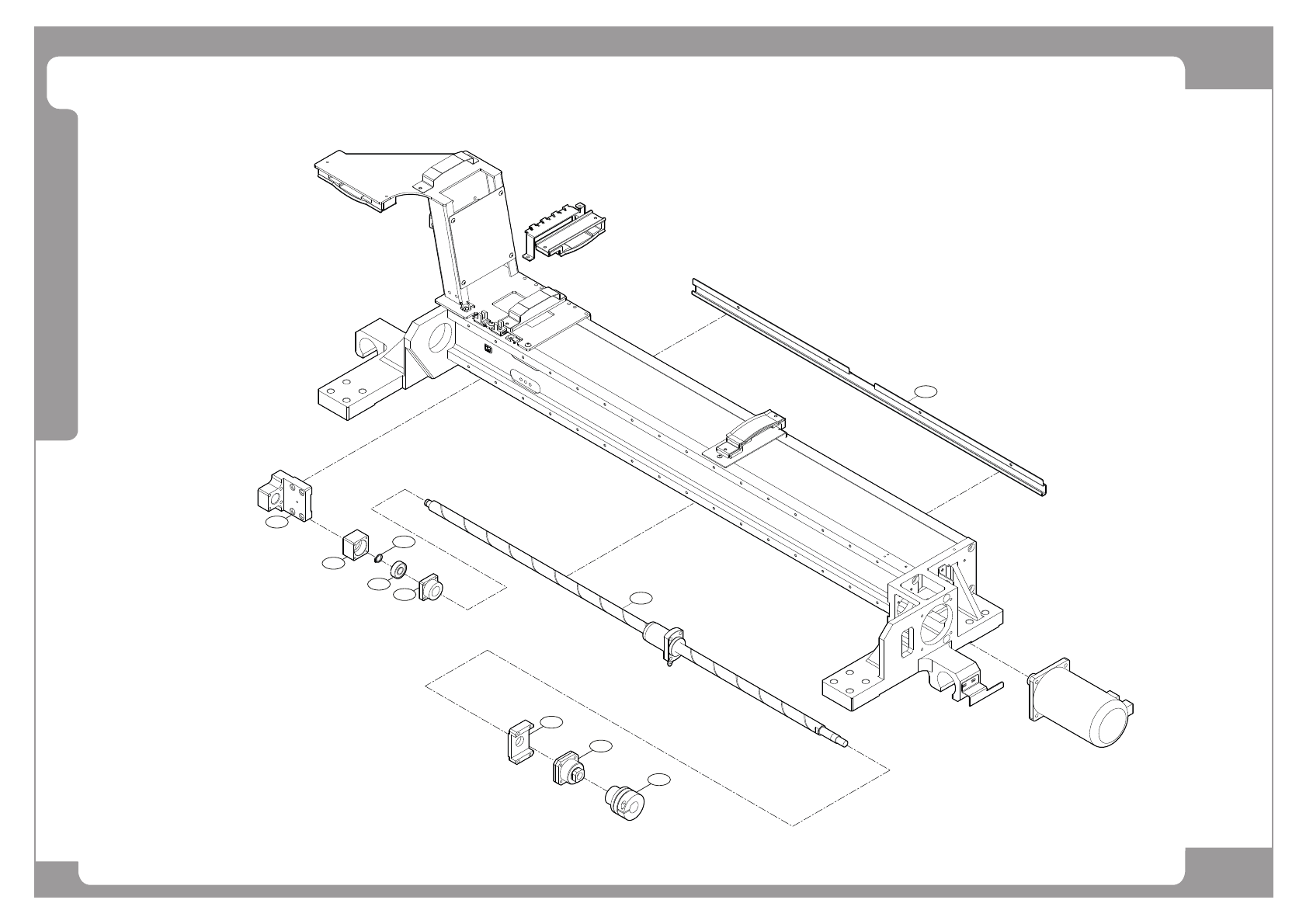

X-Y Frame Ass’y(1/4)
1
2
3
4
6
12
7
5
8
9
13
10
11
14
15
16
Page
SAMSUNG TECHWIN
35
SM481
X-Y Frame Ass’y(1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-001577A FLAT_CABLE_CLAMP 1
2 FC09-001648A CABLE FIXER 2
3 PM02-000794A CUSHION CABLE X 2
4 FC09-001481A BKT CUSHION X 1
5 FC09-001662A BKT CABLE X 2
6 FC15-001260A COVER CHAIN Y 1
7 FC09-001771A BKT CABLE CHAIN X 1
8 PM02-000795A CUSHION CABLE Y 1
9 FC09-001485A BKT CUSHION Y 1
10 J3212022A PHOTO_SENSOR 2
11 J66070076B LM GUIDE 2
12 FC29-001532A SENSOR DOG X 2
13 FC05-000148B BASE HEAD 411PS 1
14 FC29-001531A SNS DOG Y 1
15 J70541126A CONNECTOR BKT 1
16 J31081055A SERVO MOTOR 1
Page
SAMSUNG TECHWIN
36
SM481
X-Y Frame Ass’y(2/4)
10
1
4
3
2
5
6
7
8
9
