Page SAMSUNG TECHWIN 42 SM481 ANC Ass’y 5 6 11 1 2 9 7 10 15 14 8 13 12 3 4
Page
SAMSUNG TECHWIN
41
SM481
X-Y Frame Ass’y(4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000922A COVER-COVER DRIVER Y 1
2 FC09-001485A BRACKET-CUSHION Y 411PS 2
3 PM02-000795A CUSHION-CABLE Y 411PS 2
4 FC29-001084B SUPPORT-Y CABLE DUCT 1
5 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1
6 HP09-000127 MANIFOLD-MANIFOLD KM11-04-08-10 1
7 J6103005A HEX SUPPORT 6
8 FC09-001511A PANLEL CON Y 1
9 J91741337A AXIS BOARD 1
10 AM03-005372A HEAD Z AXIS DRIVER 5
11 FC09-001509B BRACKET-BKT AXIS B 2 1
12 FC09-001486A BRACKET-DIRVER T 1
13 FC09-001663A BRACKET-BKT CABLE R 1
14 EP06-000182 SERVO CONTROL-DRIVE-STEP DRV 5
15 FC09-001647A BRACKET-BKT SIDE SUB 1
16 J1300191 SEMUS NABE SCREW [M4*16] 10
17 FC05-000149A BASE-DRIVER Y DUCT 1
18 FC09-001984A BRACKET-BKT FAN SUB SM471 1
19 FC09-001983A BRACKET-BKT FAN SM471 1
20 AM03-006409A CABLE ASSY LR ZR DRV FAN 1
21 FC09-002206A BKT SIDE COVER 1 1
22 J70541115A COVER BKT 1
Page
SAMSUNG TECHWIN
42
SM481

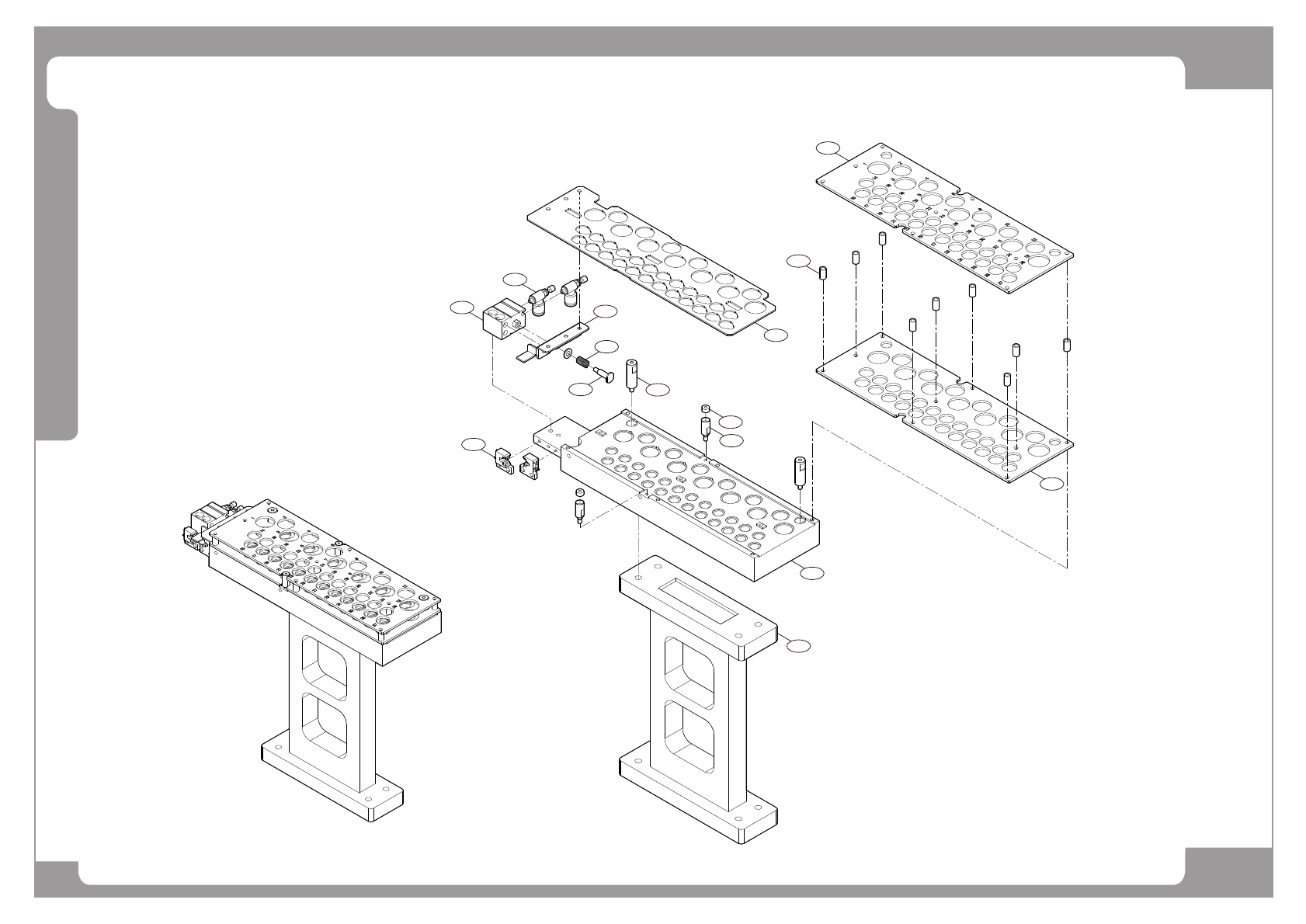

ANC Ass’y
5
6
11
1
2
9
7
10
15
14
8
13
12
3
4
Page
SAMSUNG TECHWIN
43
SM481
ANC Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000212A TOP_COVER 1
2 FC18-000621A COVER_SPACE 9
3 FC09-002208A TOP_COVER_L 1
4 FC29-001527A SHUTTER 1
5 J6703029A SPEED_CONTOL_VALVE 2
6 HP03-000083 CYLINDER 1
7 FC09-002171A SHUTTER_BKT 1
8 FC05-000215A ANC_BASE 1
9 FC38-000093A SPRING 1
10 FC18-000619A SPACE_PIN 1
11 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2
12 J7153373A FIDUCIAL_DISK 2
13 FC09-002173A REF_SHAFT 2
14 FC09-002172A FID_SHAFT 2
15 FC05-000214A ANC_PLATE 1
