Brief Description 2.1.2 Overview of Twin VHF Head Overview Reconfiguration Kit Twin VHF with Gantry Re configuration Kit Twin VHF mit Portal 85 2.1.2.3 2 . 1 . 2 . 3 A s s e m b lie s Assemblies Z axis DP axis 1. Read h …
Brief Description
Overview 2.1.2 Overview of Twin VHF Head
84 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-
2.1.2.2
2.1.2.2 Overview of Parts for Twin VHF
Overview of Parts for Twin VHF
1. Main head board [03352833-xx]
2. Strain relief [03098048-xx]
3. Pneumatic rotary supply [03004609-xx]
4. Control cable [03102124-xx] with flat ribbon holder
[03104023-xx]
5. Read head Z axis [03090205-xx]
6. Connector clamping piece [03005851-xx]
7. Z axis
1. Air filter assembly [03051420-xx]
2. Flat ribbon baffle [03101264-xx]
3. Digital pressure control valve [03058802-xx]
4. Return unit [03101743-xx] with
5. Return unit buffer [03091163-xx]
6. Stop block for return unit [03101730-xx]
Brief Description
2.1.2 Overview of Twin VHF Head Overview
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 85
2.1.2.3
2.1.2.3 Assemblies
Assemblies
Z axis
DP axis
1. Read head
2. Carrier arm with Z tape measure
3. Z motor
1. Pneumatic rotary supply
2. Incremental scale
3. Read head
4. DP motor
5. Nozzle interface
Brief Description
Overview 2.1.3 Gantry 40 mm with Twin VHF
86 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-

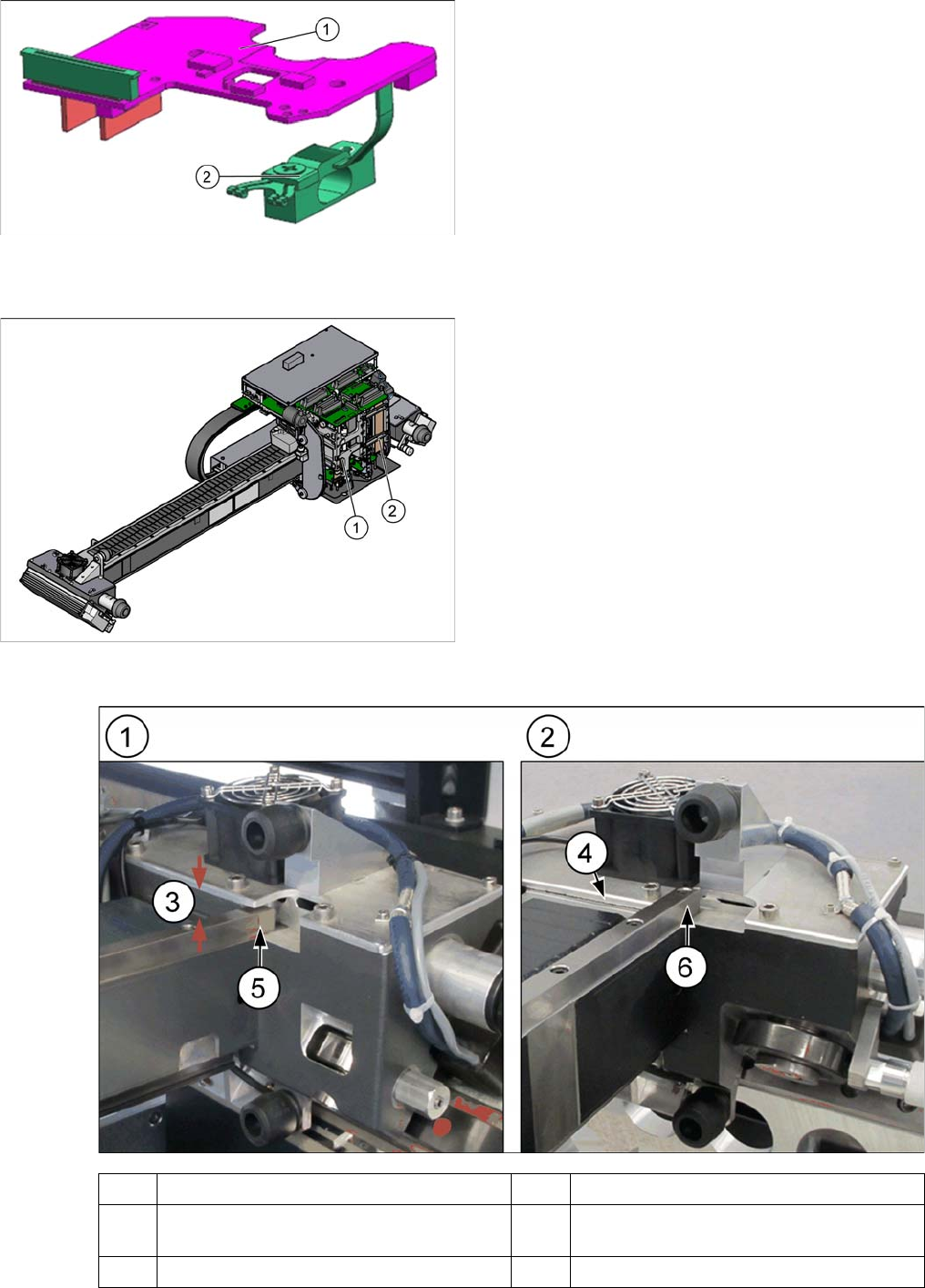

Force measuring unit
2.1.3
2.1.3 Gantry 40 mm with Twin VHF
Gantry 40 mm with Twin VHF
2.1.3.1
2.1.3.1 Differences Between Standard and 40 mm Gantry
Differences Between Standard and 40 mm Gantry
1. Force measuring unit board
2. Force measuring unit sensor
The "Twin VHF 40 mm components" option requires a
new gantry, which is higher than the standard gantries.
The machine automatically recognizes the gantry via the
head ID.
These gantries can only be used with the Twin VHF head.
Other heads can not be used with this gantry.
1. Twin VHF – segment 1
2. Twin VHF – segment 2
1 Standard gantry 2 40 mm gantry for Twin VHF
3 The gantry is 12 mm below the upper edge
of the motor bracket.
4 The gantry is at the same height as the up
-
per edge of the motor bracket.
5 X linear guide is under the motor cover 6 X linear guide is on the motor cover
