Brief Description
2.1.5 Head Configuration Overview
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 91
2.1.5.4
2.1.5.4 Configuration SX2 – TwinHead and Twin VHF
Configuration SX2 – TwinHead and Twin VHF
Option: Twin VHF Package, 40 mm, 70 N, with Gantry
Article number: [00519986-xx]
Contents:
▪ Gantry 40 mm, Twin VHF [03105049-xx]
▪ Reconfiguration Kit Twin VHF [03105335-xx]
(barcode location 1 [03063673-xx] or barcode location 2 [03063693-xx])
If a gantry with TwinHead is replaced with a gantry with Twin VHF, the following parts will be needed:
▪ Stationary camera (FC) type 25 [00519918-xx] (optional)
▪ WPC 5 standard [00119827-xx]
▪ WPC 6 non stop module [00119828-xx]
▪ SPS option (Smart Pin Support) [00519988-xx]
NOTICE
Reversed configuration
Reversed configuration, with TwinHead at gantry 1 and Twin VHF at gantry 2 is possible.
Brief Description
Overview 2.1.6 Configurations
92 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-
2.1.6
2.1.6 Configurations
Configurations
2.1.6.1
2.1.6.1 Table Positions
Table Positions
The table position required for the SIPLACE SX1/SX2 varies according to the head configuration:
SIPLACE SX1:
SIPLACE SX2:
Gantry 1 C&P20A CPP_L CPP_H without
stat. camera
CPP_H with
stat. camera
TH/TwinVHF
Table position
location 1
Inner Inner Inner Outer Outer
Table position
location 2
Inner Inner Inner Inner Inner
Gantry 1 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
with stat.
camera
TH/ Twin
-
VHF
TH/ Twin
-
VHF
TH/ Twin
-
VHF
Table position
location 1
Inner Inner Outer Outer Outer Outer Outer
Gantry 2 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
without
stat. cam
-
era
CPP_H
with stat.
camera
CPP_H
without
stat. cam
-
era
TH/ Twin
-
VHF
Table position
location 2
Inner Inner Outer Inner Outer Inner Outer
NOTICE
Stationary cameras
CPP: only with stationary camera IC camera SST33
TH/Twin VHF: with stationary camera IC camera SST33 at both locations, FC camera SST25
at location 1 only
Brief Description
2.1.6 Configurations Overview
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 93
2.1.6.2
2.1.6.2 Stationary Cameras
Stationary Cameras

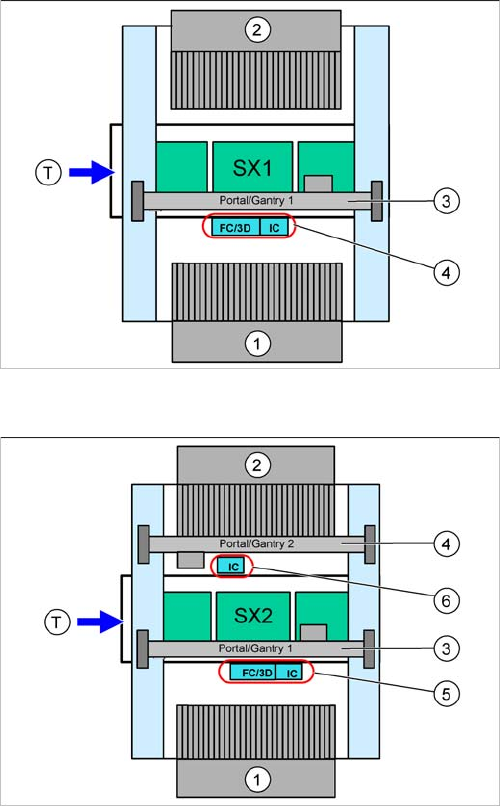

Stationary cameras on the SX1
SX1
1. Location 1 in outer position
2. Location 2 in inner position
3. Gantry 1
4. IC camera and/or FC camera/3D coplanarity module
(location 1)
You can only install either an FC camera or a 3D co
-
planarity module!
Stationary cameras on the SX2
SX2
1. Location 1 in outer position
2. Location 2 in outer position
3. Gantry 1
4. Gantry 2
5. IC camera and/or FC camera/3D coplanarity module
(location 1)
You can only install either an FC camera or a 3D co
-
planarity module!
6. IC camera (location 2)
