Brief Description
2.2.1 SIPLACE SX "Prepared" Scope of Delivery
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 95
2.3
2.3 Scope of Delivery
Scope of Delivery
Required parts:
▪ The option package VHF Twin 40 mm 70 N with Gantry" [00519986-xx] contains the following parts:
▪ Gantry carrier [00519814-03]
The gantry is supplied on a gantry carrier.
This gantry carrier must have at least function state 03 for use with the 40 mm gantry.
Quanti
-
ty
Designation Item No.
1 Camera screen assembly VHF-Twin head 03104859-xx
2 VHF-Twin module 03096701-xx
8 ISO4762-M4x14-8.8, galvanized, DSP 03069100-xx
1 GR gantry 40 mm 03096946-xx
1 PCB / B-Base adapter TWIN 03055517-xx
1 Nozzle set TwinHead 03019633-xx
1 Cable set TwinHead / B series 03065968-xx
2 Cable ties B = 2.5 mm L = 102 mm Panduit 00308458-xx
1 Blanking plug QSC-6H 00337891-xx
1 Blanking plug QSC-4H 00330249-xx
2 Standard nozzle 508 VHFM assembly 03094257-xx
1 ISO4762 - M3 x 6-A2-70 03042541-xx
1 Hose system TwinHead, VHF SX1/2 03106594-xx
2 HCU assembly 03054884-xx

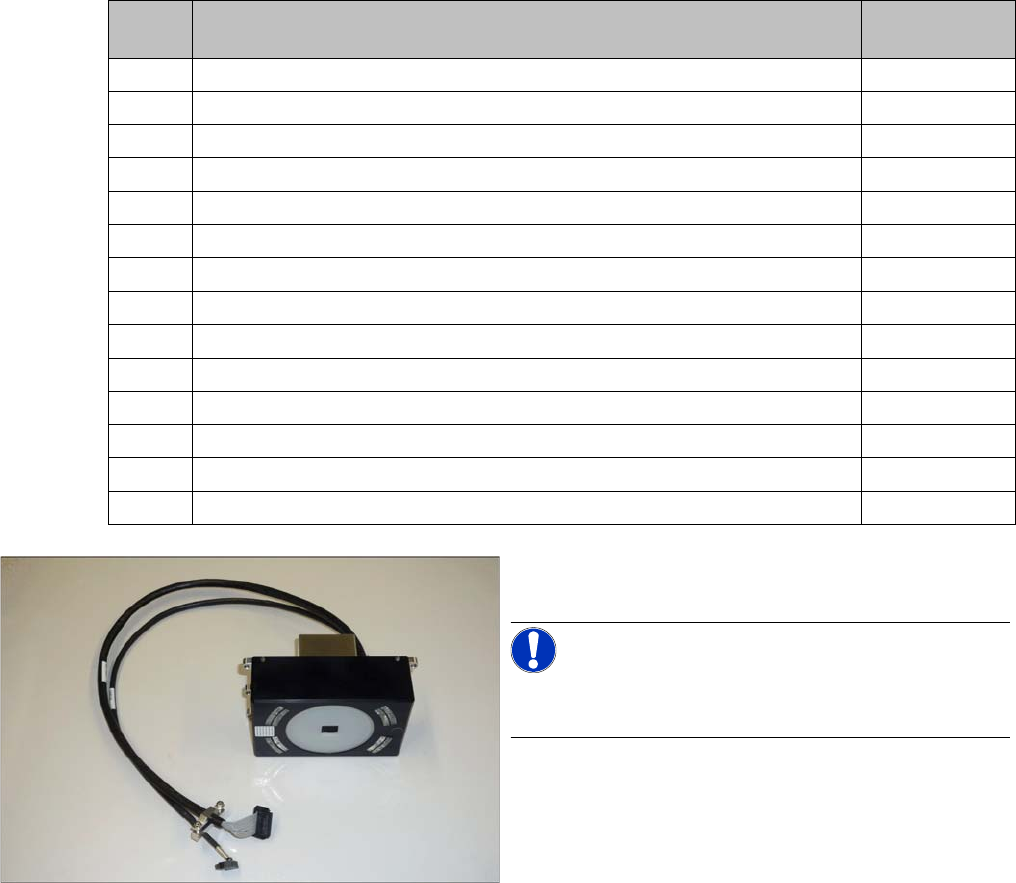

▪ PCB camera type 34HU [03102921-xx]
(part of the gantry [03096946-xx], s.o.)
NOTICE!
This PCB camera differs from the standard camera. Re
-
member this e.g. when ordering spare parts.
Brief Description
Scope of Delivery 2.2.1 SIPLACE SX "Prepared"
96 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-
Optional parts:
The following parts may be needed, depending on the configuration:
▪ Reconfiguration Kit VHF Twin module [03105335-xx]
This kit is required if an SX1 is upgraded to an SX2 or a gantry with C&P head is replaced with a new
gantry.
The kit contains the following parts:
▪ Barcode label:
At the location at which the cover is to be replaced, you need to add the corresponding barcode label:
Barcode location 1 [03063673-xx] or
Barcode location 2 [03063693-xx]
▪ Stationary IC camera type 33 [00519902-xx]
(Stationary FC camera type 25 [00519918-xx])
▪ Nozzle changer TH for SX machines [00519845-xx]
▪ Smart Pin Support option [00519988-xx]
(incl. Pin Picker for 40 mm machine [0314671-xx])
▪ WPC 5 standard [00119827-xx]
▪ WPC 6 non stop module option WPC 5/6 [00119828-xx]
See also
3.7.6 Fitting the Nozzle Changer and Options [ ➙ 123]
Quanti
-
ty
Designation Item No.
1 Flap cover front section 40 mm 03103955-xx
2 Stop block components 40 mm 03105259-xx
3 Coding sheet box assembly
consisting of:
03084178-xx
1 Coding sheet box 03083883-xx
2 ISO4762 - M4 x 10-A2-70 03042552-xx
1 Assembly instructions "Reconfiguration Kit Twin VHF with Gantry" SX1/SX2
V2
00197454-xx
1 ASM lettering, white self-adhesive 140 mm 03086852-xx
1 SIPLACE lettering, white self-adhesive 170 03086853-xx
1 Sector label 1-4 4color 65 mm 03009552-xx
2 Warning sign no. W204 03009343-xx
NOTICE
BOMs for regular options
The BOMs for regular options can be found in the respective assembly instruction manuals.
Brief Description
2.2.1 SIPLACE SX "Prepared" Tools and Equipment Required
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 97
2.4
2.4 Tools and Equipment Required
Tools and Equipment Required
▪ Gantry lift [00519813-xx]
▪ Gantry Carrier Plate for SX1/SX2 [03012160-xx]
▪ Torque wrench (2 – 25 Nm) [00376625
-
xx]
▪ Loctite 241 [02101037-xx]
▪ Prepared case (plastic case with foam insert) containing the following:
▪ Help of second person, if needed
▪ If required, assembly instructions "Gantry Modularity - SIPLACE SX1/SX2" [00196626-xx]
▪ Torque screwdriver 100-500 Ncm [03078400-xx]
▪ Extension/straight TX20 [03073256-xx]
▪ Extension/straight [03043440-xx]
▪ Bit holder for Torque Vario-S screwdriver [03078706-xx]
▪ Calibration tool version 3 [03010565-xx]
CAUTION
TÜV (Technical Control Board)
The gantry lift must be tested by the TÜV (Technical Control Board) every two years.
Prepared case
The case is configured differently depending on the ma
-
chine type
1. Trailing cable protective foil
2. Buffer stop (2x)
3. Trailing cable mount
4. Pneumatic hose plug (4x)
