EUKYX 1-53 199-4100 4.9 PCB Positioning Section 4.9 PCB Positioning Section Ball Screws (2 locations) Every 3 Months / Cleaning and Lubrication / Required T ime: 10 minutes (DAPHNE EPONEX GREASE No. 1) W ipe off old grea…
EUKYX
1-52199-4100

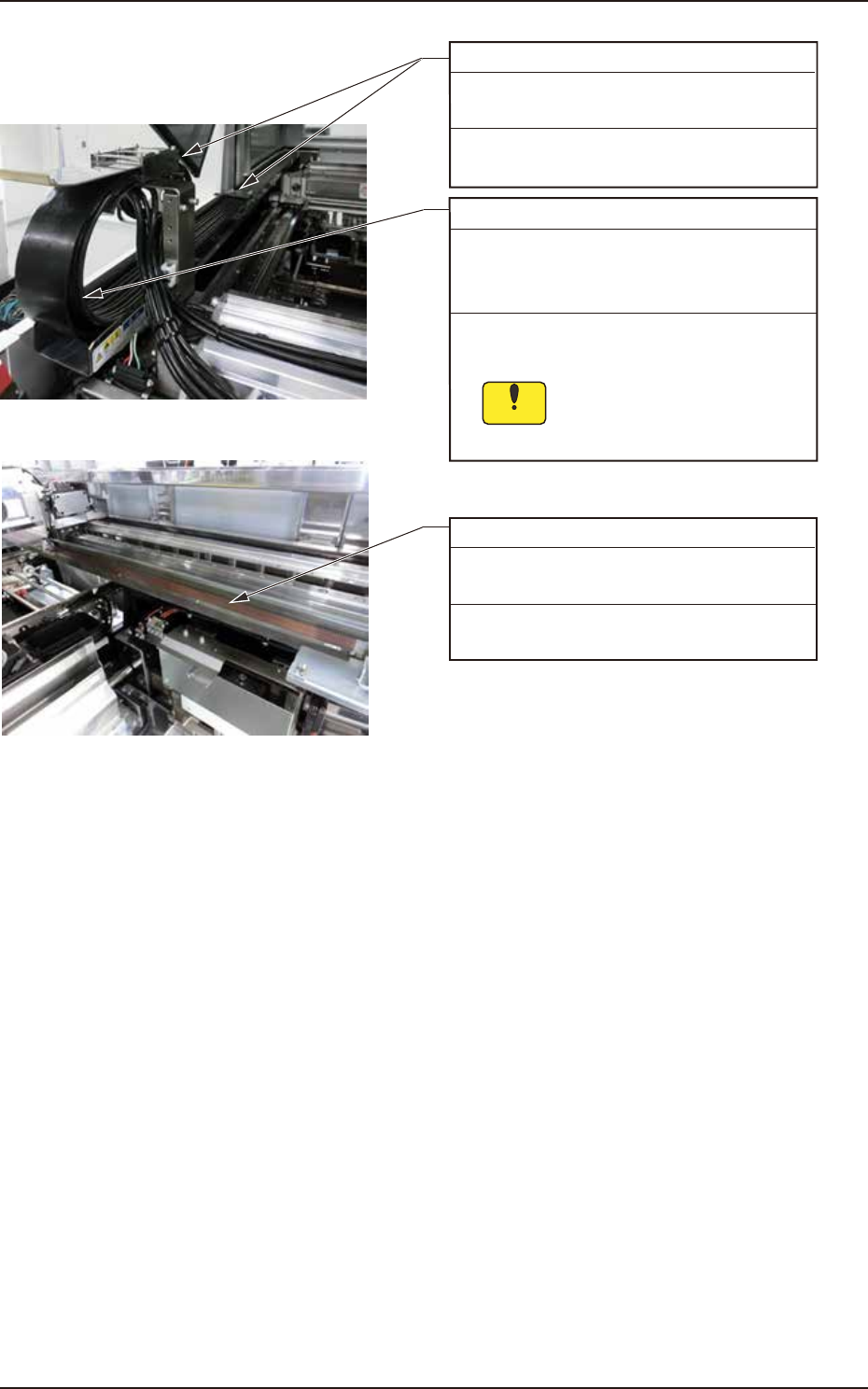

4.8 X/Y Beam Section
Y-Axis Cable Fixing Places (2 locations)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
Y-Axis Linear Scale
Every 6 Months Cleaning
Required Time: 5 minutes
When it is very dirty, clean it using a rag
soaked in alcohol.
Y-Axis Cable Side Faces
Every 6 Months Cleaning and Lubrication
(BARRIERTA IEL/V)
Required Time: 3 minutes
(1)
Wipe off old grease with a rag for wiping oil.
(2) Apply new grease by hand or with a brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
F4A39A
EUKYX
1-53199-4100

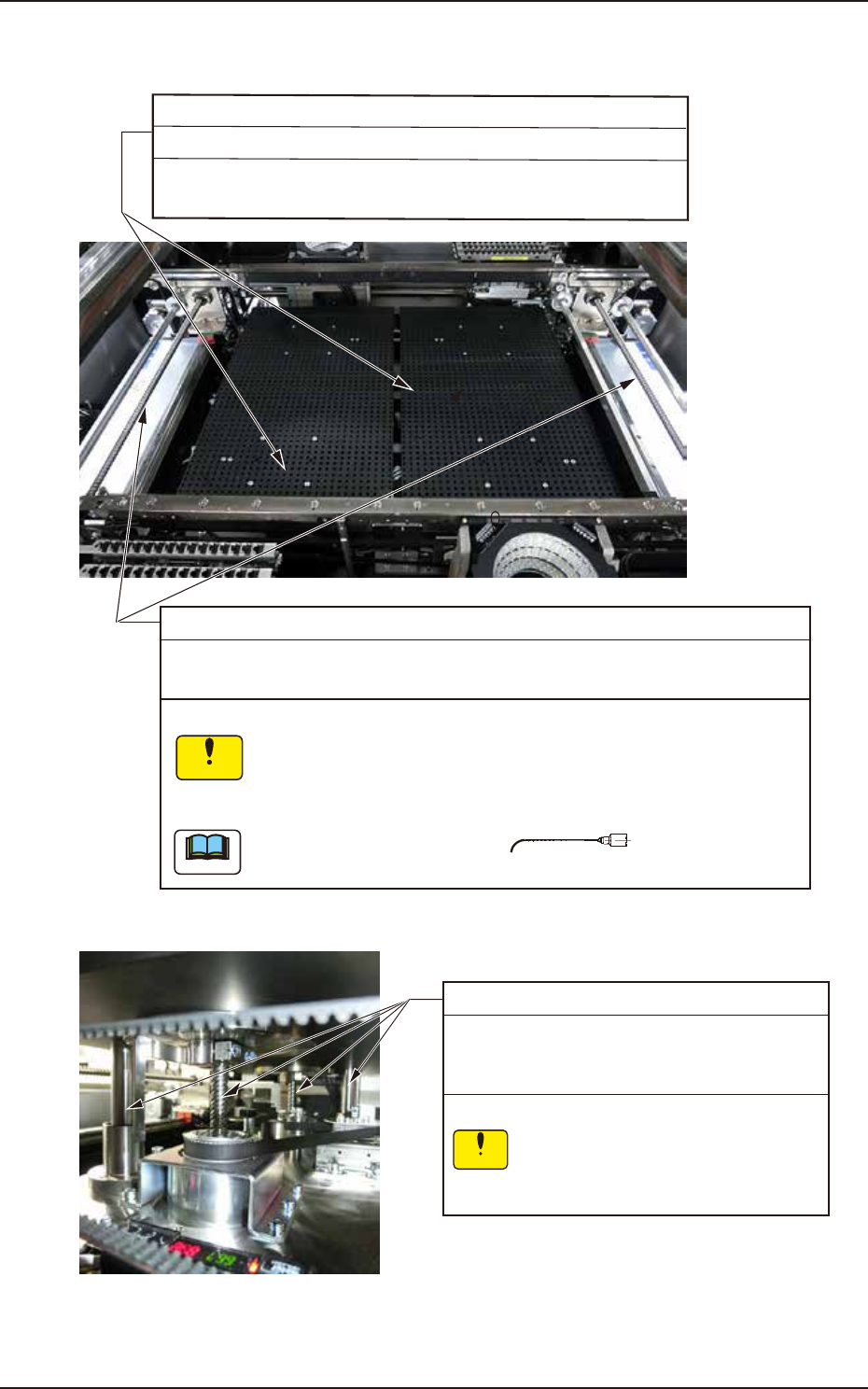

4.9 PCB Positioning Section
4.9 PCB Positioning Section
Ball Screws (2 locations)
Every 3 Months / Cleaning and Lubrication / Required Time: 10 minutes
(DAPHNE EPONEX GREASE No. 1)
Wipe off old grease with a rag and apply new one with a syringe.
Take ample care not to leave any waste
threads after cleaning.
Grease should be applied every 3 months after the initial month.
Use No. 19 (brown) nozzle.
Notice
Note
No.19
Upper Surface of Backup Table
Every Week / Cleaning / Required Time: 2 minutes
Remove foreign objects and unrequired components.
Suck dirt and dust with a vacuum cleaner.
F4A37A
Every 3 months / Cleaning and Lubrication /
Required Time: 20 minutes
(DAPHNE EPONEX GREASE No. 1)
Ball Screw and Ball Bush (4 locations each)
(1) Wipe off the old grease with a
rag for wiping oil.
(2) Apply grease to each shaft.
Take ample care not to leave
any waste threads after cleaning.
Notice
F4A37B
EUKYX
1-54199-4100

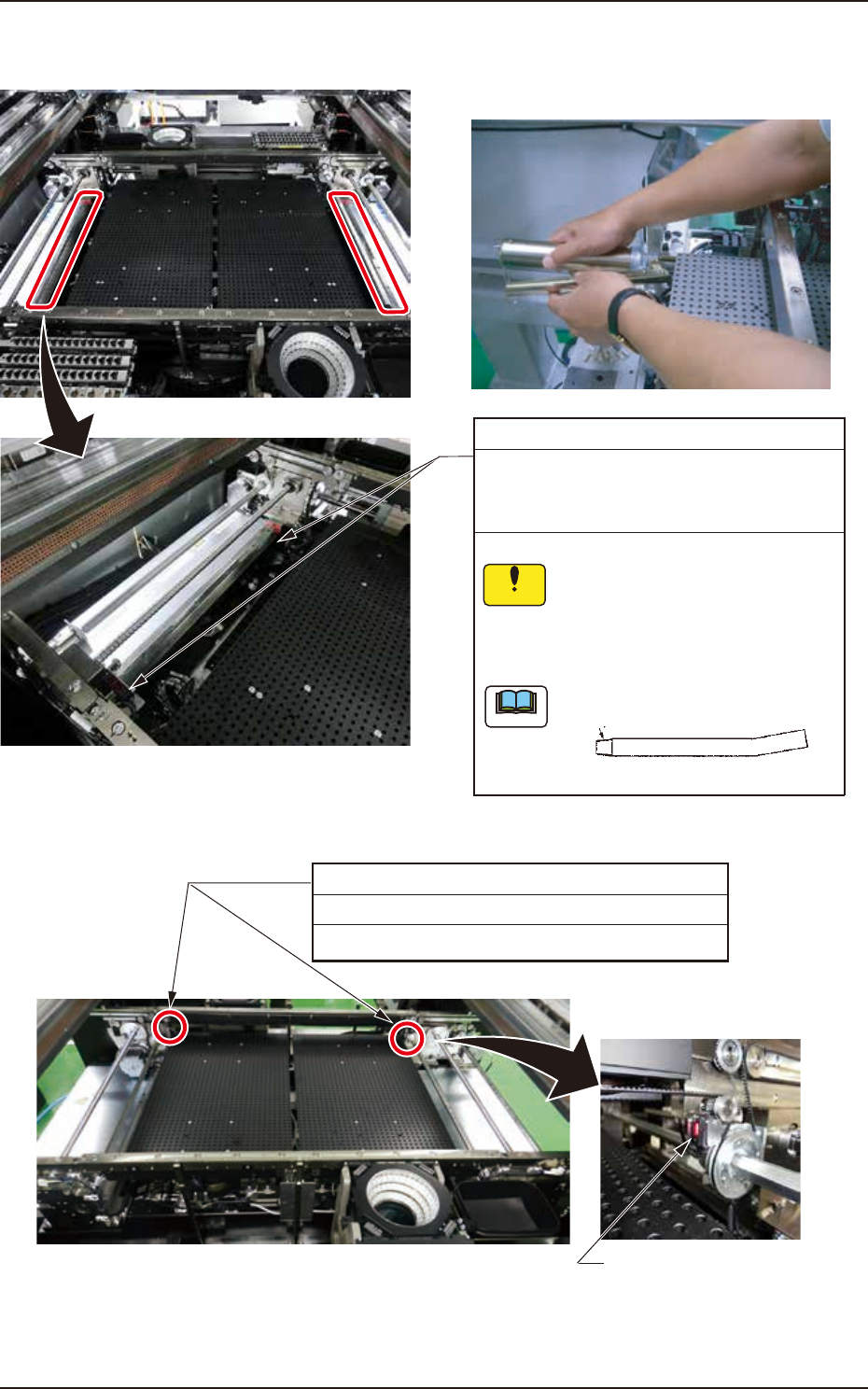

4.10 Conveyor Section
4.10 Conveyor Section
Lubrication Work Example
Type H
PT1/8
Linear Guides (2 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a
rag for wiping oil.
Take ample care not to leave any
waste threads after cleaning.
Use Type H nozzle.
Notice
Note
Attach the micro hose to a hand grease gun and
apply new grease from the grease nipples.
F4A38A
Support Pin Detection Sensors (2 locations)
Every Week / Cleaning / Required Time: 1 minute
Clean the support pin detection sensors with a rag.
Support Pin Detection Sensor
F4A39A
