EUKYX 1-55 199-4100 4.10 Conveyor Section PCB Detection Sensor Fiber (2 locations) PCB Detection Sensor (3 locations) Every Week / Cleaning / Required Time: 2 minutes Clean the PCB detection sensors with a rag. At the ti…
EUKYX
1-54199-4100
4.10 Conveyor Section
4.10 Conveyor Section
Lubrication Work Example
Type H
PT1/8
Linear Guides (2 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a
rag for wiping oil.
Take ample care not to leave any
waste threads after cleaning.
Use Type H nozzle.
Notice
Note
Attach the micro hose to a hand grease gun and
apply new grease from the grease nipples.
F4A38A
Support Pin Detection Sensors (2 locations)
Every Week / Cleaning / Required Time: 1 minute
Clean the support pin detection sensors with a rag.
Support Pin Detection Sensor
F4A39A
EUKYX
1-55199-4100
4.10 Conveyor Section

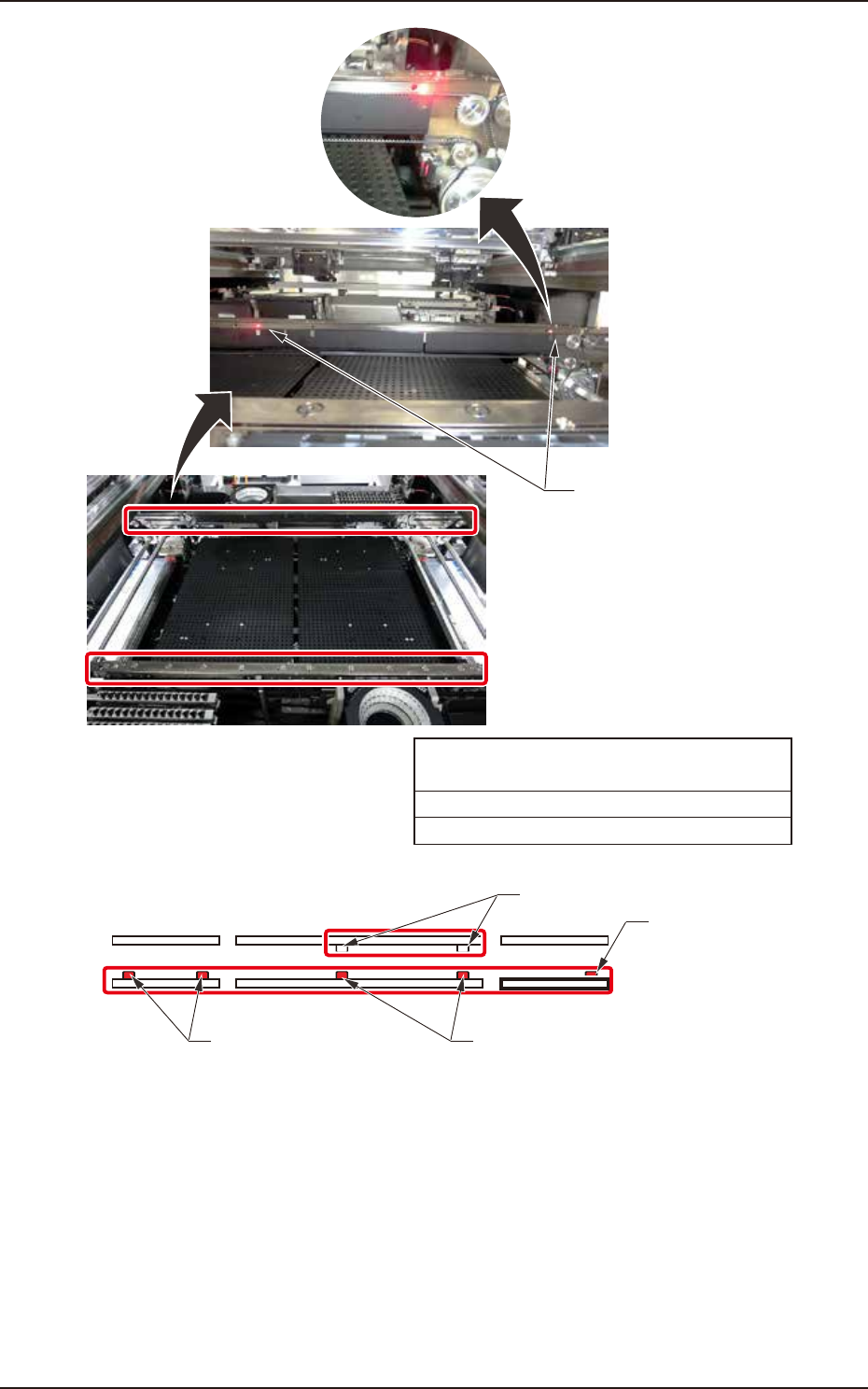

PCB Detection
Sensor
Fiber (2 locations)
PCB Detection Sensor (3 locations)
Every Week / Cleaning / Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
At the time of Single Transfer (Arrangement Image Diagram)
PCB Detection Sensor
PCB Detection Sensor Fiber (Light Emitting)
PCB Detection Sensors PCB Detection Sensor Fiber (Light Receiving)
PCB Detection Sensor Fiber
F4A40A
EUKYX
1-56199-4100

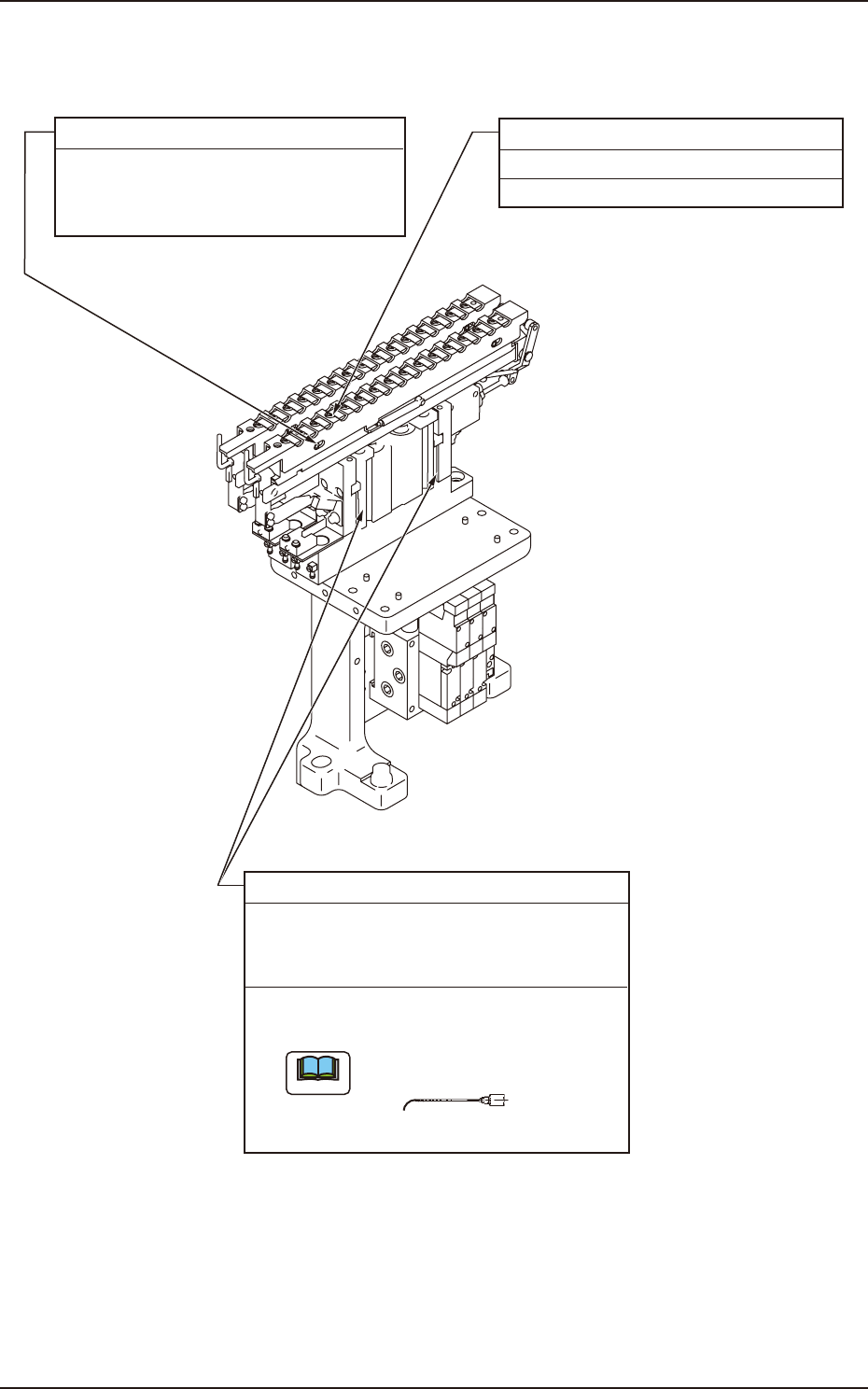

4.11 Nozzle Stocker Section
4.11 Nozzle Stocker Section
Nozzle Stocker for High-Speed Nozzle
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust withavacuum cleaner.
Nozzle Stocker Sliding Section
Every3Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time:5minutes
Every3Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time:5minutes
(1) Wipe off old grease with a
rag for wiping oil
.
(2) Apply new grease withasyringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Shutter Flange Pin Sliding Section
F4A41
