EUKYX 1-60 199-4100 4.13 Fans Section 4. 1 3 F ans Sect ion V entilating Fan (2 locations) Every 3 Months / Cleaning / Required Time: 10 minutes Suck dirt and dust from the dust filters with a vacuum cleaner. Air-Intake …
EUKYX
1-59199-4100
4.12 Control Box Section
4.12 Control Box Section
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove 3 screws to detach the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A44
EUKYX
1-60199-4100
4.13 Fans Section
4.13 Fans Section
Ventilating Fan (2 locations)
Every 3 Months / Cleaning /
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.

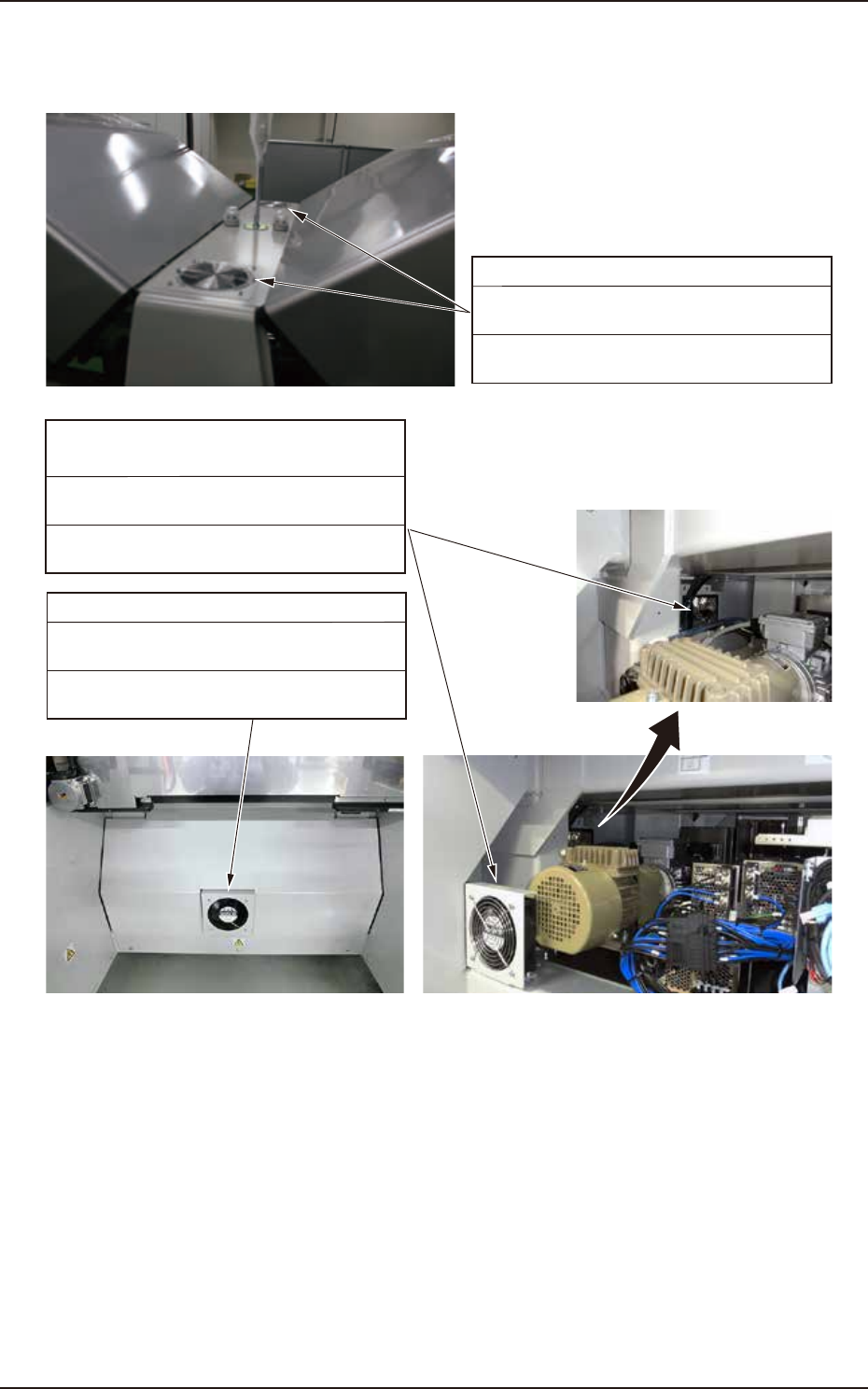

Air-Intake Fan (Side)
Ventilating Fan (Upper surface: 2 locations)
Every 3 Months / Cleaning /
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
Air-Intake Fan (1 location)
Ventilating Fan (1 location)
Ventilating Fan (Rear)
Ventilating Fan (Front)
Ventilating Fan (1 location)
Every 3 Months / Cleaning /
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
F4A45A
EUKYX
1-61199-4100
5. Cleaning of vacuum nozzles
5. Cleaning of vacuum nozzles
Periodically clean the vacuum nozzles to maintain reliable and stable component picks and
placement.
• It is advisable that the nozzles be cleaned at least once a week.
The nozzle for 0402 recommends the cleaning every 3 or 4 days.
• Change cleaning frequency according to various frequency of use and accumulation of debris
along with certain environmental conditions.
• When the vacuum suction force weakens or a nozzle constantly fails to pick or place
components, it is required to check the nozzle for debris and cleanliness.

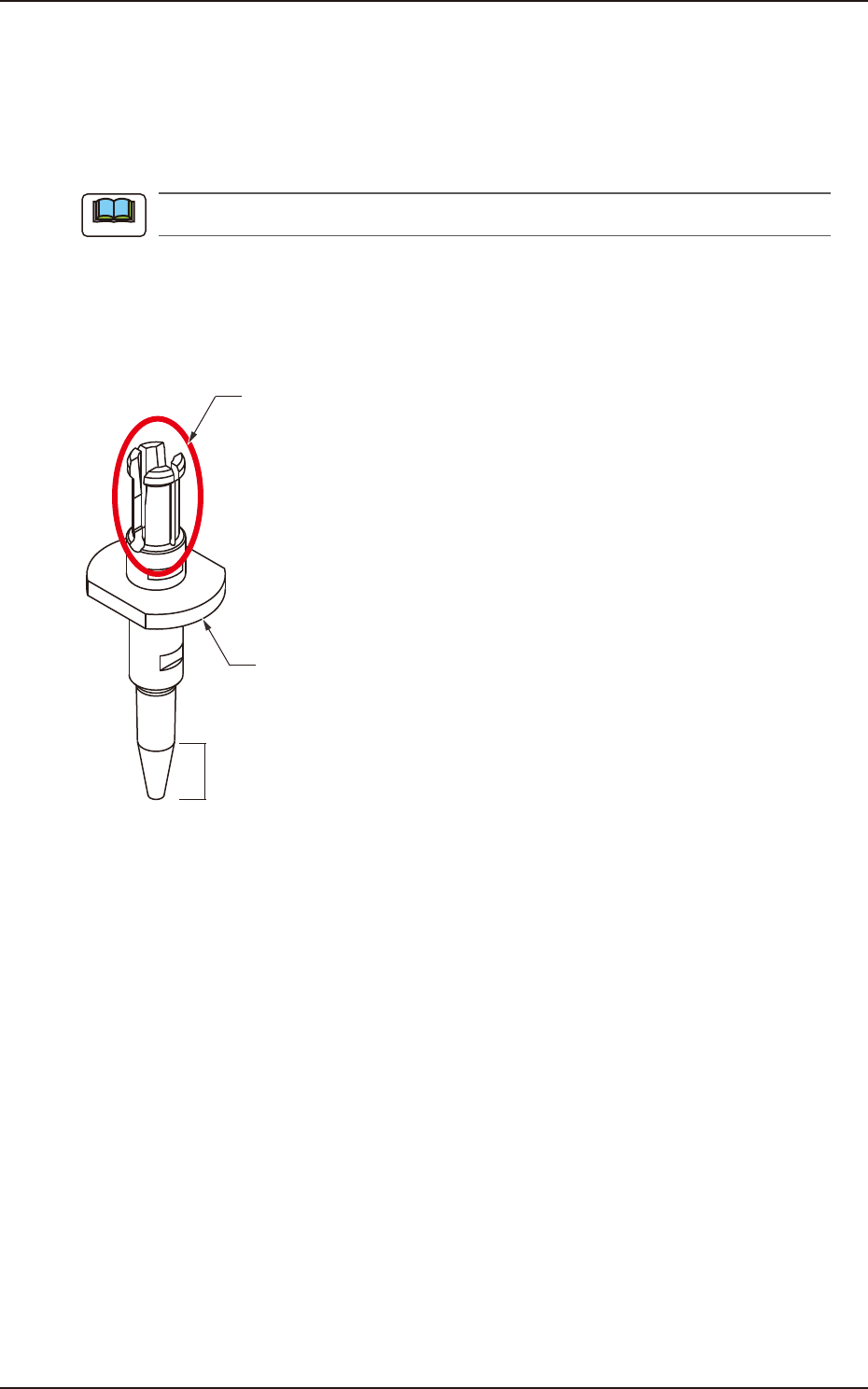

Do not grasp this part strongly during the
nozzle cleaning.
Otherwise, the nozzle may be damaged.
When it is necessary to hold the nozzle firmly,
try to grasp the collar portion.
When a recognition error occurs frequently,
rub the back of the collar approximately
20 times with a toothbrush.
Taper part
F4A46
Note
