EUKYX
1-70199-4100
5.7 Nozzle Filter Insertion Procedure
5.7 Nozzle Filter Insertion Procedure
• Filter replacement jig
There are 2 filter replacement jigs: for High-Speed Nozzle and for Nozzle picking up Middle-
Size/Odd-Shape component. The same procedures apply to both jigs.
For Nozzle picking up
Middle-Size/Odd-Shape
component
For High-Speed Nozzle
Nozzle set position
F4A83
(1) Set the nozzle filter in the nozzle filter set position with tweezers or similar tool.
Nozzle filter set position
F4A58A
(2) Set the acrylic block on the nozzle filter set position.
Acrylic block
(for holing filter)
Acrylic block set on nozzle filter set position
Nozzle filter set position
F4A59A
Note
Procedure
EUKYX
1-71199-4100

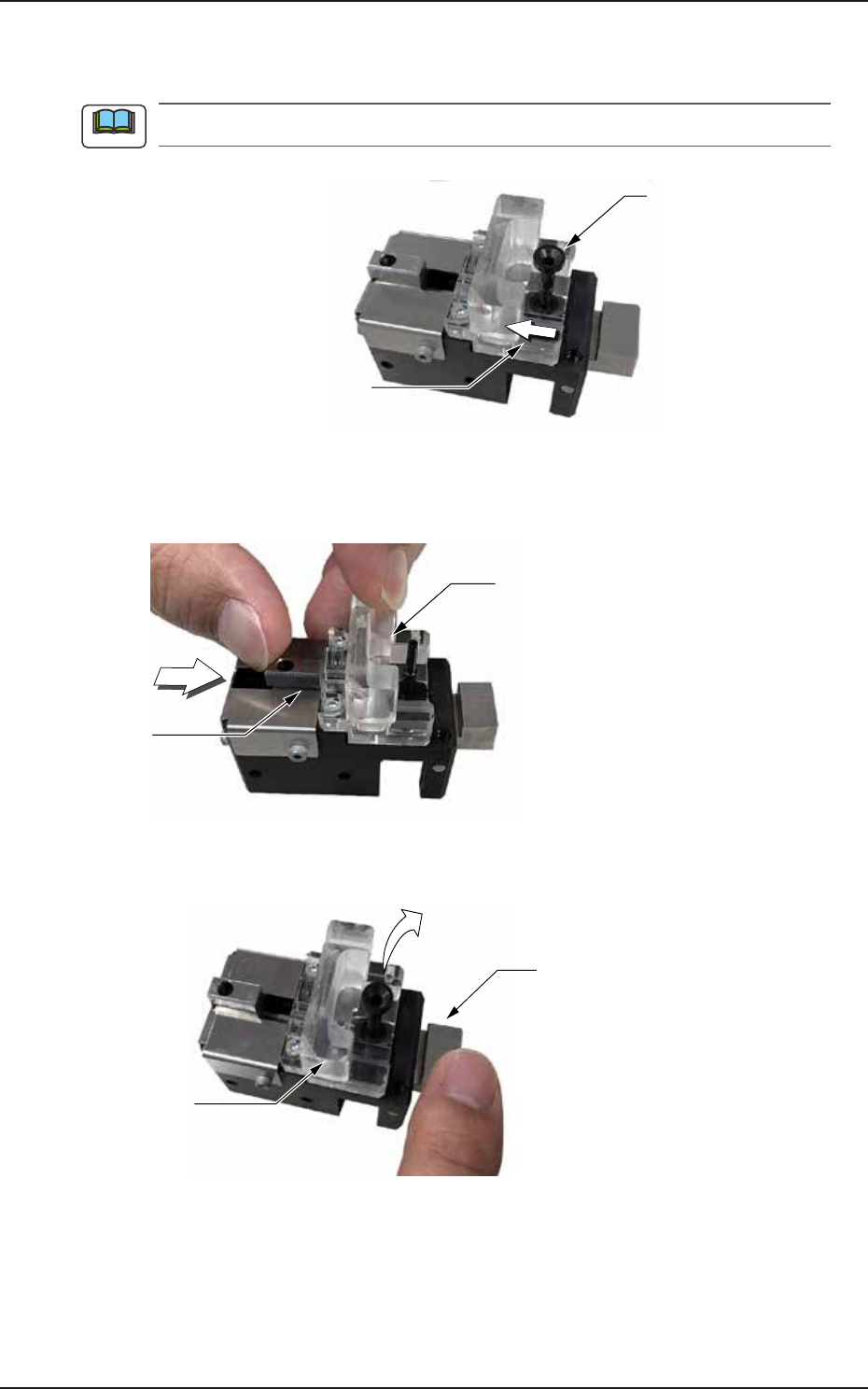

5.7 Nozzle Filter Insertion Procedure
(3) Insert the nozzle into the nozzle set position. At this time, face the nozzle clearance for
nozzle filter must face toward the acrylic block (in the direction of white arrow).
Make sure to face the nozzle clearance in the correct direction.
Nozzle clearance for nozzle filter
must face in this direction.
Nozzle
F4A60A
(4) Press the acrylic block and move the slider in the direction of white arrow to insert the
nozzle filter into the nozzle clearance.
Slider
Acrylic block
F4A62A
(5) Press the lever to detach the nozzle. At this time, a click is heard.
Acrylic block
Press the lever.
F4A82
Note
EUKYX
1-72199-4100

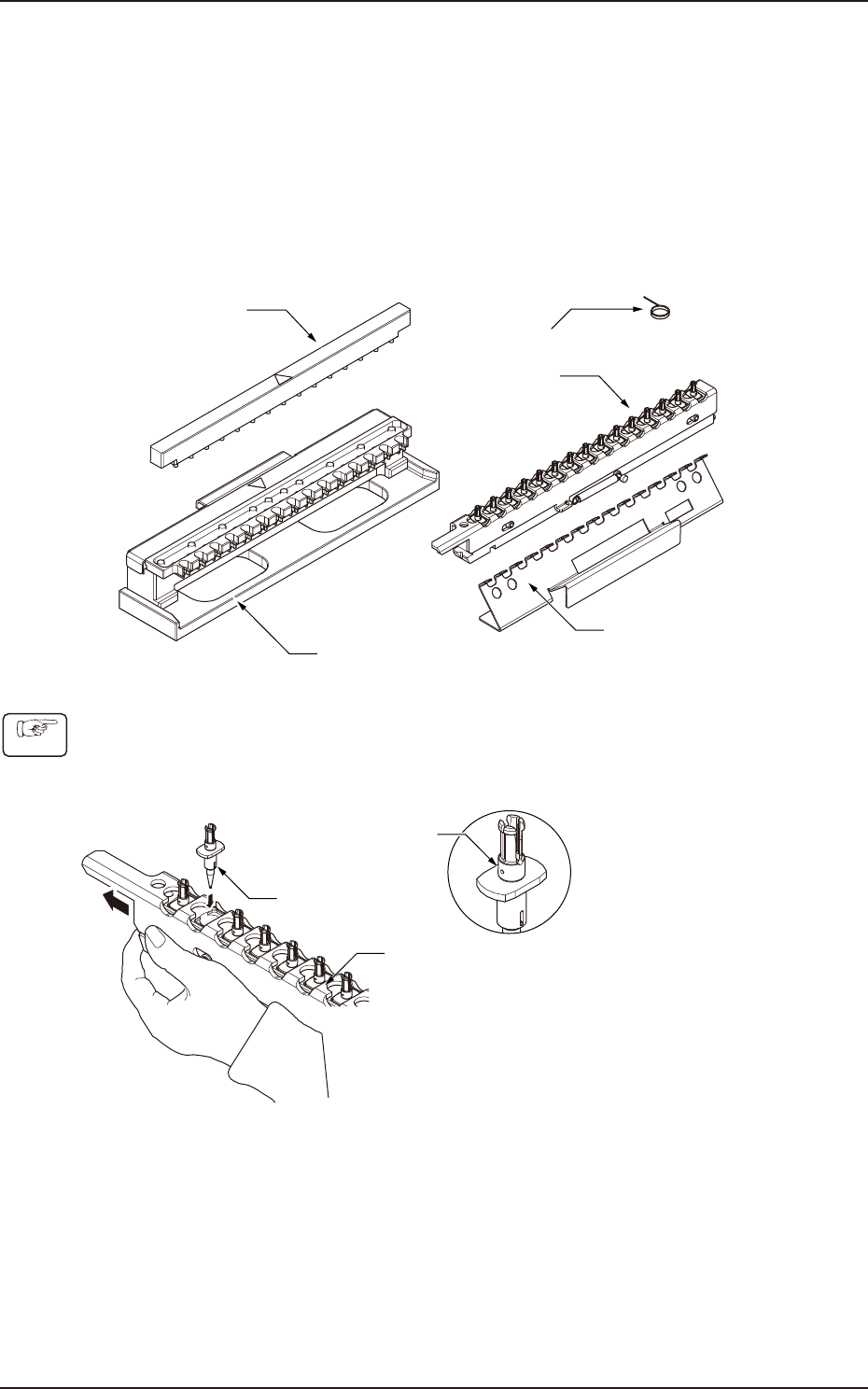

5.7 Nozzle Filter Insertion Procedure
• Filter replacement jig for 15 high-speed nozzles
Prepare following items in advance.
• Replacement part of high-speed nozzle stocker for G5S/G5S2 (KYB-M3806-000)
• High-speed nozzles for G5S/G5S2
• Filter replacement jig (KYX-M3807-000)
• Filter remove support jig (KYX-M3852-000)
• Filter remove pin (KYX-M381A-000)
• Tweezers (KYB-M380Y-000)
Filter remove
support jig
Filter remove pin
Filter replacement jig
Filter replacement jig
(Acrylic block)
Replacement part of
high-speed nozzle stocker
F4A71A
(1) Slide the nozzle stocker shutter to keep it opening.
(2) Store high-speed nozzles in the high-speed nozzle stocker. Make sure that each hole for
filter remove pin of all nozzles locate the positions as below.
Stocker shutter
High-speed nozzle
Hole for filter
remove pin
F4A72A
Procedure
