199-4100
Chapter 2
Troubleshooting
In this chapter, the outlines for each trouble shooting are
described.
1. Descriptions for Troubleshooting
2. Management Information
3. Machine Information
4. “Error“ Window
EUKYX
EUKYX
2-1199-4100
1. Descriptions for Troubleshooting
1. Descriptions for Troubleshooting
The troubleshooting windows are composed as follows.
This section describes the remedial procedure from
the window indicating "Machine Information".
Troubleshooting from
"Management Information"
Window
Troubleshooting from
"Machine Information" Window
Troubleshooting from
"Error" Window
Troubleshooting based on
"Recognition Error ID"
(8 digits)
Troubleshooting based on
"Error ID"
The troubleshooting operation varies depending on
the difference in Error ID or Recognition Error ID.
Troubleshooting on
Component Pick-up and
Placement
The causes of "General pick-up error and placement
error" and remedial procedures are described.
This section describes the remedial procedure from
the window indicating "Management Information".
Refer to "2. Management Information"
in this chapter for details.
Reference
Refer to "3. Machine Information"
in this chapter for details.
Reference
Refer to “Chapter 3 Troubleshooting based
Error ID" for details.
Reference
Refer to “Chapter 4 Troubleshooting from
Recognition Error IDs" for details.
Reference
Refer to “Chapter 5 Troubleshooting on
Component Picks and Placement.
Reference
F4B1
EUKYX
2-2199-4100
2. Management Information
2. Management Information

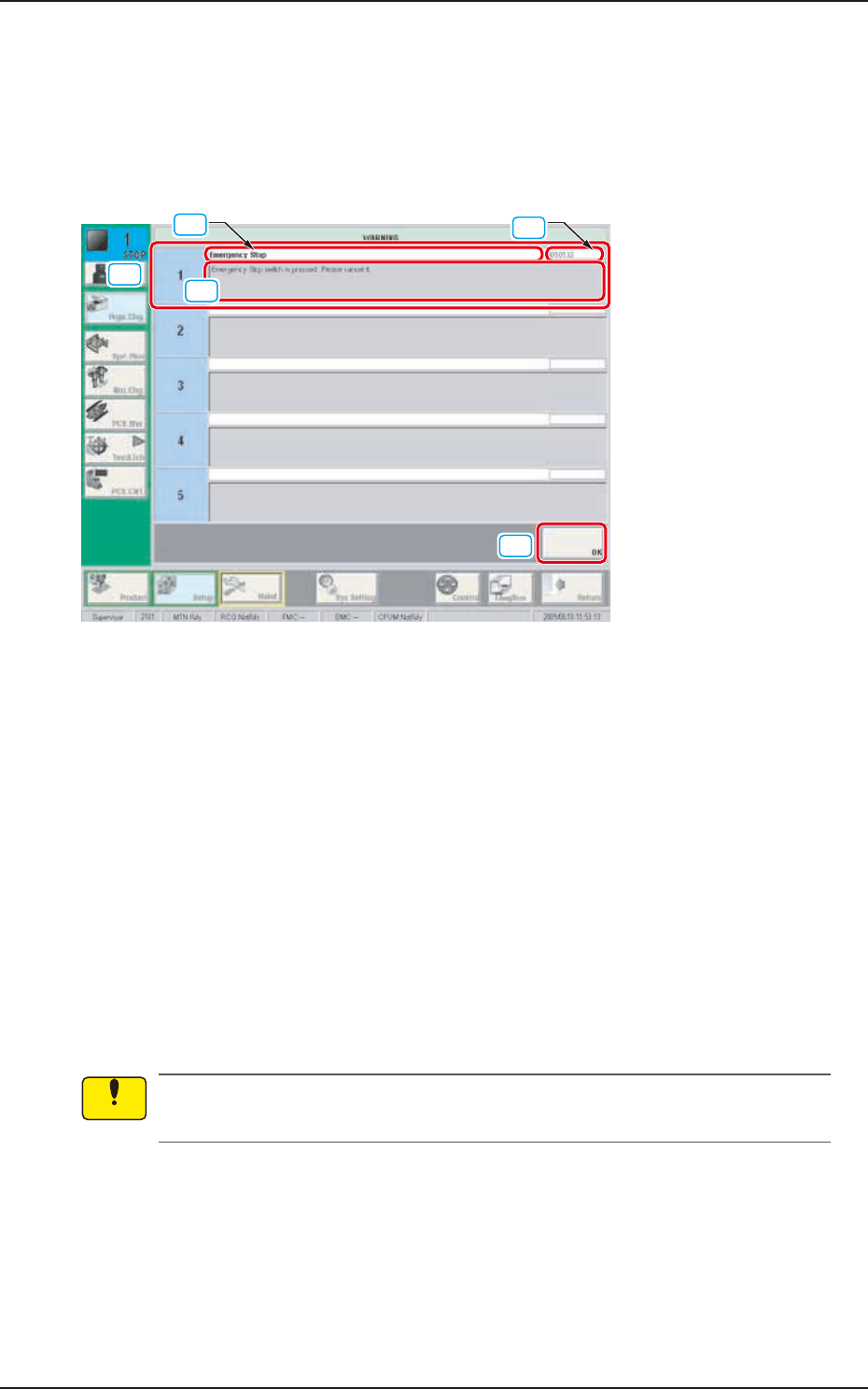

2.1 "Management Information" Window
When normal recovery does not occur after a mistake in the machine operation or an error, the
following management information window appears.
[1]
[4]
[3]
[2]
[5]
F4B2
[1] Management Information
In this window, the management information is displayed.
[2] Management Information Code
In this window, the management information code is displayed.
[3] Display Area A
The outline of the management information is displayed in this area.
[4] Display Area B
The details of the management information are displayed in this area.
[5] [OK] Button
The window returns just prior to the "Management Information" by pressing this button.
• Remedial Procedure from “Management Information” Window
(1) Make a note of the management information.
If you forget the Management Information, correct recovery can not be performed. Therefore,
make sure to make a note.
(2) Press the [OK] button to return to the original window.
(3) Perform the correct recovery based on the Management Information.
Notice
