EUKYX
2-31199-4100
3.2 Machine Information list
Err Code
(HEX)
Display Area A Display Area B
80e001
Noz Selection axis
position offset teaching
The 1st Re-trial for Noz Selection axis position offset teaching
started.
80e002
Noz Selection axis
position offset teaching
The 2nd Re-trial for Noz Selection axis position offset teaching
started.
80f001 Auto Opn.Mode Start Auto Opn.Mode.
80f002 Auto Opn.Mode Stop Auto Opn.Mode.
80f003 Auto Opn.Mode Stop Auto Opn.Mode. (Error stop)
80f101 ACV Registration Comp.Reld. execution.
80f102 ACV Registration Splicing execution.
80f201 Auto Cover Locked
The safety door is locked for pass running. Please stop the machine
and move the head if there is a head on the conveyor. There is an
interference with PCB if a head is on the conveyor.
80f202 Auto Cover Locked
Connector (Block1) of Feeder Base is taken off. Do not take it off
when Feeder Base is rising up. Please go on if it’s on operating.
80f203 Auto Cover Locked
Connector (Block2) of Feeder Base is taken off. Do not take it off
when Feeder Base is rising up. Please go on if it’s on operating.
80f204 Auto Cover Locked
Manual Movement and Load. This operation will be done while
[START] button is pushed. Please push the button continuously
before PCB moves to the proposal position.
80f301 Barcode Detection
The bar code data is not read. Bar code ID is generated
automatically.
80f302 Barcode Detection Illegal bar code ID. Bar code ID is generated automatically.
80f401
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos.
Correction because the standard of Device’s Coordinates for PP
data in Printer differs from it in Mounter.
80f402
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos.
Correction because Global Recognition of PP Data does not have 2
points.
80f403
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos.
Correction because Unit PCB Recog or Local PCB Recog of PP Data
is being used.
80f404
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos.
Correction because could not receive Print Pos. Correction values
normally.
80f405
FF func. for Print Pos
Correction
Standard PCB Mounting will be executed without Print Pos.
Correction because of time-out of receiving Print Pos. Correction
values.
80f501
Auto Cover Locked
Start
After Auto Cover Locked, it is stopped because NG Items are found
by Free Check before product opreation. Please confirm the guide
for start-up.
80f601 Feeder Base Connector for Feeder Cart is not connected.
80f602 Feeder Base Not turned Feeder Cart on yet.
80f603 Feeder Base Communicating with Feeder.
80f701
Library Tape feeding
High-speed
It is necessary to take out and in a feeder if tape high-speed feeding
is set enable.
80f801
Unit PCB recognition
data transfer func.
There is a possibility that the operation changed to PCB recog.
manual alignment during data processing, or PCB which is being
data processing is taken off. Please change the same current
program in the head mounter (Unit 1). Or, set unit PCB recog. data
communication of operation mode [Disable] for a moment, and then
set [Enable] in the head mounter (Unit 1).
EUKYX
2-32199-4100
3.2 Machine Information list
Err Code
(HEX)
Display Area A Display Area B
80f901 Nozzle auto. Replace
Nozzle is replaced automatically because of a lowering of pick-up
rate.
80f902 Nozzle auto. Replace
Pick-up rate of nozzle went down, and nozzle was replaced
automatically. But nozzle position teaching failed.
80f903 Nozzle auto. Replace
Pick-up rate of nozzle went down, but it is interrupted to replace
nozzle automatically.
80f904 Nozzle auto. Replace
Pick-up rate of nozzle went down. It planned to replace nozzle
automatically, but there was no place to store it.
80f905 Nozzle auto. Replace
Pick-up rate of nozzle went down. It planned to replace nozzle
automatically, but there was no spare nozzle.
80f906 Nozzle auto. Replace
Nozzle is replaced automatically because of a lowering of pick-up
rate. There is not spare nozzle anymore.
80fa01
Automatic correction of
missed standard mark
Standard mark position offset is automatically corrected.
80fb01 Comp. Insertion error A component could not insert it in a PCB. Recovery is performed.
80fc01 Auto Retry Start Auto retry mode is starting.
80fd01 Label Feeder Check Check the label holding bracket is closed.
EUKYX
2-33199-4100
4. “Error“ Window
4. “Error“ Window

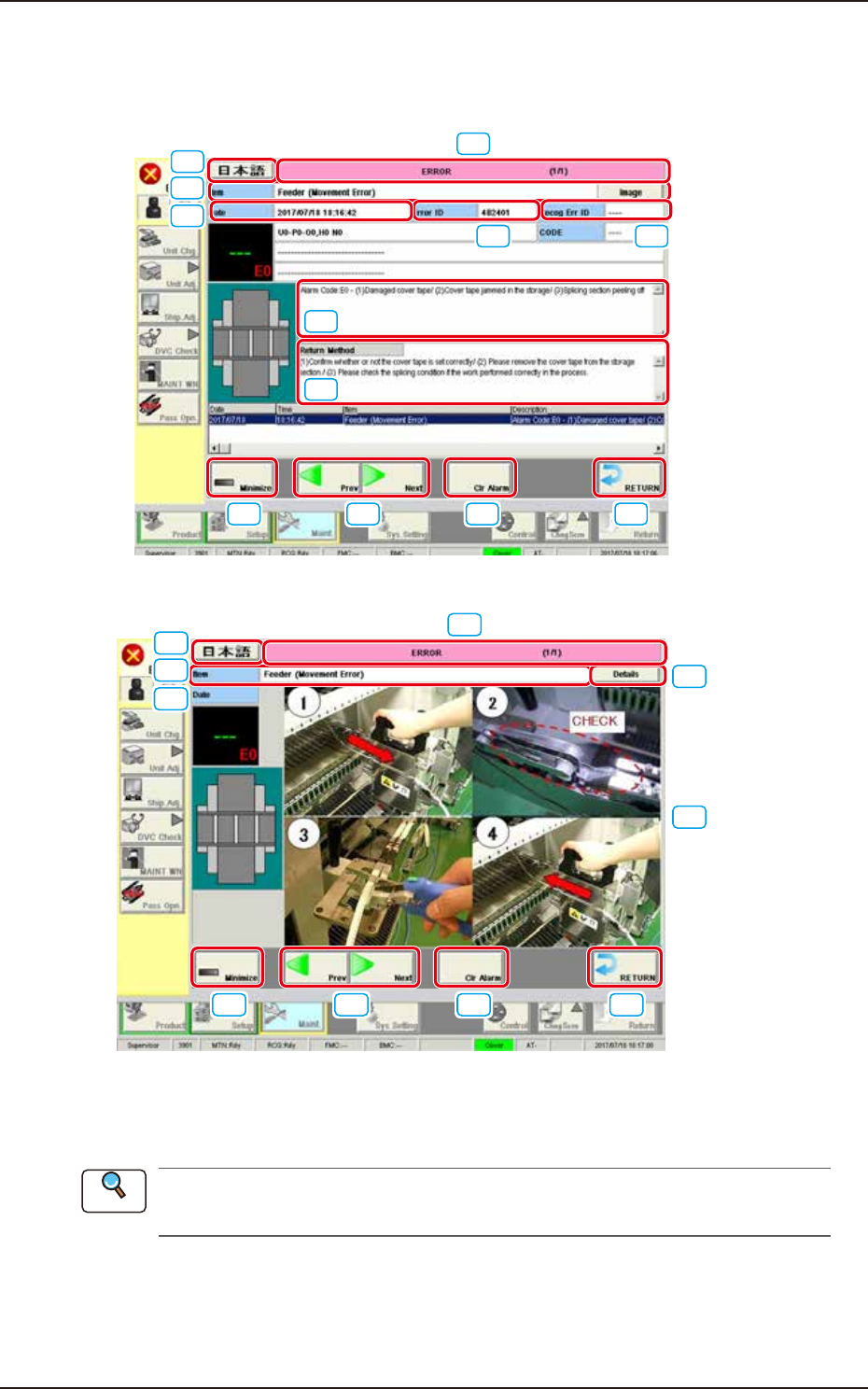

When the machine detects an error, the following error window appears.
[7]
[10]
[11] [12] [13] [14]
[1] [2]
[3]
[6]
[4]
[5]
F4B4
[7]
[8]
[9]
[10]
[11] [12] [13] [14]
[3]
[6]
F4B5
[1] Error ID
The error type is displayed using a 6-digit figure.
When an error has occurred, use this ID as an index and refer to “Chapter 3 Troubleshooting
from Error ID” for details.
[2] Recognition Error ID
In this text box, the error type is displayed using an 8-digit figure.
Reference
