4.1 Air Source
4.1.2 Main Air Pressure Inspection
Cycle : Every Day (Required Time : 1 minute)
Main Air Pressure
F4A9
Visually check that the set air pressure is 0.45 MPa (4.6 kgf/cm
2
) and "Min. 0.4 MPa (4.1 kgf/
cm
2
)" while the machine is running. If not, adjust the set air pressure.
4.1.3 Drain Cleaning
Cycle : Every Week (Required Time : 5 minutes)
Cap
Drain
F4A10
Prepare a container and pull down the black cap each on the filter case lower section to drain.
Procedure
Procedure
EUKYX
1-20199-4100
4.1 Air Source
4.1.4 Filter Cleaning
Cycle : Every 3 Months (Required Time : 5 minutes)
Filter
F4A11
(1) Turn the cover unit in the direction shown in the figure below, using the air-filter case
removing jig to remove the cover.
F4A12
(2) While rotating the filter holder counterclockwise, pull it out.
Filter Holder
F4A13
(3) Pull out the filter and blow air to it for cleaning.
(4) Insert the filter back in place and turn the filter holder clockwise to attach.
(5) Attach the filter cover.
When the filter has become defective, replace it with a new one.
Procedure
Note
EUKYX
1-21199-4100
4.2 Vacuum System
4.2 Vacuum System

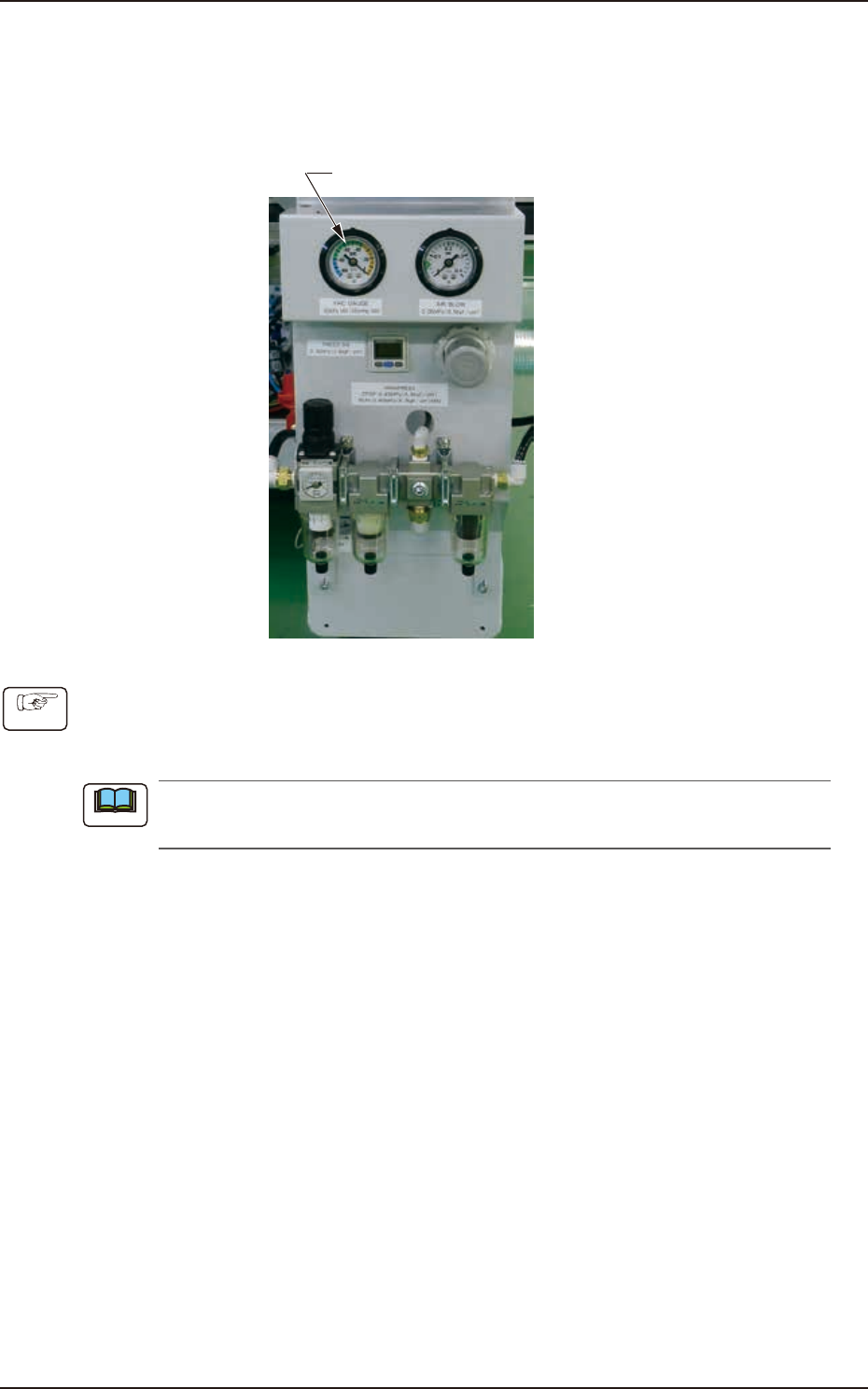

4.2.1 Vacuum Pressure Inspection
Cycle : Every Day (Required Time: 1 minute)
Vacuum Pressure
F4A14
Visually check the vacuum pressure.
Vacuum Valve Fully Opened : Min. -93 kPa (Min. 70 cmHg) or more
Running : Min. -60 kPa (Min. 45 cmHg) or more
When the vacuum pressure is insufficient, air may be leaking from the vacuum line or the
vacuum pump may have broken down.
Procedure
Note
