EUKYX
1-20199-4100
4.1 Air Source
4.1.4 Filter Cleaning
Cycle : Every 3 Months (Required Time : 5 minutes)
Filter
F4A11
(1) Turn the cover unit in the direction shown in the figure below, using the air-filter case
removing jig to remove the cover.
F4A12
(2) While rotating the filter holder counterclockwise, pull it out.
Filter Holder
F4A13
(3) Pull out the filter and blow air to it for cleaning.
(4) Insert the filter back in place and turn the filter holder clockwise to attach.
(5) Attach the filter cover.
When the filter has become defective, replace it with a new one.
Procedure
Note
EUKYX
1-21199-4100
4.2 Vacuum System
4.2 Vacuum System
4.2.1 Vacuum Pressure Inspection
Cycle : Every Day (Required Time: 1 minute)
Vacuum Pressure
F4A14
Visually check the vacuum pressure.
Vacuum Valve Fully Opened : Min. -93 kPa (Min. 70 cmHg) or more
Running : Min. -60 kPa (Min. 45 cmHg) or more
When the vacuum pressure is insufficient, air may be leaking from the vacuum line or the
vacuum pump may have broken down.
Procedure
Note
EUKYX
1-22199-4100
4.2 Vacuum System

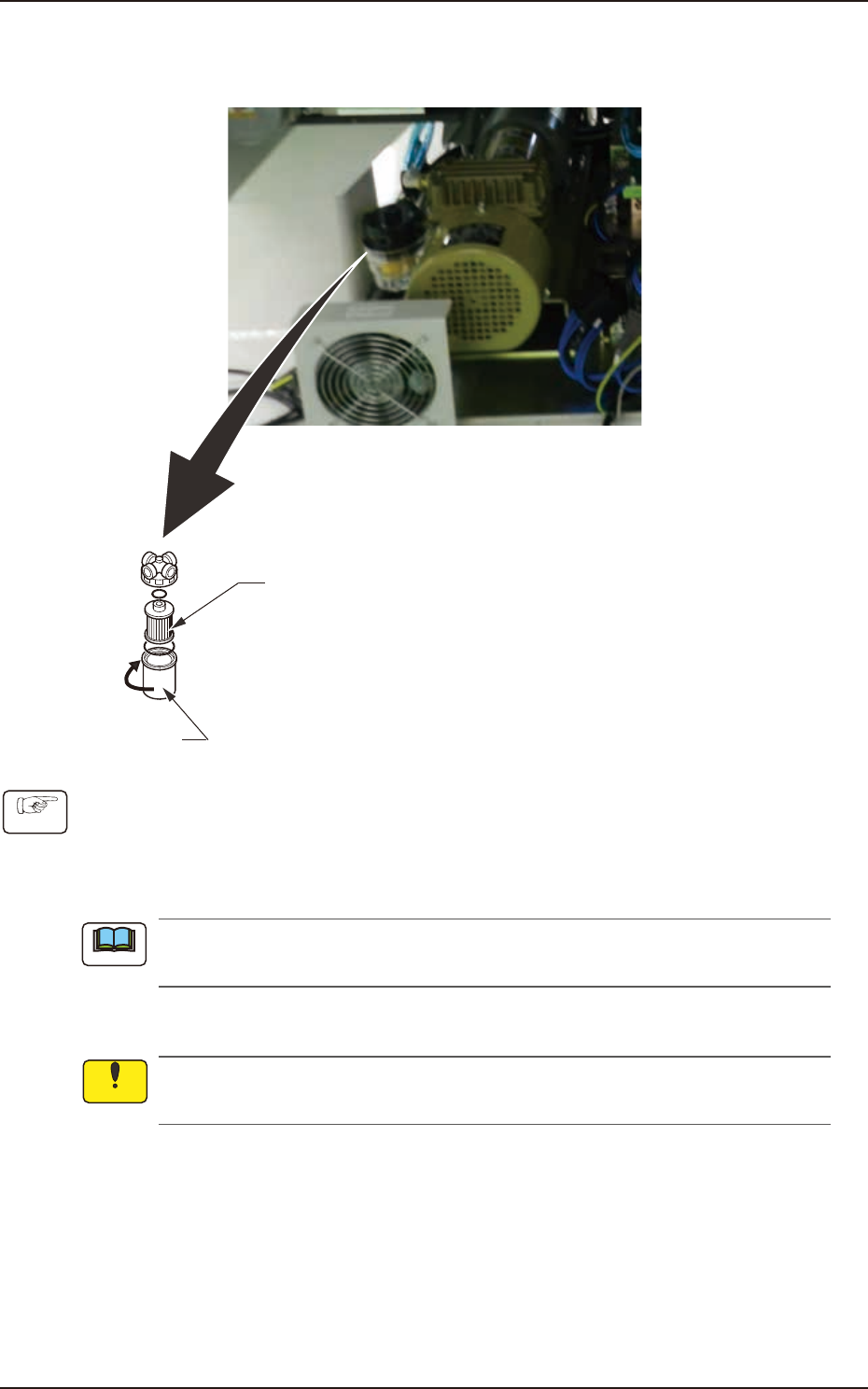

4.2.2 Filter Cleaning
Cycle : Every 3 Months (Required Time : 10 minutes)
Filter Case
C
Filter
F4A15
(1) Remove 4 setscrews fastening the cover at the lower front of the machine and detach the
cover.
(2) Rotate the filter case in Arrow Direction C to detach and then take out the filter.
(3) Blow air to the filter for cleaning.
When the vacuum pressure has dropped during the operation, replace the filter with a new
one.
(4) Attach the cover while pushing it upward and tighten it with the setscrews.
If a clearance is left between the main machine and the cover, the tape will pop out from the
clearance during the operation, causing the machine to breakdown or generate an error.
Procedure
Note
Notice
