EUKYX 1-26 199-4100 4.4 Feeder Base Driving Section 4.4 F ee der Base Driving Section 4.4. 1 Worm Gear s ( 2 locations ) Lubr ication Worm Gears (2 locations ) Every 3 Months Lubrication (MOLYNOC GREASE AP1) Required T i…
EUKYX
1-25199-4100
4.3 Component Recognition Camera Section
4.3.3 Fiducial Marks (4 locations) Cleaning
Use a suction force such as a vacuum cleaner for the cleaning.
Do not blow air to any cleaning section with an air gun.
When air is blown, the dirt and dust inside the machine will disperse, causing the recognition
system and the machine to malfunction.
QFP Glass Plate Jigs (2 pcs.)
Every Month Cleaning
Required Time: 1 minute
Wipe the jigs with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the QFP
glass plate jigs.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Sebum (fingerprint) or oil
should not adhere to the
fiducial marks.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Wipe the upper surfaces of the fiducial marks
with a dry lens cleaning cloth.
Teaching Plates (2 locations)
Every Month Cleaning
Required Time: 1 minute
Remove foreign objects and unrequired
components and wipe off dirt and dust with a
rag.
F4A19
Notice
EUKYX
1-26199-4100
4.4 Feeder Base Driving Section
4.4 Feeder Base Driving Section
4.4.1 Worm Gears (2 locations) Lubrication
Worm Gears
(2 locations)
Every 3 Months Lubrication
(MOLYNOC GREASE AP1)
Required Time: 2 minutes
Use No. 19 (brown) nozzle.
Note
No. 19
Apply a small amount of new grease to the
worm gears with a syringe.
F4A20
EUKYX
1-27199-4100

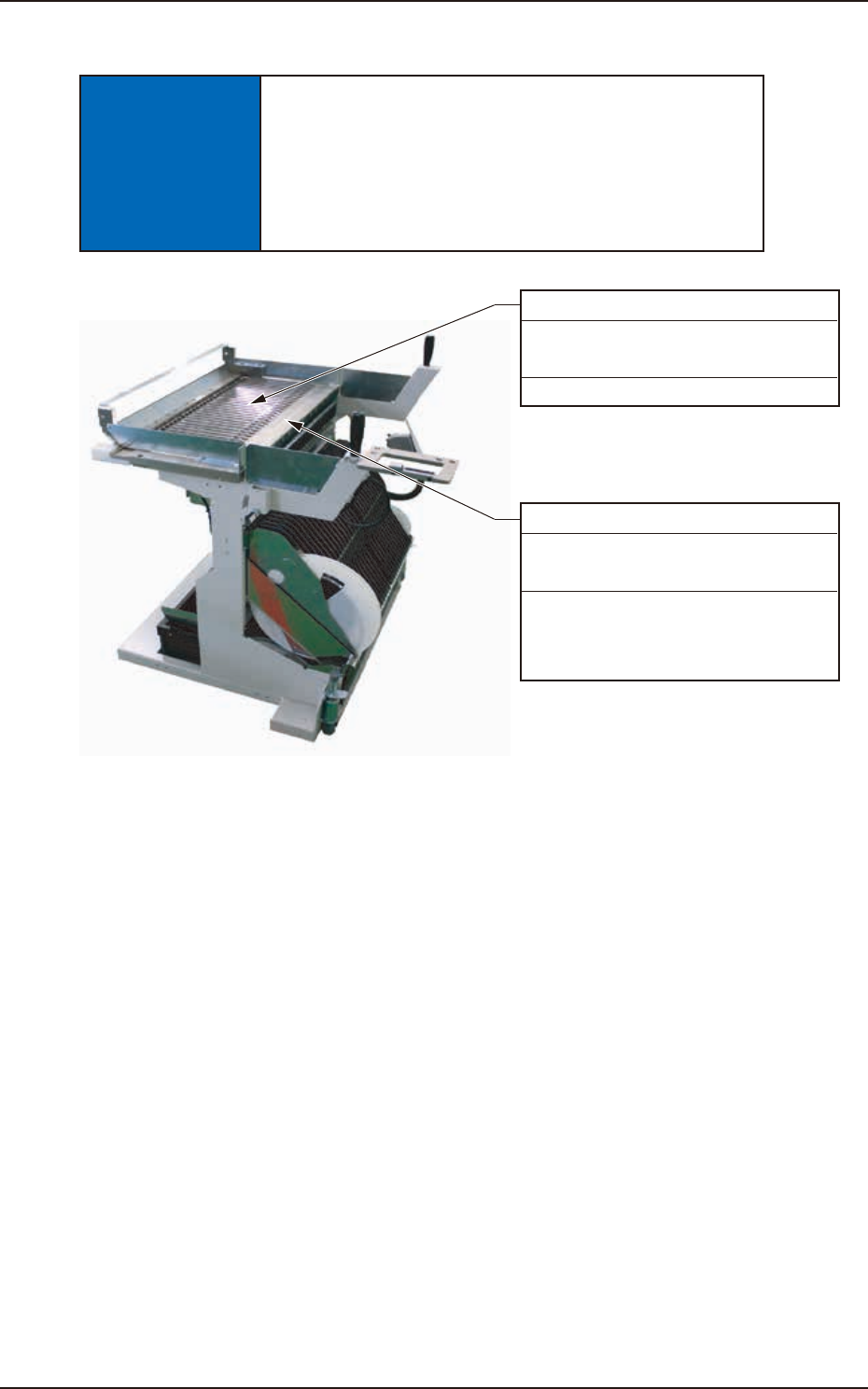

4.5 Feeder Cart Section
4.5 Feeder Cart Section
NOTICE
Do not blow air to cleaning sections with an air gun.
When the air is blown, dirt or dust inside the machine
will disperse,which may adhere to the sensors,
control boards and moving mechanisms causing
machine failures.
Groove on Feeder Base
Every Week Cleaning
Required Time:2minutes
Suck dirt and dust withavacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required Time:2minutes
Remove foreign objects and unrequired
components withavacuum cleaner and
wipe off dirt and dust witharag.
F4A21
