EUKYX
1-33199-4100
4.6 Cutter Section
(3) Pull out the cutter unit main body forward. Remove 3 unit connection connectors. At this
point, make sure not to tear off the connector cable by pulling them forcibly. Additionally,
take care that the connector cable is not trapped when returning the unit to the original
position.
Connection connectors (3 pcs)
Connector
cable
Front
Cutter unit main body
F4A27C
(4) Pull out the cutter unit main body forward more. Move it over the unit stopper bolts and
detach it from the machine. Make sure to grip the handles firmly in order not to drop the
cutter unit as it is heavy.
Handle
Handle
Unit stopper
bolt
Unit stopper
bolt
Front
F4A27F
EUKYX
1-34199-4100
4.6 Cutter Section

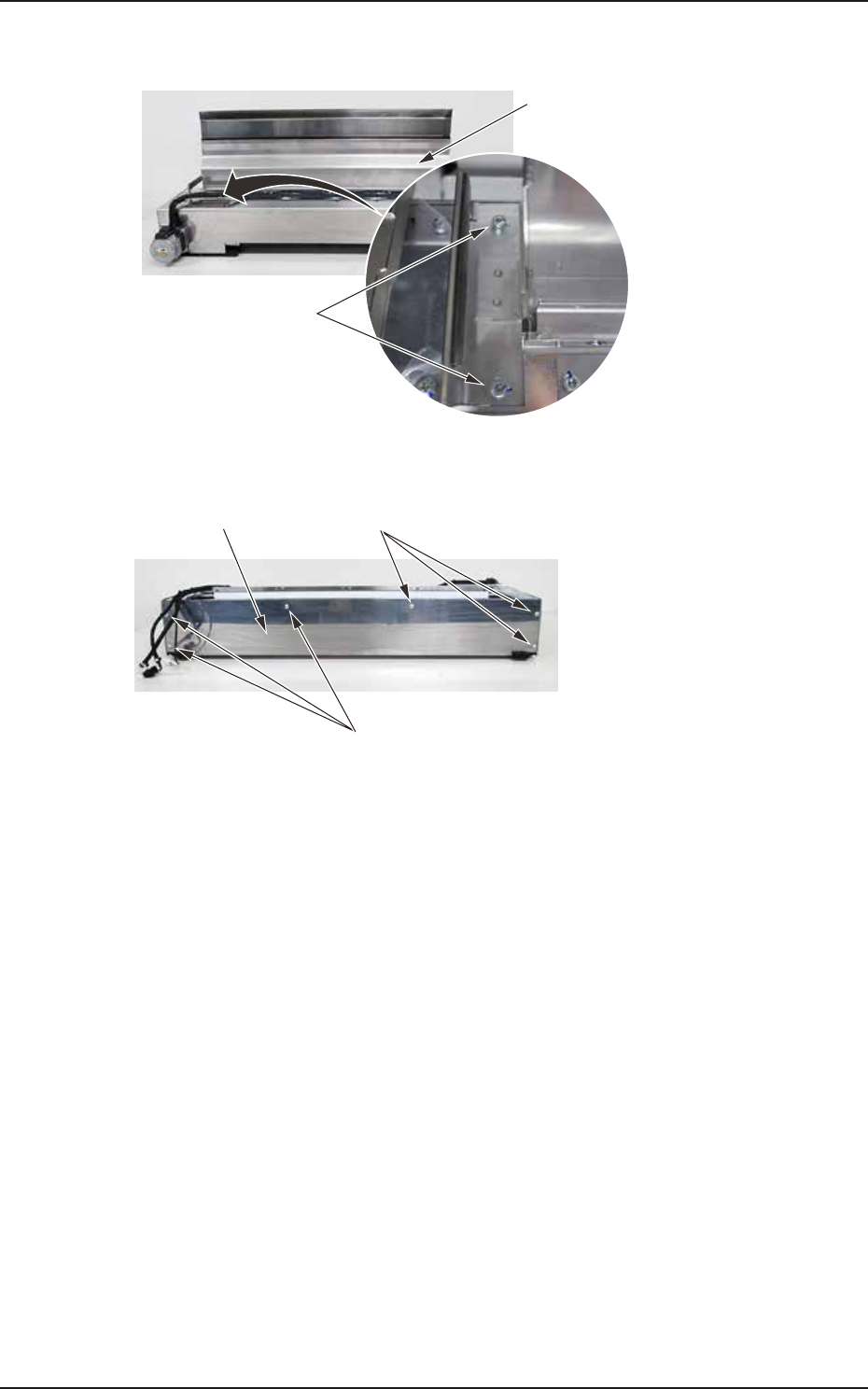

(5) Remove hex socket head cap screws (2 each on left and right) mounting the upper slope.
Detach the upper slope.
Hex socket head cap screws
Upper slope
F4A27D
(6) Remove 6 truss head screws mounting the rear cover. Detach the rear cover.
Rear cover
Truss head screws
Truss head screws
F4A27G
EUKYX
1-35199-4100
4.6 Cutter Section

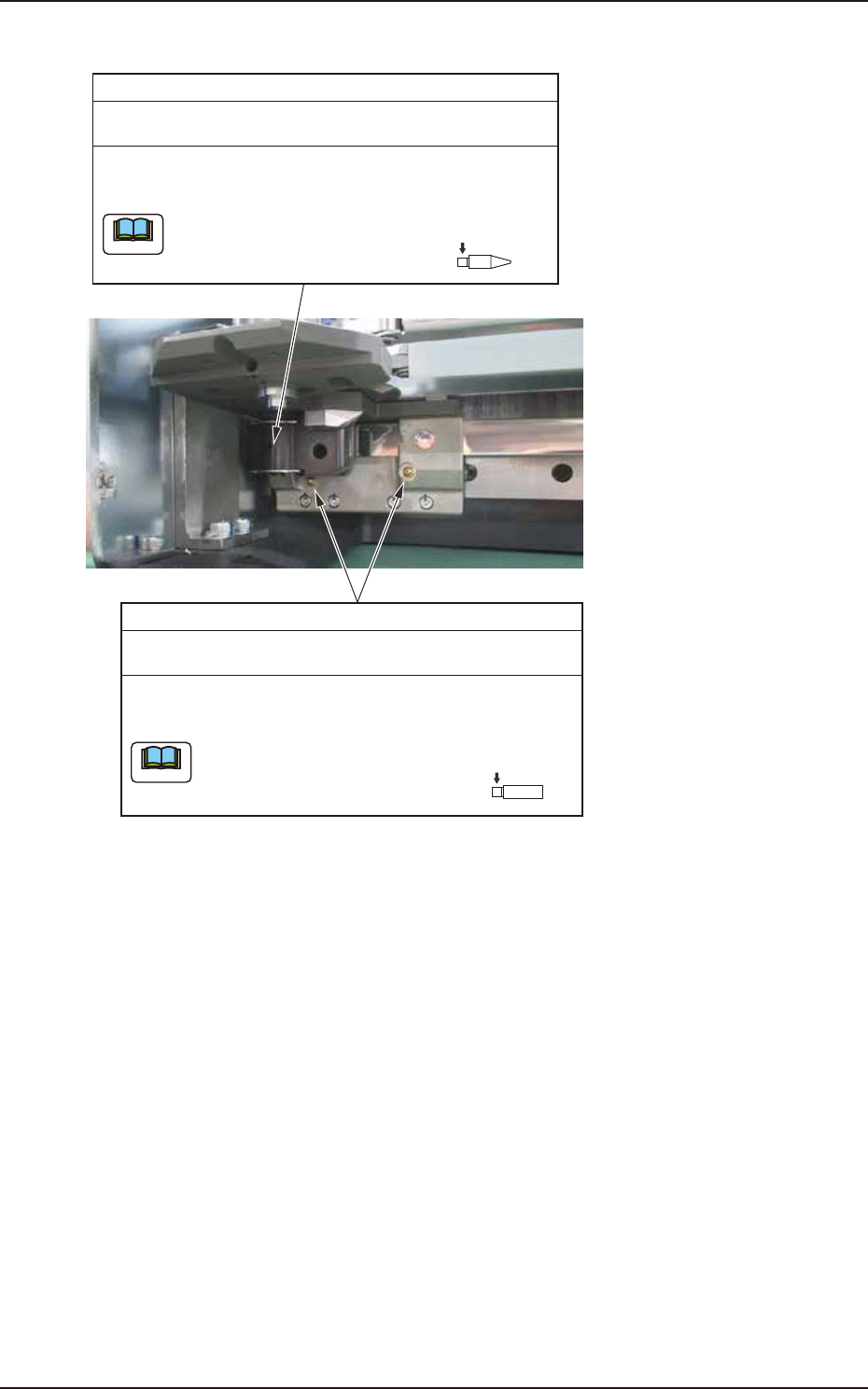

(7) Inject approx. 5 cc new grease at grease nipples with a grease gun (3 locations).
(1) Insert the nozzle into the hole on the side to lubricate.
(2) Wipe off the spilled grease.
(DAPHNE EPONEX GREASE No. 1)
Every 3 months / Lubrication
Needle Bearing
Use Type P nozzle.
Type P
M5 × 0.5
Note
Wipe off the old grease with a rag. Apply new grease to
the upper and bottom of the linear guide grease nipples.
Linear Guide Grease Nipple
(DAPHNE EPONEX GREASE No. 1)
Every 3 months / Lubrication
Use Type N nozzle.
Type N
M5 × 0.5
Note
F4A27GH
