EUKYX 1-42 199-4100 4.7 Head Section 4. 7 Head S ection High- Sp eed F lexi ble Head Side View Camera (Light Emitter and Receiver) Every Day Cleaning Required T ime: 5 minutes When any sebum or oil is adhered to the side…
EUKYX
1-41199-4100

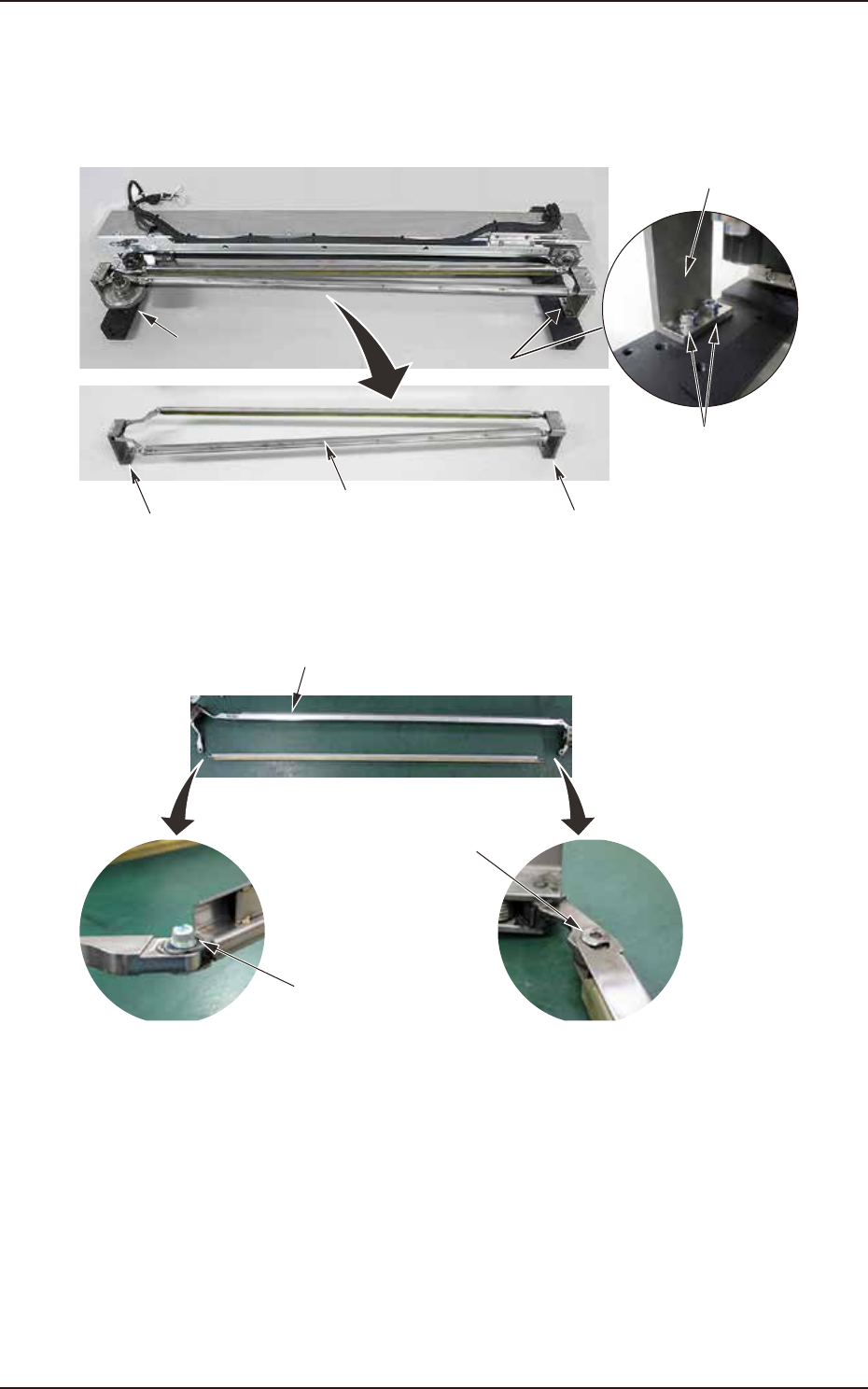

4.6 Cutter Section
(9) Remove mounting bolts (2 each on the left and right) on the base blocks on the left and
right of the clamp lever.
Remove the clamp lever assembly with the base blocks.
When returning the base blocks to the original position, mount them with mounting bolts
after determining the position with the positioning pin.
Base block mounting bolts
Base block mounting bolts
Base block
Base block
Base block
Clamp lever assembly
F4B025
(10) Remove the connector bolts (2 each on left and right) from the base blocks of the clamp
lever. Replace with a new clamp lever.
Clamp lever (ASSY_CLAMPER_Y)
Connector bolt
Connector bolt
F4B026
EUKYX
1-42199-4100

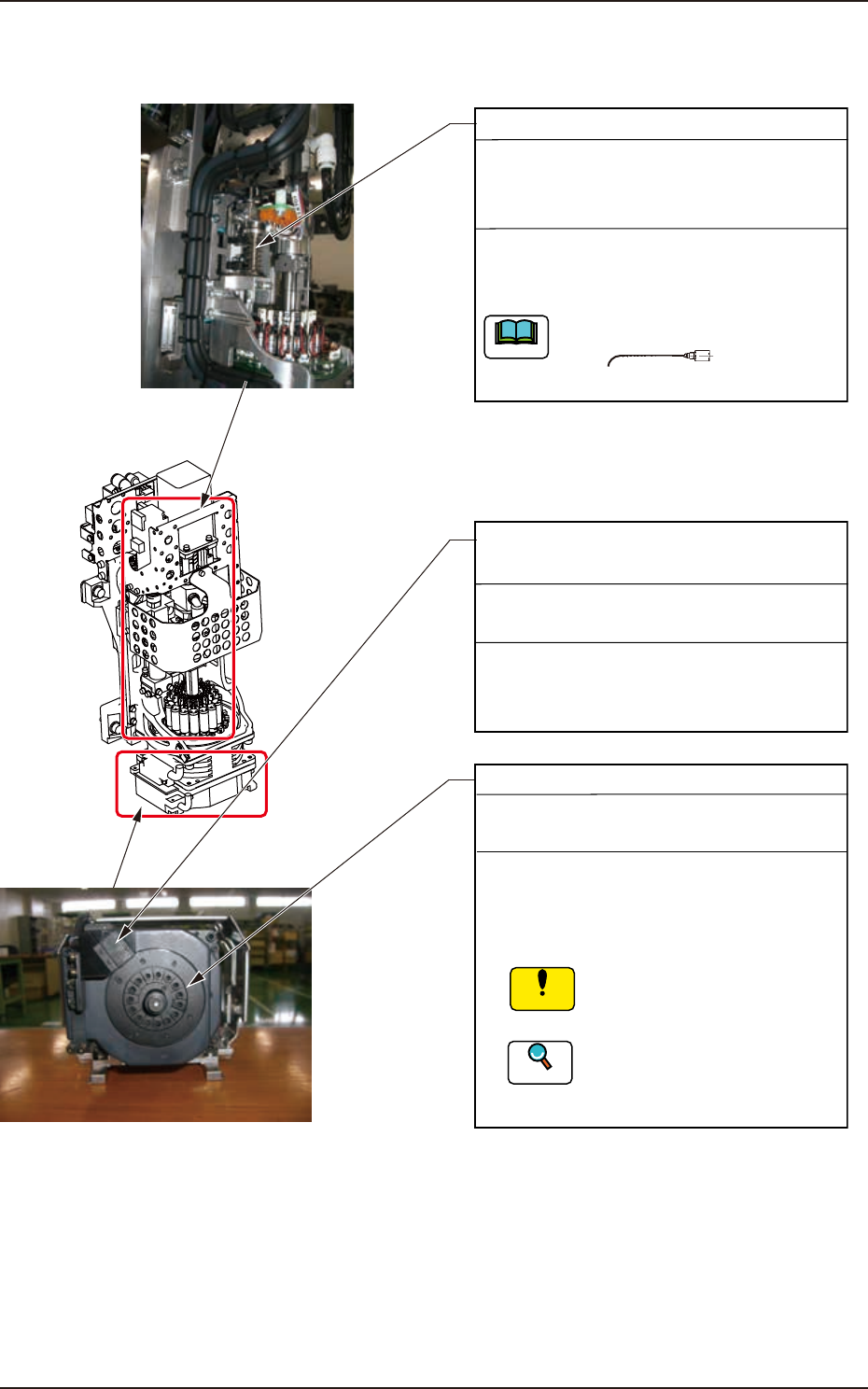

4.7 Head Section
4.7 Head Section
High-Speed Flexible Head
Side View Camera
(Light Emitter and Receiver)
Every Day Cleaning
Required Time: 5 minutes
When any sebum or oil is adhered to the side
view camera, rub off the dirt with a cotton
swab dipped in dehydrated ethanol.
Nozzle U/D Ball Screw (NL-Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Use No. 19 (brown) nozzle.
Note
No. 19
Wipe off the old grease with a rag and apply a
small amount of new grease to the groove of
the ball screw with a syringe.
Notice
Diffusion Plate
Every Month Cleaning
Required Time: 2 minutes
(1) Store all nozzles in the nozzle stocker
(housing) through window navigations.
(2)
Sebum or oil should not
adhere to the surface of the
diffusion plate.
Refer to "5. Nozzle Change
Window" in "Chapter 6 (Vol. 2)"
for the procedure of nozzle storage.
Reference
Wipe the diffusion plate with a dry lens
cleaning cloth.
F4A30A

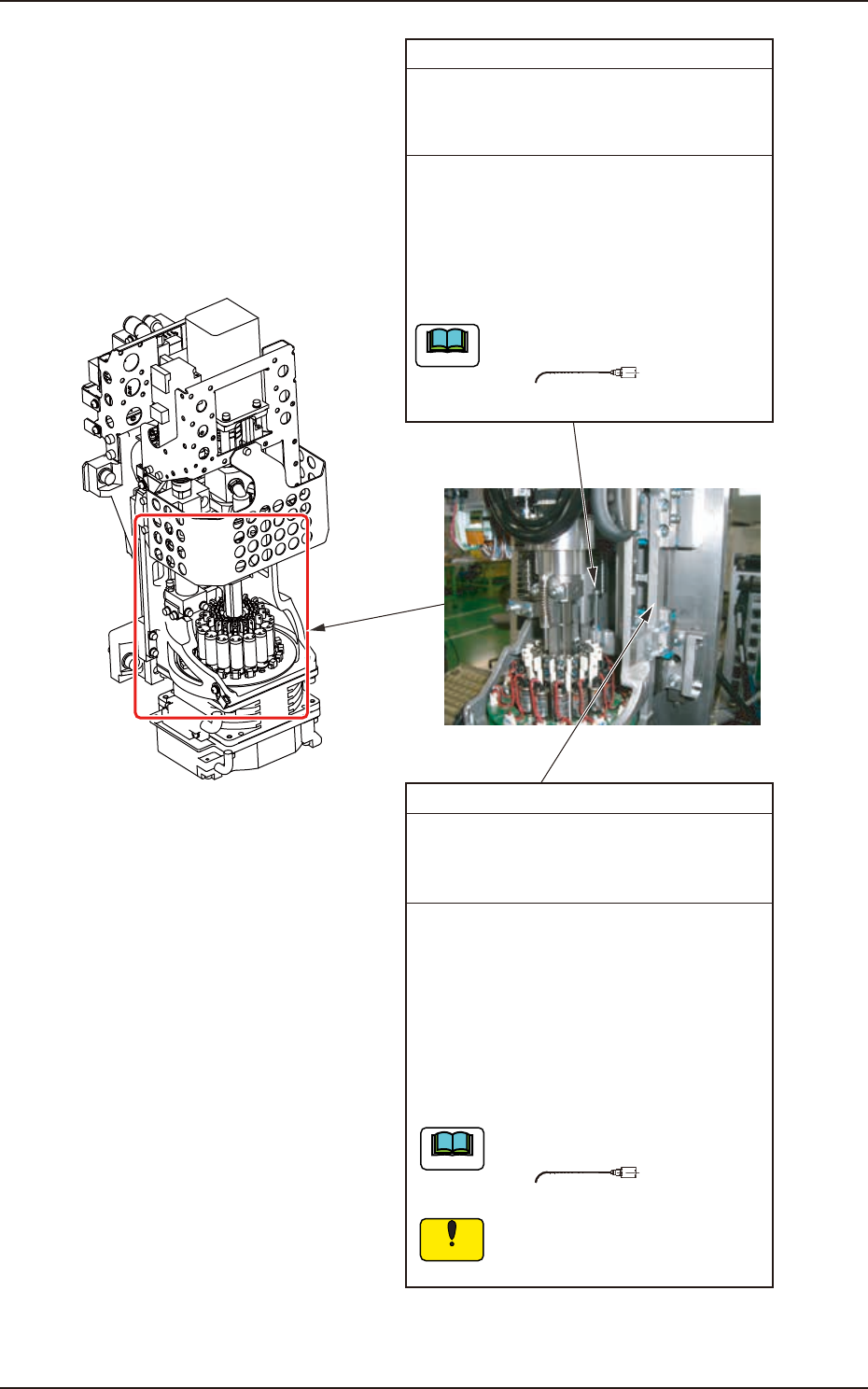

EUKYX
1-43199-4100
4.7 Head Section
Notice
Head U/D Ball Screw (HL-Axis)
(1) Wipe off the old grease with a rag and
apply a small amount of new grease to the
groove of the ball screw with a syringe
(2) After lubrication, move the HL-axis up
and down 25 mm five times using the
manual axis operation to smooth the grease.
No.19
(3) Grease should be applied every 3 months
after the initial month.
Apply grease, taking care that
the grease does not stick to the
sensor.
No.19
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Use No. 19 (brown) nozzle.
Note
Head U/D Linear Guide (HL-Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off the old grease with a rag and
apply a small amount of new grease to the
groove of the ball screw with a syringe
(2) After lubrication, move the HL-axis up
and down 25 mm five times using the
manual axis operation to smooth the grease.
Use No. 19 (brown) nozzle.
Note
F4A27A
