EUKYX 1-45 199-4100 4.7 Head Section NOTICE Make sure of the lter folder insertion direction, and then insert the folder securely to the end. Make sure that the lter folder upper surface is aligned with the top block u…
EUKYX
1-44199-4100
4.7 Head Section

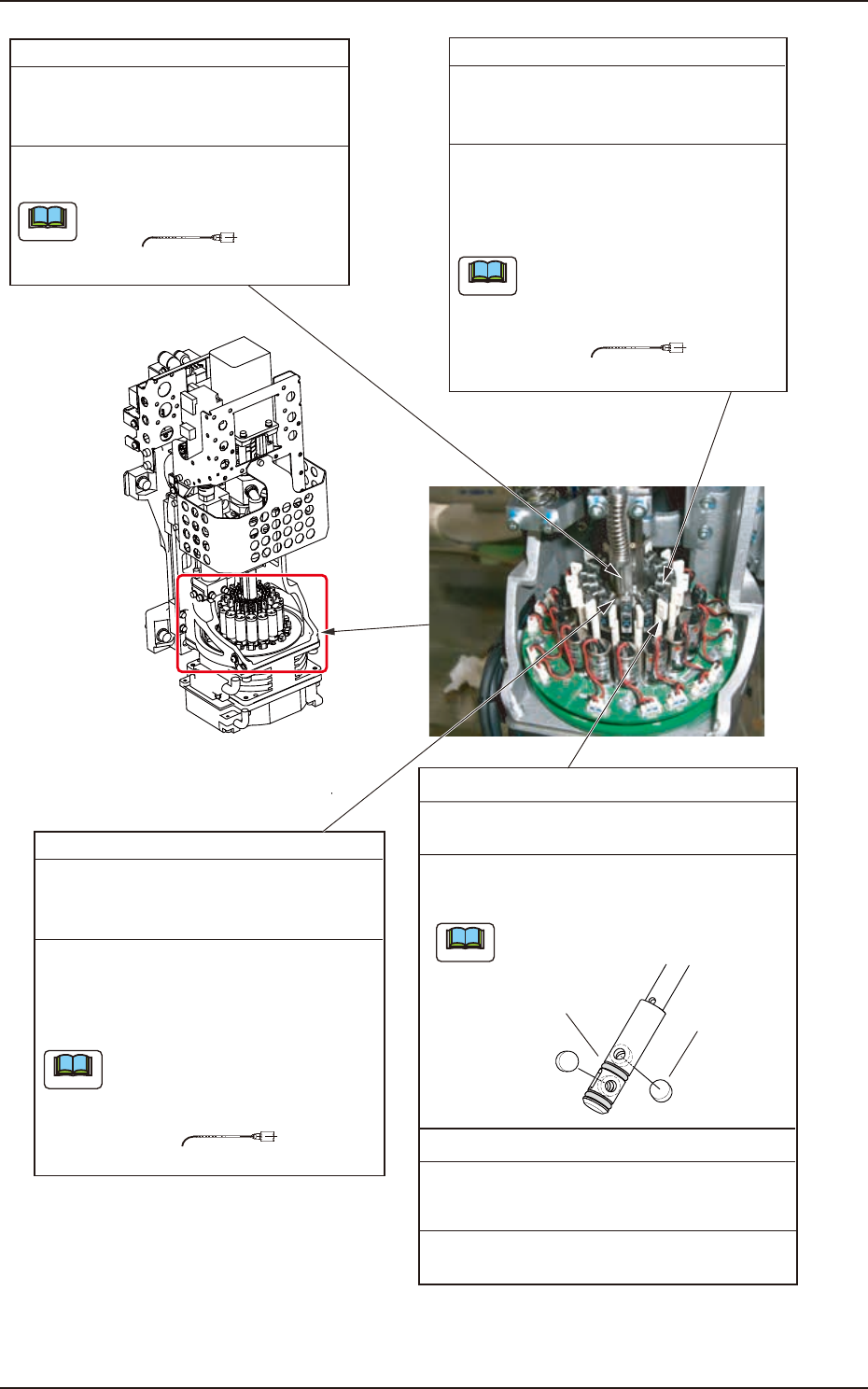

Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If foreign objects adhere to the cam
followers, remove them with a pair of tweezers.
Apply grease (0.01 cc) to the upper sides
of the cam followers with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
No. 19
Center Spline
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 4 minutes
Apply grease to the groove of the center spline
with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If foreign objects adhere to the cam face,
remove them with a pair of tweezers.
Apply grease (0.01 cc) to the upper side of
the cam face with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
No. 19
Filter holder O-ring (15 locations x 2 pcs)
Filter
O-ring
Vacuum Filters (15 locations)
Every 3 Months Change
Required Time: 30 minutes
Pull up vacuum filter holder with the filter attachment/
detachment jig. Replace 2 vacuum filters as shown in
the figure below.
Note
Use commercially available tweezers
for filter replacement.
When replacing filter / Lubrication /
Required time: 30 minutes per head
(DAPHNE EPONEX GREASE No. 1)
Apply grease to the filter holder O-rings.
(2 locations above)
F4A28A
EUKYX
1-45199-4100
4.7 Head Section

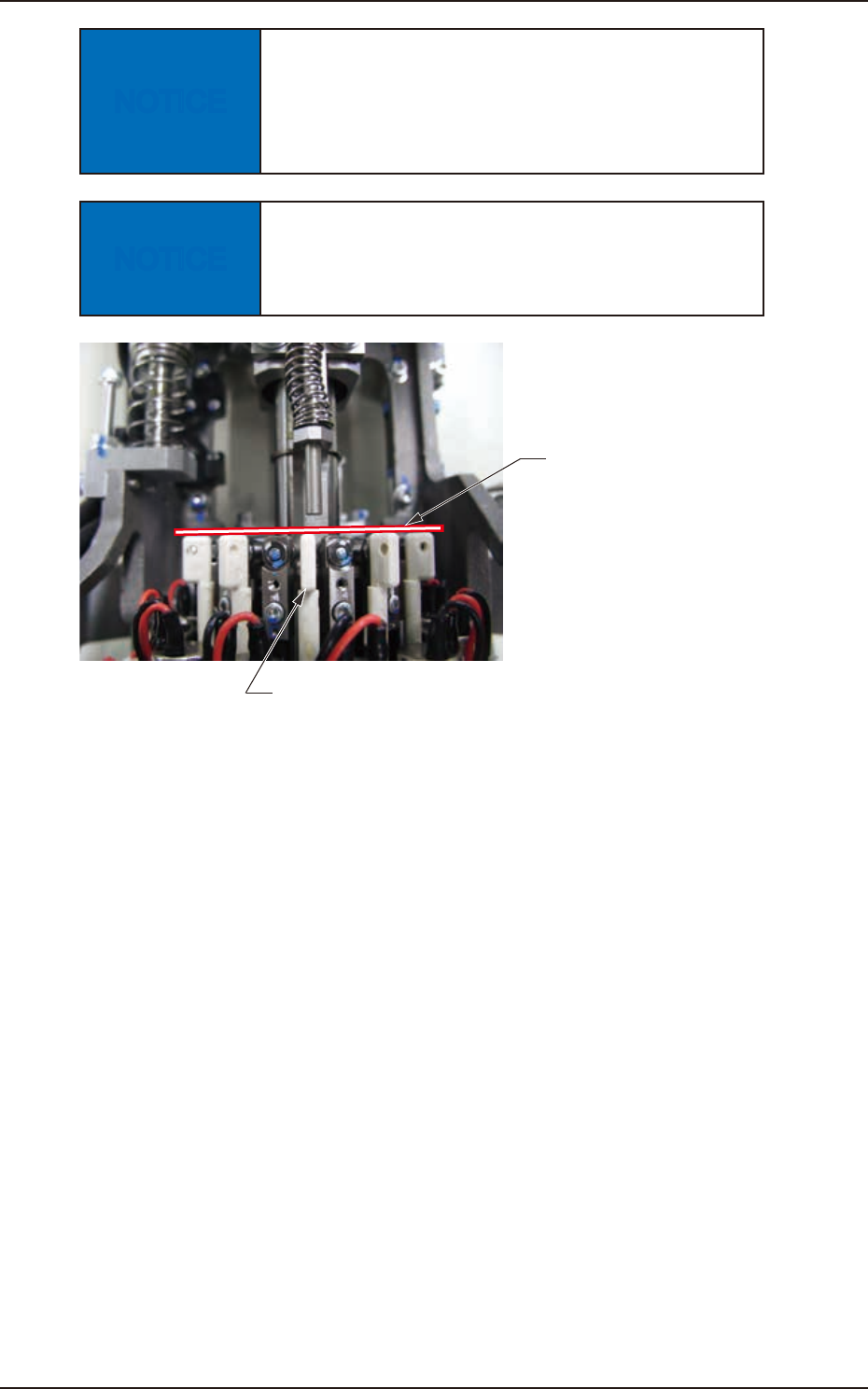

NOTICE
Make sure of the lter folder insertion direction, and
then insert the folder securely to the end.
Make sure that the lter folder upper surface is
aligned with the top block upper surface.
NOTICE
Apply a thin coating of grease (DAPHNE GREASE
MP No. 1) to lter folder O-ring periodically. Lack of
grease may cause O-ring damage or solidication.
Filter Holder
Make sure that the height
of the filter folder is aligned
with that of the top block.
F4A29
EUKYX
1-46199-4100
4.7 Head Section

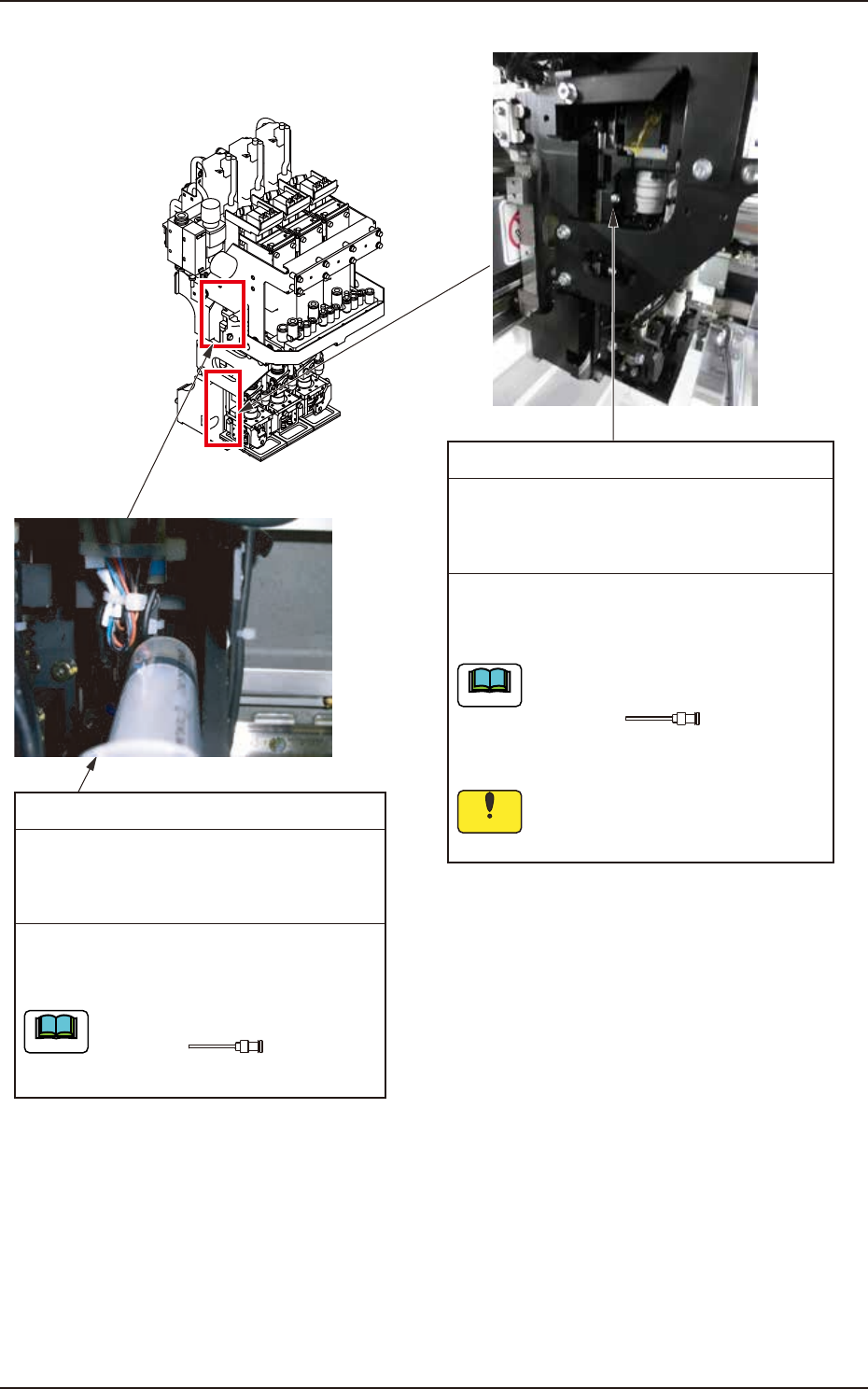

Multi-Functional Head
Ball Screw (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Linea Guide (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Grease should be applied every 3 months after
the initial month.
Notice
Apply grease, taking care that the
grease does not stick to the sensor.
Grease should be applied every 3 months after
the initial month.
F4A30A
