1 1 Blow Station Section Blow Station / Dump Box .................................... 1 1-1 12 T ape Cutter Section Main Cutter Assy (60-FixOld T ype) ..................... 12-1 Cu tte r V alv e / S lo pe / Sa fty C ov e…
Contents
5
Head Section
Body Head / Vision ...............................................
5-1
Body Head Sub
....................................................
5-2
Shaft Head Sub Assy.
...........................................
5-3
Ejector / Z-axis
......................................................
5-4
Scan Camera / Axis
..............................................
5-5
6
Nozzle Section
Nozzle ...................................................................
6-1
Nozzle Changer
...................................................
6-2
7
Conveyor Unit Section (Dual Stage)
Push-Up 1 .............................................................
7-1
Push-Up 2
.............................................................7-2
Main Stopper
........................................................
7-3
Sub Stopper / Exit Stopper
...................................
7-4
Clamp Board-1
.....................................................
7-5
Clamp Board-2
.....................................................
7-6
Main Conveyor Sub Assy A-1(Entrance
）
.............
7-7
Main Conveyor Sub Assy A-2(Entrance
）
.............7-8
Main Conveyor Sub Assy A-3(Entrance
）
.............7-9
Main Conveyor Sub Assy B-1(Work)
..................7-10
Main Conveyor Sub Assy B-2(Work)
..................7-11
Main Conveyor Sub Assy B-3(Work)
..................7-12
Main Conveyor Sub Assy C-1(Exit)
....................7-13
Main Conveyor Sub Assy C-2(Exit)
....................7-14
Sensor
................................................................7-15
Pin Sensor
..........................................................7-16
1
Base Section
Base .....................................................................
1-1
Sub Assy
..............................................................
1-2
2
Cover Section
Top Cover ............................................................
2-1
Acril Door
.............................................................
2-2
Base / Conveyor / CE Cover
................................
2-3
3
Feeder Holder Section
Feeder Holder Fix 60 ............................................
3-1
Feeder Holder Fix 24
............................................
3-2
Clamp Unit
............................................................
3-3
Reel Holder 60......................................................3-4
Feeder Floating Detection
....................................
3-5
4
Moving-axis Section
X-axis-Motor / Sensor / Duct / Cover / Joint .........
4-1
X-axis-I/O Box / Plate A, B
...................................
4-2
X-axis-Sub Assy
...................................................
4-3
Y-axis-Cover / Org Sensor
....................................
4-4
Y-axis-Stay / Bracket / Damper
............................
4-5
Y-axis-Liner Motor / Duct
......................................
4-6
11 Blow Station Section
Blow Station / Dump Box ....................................11-1
12 Tape Cutter Section
Main Cutter Assy (60-FixOld Type) .....................12-1
Cutter Valve / Slope / Safty Cover Assy (60-Fix Old Type)
.... 12-2
Main Cutter Assy (60-Fix New Type) ..................12-3
Cutter Valve / Slope / Safty Cover Assy (60-Fix New Type)
....
12-4
Main Cutter Assy 24-Fes (before Dec 2011)
..........12-5
Main Cutter Assy 24-Fes (After Dec 2011)
............12-6
Cutter Valve / Slope / Safty Cover Assy 24-Fes
........12-7
Main Cutter Assy 24-Fix (before Dec 2011)
...........12-8
Main Cutter Assy 24-Fix (After Dec 2011)
.............12-9
Cutter Valve / Slope / Safty Cover Assy 24-Fix (before Dec 2011)
..
12-10
Cutter Valve / Slope / Safty Cover Assy 24-Fix (After Dec 2011)
....
12-11
Non Tape Cutter (Old Type)............................. 12-12
Non Tape Cutter (New Type) ........................... 12-13
13 FDR Section
Set Up ST on MC ...............................................13-1
FDR Power ST ...................................................13-2
FDR Stand Type144 ..........................................13-3
Dust Box .............................................................13-4
14 Controller Section
Control Box .........................................................14-1
15 Exterior, etc Section
Exterior, etc 1 ......................................................15-1
Exterior, etc 2 ......................................................15-2
8 Conveyor Unit Section (Single Lane)
Push-Up ................................................................8-1
Main / Sub / Exit Stopper ......................................8-2
Clamp Board-1 .....................................................8-3
Clamp Board-2 .....................................................8-4
Board Transport ....................................................8-5
Board Width Adjust ...............................................8-6
Guide / Brkt. Sensor .............................................8-7
Sensor-1 (S.T.D) ...................................................8-8
Sensor-2 (700mm O/P) ........................................8-9
9 Conveyor Unit Section (Dual Lane)
Push-Up ................................................................9-1
Main / Sub / Exit Stopper 1Lane ..........................9-2
Main / Sub / Exit Stopper 2Lane ...........................9-3
Clamp Board-1 .....................................................9-4
Clamp Board-2 .....................................................9-5
Board Transport ....................................................9-6
Guide / Brkt. Sensor .............................................9-7
Board Width Base .................................................9-8
Board Width Drive ................................................9-9
Sensor-1 (S.T.D) .................................................9-10
Sensor-2 (700mm O/P) ......................................9-11
10 Camera Section
Multi Camera & Light Assy .................................10-1
1
1

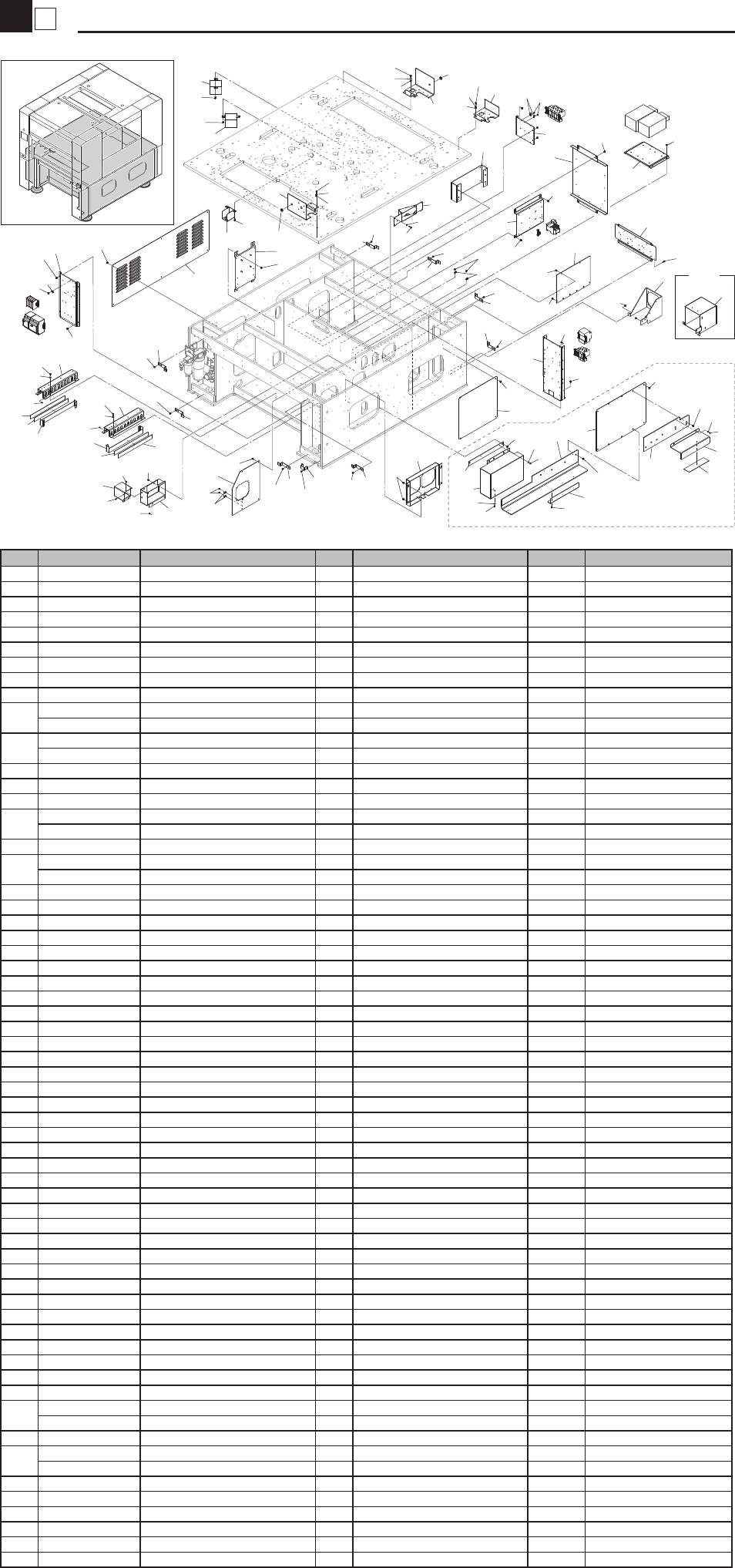

Base
Base
KKE-1206
4
46
47
30
41
21
20
38
43
43
43
43
13
13
13
13
32
19
38
10
33
43
43
40
35
17
11
13
13
41
31
12
44
44
24
24
22
22
23
23
41
39
29
30
29
3
3
2
4
3
1
5
3
30
8
3
28
7
4
34
34
34
36
27
26
38
41
31
43
13
18
57
57
50
54
59
55
UPS
51
49
57
53
59
58
59
58
14
3
32
37
15
43
13
60
3
38
41
31
9
33
39
48
16
37
37
25
3
2
42
4
2
15
3
45
6
3
4
57
58
59
52
56
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M1118-00 PLATE 18 1
2 $NK-3N NYLON CLIP 12
3 97602-05310 SCREW, PAN HEAD W/W 19
4 90990-11J003 SCREW, PAN HEAD W/W 14
5 KKE-M1122-00 PLATE 22 1
6 KKE-M1115-00 PLATE 15 1
7 $NK-4N NYLON CLIP 6
8 KKE-M1128-00 PLATE, CONV. 1
9 KKE-M1338-00 BRKT. MAIN SWITCH 1
10
KKE-M1336-00 BRKT. REAR LEFT 1 (DS)
KKT-M1336-00 BRKT. REAR LEFT 1 (SL, DL)
11
KKE-M1337-00 BRKT. REAR RIGHT 1 (DS)
KKT-M1337-00 BRKT. REAR RIGHT 1 (SL, DL)
12 KKE-M111M-00 PLATE, CLAMP 1
13 KGS-M1371-00 BRACKET, FIX 8
14 KKE-M1163-00 BRACKET 2, FAN 1
15
KHY-M1162-01 BRACKET,FAN 1 OK MFX0104-2009/11/26
KKE-M1162-00 DUCT 1
16 KKE-M11H5-00 PLATE 1
17
KKE-M11H6-01 PLATE, FAN 1 1 FAN type NG MFX0027-2009/12/8
KKE-M11H6-00 PLATE, FAN 1 2 FAN type
18 KKE-M1151-01 PLATE, SIDE 1 1
19 KKE-M1152-01 PLATE, SIDE 2 1
20 KKE-M11F1-00 STAY C/R, R 1
21 KKE-M11F2-00 STAY C/R, L 1
22 KKE-M11F4-00 FILTER 2
23 KKE-M11F3-00 PLATE 2
24 KKE-M11F5-00 TAPE 2
25 KKE-M11H1-00 PLATE, FAN 1
26 KKE-M11H3-00 DUCT, FAN 1
27 KKE-M11H4-00 DUCT, FAN 2 1
28 KKE-M1131-00 COVER, PU AXIS 1
29 KKE-M1132-00 COVER, PU AXIS 2
30 92012-05010 BOLT, BUTTON HEAD 6
31 90172-00J050 WASHER, EXTL. TOOTHED 6
32 90990-12J004 SCREW, BIN. HEAD W/W 10
33 90990-23J004 GROMMET 2
34 91312-04006 BOLT HEX. SOCKET HEAD 8
35 91312-04020 BOLT HEX. SOCKET HEAD 4
36 91312-05006 BOLT HEX. SOCKET HEAD 1
37 91312-05008 BOLT HEX. SOCKET HEAD 7
38 91312-05010 BOLT HEX. SOCKET HEAD 8
39 91312-05012 BOLT HEX. SOCKET HEAD 8
40 92902-04200 WASHER, PLAIN 4
41 92902-05200 WASHER, PLAIN 14
42 97602-04308 SCREW, PAN HEAD W/W 2
43 98902-05010 SCREW, BINDING HEAD 16
44 91312-03006 BOLT HEX. SOCKET HEAD 4
45 KKE-M1114-01 PLATE 14 (I/O) 1
46 KKE-M1126-00 PLATE 26 1
47 KKE-M111L-00 BRKT. 1 POWER SUPPLY 1
48 KKE-M111K-00 BRKT. 2 POWER SUPPLY 1
49 KKE-M1151-11 PLATE,SIDE 1 1 UPS
50 KKE-M1153-10 PLATE,SIDE 3 1 UPS
51 KJJ-M1155-00 BRACKET,UPS 1 UPS
52
KHW-M1157-01 BRACKET 2,UPS 1 UPS Hole position change NG MHY0089-2012/2/13
KHW-M1157-00 BRACKET 2,UPS 1 UPS
53 KHW-M1158-00 PLATE,UPS 1 UPS
54
KHW-M1160-01 COVER,HARNESS 1 UPS Hole position change NG MHY0089-2012/2/13
KHW-M1160-00 COVER,HARNESS 1 UPS
55 KHW-M1161-00 BRACKET 3,UPS 1 UPS
56 KV7-M1515-00 PLATE,RUBBER 1 UPS
57 90990-12J004 SCREW BIN.HEAD W/W 18 UPS
58 92902-04200 WASHER PLAIN 5 UPS
59 91312-04006 BOLT HEX.SOCKET HEAD 8 UPS
60 KKT-M1116-00 PLATE 16 1
