YS24_pl - 第63页
PCB FLOW PCB FLOW 5 7 15 17 17 17 17 16 17 17 16 16 17 17 15 15 15 10 14 17 16 16 16 17 17 17 17 16 16 17 16 16 17 17 12 17 17 9 8 17 14 6 1 3 4 1 1 2 17 1 2 3 4 1 1 15 17 17 17 16 17 17 17 17 17 17 17 17 14 16 17 16 16 …
PCB FLOW
PCB FLOW
5
789
13
15
15
15
14
15
14
14
15
15
13
13
13
10
11
12
15
14
14
14
15
15
15
14
14
15
15
15
15
6
1
3
2
4
11
1
2
4
13
15
15
15
15
14
15
14
15
15
15
13
15
14
14
14
15
15
14
14
15
15
14
12
15
15
13
13
6
10
5
9
15
7
8
3
12
15
15
9
10
Sensor-1 (S.T.D)
Conveyor Unit (Dual Lane)
KKE-1206
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKT-M652P-00 SENSOR L1 ENT ASSY 1
2
KKT-M652A-01 SEN.WORK OUT ASSY 1 Fiber and AMP.
KKT-M652A-A0 SENSOR AMP ASSY 1 AMP TCN27 R L
3
KKT-M652C-01 SEN.L1 WAIT POS ASSY 1 Fiber and AMP.
KKT-M652C-A0 SENSOR AMP ASSY 1 AMP TCN10 R L TCN13 R L
4
KKT-M652E-01 SEN.POS1 ASSY 1 Fiber and AMP.
KKT-M652E-A0 SENSOR AMP ASSY 1 AMP TCN14 R L
5 KKT-M652R-00 SENSOR L1 EXIT ASSY 1
6 KKT-M652S-00 SENSOR L2 ENT ASSY 1
7
KKT-M652A-01 SEN.WORK OUT ASSY 1 Fiber and AMP. OK MHX0034-2011/12/19
KKT-M652B-00 SEN.L2 WORK OUT ASSY 1 Fiber and AMP.
KKT-M652A-A0 SENSOR AMP ASSY 1 AMP TCN27 R L
8
KKT-M652D-00 SEN.L2 WAIT POS ASSY 1 Fiber and AMP.
KKT-M652D-A0 SENSOR AMP ASSY 1 AMP TCN10 R L TCN21 R L
9
KKT-M652E-01 SEN.POS1 ASSY 1 Fiber and AMP. OK MHX0034-2011/12/19
KKT-M652G-00 SEN.L2 POS1 ASSY 1 Fiber and AMP.
KKT-M652E-A0 SENSOR AMP ASSY 1 AMP TCN14 R L
10 KKT-M652T-00 SENSOR L2 EXIT ASSY 1
11 91312-03008 BOLT HEX. SOCKET HEAD 16
12 98502-03004 SCREW PAN HEAD 16
13 97602-03310 SCREW, PAN HEAD W/W 8
14 KHW-M9157-00 HOLDER, SENSOR 10
15 KHM-M654C-01 SENSOR, FIBER 2 20
PCB FLOW
PCB FLOW
5
7
15
17
17
17
17
16
17
17
16
16
17
17
15
15
15
10
14
17
16
16
16
17
17
17
17
16
16
17
16
16
17
17
12
17
17
9
8
17
14
6
1
3
4
11
2
17
1
2
3
4
11
15
17
17
17
16
17
17
17
17
17
17
17
17
14
16
17
16
16
16
16
16
15
17
17
16
16
14
15
15
6
13
10
5
12
9
8
7
17
17
17
17
13
9
11
Sensor-2 (700mm O/P)
Conveyor Unit (Dual Lane)
KKE-1206
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KKT-M652P-00 SENSOR L1 ENT ASSY 1
2
KKT-M652A-01 SEN.WORK OUT ASSY 1 Fiber and AMP.
KKT-M652A-A0 SENSOR AMP ASSY 1 AMP TCN27 R L
3
KKT-M652C-01 SEN.L1 WAIT POS ASSY 1 Fiber and AMP.
KKT-M652C-A0 SENSOR AMP ASSY 1 AMP TCN10 R L TCN13 R L
4
KKT-M652E-01 SEN.POS1 ASSY 1 Fiber and AMP.
KKT-M652E-A0 SENSOR AMP ASSY 1 AMP TCN14 R L
5
KKT-M652R-00
SENSOR L1 EXIT ASSY 1
6
KKT-M652S-00 SENSOR L2 ENT ASSY
1
7
KKT-M652A-01 SEN.WORK OUT ASSY 1 Fiber and AMP. OK MHX0034-2011/12/19
KKT-M652B-00 SEN.L2 WORK OUT ASSY 1 Fiber and AMP.
KKT-M652A-A0 SENSOR AMP ASSY 1 AMP TCN27 R L
8
KKT-M652D-00 SEN.L2 WAIT POS ASSY 1 Fiber and AMP.
KKT-M652D-A0 SENSOR AMP ASSY 1 AMP TCN10 R L TCN21 R L
9
KKT-M652E-01 SEN.L1 POS1 ASSY 1 Fiber and AMP. OK MHX0034-2011/12/19
KKT-M652G-00 SEN.L2 POS1 ASSY 1 Fiber and AMP.
KKT-M652E-A0 SENSOR AMP ASSY 1 AMP TCN14 R L
10 KKT-M652T-00 SENSOR L2 EXIT ASSY 1
11
KKT-M652F-01 SEN.POS2 ASSY 1 Fiber and AMP.
KKT-M652F-A0 SENSOR AMP ASSY 1 AMP TCN18 R L.
12
KKT-M652F-01 SEN.POS2 ASSY 1 Fiber and AMP. OK MHX0034-2011/12/19
KKT-M652H-00 SEN.L2 POS2 ASSY 1 Fiber and AMP.
KKT-M652F-A0 SENSOR AMP ASSY 1 AMP TCN18 R L.
13 91312-03008 BOLT HEX. SOCKET HEAD 16
14 98502-03004 SCREW PAN HEAD 16
15 97602-03310 SCREW, PAN HEAD W/W 8
16 KHW-M9157-00 HOLDER, SENSOR 10
17 KHM-M654C-01 SENSOR, FIBER 2 20
1
6
22
4
16
21
9
5
7
8
18
18
17
10
23
10
10
11
10
12
12
14
15
19
20
20
13
3
2
3
2
10
1

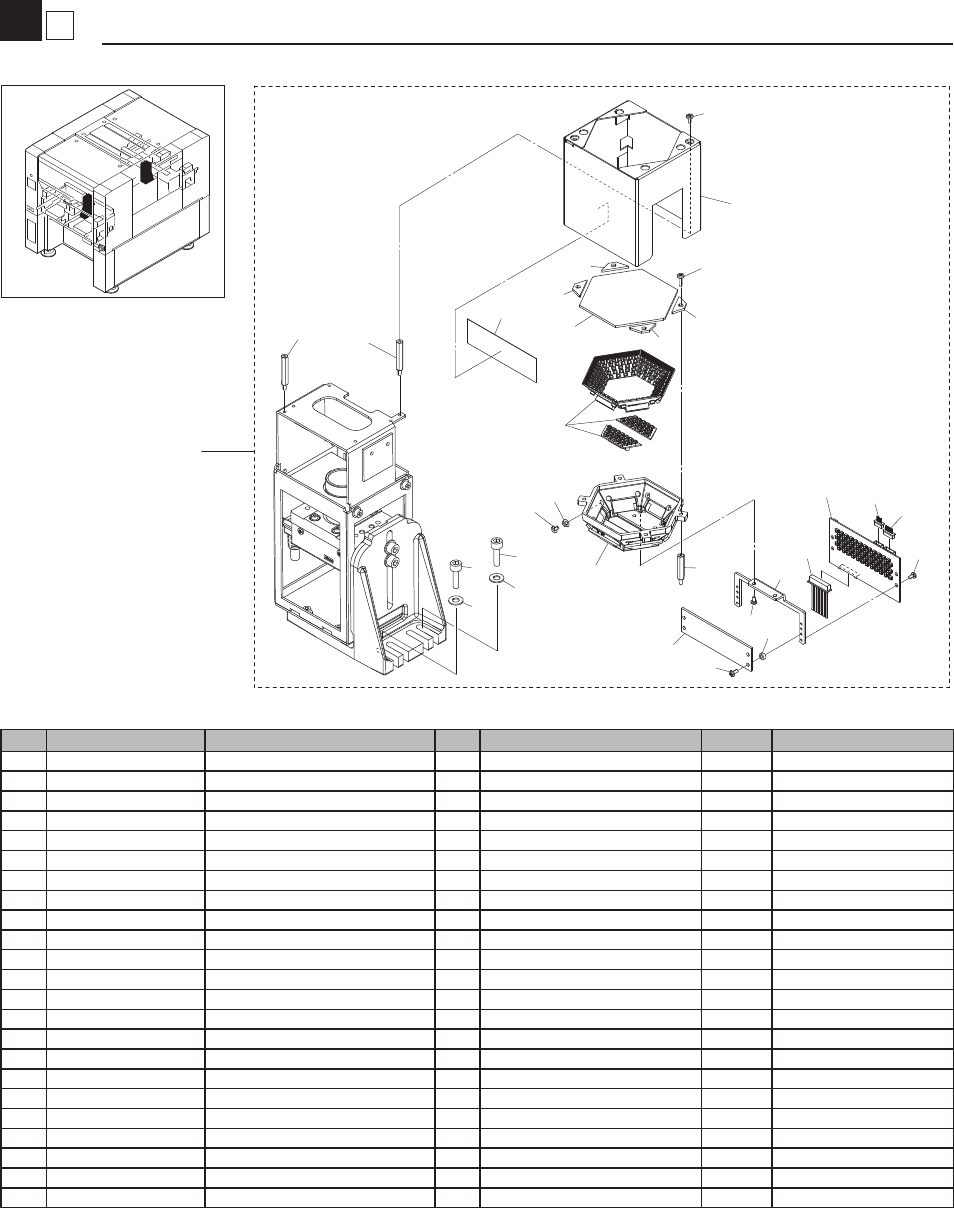

Multi Camera & Light Assy
Camera
KKE-1010
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KHY-M73C0-01 C+L W50-H272-NON 1
2 91312-06020 BOLT HEX. SOCKET HEAD 2 M6X20
3 92902-06200 WASHER PLAIN 2
4 KJJ-M7512-01 COVER, GLASS 1
5 KJJ-M7513-00 DIFFUSER, COAX 1
6 KJJ-M7516-01 COVER, LIGHT UNIT 1
7 KJJ-M7518-01 FRAME, MAIN LIGHT 1
8 KJJ-M7522-01 PLATE, COAX. 1
9 KJJ-M7525-00 SPACER 4
10 KJJ-M7526-01 PLATE, GLASS 4
11 KJJ-M7542-00 AR SHEET 1
12 KJJ-M755S-02 M.LIGHT BOARD SET 1
13 KJJ-M66N2-00 HNS, M.LIGHT COAX. 1
14 KJJ-M66N9-01 HNS, M.LIGHT SUB CX. 1
15 KJJ-M66NA-01 HNS, M.LIGHT MAIN 1
16 KJJ-M7570-00 SPACER 12
17 90563-03J250 SPACER BOLT 4
18 90563-03J300 SPACER BOLT 2
19 98502-03004 SCREW PAN HEAD 4
20 98502-03006 SCREW PAN HEAD 6
21 98902-03004 SCREW BINDING HEAD 12
22 98902-03006 SCREW BINDING HEAD 2
23 98902-03010 SCREW BINDING HEAD 4
