1 12 Main Cutter Assy (60-FixOld Type) T ape Cutter KKE-1010 53 63 54 67 34 64 12 59 44 18 61 47 33 29 41 53 64 30 29 64 47 38 55 39 68 24 23 66 70 20 36 37 65 49 49 17 47 47 44 1 33 35 12 56 30 49 49 63 67 64 63 54 53 3…

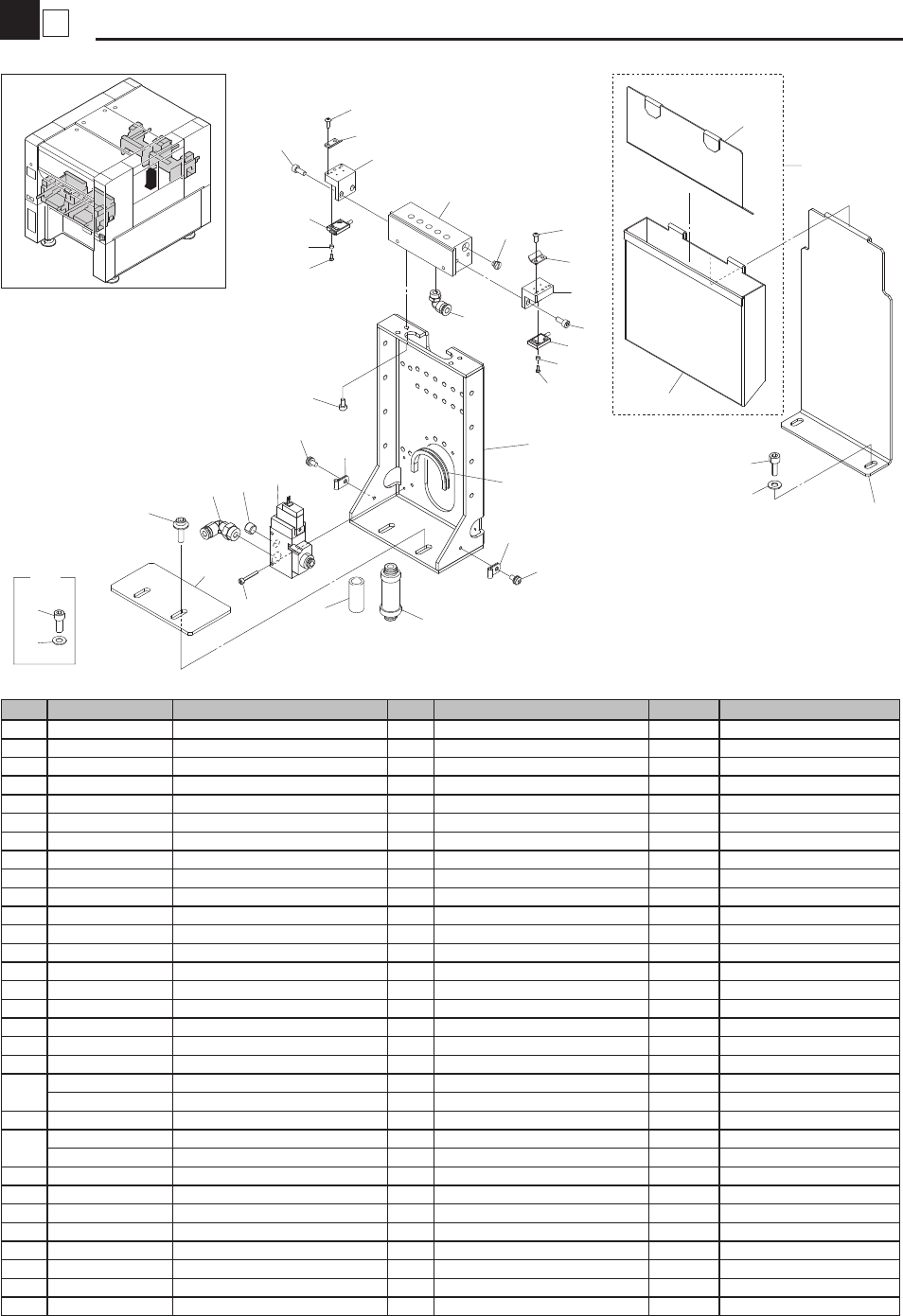

1
11
Blow Station / Dump Box
Blow Station
KKE-1010
1
10
3
4
4
15
16
15
16
19
19
7
7
5
21
5
21
12
13
18
11
11
8
29
23
17
23
2
20
6
9
14
26
25
30
24
27
28
20
22
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M9901-00 BASE, B. STN. 1
2 KHW-M9902-00 PLATE, BASE 1
3 KHY-M9903-00 BLOCK, BLOW ST. 1
4 KHW-M9904-00 BRACKET, SENSOR 2
5 KHW-M9905-00 PLATE, REFLECT 2
6 KHW-M9906-A0 VALVE ASSY. 1
7 KKE-M652K-00 SENSOR BLOW ST ASSY 1
8 KGR-M9934-01 INLINE FILTER 1
9 K40-M8598-10 PLUG 1 1
10 $NJ-32 UNIVERSAL BUSH 1
11 $NK-2N NYLON CLIP 2
12 $PF JOINT 1
13 $TL6-01M JOINT 1
14 $TL6-02 JOINT 1
15 90115-02J006 BOLT HEX. SOCKET HEAD 4
16 90990-41J066 COLLAR 4
17 91312-03020 BOLT HEX. SOCKET HEAD 2
18 91312-04008 BOLT HEX. SOCKET HEAD 4
19 91312-04010 BOLT HEX. SOCKET HEAD 4
20
90990-32J008 BOLT,FLANGE 2 OK MM10012-2015/3/16
91312-06016 BOLT HEX. SOCKET HEAD 2
21 92012-03008 BOLT, BUTTON HEAD 4
22
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
23 97602-04308 SCREW, PAN HEAD W/W 2
24 KKE-M36A2-00 STAND, DUMP BOX 1
25 KHY-M99D1-00 DUMP BOX 1
26 KHY-M99D2-00 DIFFUSE PLATE 1
27 91312-06016 BOLT HEX. SOCKET HEAD 2
28 92902-06200 WASHER, PLAIN 2
29 KGR-M9934-F0 FILTER 1 spare
30 KHY-M99D0-00 DUMP BOX ASSY
1
1
12
Main Cutter Assy (60-FixOld Type)
Tape Cutter
KKE-1010
53
63
54
67
34
64
12
59
44
18
61
47
33
29
41
53
64
30
29
64
47
38
55
39
68
24
23
66
70
20
36
37
65
49
49
17
47
47
44
1
33
35
12
56
30
49
49
63
67
64
63
54
53
34
42
26
60
13
19
22
16
27
60
50
45
57
43
51
52
31
51
43
43
14
6
6
48
48
10
44
46
7
28
54
72
58
3
4
25
49
52
54
25
49
69
52
58
46
8
28
11
44
32
9
2
60
21
62
44
15
34
5
44
40
71

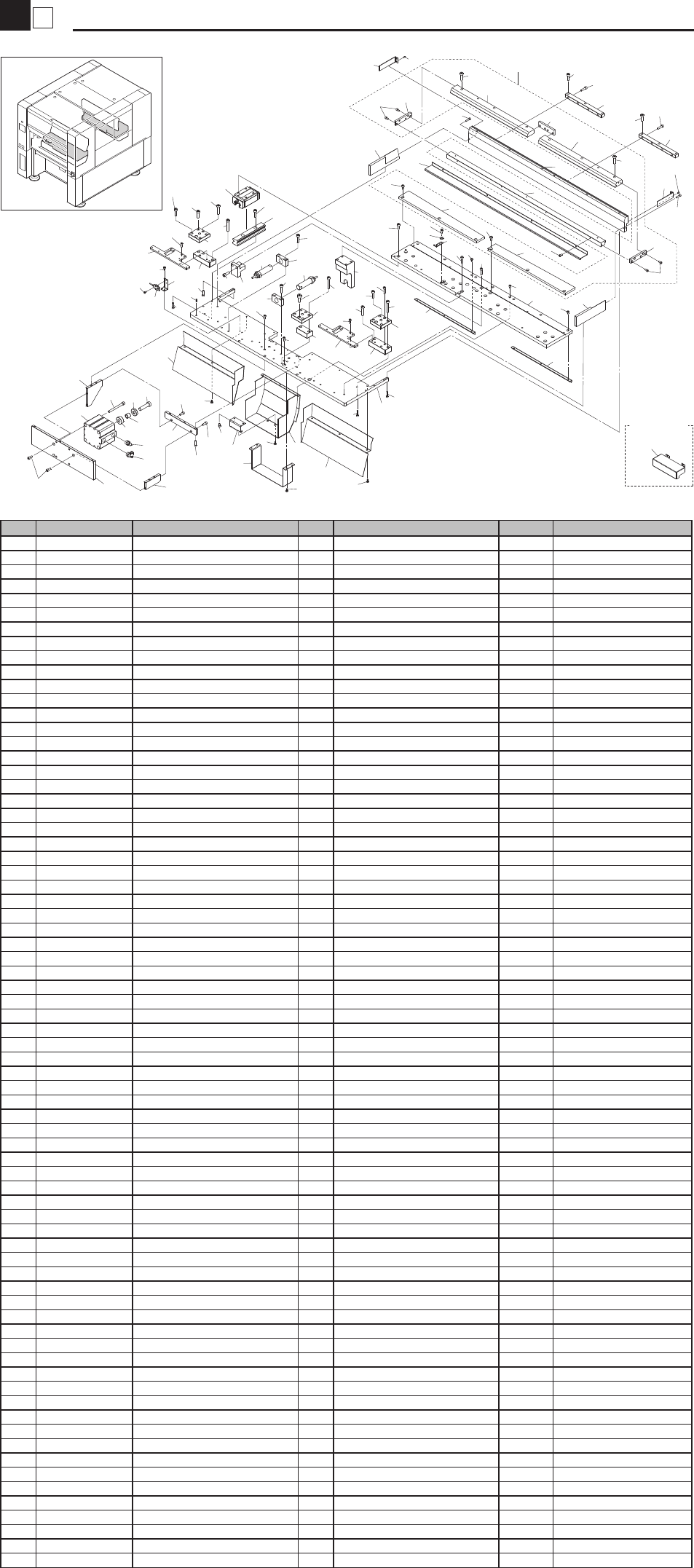

Old Type
Distinction
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-15 BASE PLATE 1, 720 1
2 KHY-M3T02-10 BASE PLATE 2, 720 1
3 KHY-M3T05-11 CUTTER UPPER L, 720 1
4 KHY-M3T05-21 CUTTER UPPER R, 720 1
5 KHY-M3T06-13 BASE PLATE 3, 720 1
6 KHY-M3T07-B2 CUTTER LOWER, 720 1
7 KHY-M3T08-01 BAR, L 1
8 KHY-M3T08-11 BAR, R 1
9 KHY-M3T09-11 PLATE 4, 720 1
10 KHY-M3T0A-01 SIDE BLOCK, L 1
11 KHY-M3T0A-11 SIDE BLOCK, R 1
12 KHY-M3T0B-11 FRONT STAY 4 2
13 KHY-M3T0H-30 CYL. COVER, L 1
14 KHY-M3T0H-40 CYL. COVER, R 1
15 KHY-M3T0M-00 STAY, COVER M 1
16 KHY-M3T0N-00 COVER M 1
17 KHY-M3T0P-00 CYL. COVER 1 1
18 KHY-M3T0U-00 SENSOR STAY 1
19 KHY-M3T0V-00 DOG., SENSOR 1
20 KHY-M3T10-01 TAPE CUTTER CYL. 1
21 KHY-M3T11-10 CYL. STAY 1 1
22 KHY-M3T12-01 CYL. BLOCK 1
23 KHY-M3T13-10 CYL. COLLAR 1 1
24 KHY-M3T14-02 CYL. COLLAR 2 1
25 KHY-M3T16-00 BACK STAY 2
26 KHY-M3T18-30 COVER L, 720 1
27 KHY-M3T18-40 COVER R, 720 1
28 KHY-M3T19-00 SIDE COVER 2
29 KHY-M3T22-00 SHOCK ABSORBERS 2
30 KHY-M3T23-00 DAMPER STAY 2
31 KHY-M3T24-00 DAMPER STOPPER 1
32 KHY-M3T26-10 CUTTER COVER, 720 1
33 KHY-M3T27-00 FRONT STAY 1 2
34 KHY-M3T28-01 FRONT STAY 2 3
35 KHY-M3T29-00 FRONT STAY 3 1
36 KHY-M3T30-00 CYL. STAY 2 1
37 KHY-M3T31-00 CYL. STAY 3 1
38 KHY-M3T32-00 CYL. STAY 4 1
39 KHY-M3T33-00 BOLT, HEX.S.H. 1
40 KKE-M652H-00 SENSOR, CUT CL ASSY 2
41 90K73-7L0130 LM RAIL 4
42 90K80-025L00 LM BLOCK, HSR25-L 4
43 91312-04006 BOLT HEX. SOCKET HEAD 13 M4X6
44 91312-04008 BOLT HEX. SOCKET HEAD 24 M4X8
45 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
46 91312-04016 BOLT HEX. SOCKET HEAD 2 M4X16
47 91312-04018 BOLT HEX. SOCKET HEAD 12 M4X18
48 91312-05010 BOLT HEX. SOCKET HEAD 6 M5X10
49 91312-05020 BOLT HEX. SOCKET HEAD 8 M5X20
50 91312-06014 BOLT HEX. SOCKET HEAD 22 M6X14
51 91312-06016 BOLT HEX. SOCKET HEAD 8 M6X16
52 91312-06020 BOLT HEX. SOCKET HEAD 6 M6X20
53 91312-06022 BOLT HEX. SOCKET HEAD 10 M6X22
54 91312-06025 BOLT HEX. SOCKET HEAD 6 M6X25
55 91312-06065 BOLT HEX. SOCKET HEAD 4 M6X65
56 91312-08020 BOLT HEX. SOCKET HEAD 1 M8X20
57 92902-04600 WASHER PLAIN 2
58 98702-03006 SCREW FLAT HEAD 4
59 98902-03008 SCREW BINDING HEAD 2
60 98902-04008 SCREW BINDING HEAD 11
61 99480-04010 PIN PARALLEL: 4X10 2
62 91312-05012 BOLT HEX. SOCKET HEAD 3 M5X12
63 91312-06035 BOLT HEX. SOCKET HEAD 4 M6X40
64 91312-06030 BOLT HEX. SOCKET HEAD 6 M6X30
65 91312-04030 BOLT HEX. SOCKET HEAD 3 M4X30
66 $SLH6-02 JOINT 1
67 91312-04012 BOLT HEX. SOCKET HEAD 4
68 KHY-M3T13-20 SYL. COLLOR 2 1
69 KHY-M3T34-00 60-UPPER BLADE JIG U 1
70 $TL6-02 JOINT 1
71 KHY-M3T25-02 VALVE COVER 1 Distinction of Old and New type
72 KHY-M3T00-R0 60-BLADE SPARE ASSY 1 SPARE
2

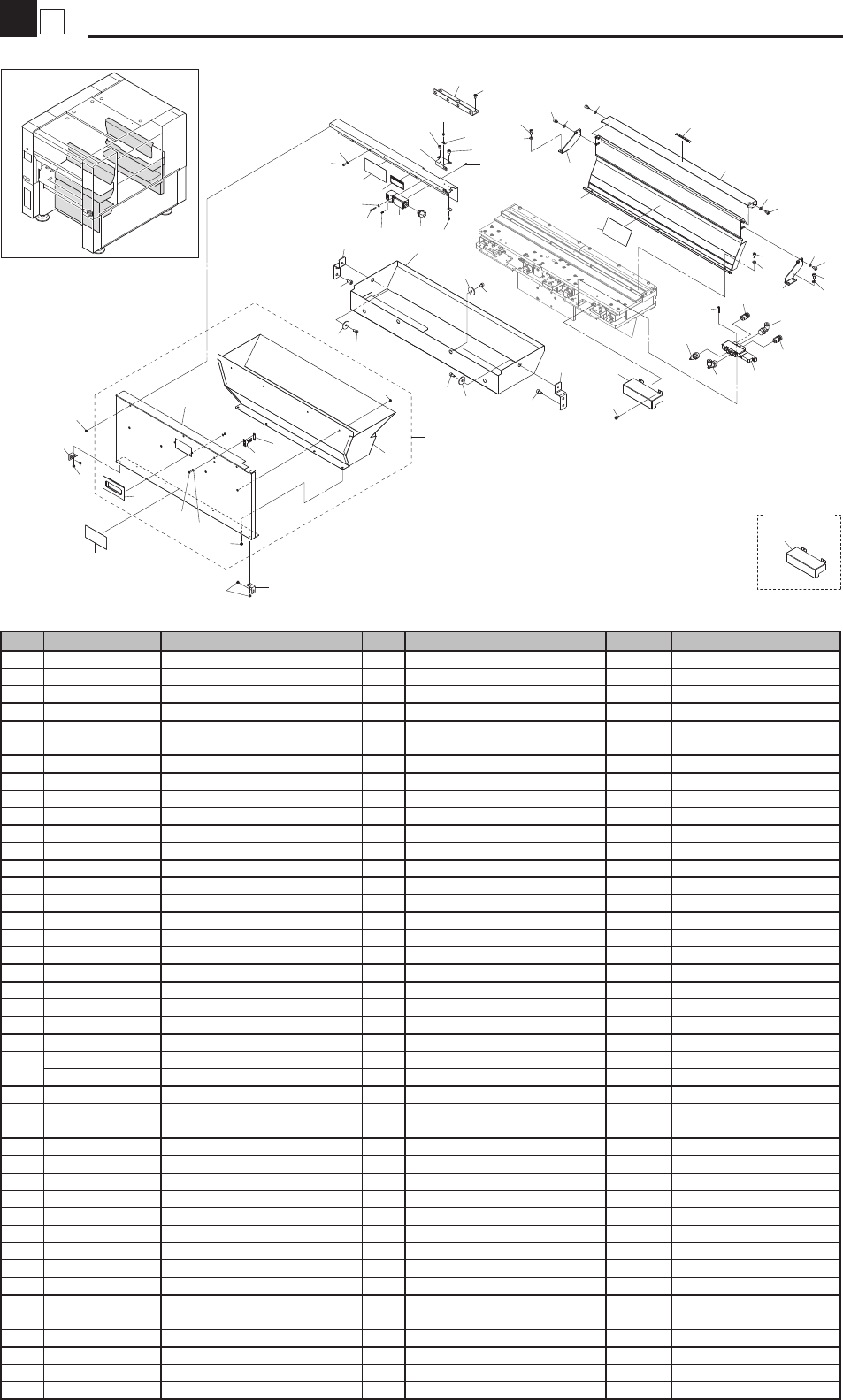

12
Cutter Valve / Slope / Safty Cover Assy (60-Fix Old Type)
Tape Cutter
KKE-1010
32
38
32
33
38
38
38
38
38
38
33
33
33
35
35
31
1
13
12
6
32
32
33
33
5
3
3
3
2
41
35
22
42
36
32
42
41
26
24
25
34
37
28
29
35
39
14
7
8
32
4
10
11
11
11
10
2
9
9
30
35
17
15
23
27
29
23
27
27
21
20
19
18
16
40
37
27
Old Type
Distinction
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M11C1-15 DUCT 1 1
2 KHY-M11C3-00 BRKT, DUCT 2
3 KHY-M11C5-00 WASHER 6
4 KHY-M3T0C-00 CUTTER VALVE 1
5 KHY-M3T0E-11 UPPER COVER 1, 720 1
6 KHY-M3T0S-11 UPPER COVER 2, 720 1
7 KHY-M3T0X-00 STAY L 1
8 KHY-M3T0X-10 STAY R 1
9 KHY-M3T25-02 VALVE COVER 1 Distinction of Old and New type
10 $KM-10 MUFFLER 2
11 $TL6-01M JOINT 3
12 90K41-000240 SEAL, DON'T TOUCH 1
13 90K41-000730 LABEL, ALERT 3
14 KHY-M1325-01 COVER 25 1
15 KHY-M11C6-A2 COVER 720, SUB ASSY 1
16 KHY-M11C2-42 DUCT 2, 720 1
17 KHY-M11C6-02 COVER, TAPE CUTTER 1
18 KJJ-M11C9-00 PLATE, NUT 1
19 KJJ-M5127-00 SAFETY SWITCH KEY 1
20 KGS-M1360-00 BOLT 2
21 KHU-M1117-00 PULL 1
22 KHY-M11CA-00 STAY, HNS. 1
23 KJJ-M11C8-00 BRKT, CUTTER COVER 2
24
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
25 KGS-M5126-02 SCREW (M3X8) 1
26 KW7-M643A-00 SC LOCK 1
27 90990-12J001 SCREW BIN.HEAD W/W 10
28 90K41-000350 LABEL, ALERT 1
29 90K41-000730 LABEL, ALERT 2
30 KHY-M3T40-00 STAY HARNSS 1
31 91312-03020 BOLT HEX. SOCKET HEAD 2 M3X20
32 91312-04006 BOLT HEX. SOCKET HEAD 12 M4X6
33 91312-04008 BOLT HEX. SOCKET HEAD 13 M4X8
34 91312-04025 BOLT HEX. SOCKET HEAD 2 M4X24
35 91312-05008 BOLT HEX. SOCKET HEAD 10 M5X8
36 91312-08012 BOLT HEX. SOCKET HEAD 1 M8X12
37 92902-04200 WASHER PLAIN 4
38 92902-04600 WASHER PLAIN 15
39 92902-05600 WASHER PLAIN 4
40 98902-04006 SCREW BINDING HEAD 8
41 97602-04308 SCREW, PAN HEAD W/W 4
42 $NK-3N NYLON CLIP 4
