3 2 Base / Conveyor / CE Cover Cover KKE-1 103 49 48 49 48 12 8 25 5 1 13 25 3 2 12 9 25 50 50 50 12 25 12 25 50 5 1 9 8 1 1 26 26 23 23 22 22 27 13 13 7 6 3>47 25 2 50 29 28 27 29 28 30 30 30 30 24 24 24 24 20 20 21 …

100%1 / 85
2
2
Acril Door
Cover
KKE-1206
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M1309-00 COVER 9-1 (STD) 1
2 KKE-M130A-00 COVER 9-2 1
3 KKE-M130G-00 COVER 9-3 1
4 KKE-M1340-00 BRKT. 1, COVER 9 1
5 KKE-M1341-00 BRKT. 2, COVER 9 1
6 KHY-M1343-01 BRKT. 4, CVOER 9 1
7 KV2-M1351-00 PLATE 2, NUT 4
8 KH2-M1324-01 GRIP 1
9 KM0-M1331-01 BRACKET, GAS DAMPER 2
10 KGS-M1348-00 GAS, SPRING 2
11 90990-31J006 BOLT, SHOULDER 4
12 KL0-M1373-01 BRACKET 1, SCHMEASAL 1
13 KL0-M1374-00 PLATE 1, SCHMEASAL 1
14 KJJ-M1348-00 STOPPER 65 2
15 KGS-M1360-00 BOLT 4
16 90990-46J001 BOLT, THIN HEAD 12
17 90990-46J003 BOLT, THIN HEAD 10
18 91312-04006 BOLT HEX. SOCKET HEAD 4
19 91312-04008 BOLT HEX. SOCKET HEAD 2
20 91312-05010 BOLT HEX. SOCKET HEAD 2
21 91312-06010 BOLT HEX. SOCKET HEAD 4
22 92902-04200 WASHER, PLAIN 2
23 95302-06600 NUT, HEXAGON 2
24 KHW-M1381-00 BODY, STAND 1
25 KHY-M1382-00 BRACKET 1 1
26 KHY-M1386-00 BRACKET 2 1
27 KHW-M1383-00 BRACKET 2 2
28 KKE-M1384-00 BRACKET, LCD 1
29 KHW-M1385-00 SPACER 8
30 KHW-M1386-00 BUSH 4
31 KHY-M1385-10 STAY, LCD UNIT 1
32 KKE-M138A-00 DAMPER 4
33 90990-28J141 WASHER, PLAIN 8
34 90990-41J132 COLLAR 4
35 90990-37J001 WASHER, BELLEVILLE 8
36 90990-06J001 BOLT, BUTTON HEAD 1
37 91312-04006 BOLT HEX. SOCKET HEAD 1
38 91312-04008 BOLT HEX. SOCKET HEAD 4
39 91312-05010 BOLT HEX. SOCKET HEAD 4
40 91312-05014 BOLT HEX. SOCKET HEAD 4
41 91312-06008 BOLT HEX. SOCKET HEAD 1
42 91312-06020 BOLT HEX. SOCKET HEAD 4
43 92902-04200 WASHER, PLAIN 4
44 92902-05200 WASHER, PLAIN 8
45 92902-06600 WASHER, PLAIN 2
46 90172-00J040 WASHER, EXTL. TOOTHED 4
47 90172-00J050 WASHER, EXTL. TOOTHED 8
48 95602-06100 NUT, U 4
49 $NK-2N NYLON CLIP 5
50 90990-11J001 SCREW, PAN HEAD W/W 5
51 98902-04016 SCREW, BINDING HEAD 4
52
90K41-001420 LABEL, WARNING 2 NG MJ30200-2012/4/20
90K41-001040 LABEL, ALERT 2
53
90K41-001250 LABEL, WARNING 2 NG MJ30200-2012/4/20
90K41-000420 LABEL, ALERT 2
54 KKE-M13D6-00 SEAL 1 (YS24) 1
55
Delete NG MJ30200-2012/4/20
90K41-000360 LABEL, ALERT 2
56 KHY-M13D8-00 STICKER 1
57 KW7-M13D7-01 SEAL 2 (YAMAHA) 1
58 KHY-M13D8-10 STICKER 1
59 KKE-M1309-A0 COVER 9 ASSY. 2
60 KHY-M139D-A0 COVER CAP (10N=0) 1
3
2
Base / Conveyor / CE Cover
Cover
KKE-1103
49
48
49
48
12
8
25
5
1
13
25
3
2
12
9
25
50
50
50
12
25
12
25
50
5
1
9
8
11
26
26
23
23
22
22
27
13
13
7
6
3>47
25
2
50
29
28
27
29
28
30
30
30
30
24
24
24
24
20
20
21
10
10
10
21
25
25
25
25
34
32
33
32
31
44
44
46
46
45
35
35
45
40
46
44
46
44
36
37
36
37
33
34
34
34
34
31
34
STD
STD
FES
FES
OPT
OPT
OPT
OPT
CONVEYOR:1250
CONVEYOR:1250
CONVEYOR:1460
CONVEYOR:1460
15
16
13
25
18
19
17
14
4
12
25
36
37
36
37
44
44
44
46
46
45
39
42
43
38
44
41
42
43
45
46
44
44
OLD
16
18
17
18
19
14
15
12
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHU-M1117-00 PULL 2
2 KKE-M1310-00 COVER 10 2
3
KKE-M132A-00 COVER 10-1 1 MG10113-2010/1/27
KKE-M132A-00 COVER 10-1 2
4
Delete MG60153-2010/8/16
KKE-M1311-00 COVER 11 1
5 KHY-M1312-00 COVER 12 2
6 KKE-M1313-00 COVER 13 1
7
KKE-M132B-01 COVER 13-1 1 Non Serial Plate NG MG10113-2010/1/27
KKE-M132B-00 COVER 13-1 1
8 KHY-M131A-00 BRKT. 1, COVER 12 2
9 KHY-M131B-00 BRKT. 2, COVER 12 2
10 KKE-M130K-00 DAMPER 5
11 KHY-M1164-00 COVER, FAN 1
12 90990-12J004 SCREW, BIN. HEAD W/W 24
13 KH1-M1396-00 WASHER 16
14
KKE-M1311-01 COVER 11 1 NG MG60153-2010/8/16
KKE-M132D-00 COVER 11-1 1
15
KKE-M130E-00 DOOR, COVER 11 1 NG MG60153-2010/8/16
KHY-M130E-00 DOOR, COVER 11 1
16 KGJ-M1350-00 SPACER, MINI LATCH 1
17 KGJ-M1351-01 PLATE, MINI LATCH 1
18 KW3-M1349-00 MINI LATCH 1
19 90990-12J006 SCREW, BIN. HEAD W/W 10
20 KHY-M13F1-01 CE COVER F1 2
21 KHY-M13F2-01 CE COVER F2 2
22 KJJ-M13A3-10 COVER CE C BRKT 2
23 KJJ-M13A3-01 COVER CE C MAIN 2
24 KJJ-M13AB-A0 HOLDER ASSY 4
25 90990-12J001 SCREW, BIN. HEAD W/W 48
26 90990-12J003 SCREW, BIN. HEAD W/W 8
27 91312-06010 BOLT HEX. SOCKET HEAD 4
28 90172-00J060 WASHER, EXTL. TOOTHED 4
29 92902-06200 WASHER, PLAIN 4
30 98907-04008 SCREW, BINDING HEAD 8
31 KHY-M13F3-00 CE COVER F3 2 FES
32 KHY-M13F4-00 CE COVER F4 2 FES
33 KHY-M13F5-00 CE COVER F5 2 FES
34 90990-12J001 SCREW BIN. HEAD W/W 16 FES
35 KKE-M1372-00 COVER 72, CON. 2
36 98902-04008 SCREW BINDING HEAD 10
37 90172-00J040 WASHER, EXTL. TOOTHED 10
38
KKE-M1376-01 COVER, CON. S 1 Compatibility by No.48th Part. NG MH10015-2011/1/14
KKE-M1376-00 COVER, CON. S 1
39 KKE-M1377-00 COVER, CON. UPPER S 1
40
KKE-M1378-01 COVER, CON. L 1 Compatibility by No.48th Part. NG MH10015-2011/1/14
KKE-M1378-00 COVER, CON. L
41 KKE-M1379-00 COVER, CON. UPPER L 1
42 KKE-M137A-00 PLATE, CON. COVER 2
43 90990-12J006 SCREW BIND HEAD W/W 12
44
90990-12J001 SCREW BIND HEAD W/W 8 STD. 1460, OPT. 1460
90990-12J001 SCREW BIND HEAD W/W 12 OPT. 1250
45
KKE-M1371-00 COVER 71, CON. 2 OPT. 1250
KKE-M1371-00 COVER 71, CON. 4 OPT. 1460
46 KKE-M1373-00 COVER 73, CON. 4 OPT. 1250
47 KKE-M132C-00 COVER 14-1 5 For Serial Number Plate MG10113-2010/1/27
48
KKE-M1332-01 BRKT. 32, CON. COVER 2
Compatibility by No.38th and No.40th Parts.
NG MH10015-2011/1/14
KKE-M1332-00 BRKT. 32, CON. COVER 2
49 91312-05008 BOLT HEX. SOCKET HEAD 6
50 90990-12J007 SCREW BIND HEAD W/W 12
1
3

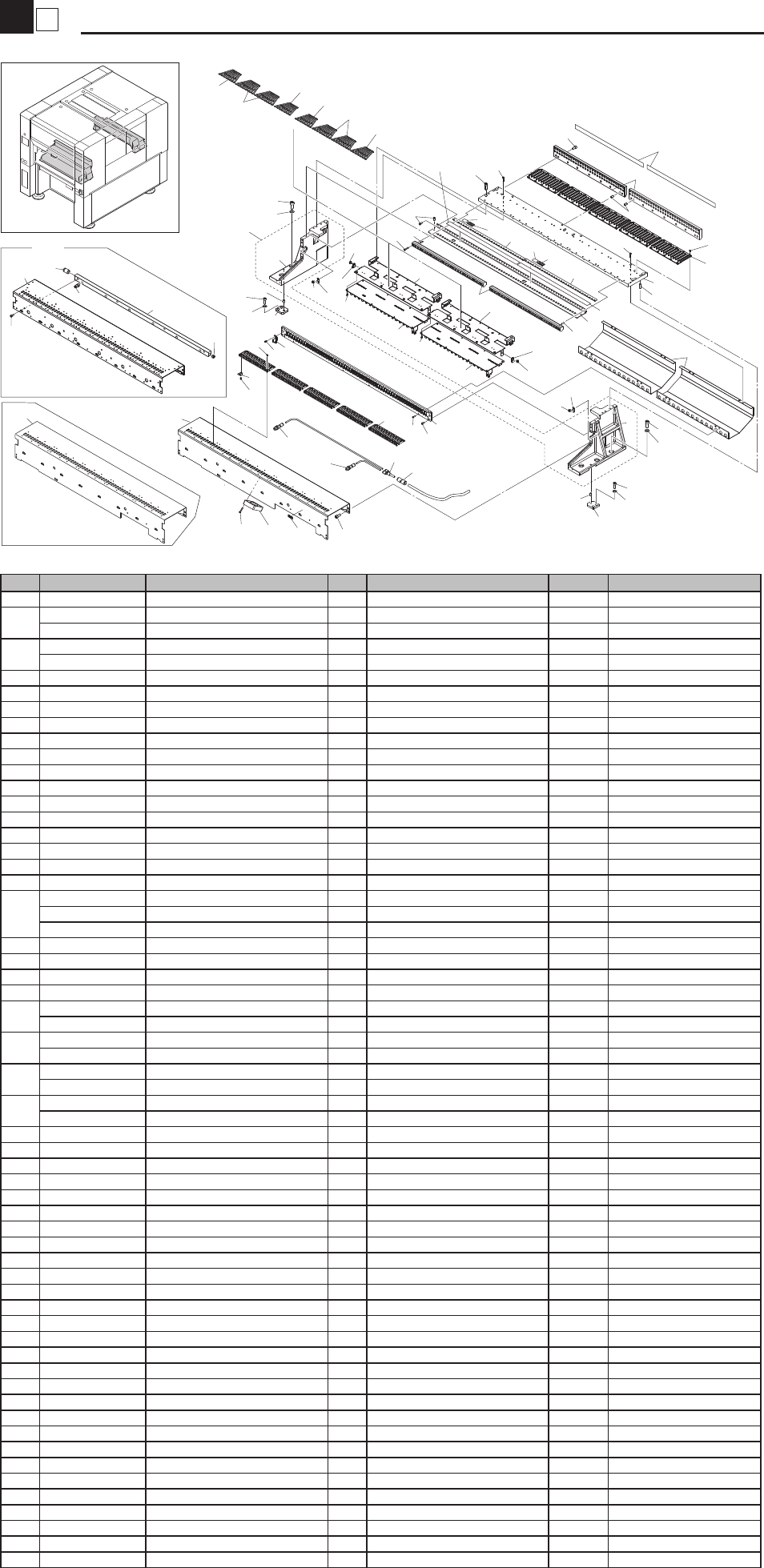

Feeder Holder Fix 60
Feeder Holder
KKE-1108
18
OLD
Fig 2
Fig 1
22
34
5
42
31
4
28,29
37
1
38
40
30
12
14
49
49
47
47
46
31
2
35
44
Front, Rear, the component are the same.
46
6
11
6
7
43
13
13
10
9
19
9
10
8
7
14
32
32
39
46
47
43
15
36
41
8
27
33
45
47
46
31
3
35
44
27
16
17
33
45
20
21
42
37
18
52
52
53
51
54
48
39
28,29
28,29
50
38
23
25
26
24
18
40
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3401-01 PLATE, FEEDER 60 1
2
KHY-M3405-01 STAND 1 1 OK MF00034-2009/11/10
KHY-M3405-00 STAND 1 1
3
KHY-M3406-01 STAND 2 1 OK MF00034-2009/11/10
KHY-M3406-00 STAND 2 1
4 KHY-M340C-01 PLATE, FRONT 2
5 KHY-M371R-00 RAIL GUIDE 12P 5
6 KHY-M340F-00 BRACKET, BOARD 2
7 KHY-M4476-16 FDR.CTRL. BOARD ASSY 2 without pnp Changer
8 KHY-M37E1-00 LIGHT GUIDE 4
9 KHY-M37E1-10 LIGHT GUIDE, L 2
10 KHY-M37E1-20 LIGHT GUIDE, R 2
11 KHY-M340G-00 SHAFT GUIDE 2
12 KHY-M340H-01 PLATE, INDICATOR 1
13 KHY-M349J-40 LABEL, INDICATOR 1
14 KHY-M379K-01 LABEL, LED POSI. 2
15 KHY-M340J-00 PLATE, CONNECTOR 1
16 KHY-M66TE-00 HNS, F.CTRL- FDR. 60
17 KHY-M372M-00 SCREW, STAD 120
18
KHY-M340K-03 BRACKET, MANIFOLD 1 NG MH60104-2011/8/22
KHY-M340K-02 BRACKET, MANIFOLD 1 Fig 2 NG MG30164-2010/4/7
KHY-M340K-01 BRACKET, MANIFOLD 1 Fig 1
19 KHY-M372R-00 GUIDE, FEEDER UNDER 5
20 KHY-M372P-00 SUPPORT, LEVER 60
21 KHY-M372S-01 SPRING, SUPPORT 60
22 KHY-M340N-01 COVER, BOARD 2
23
Delete HO14811-2010/4/7
KHY-M3411-00 MANIFOLD 1
24
Delete HO14811-2010/4/7
K40-M8598-00 PLUG 1 1
25
Delete HO14811-2010/4/7
$TSH8-01 JOINT 1
26
Delete HO14811-2010/4/7
$TSS4-01 JOINT 6
27 KHY-M34J1-00 BLOCK, FEEDER POSI. 2
28 KHY-M3430-10 LABEL, FEEDER 60-12P 1 1-60
29 KHY-M3430-20 LABEL, FEEDER 60-12P 1 101-160
30 99480-06020 PIN, PARALLEL 4
31 99480-06012 PIN, PARALLEL 4
32 99480-04012 PIN, PARALLEL 2
33 91312-08020 BOLT HEX. SOCKET HEAD 6 M8X20
34 91312-06020 BOLT HEX. SOCKET HEAD 4 M6X20
35 91312-06018 BOLT HEX. SOCKET HEAD 4 M6X18
36 91312-06016 BOLT HEX. SOCKET HEAD 4 M6X16
37 91312-06012 BOLT HEX. SOCKET HEAD 18 M6X12
38 91312-04008 BOLT HEX. SOCKET HEAD 12 M4X8
39 91312-03018 BOLT HEX. SOCKET HEAD 32 M3X18
40 91312-03016 BOLT HEX. SOCKET HEAD 12 M3X16
41 91312-03010 BOLT HEX. SOCKET HEAD 4 M3X10
42 98702-03006 SCREW FLAT HEAD 90
43 98902-03006 SCREW BINDING HEAD 16
44 92902-06200 WASHER PLAIN 4
45 92902-08600 WASHER PLAIN 6
46 $NK-3N NYLON CLIP 10
47 90990-11J003 SCREW, PAN HEAD W/W 10
48 KHY-M6187-00 FAN MOTOR ASSY 4
49 KHY-M379L-00 LABEL, LED 2
50 KV8-M3758-00 SEAL (DUMP) 2
51 KHY-M3405-S0 STAND 1/2 SET 1
52 90990-42J047 JOINT 2
53 $UBD6-4 JOINT 1
54 $USD8-6 JOINT 1
